Architectus Bridges Campus and Hospital with a 15-Storey Health Translation Hub in Sydney

The idea of translational research, moving discoveries from the laboratory bench to the patient bedside as fast as possible, has been a buzzword in healthcare for two decades. Rarely does a building make that ambition physically legible. Architectus's UNSW Health Translation Hub in Randwick, Sydney, completed in 2026, does exactly that: a 15-storey, 35,600 square metre tower planted at the intersection of High and Botany Streets, where UNSW's Kensington Campus meets the Randwick Health and Innovation Precinct. Two pedestrian bridges extend from the building, one west to the Wallace Wurth Building, one east to Sydney Children's Hospital and the Minderoo Children's Comprehensive Cancer Centre. The Hub is not a metaphor for connection. It is the connection.

What makes the project genuinely interesting is the way its architecture orchestrates that mission across scale. At the urban level, a permeable ground plane and 2,500 square metres of north-facing public open space stitch the precinct together for pedestrians, cyclists, and the community. Inside, a multi-level atrium acts as the social spine, drawing clinicians, researchers, and students past one another on sweeping stairs and generous circulation zones. Above the podium, flexible floorplates alternate between education spaces, workplaces, and dry research labs. The feedback loop between disciplines is spatial, not just organizational. The $600 million project, part of a broader $1.5 billion campus redevelopment, sets a high bar for what a healthcare research building can accomplish as urban infrastructure.

A Facade That Works for Its Living

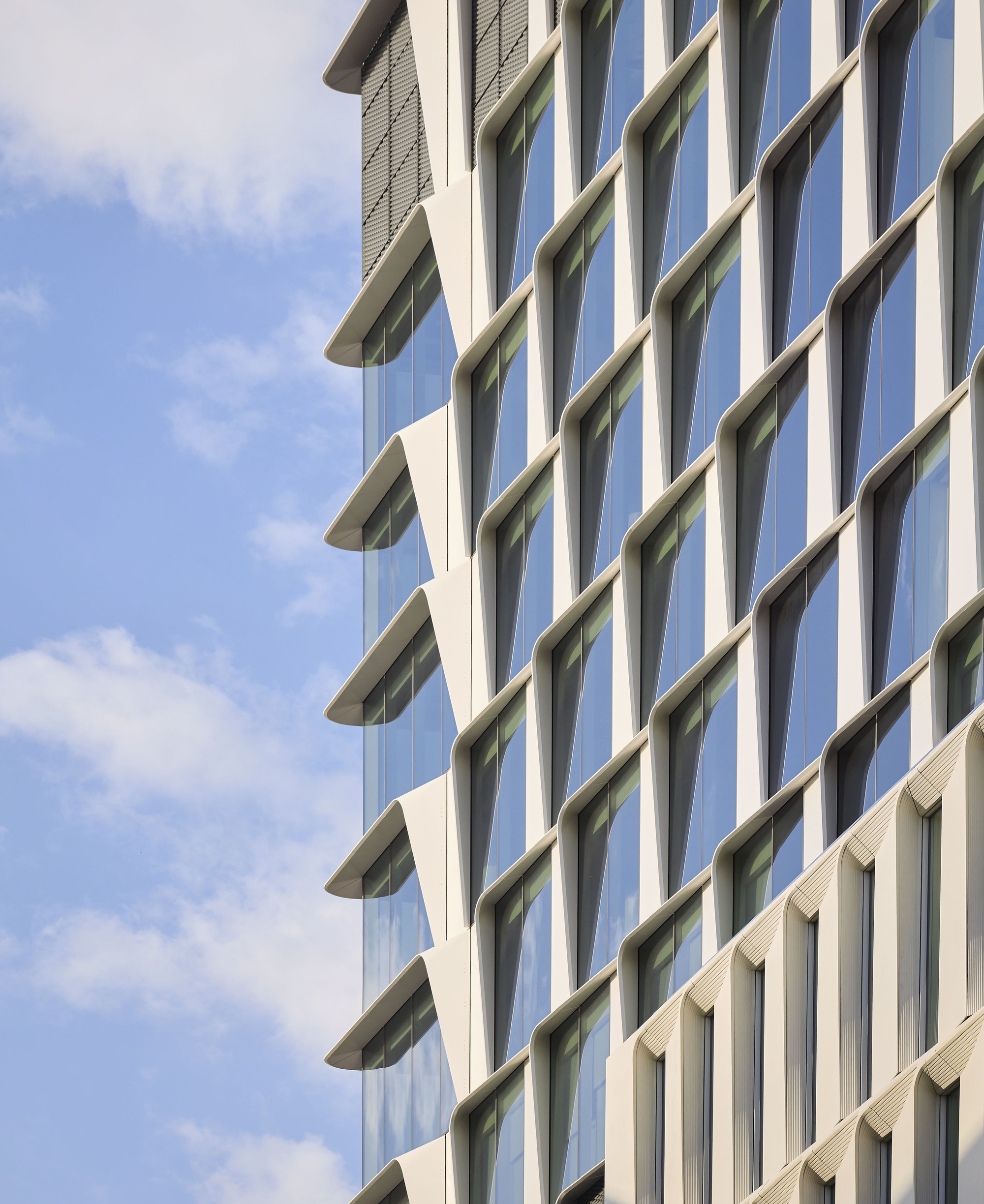

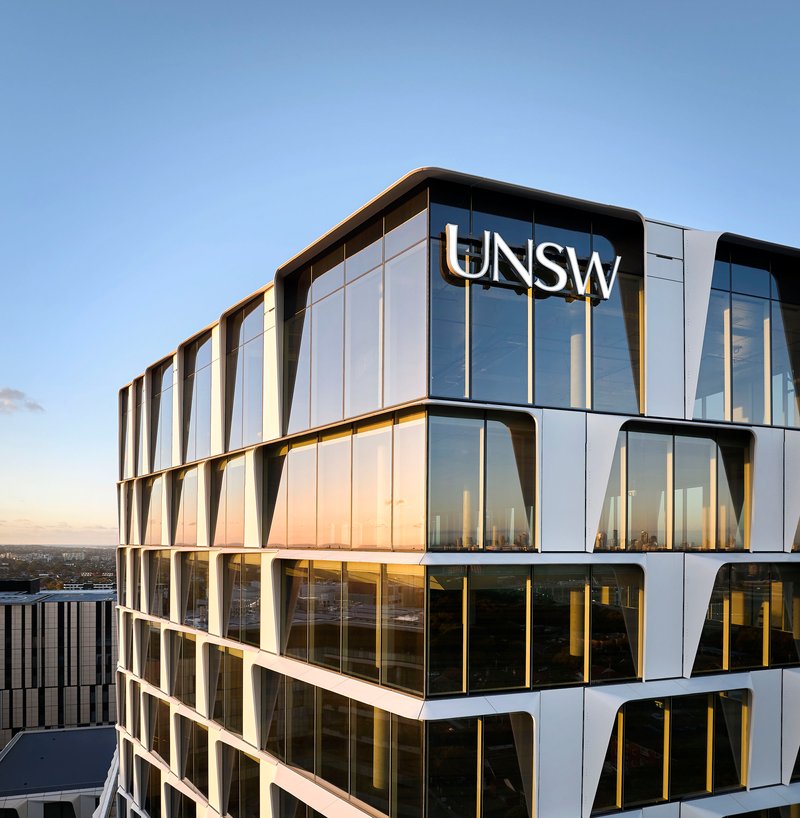

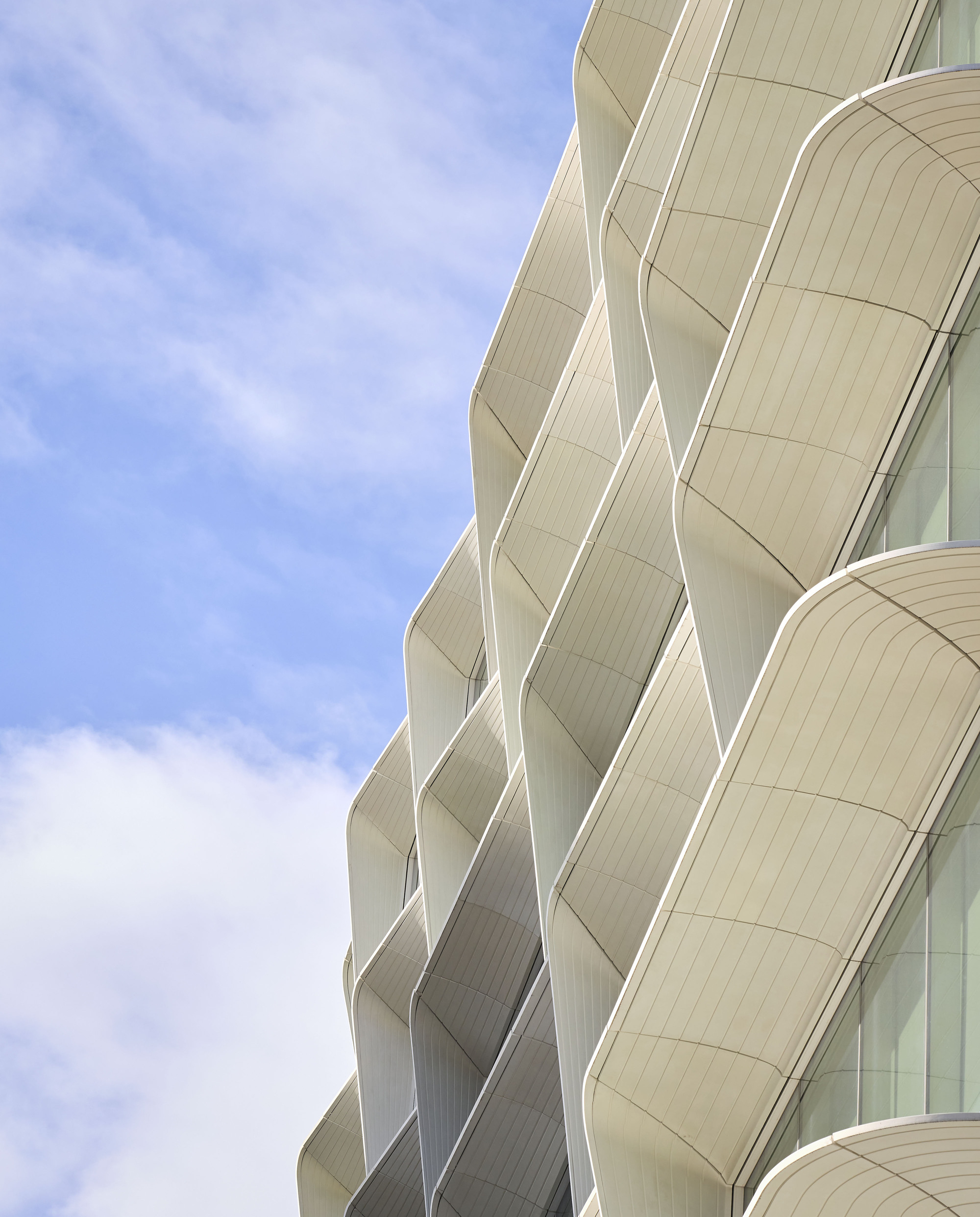

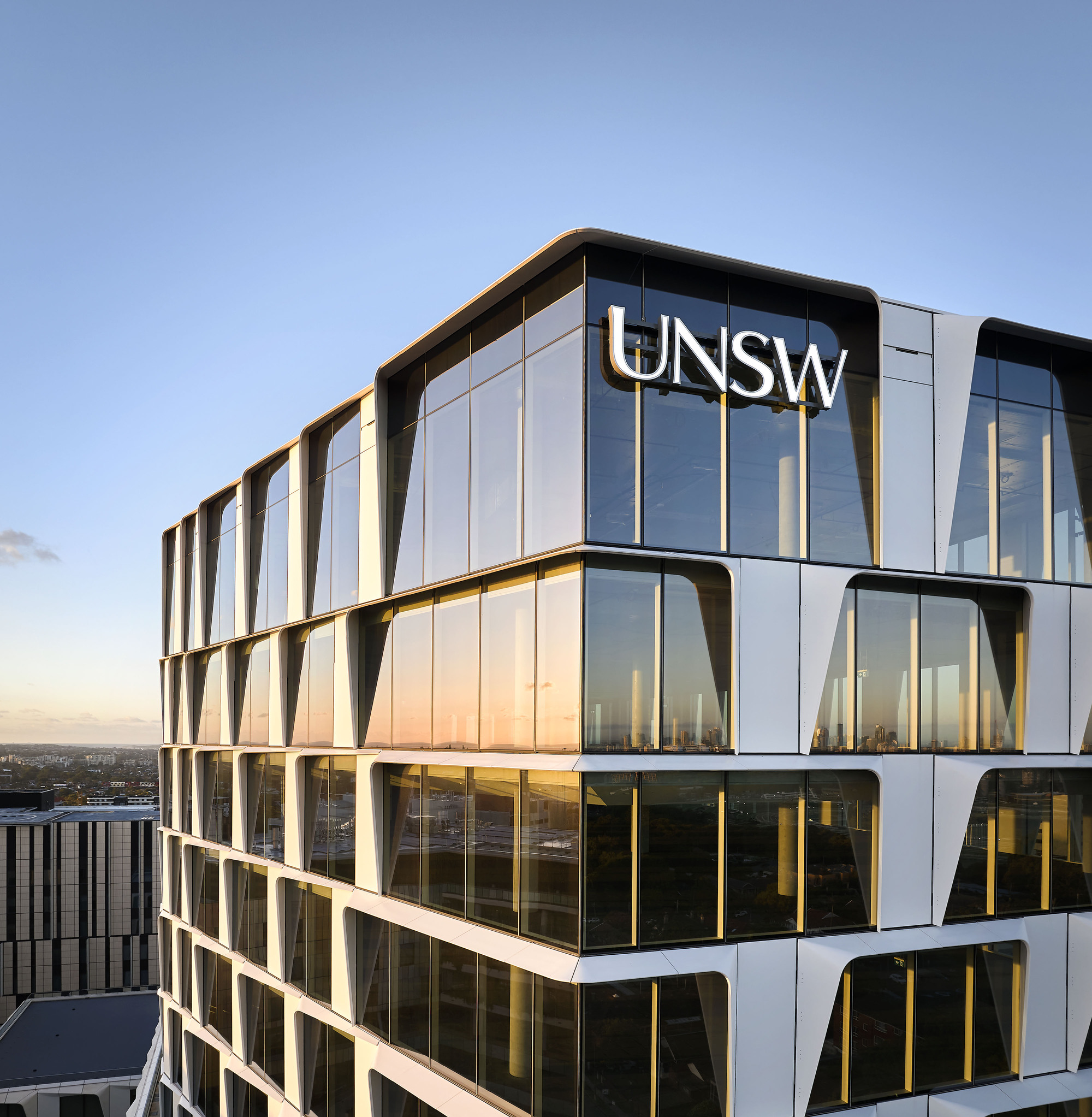

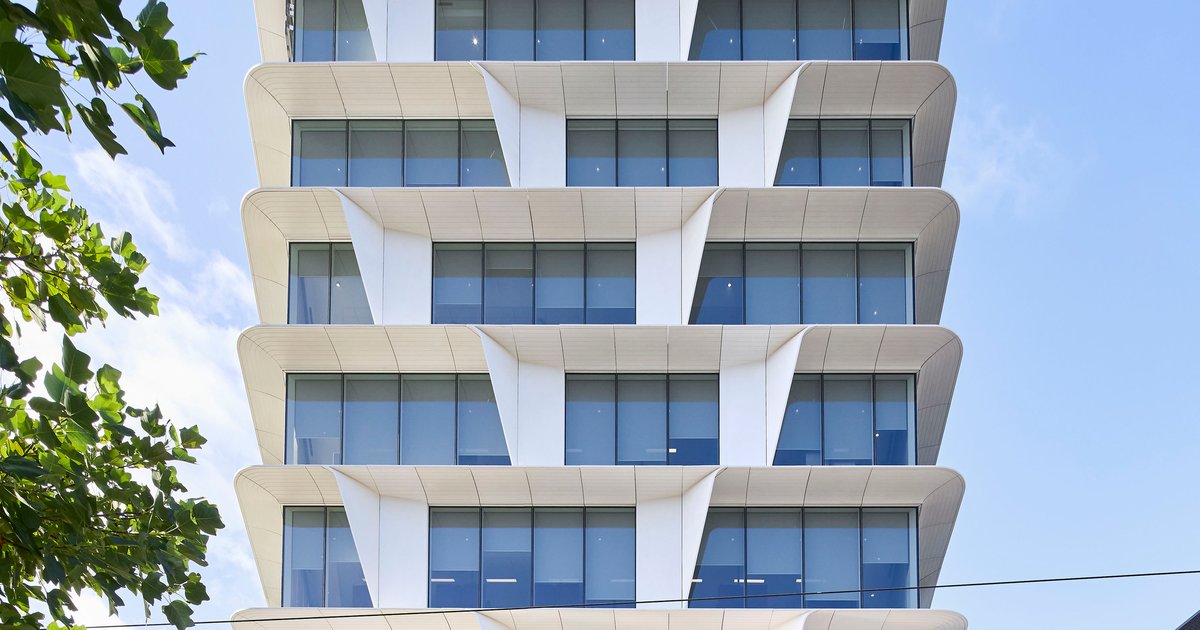

The tower's exterior is composed of a layered system: glass-reinforced concrete panels, curved aluminium sunshades, and high-performance glazing, all tuned to orientation. The result is a facade that reduces solar radiation by 60 percent while maximizing natural light and thermal comfort. Responsibly sourced aluminium wraps the projecting hoods and ribbed cladding panels, giving the building a restrained, almost textile quality up close. Gold-toned vertical fins catch the sunset and add warmth to what could otherwise read as clinical white.

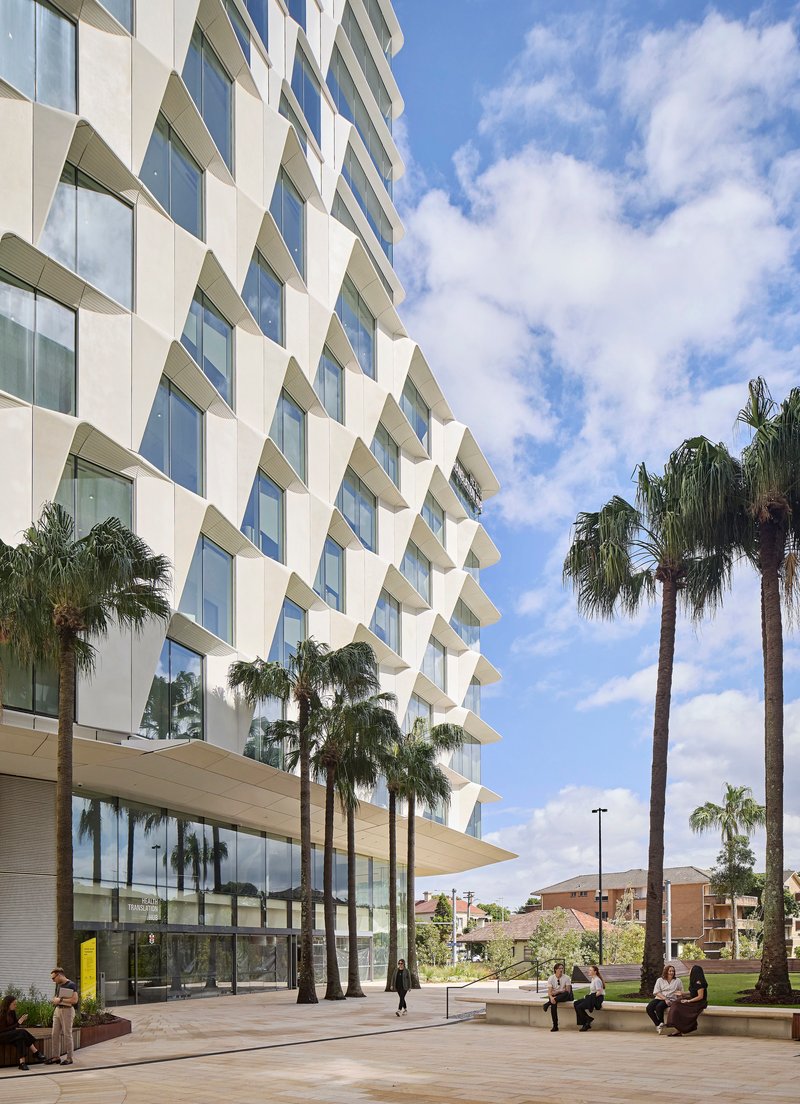

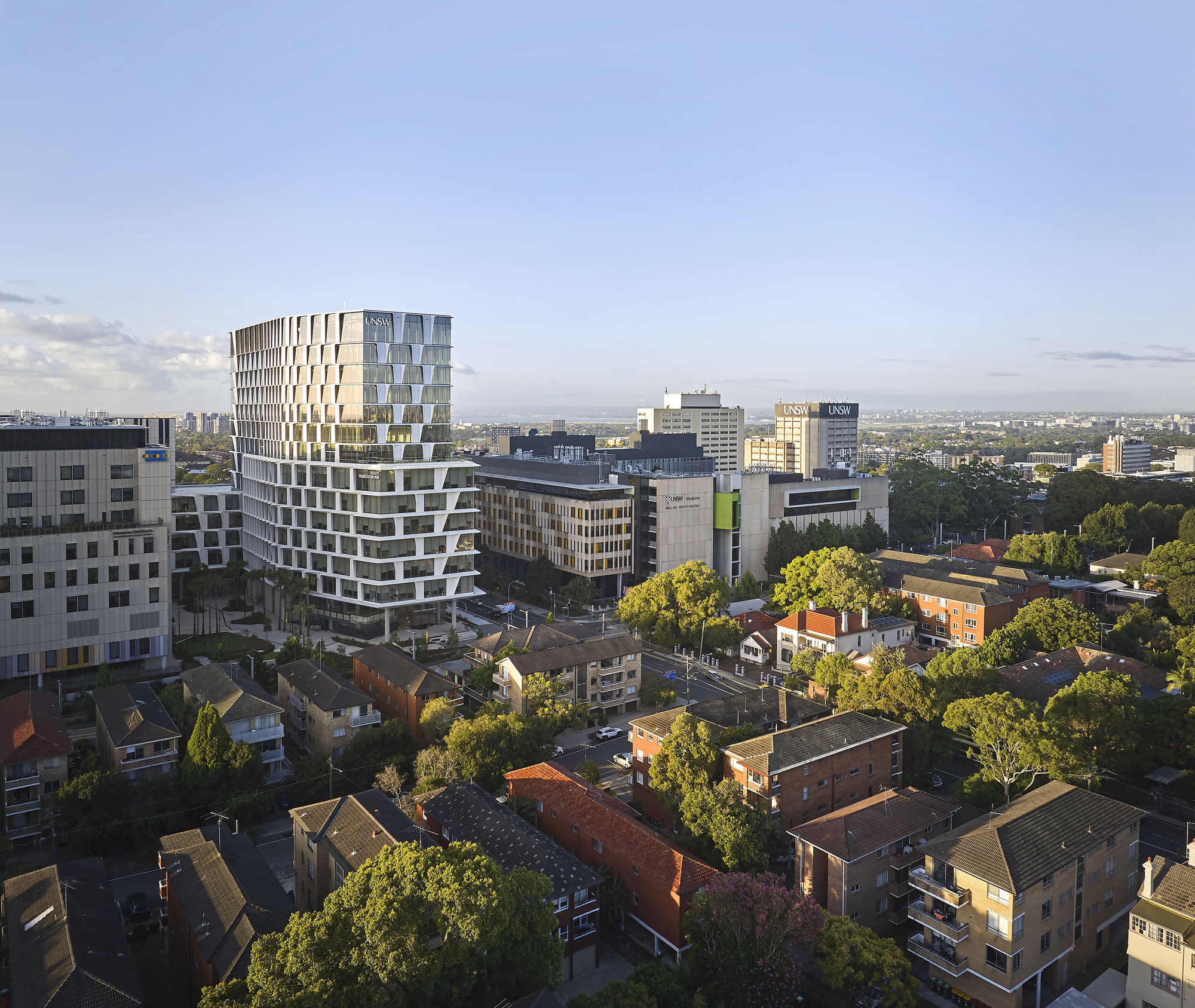

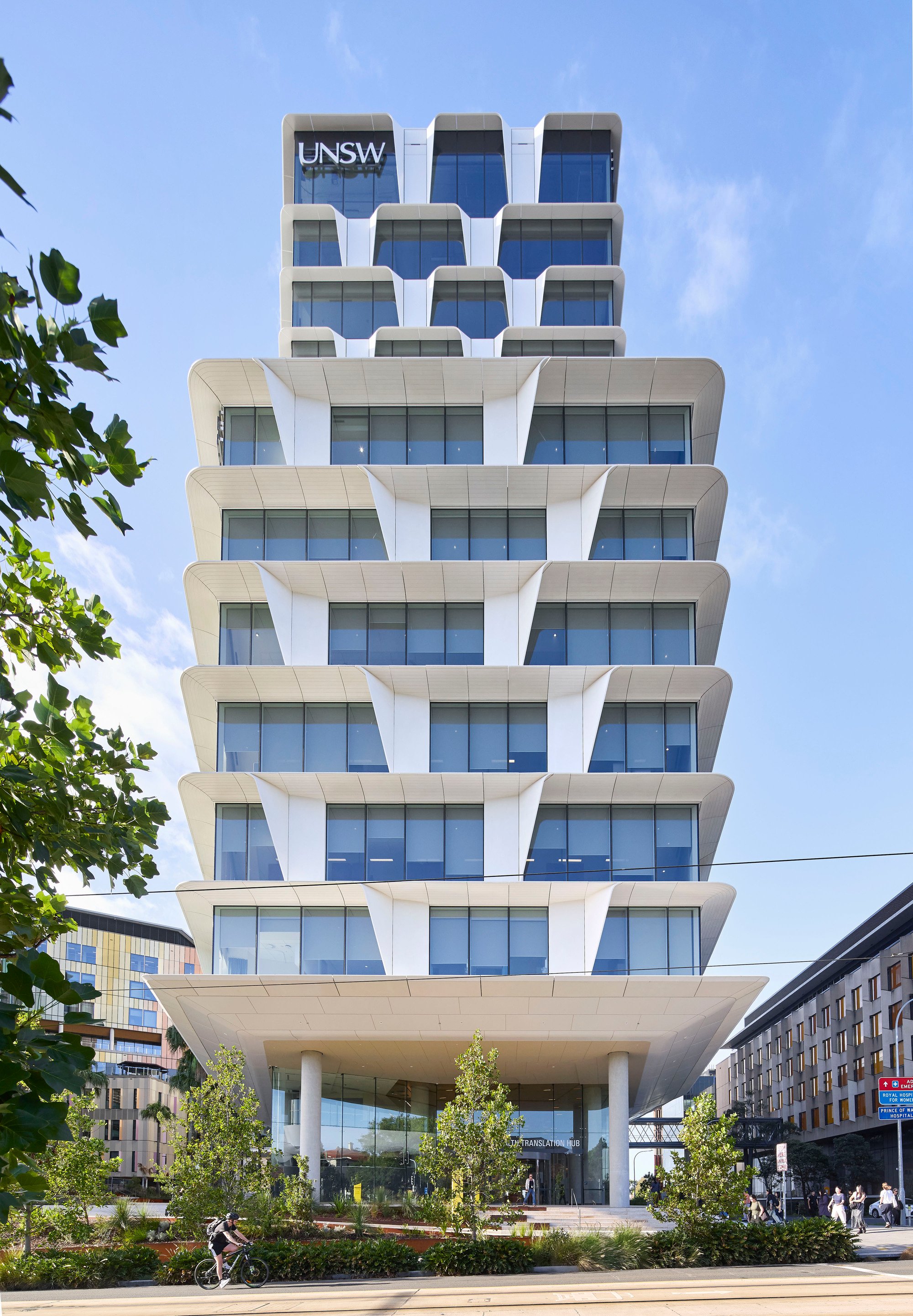

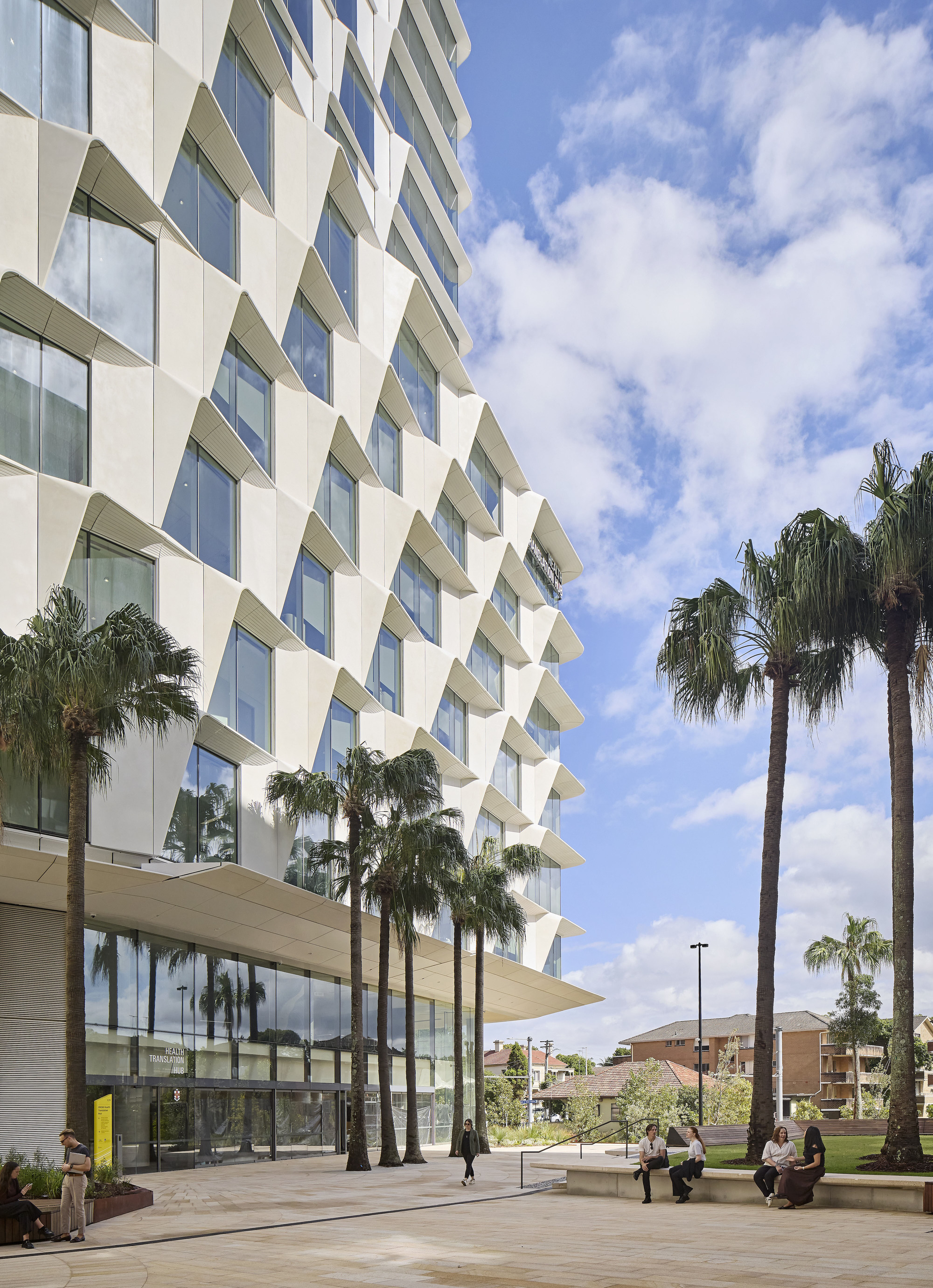

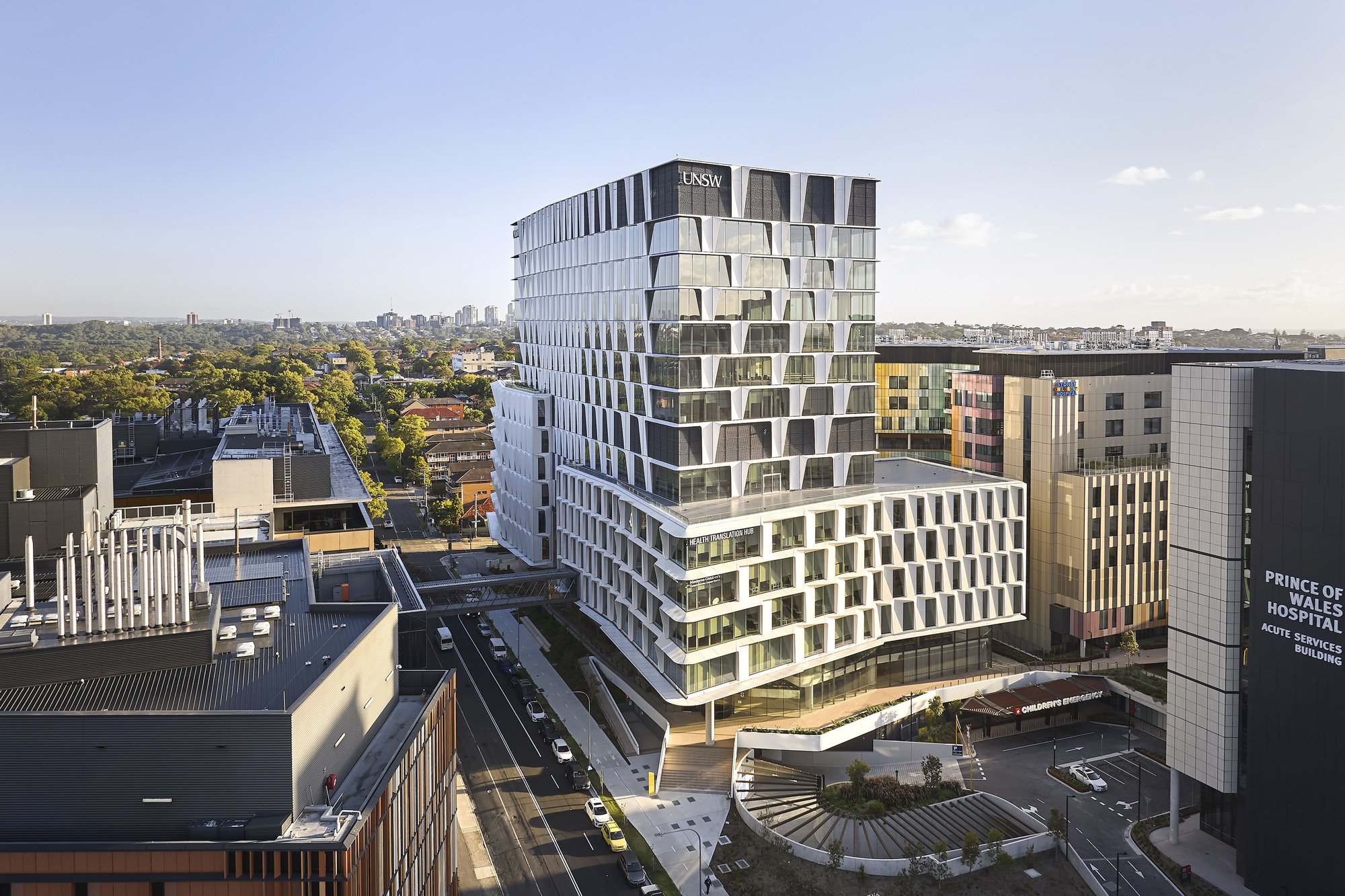

From a distance, the stacked offset floor plates create a sawtooth profile that keeps the tower from feeling monolithic. Deep cantilevered balconies break the mass, and the alternating rhythm of solid and void gives each level a distinct identity. It is a facade that performs environmentally and urbanistically at the same time, which is harder to pull off than it sounds.

Urban Presence at the Street Corner

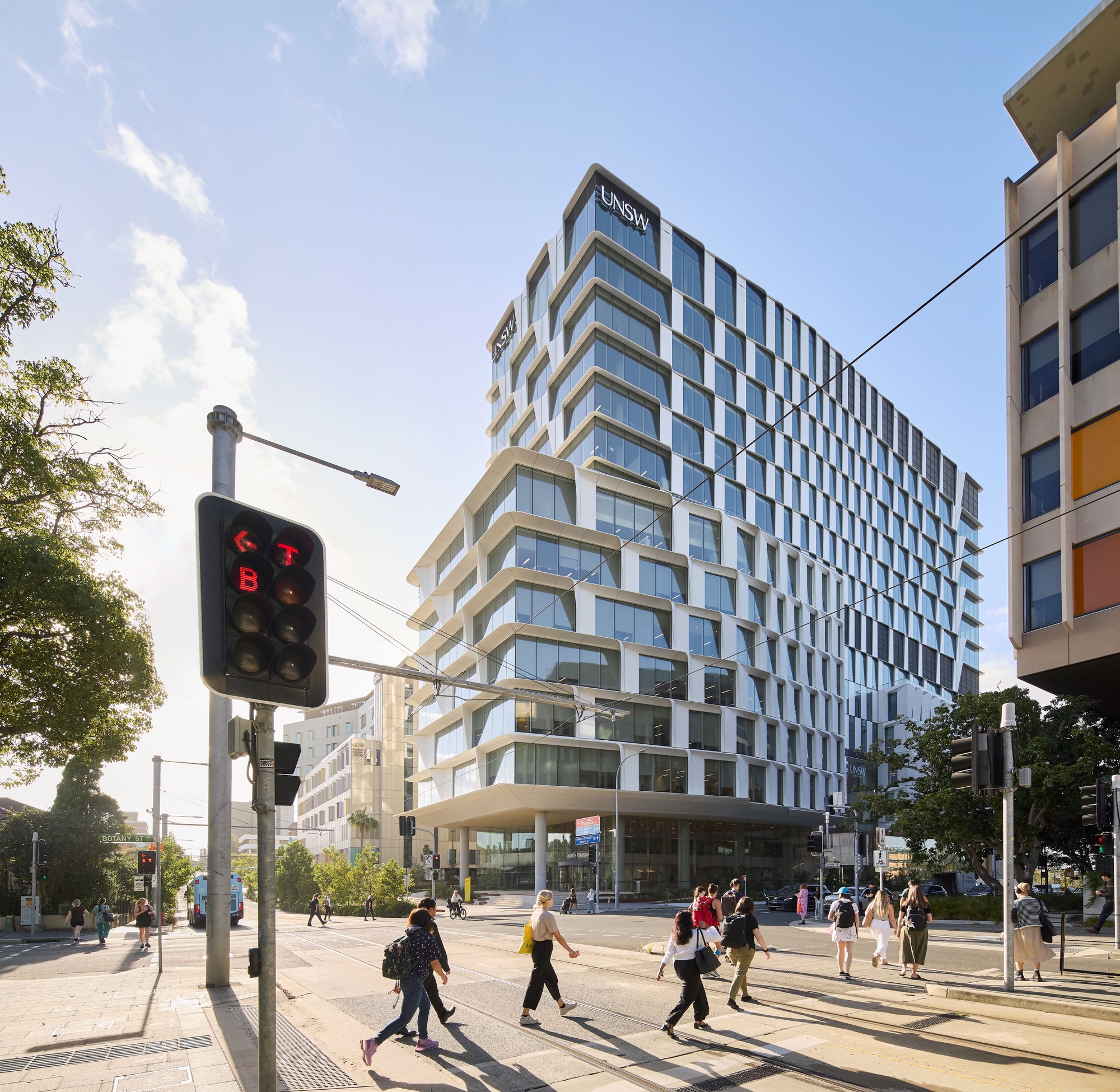

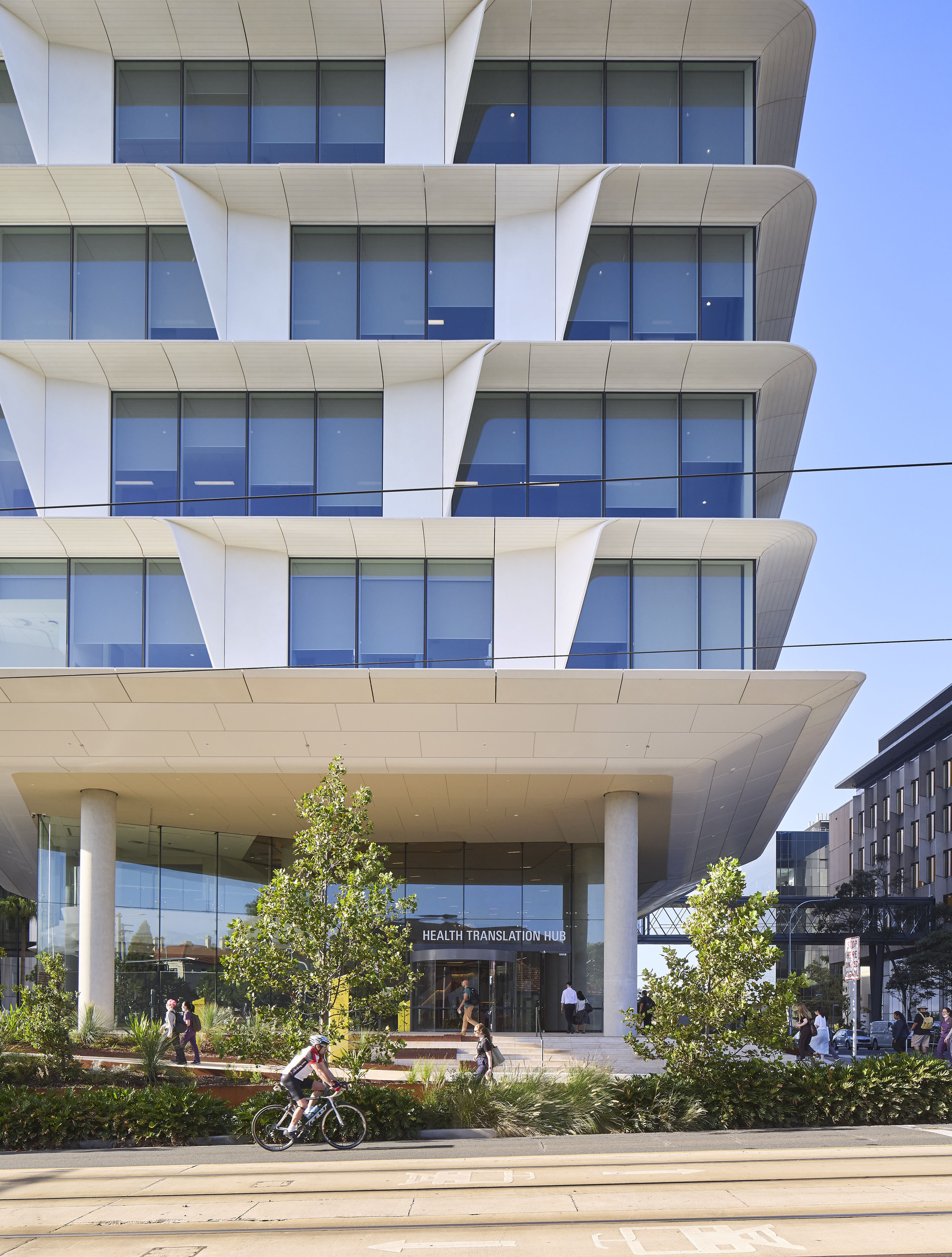

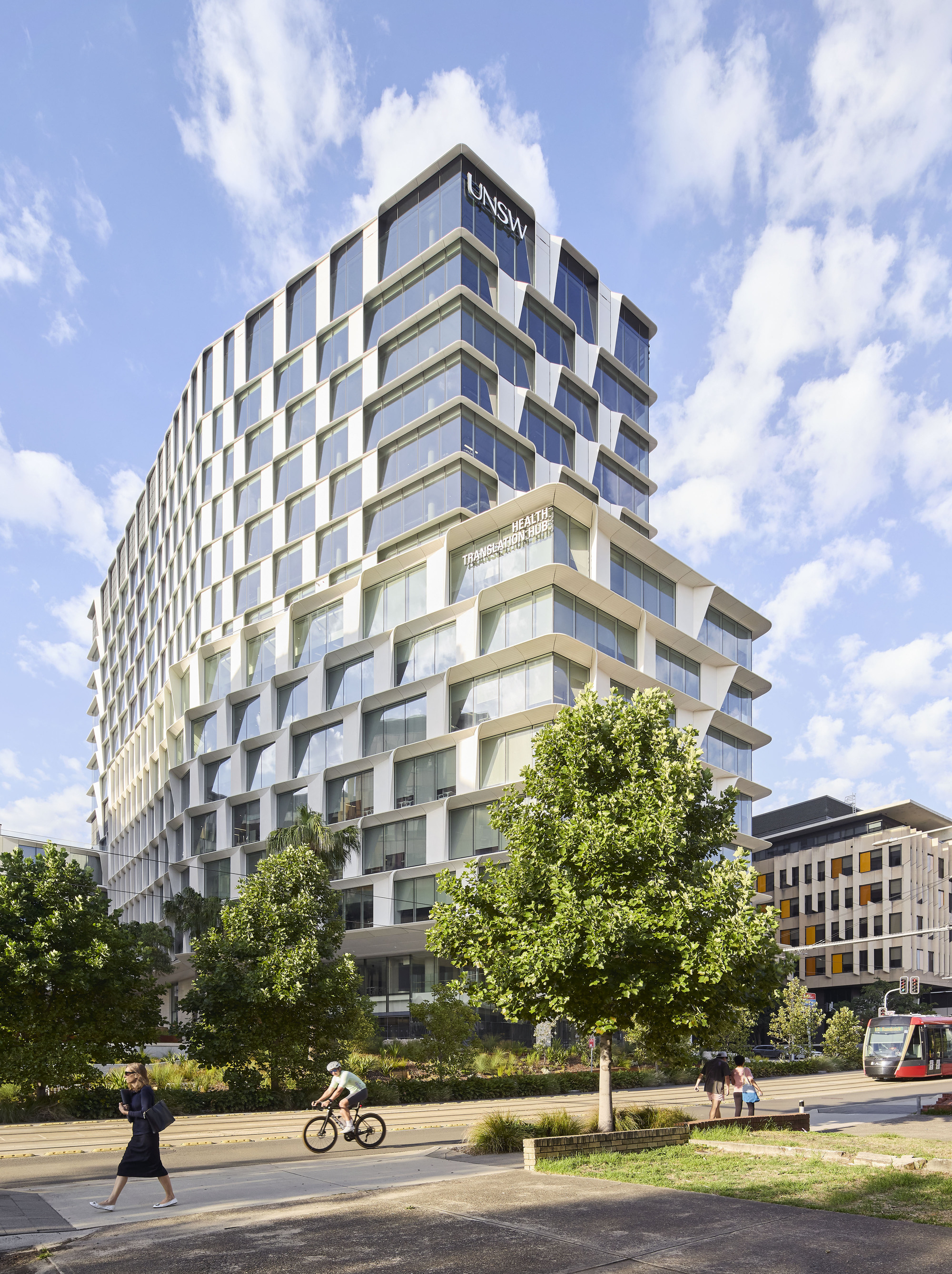

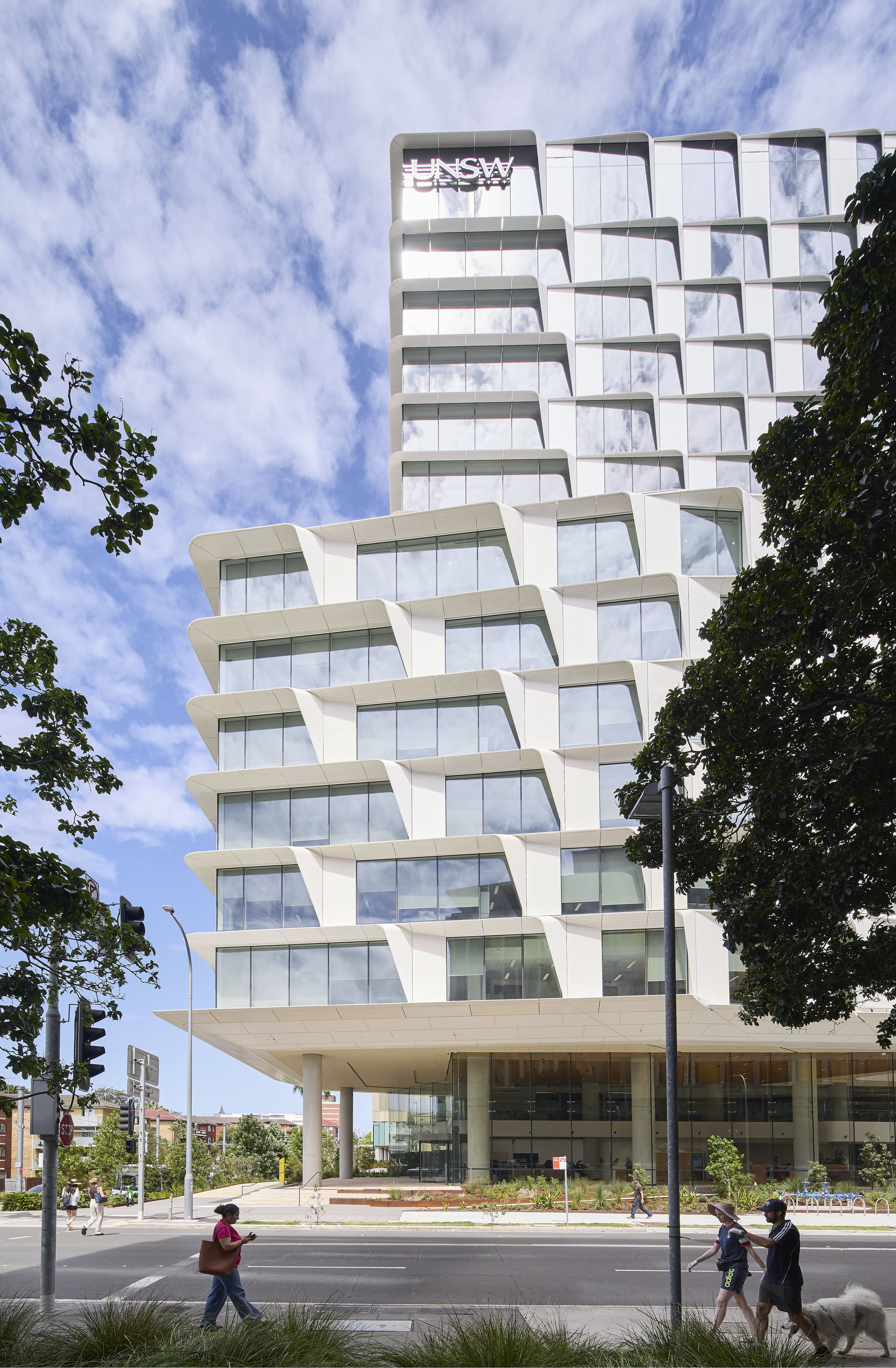

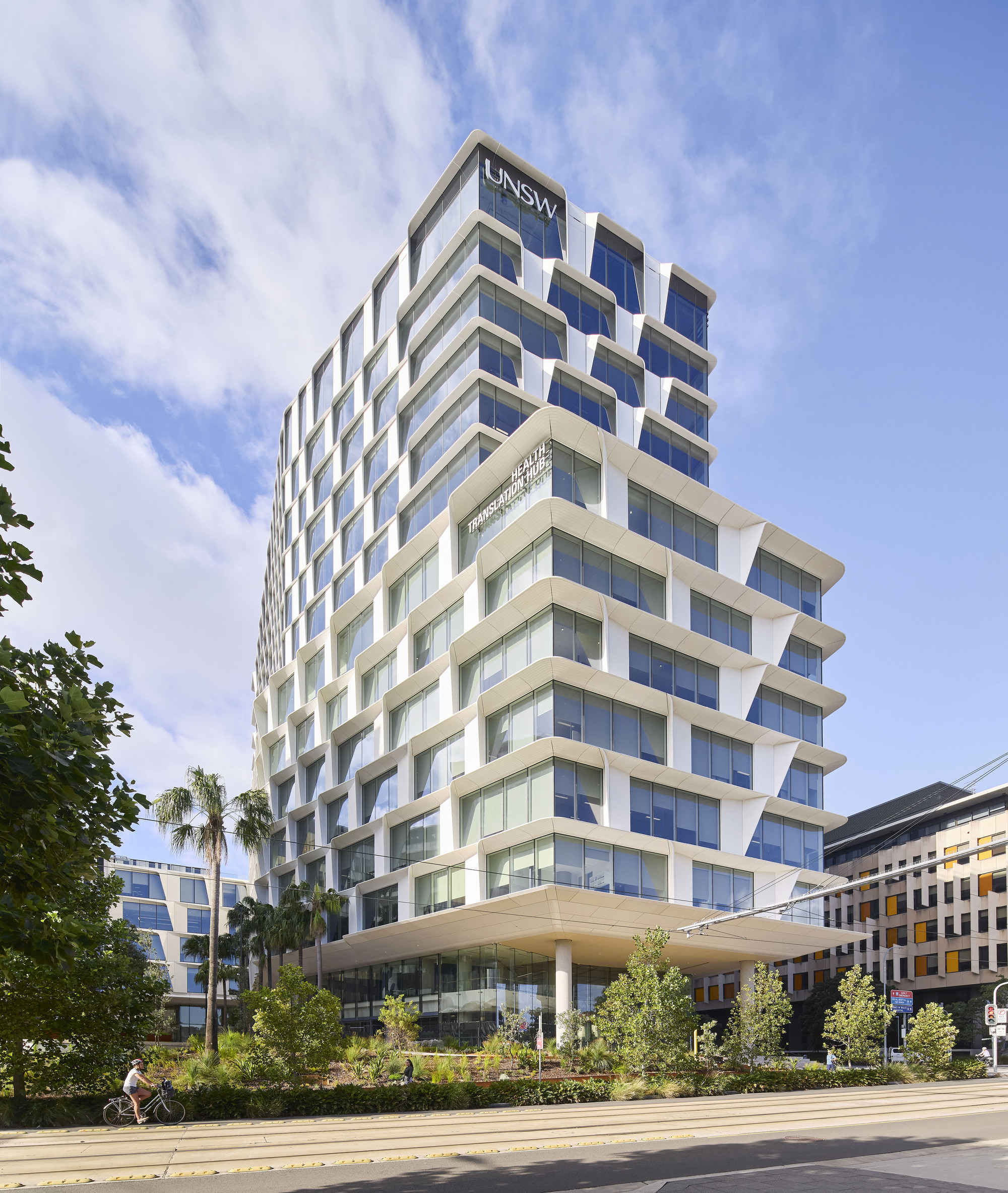

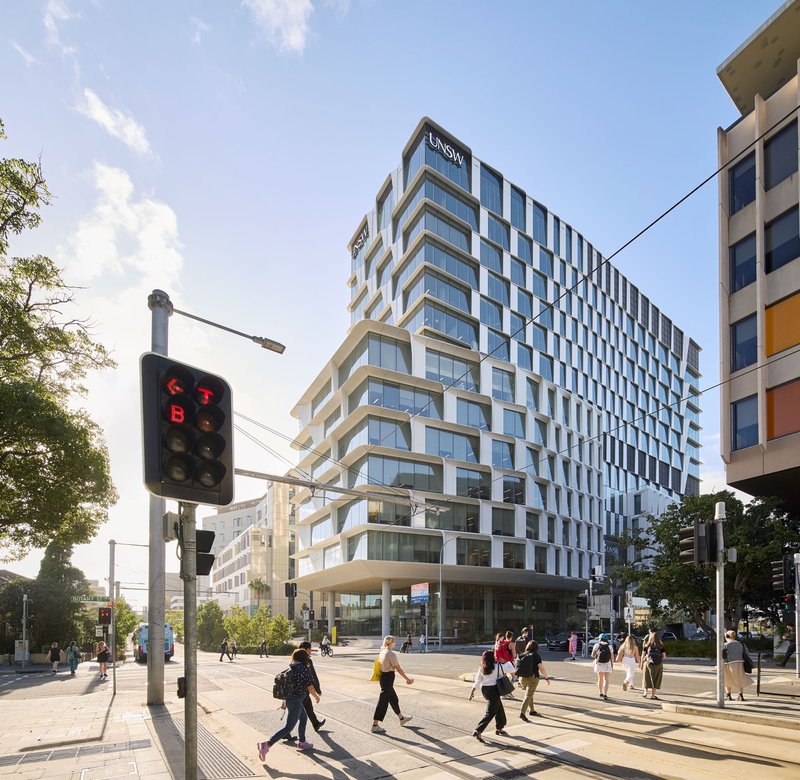

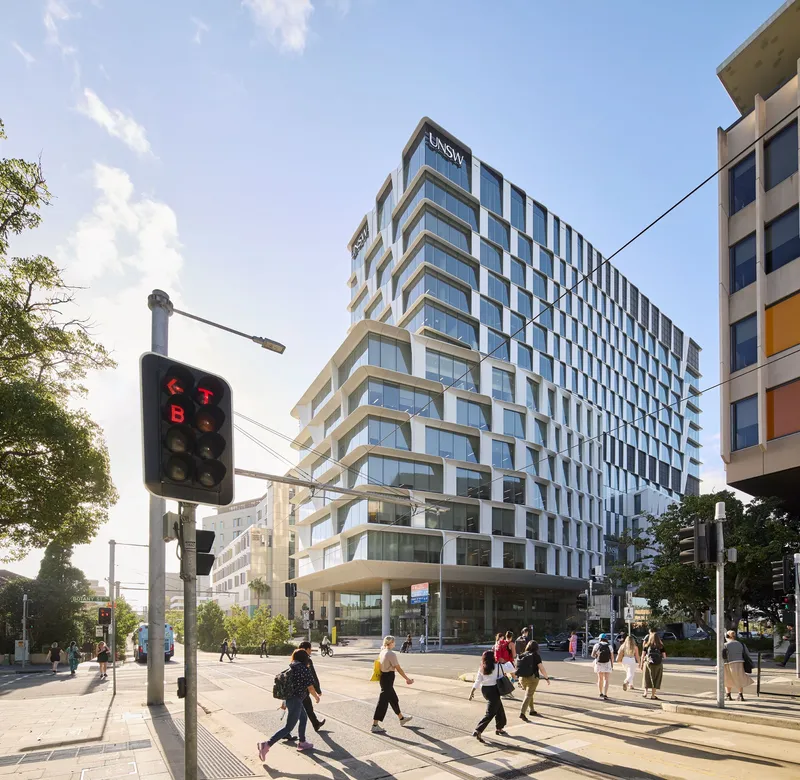

Randwick is not a district of towers. The Hub rises above a low-rise residential neighborhood, and its relationship with the street had to be handled carefully. The podium meets the ground with planted beds, palm trees, and a generous public plaza that avoids the blank-wall syndrome common to institutional buildings. Cyclists and pedestrians pass comfortably at grade, and the cantilevered upper volumes pull back enough to keep the streetscape from feeling overshadowed.

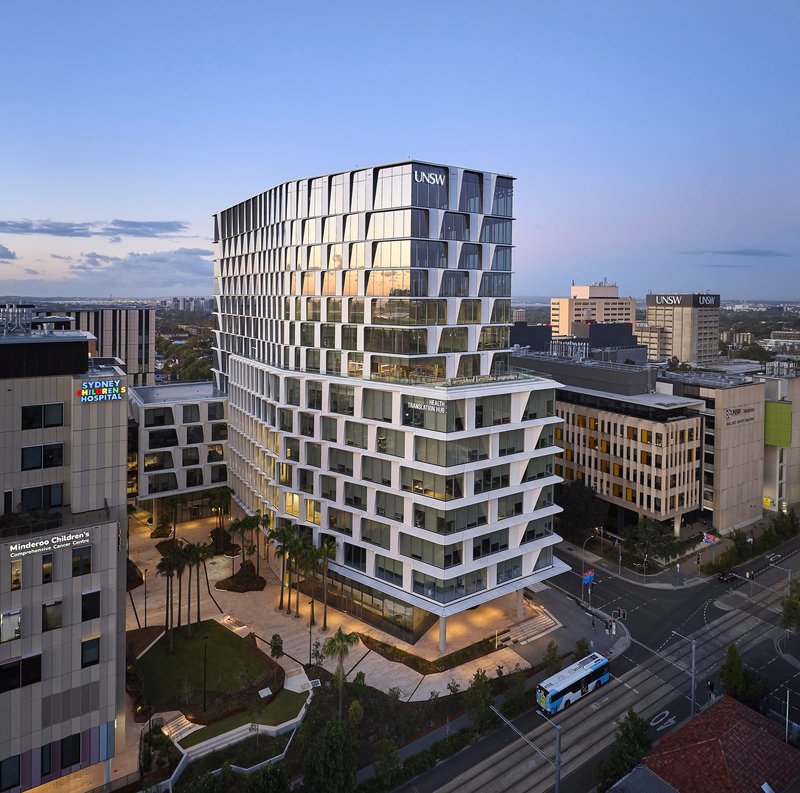

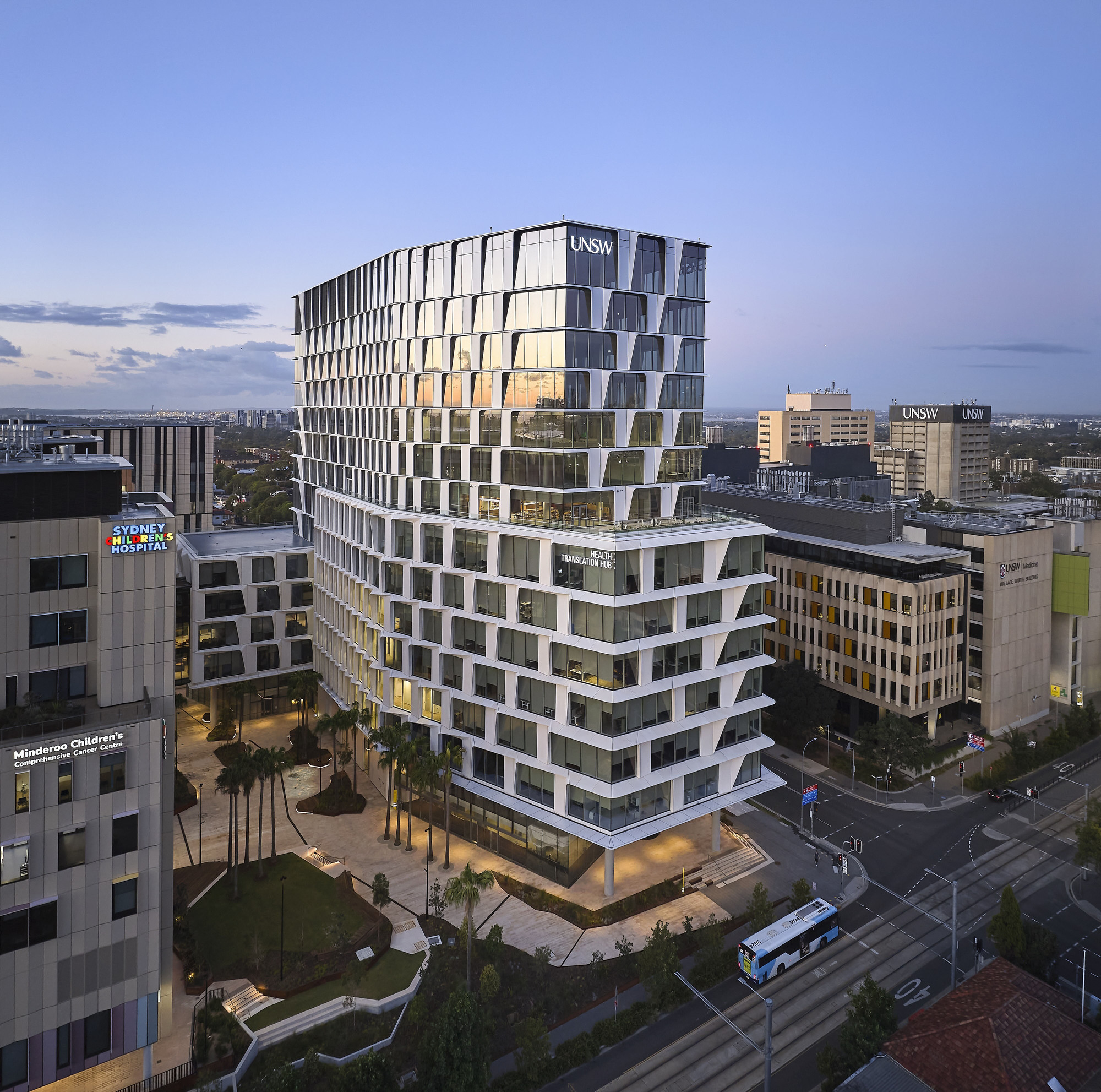

At dusk, the building transforms. The glazed podium glows, and the stacked volumes read as distinct lanterns rather than a single slab. The street corner activation is convincing: this is a building that belongs to the precinct, not just to the university.

The Atrium as Social Engine

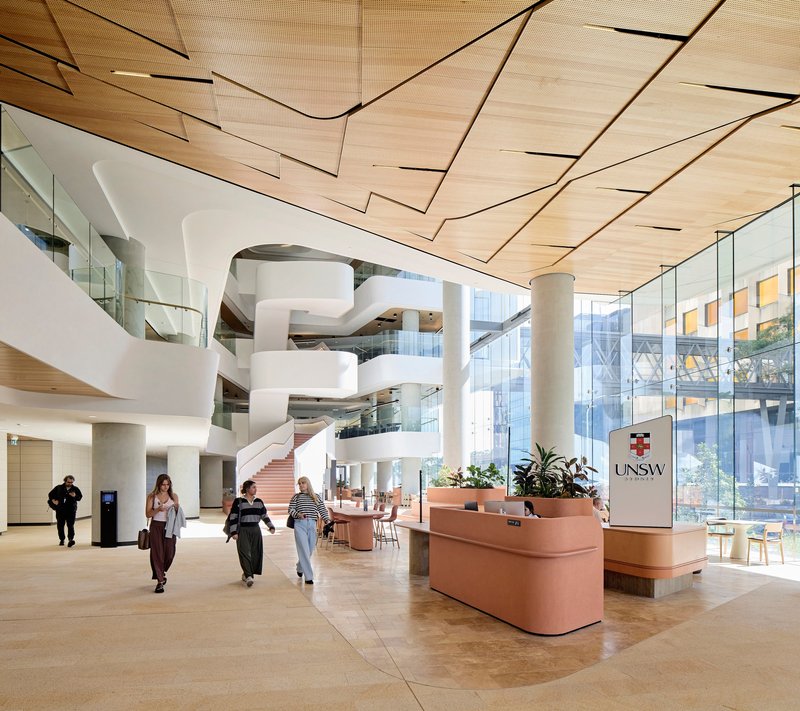

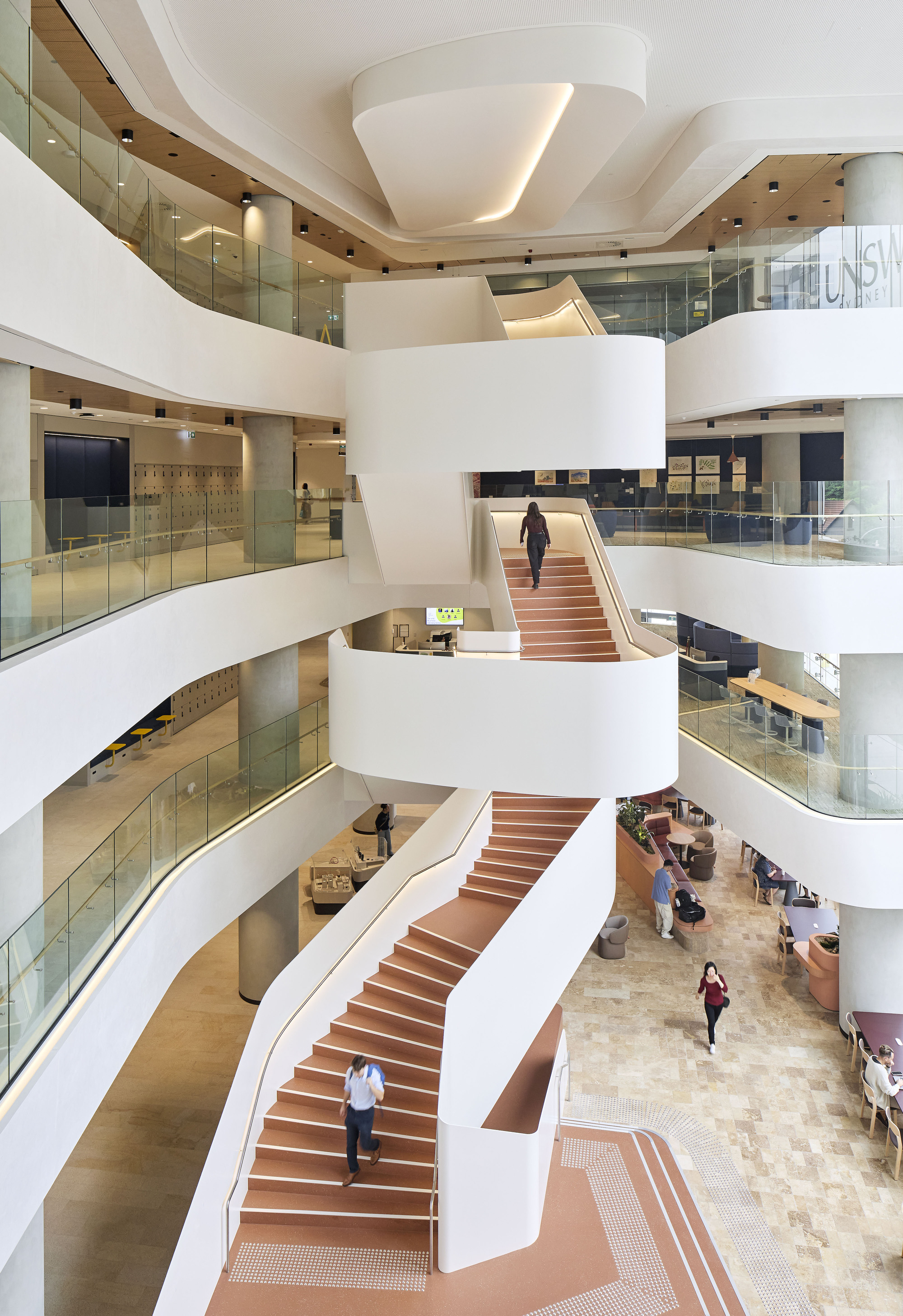

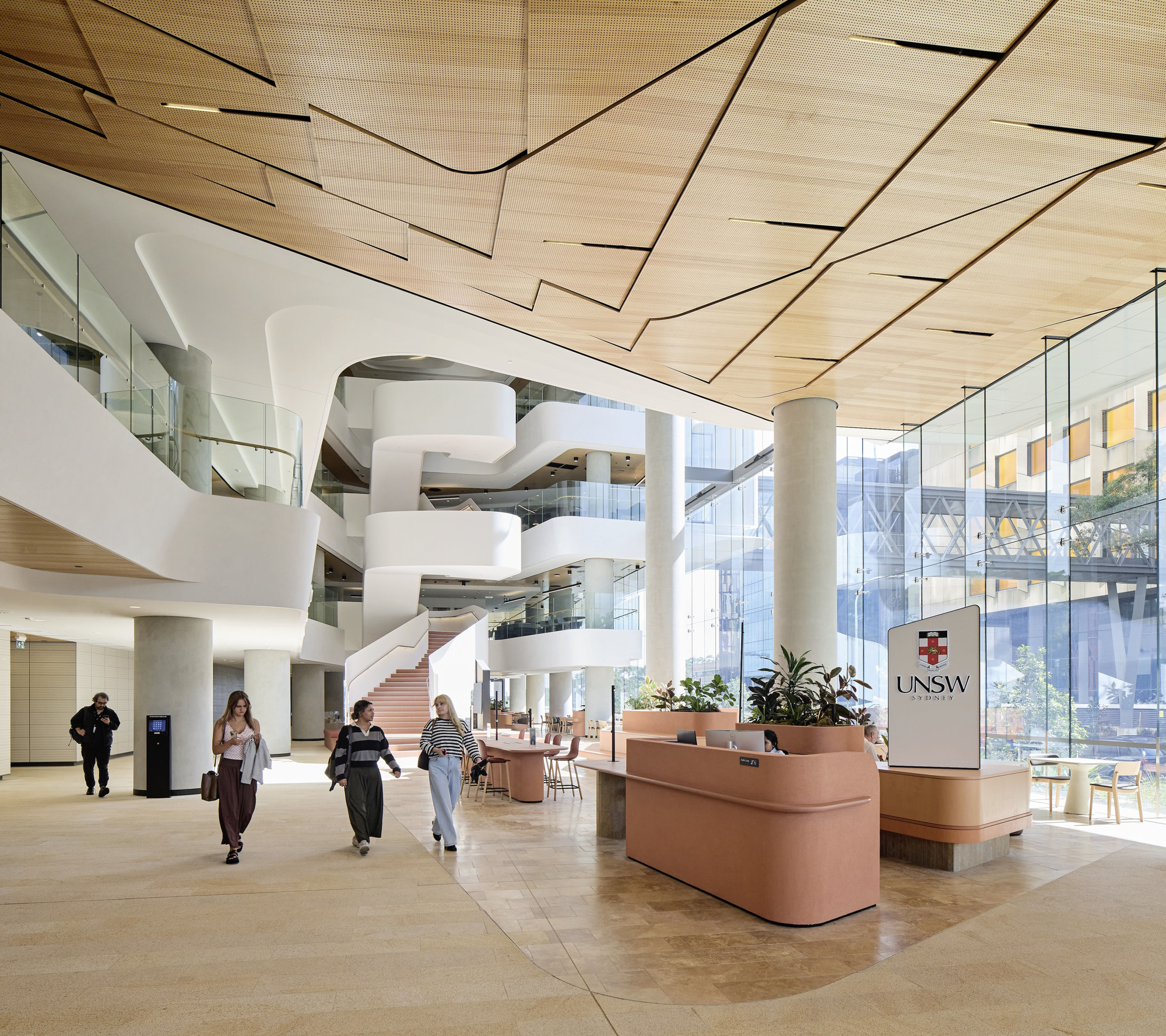

The multi-level atrium is the building's defining interior gesture. Four podium levels are linked by a sweeping stair with pink terrazzo treads and timber-clad soffits, creating a space that feels generous without being wasteful. Curved white balconies stack overhead, and the timber ceiling planes give warmth to what is otherwise a predominantly white palette. Students, clinicians, and researchers share this volume throughout the day, and the sight lines between levels are intentional: you see who else is in the building, and the effect is one of ambient collegiality.

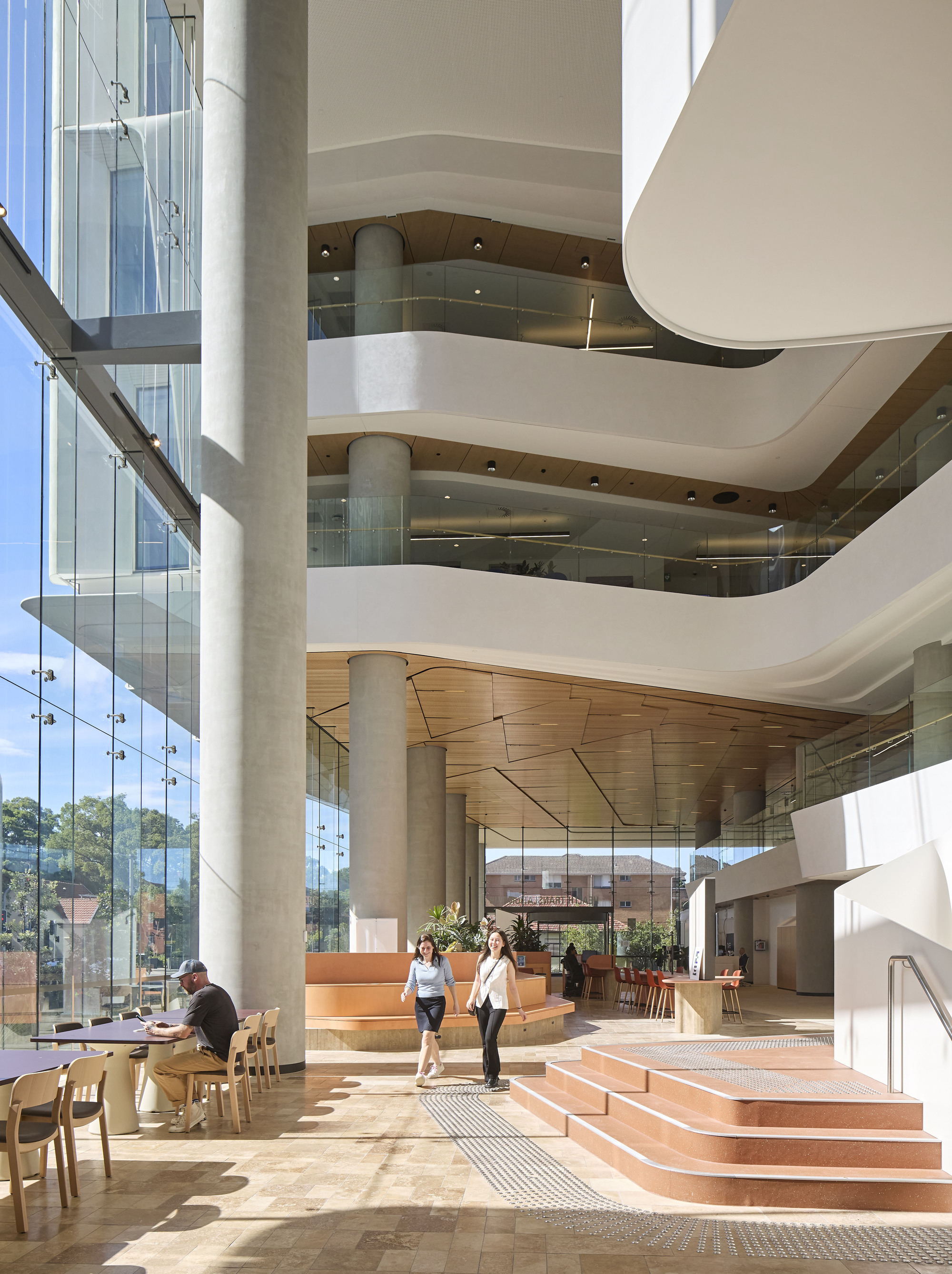

Terracotta-toned stepped seating on the lower levels doubles as informal gathering space, reinforcing the atrium's role as a social heart rather than a mere circulation void. The design draws on the project's engagement with Country, weaving color, warmth, and greenery into texturally rich spaces. Yerrabingin and Aspect Studios contributed to the landscape and Indigenous design narratives that run through the project.

Interiors Built for Collision

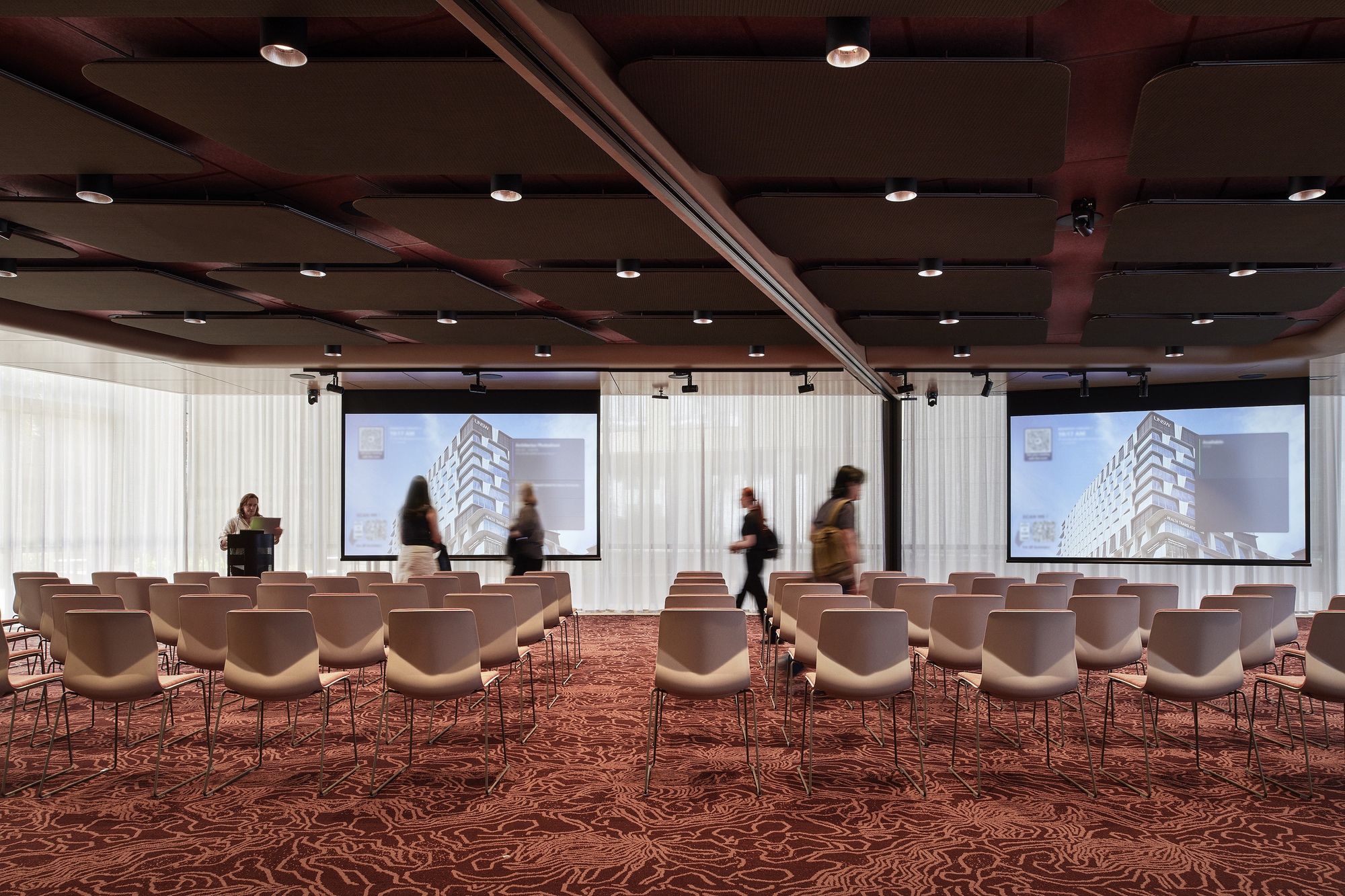

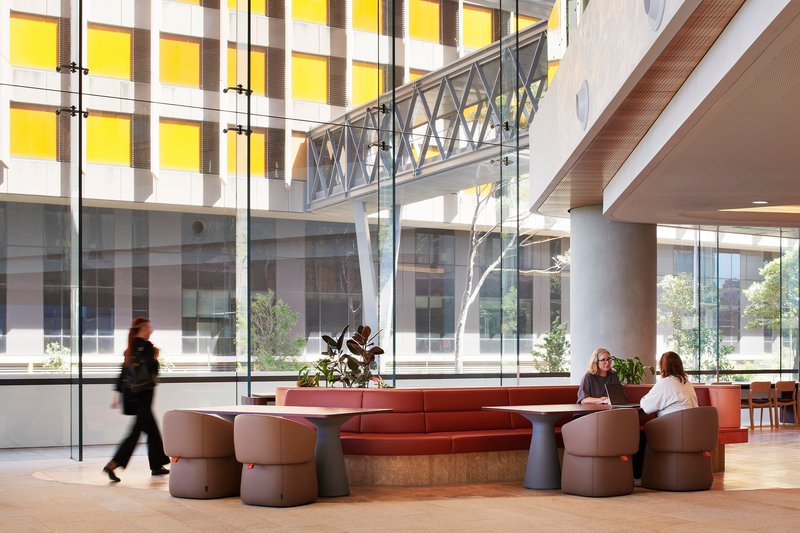

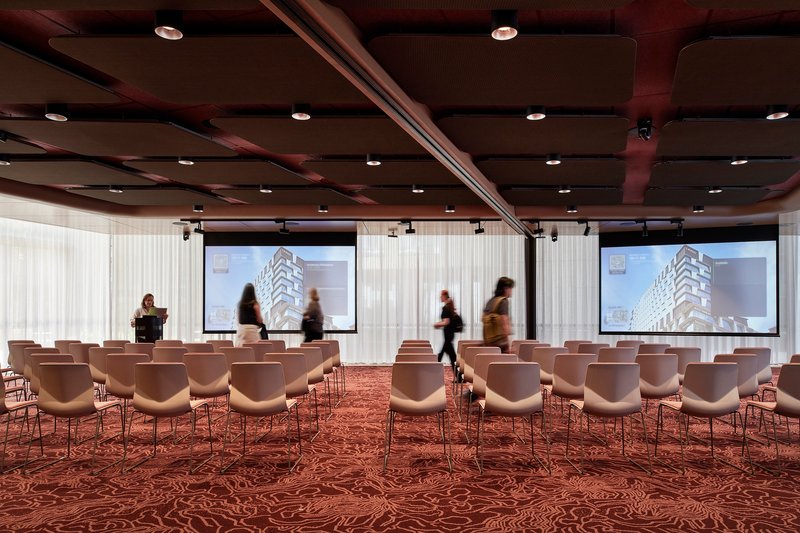

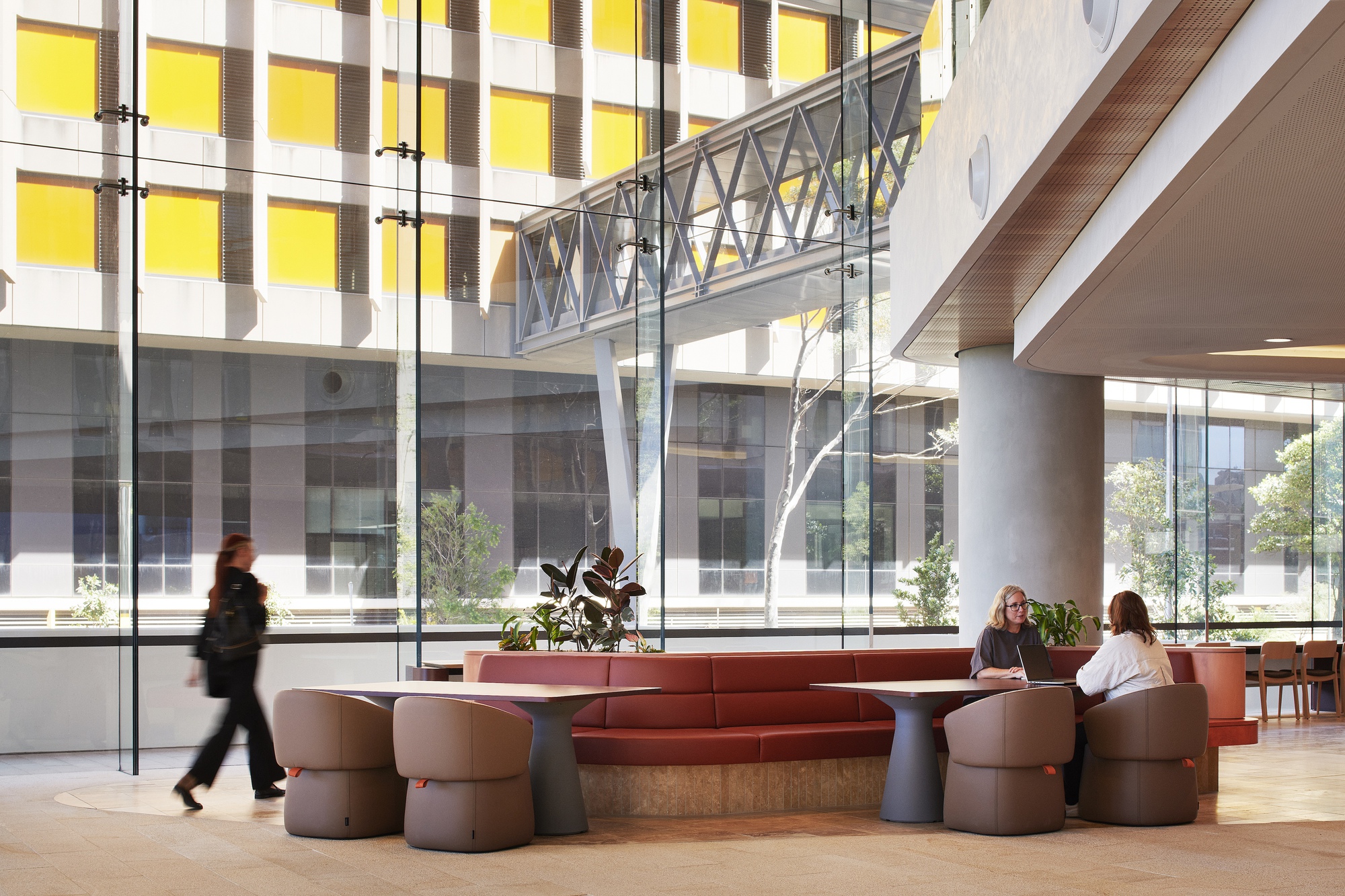

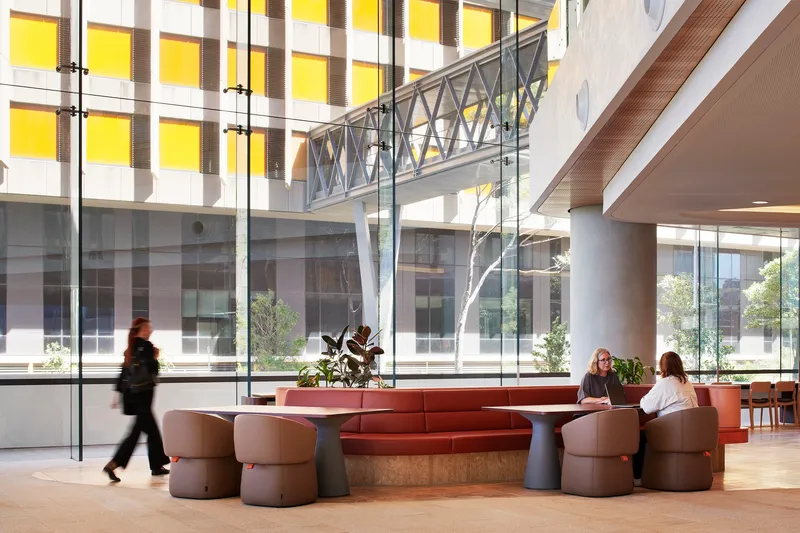

The interior strategy is clearly oriented around encouraging unplanned encounters. The lobby features circular seating pods beneath a steel bridge, creating gathering points that are informal but purposeful. Conference rooms are fitted with dark timber ceilings and patterned burgundy carpets, a material warmth that keeps them from feeling like hospital overflow. Low-VOC and low-toxin materials are used throughout, consistent with the building's health-focused mission.

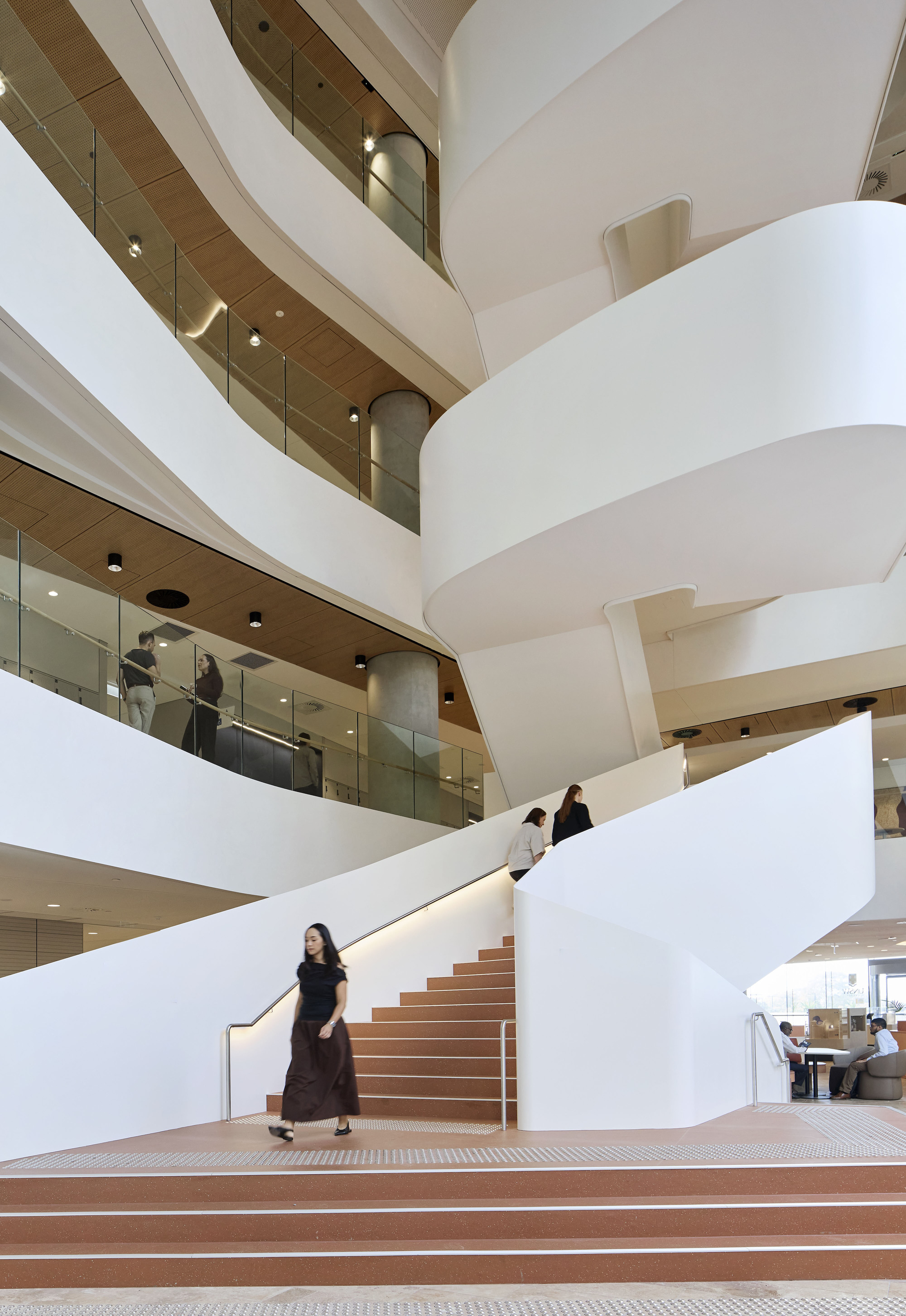

The central staircase, with its curved white walls and terrazzo treads, is designed to be the preferred route between floors. In a research building, getting people out of elevators and into shared circulation is a design problem worth solving. The stair solves it with enough visual drama to make walking the obvious choice.

Skyline and Neighborhood Scale

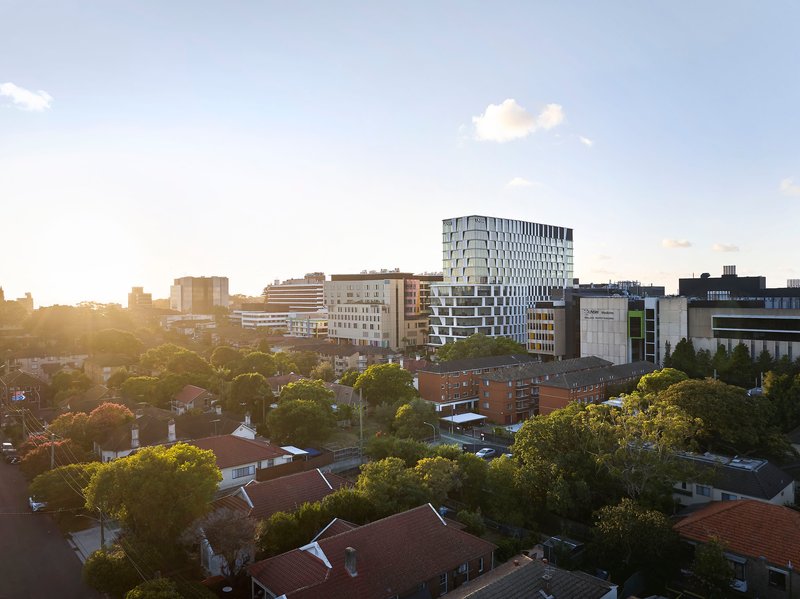

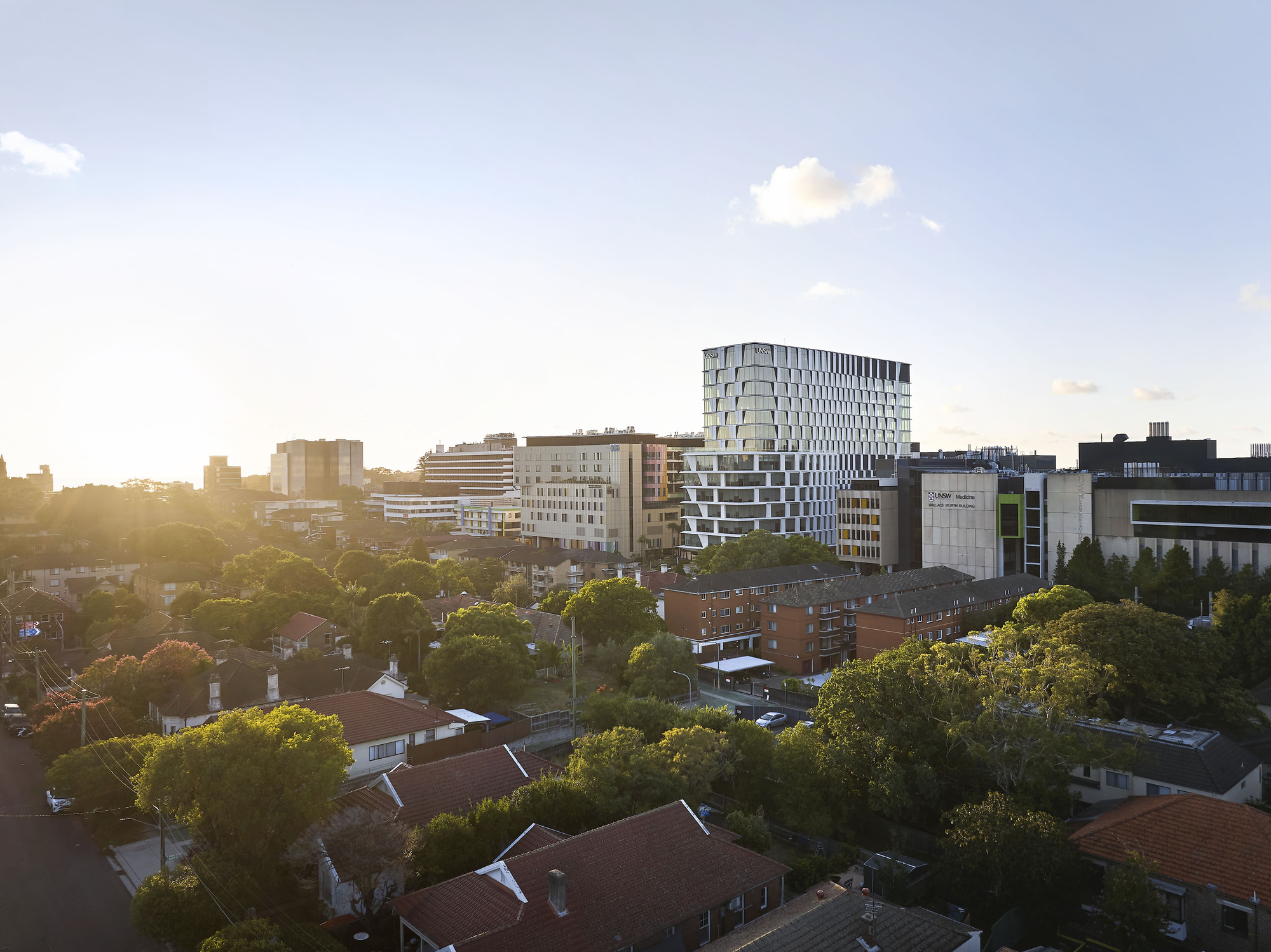

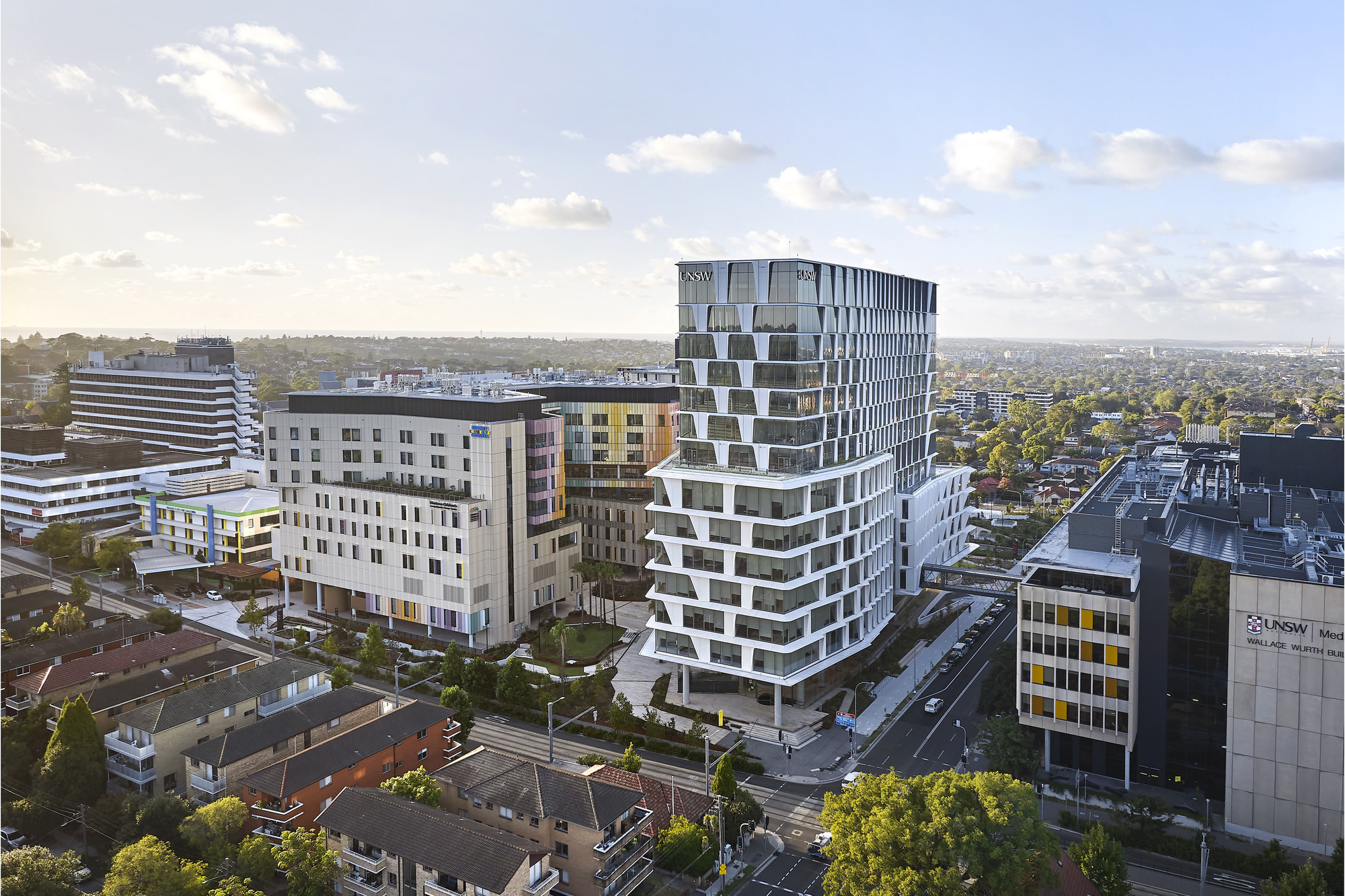

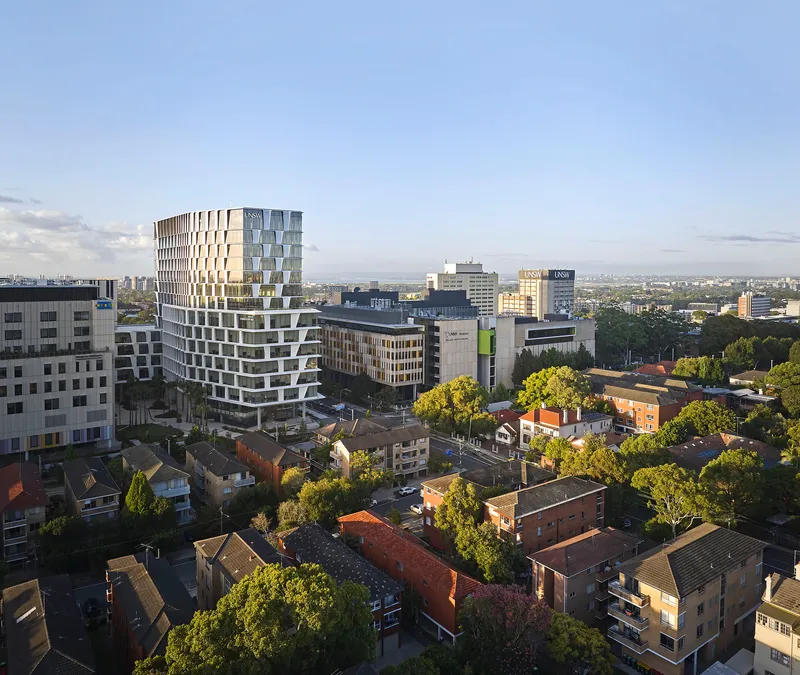

Seen from the air or from surrounding streets, the Hub reads as a carefully composed stack rather than a standard extrusion. The offset floor plates create deep shadows and visual relief, softening the building's impact on a neighborhood of modest houses and tree-lined streets. The rooftop hosts a 100 kW solar photovoltaic array, part of the building's pursuit of a 6 Star Green Star rating and net zero carbon emissions.

The fully electrified, renewables-powered building targets a 5.5 Star NABERS Energy rating and a WiredScore Platinum certification, with an estimated 20 percent reduction in operational carbon emissions and energy use. A 100 percent outdoor air HVAC system with perimeter zone conditioning provides ventilation without compromising air quality in clinical research areas. These are not aspirational targets pinned to a press release; they are built into the systems.

The Bridges That Close the Loop

Two pedestrian bridges physically tie the Hub to its neighbors. One reaches west to the Wallace Wurth Building, the other east to Sydney Children's Hospital and the Minderoo Children's Comprehensive Cancer Centre. These are not afterthoughts or cost-engineering exercises. They are the project's thesis: that the distance between a lab result and a treatment outcome should be walkable, not bureaucratic. The Hub stands at the heart of the Randwick Health and Innovation Precinct, adjacent to Prince of Wales Hospital, and these connections make the precinct function as a single ecosystem rather than a cluster of autonomous institutions.

Plans and Drawings

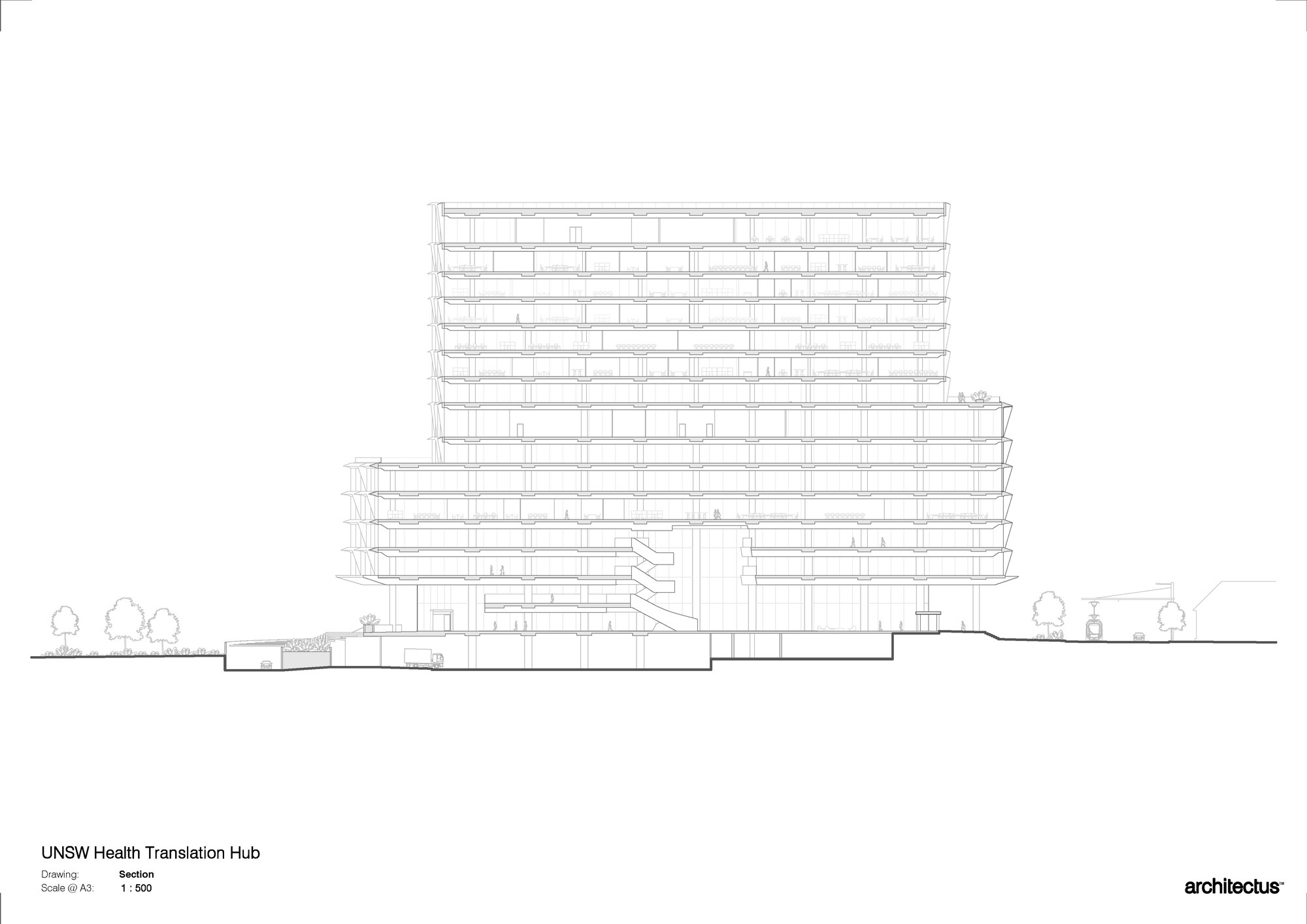

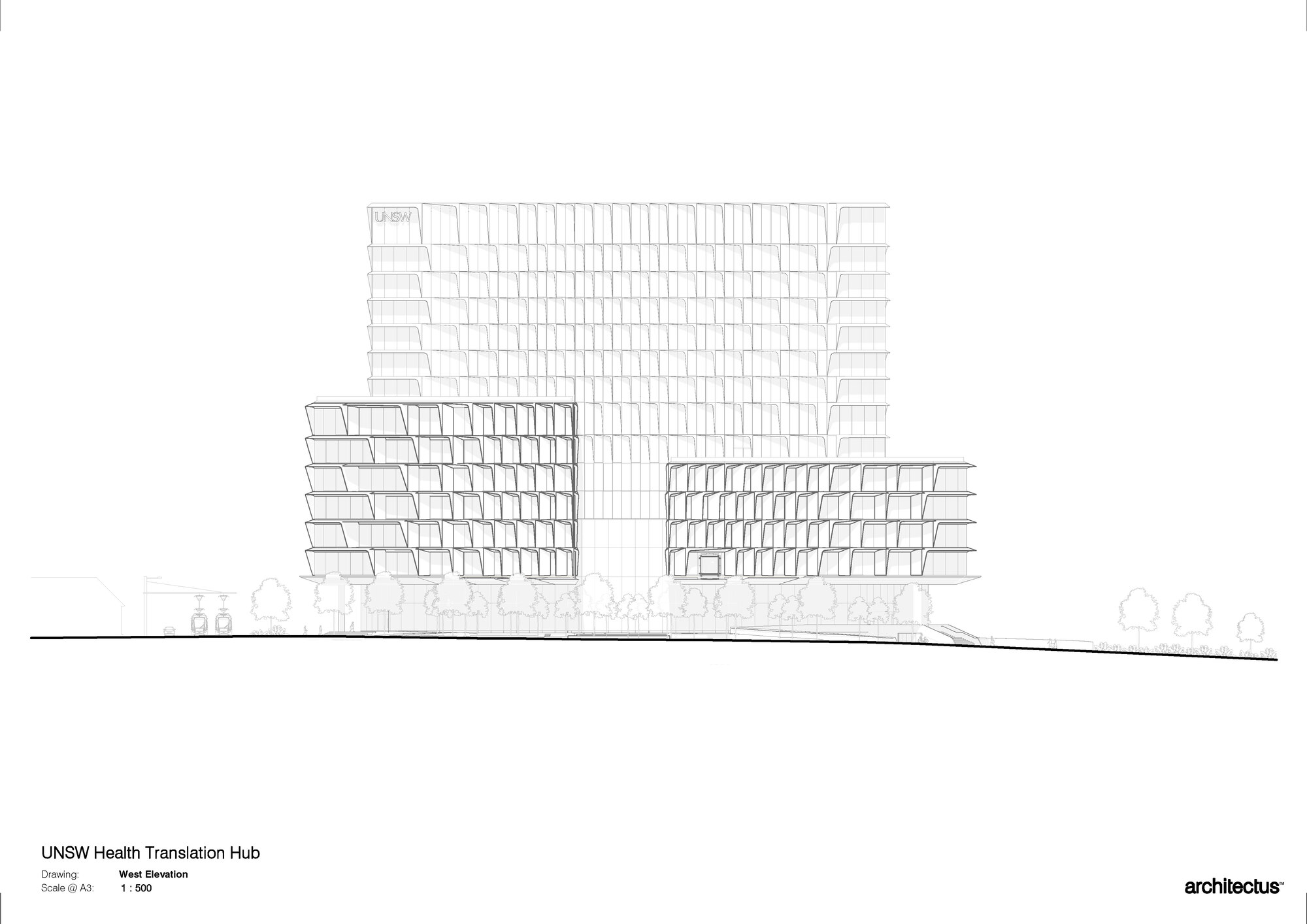

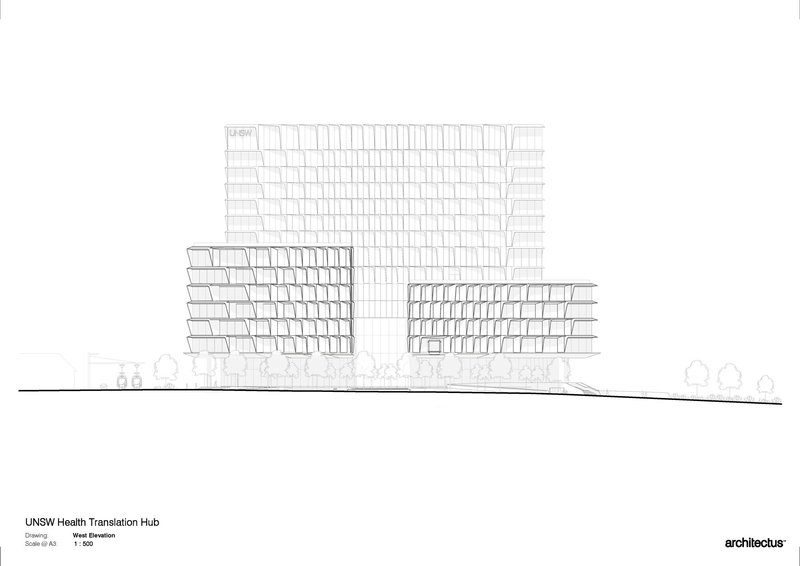

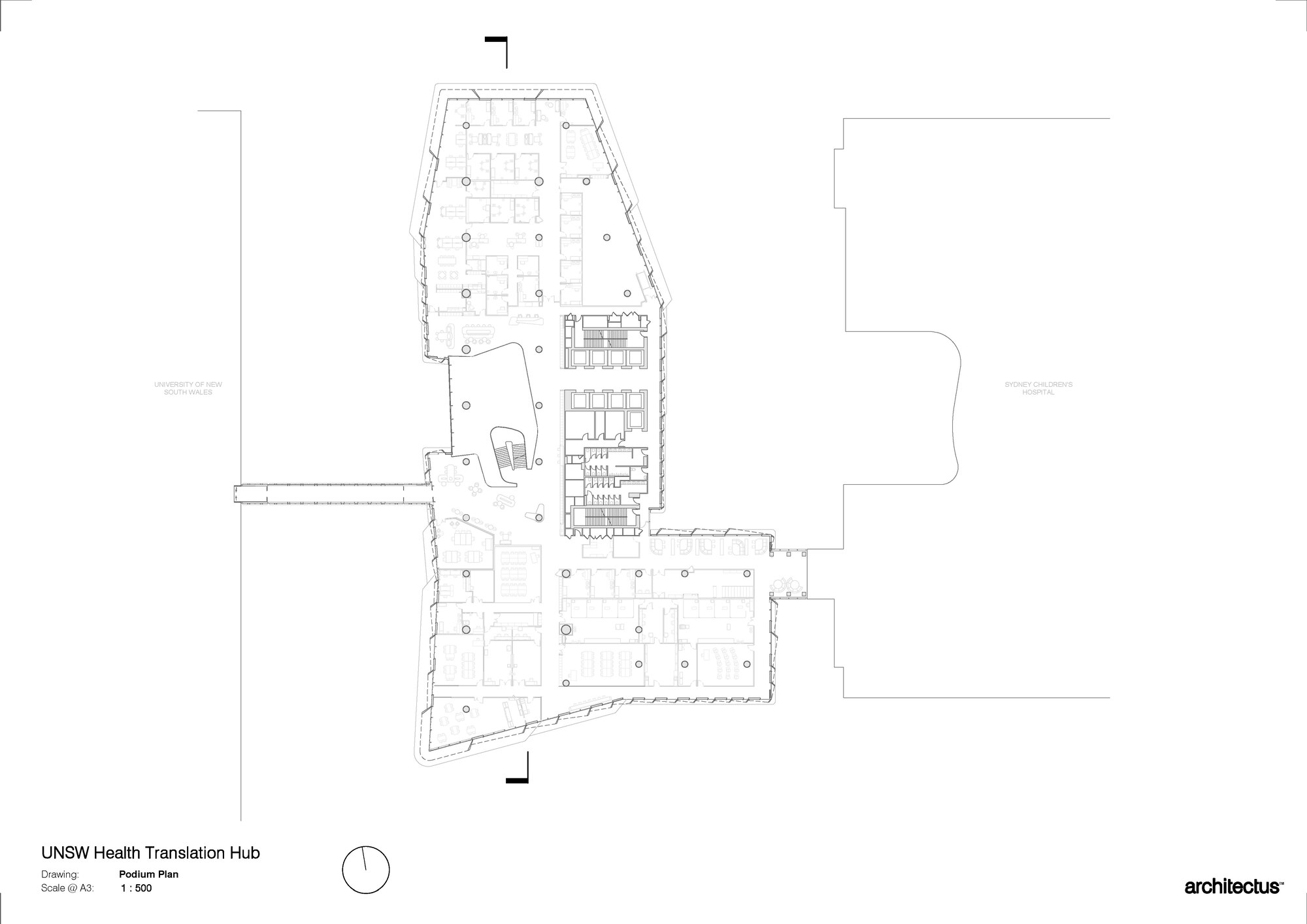

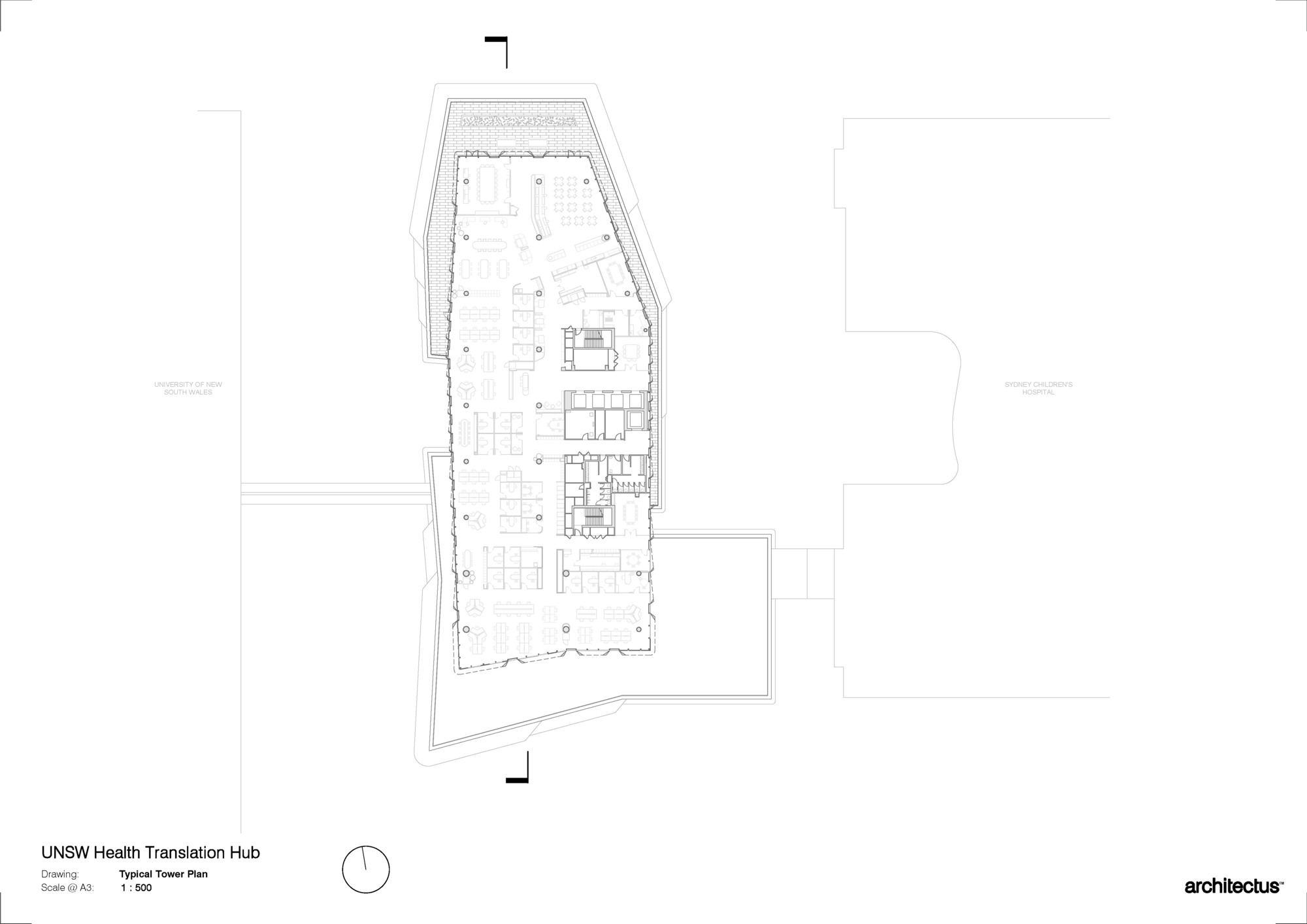

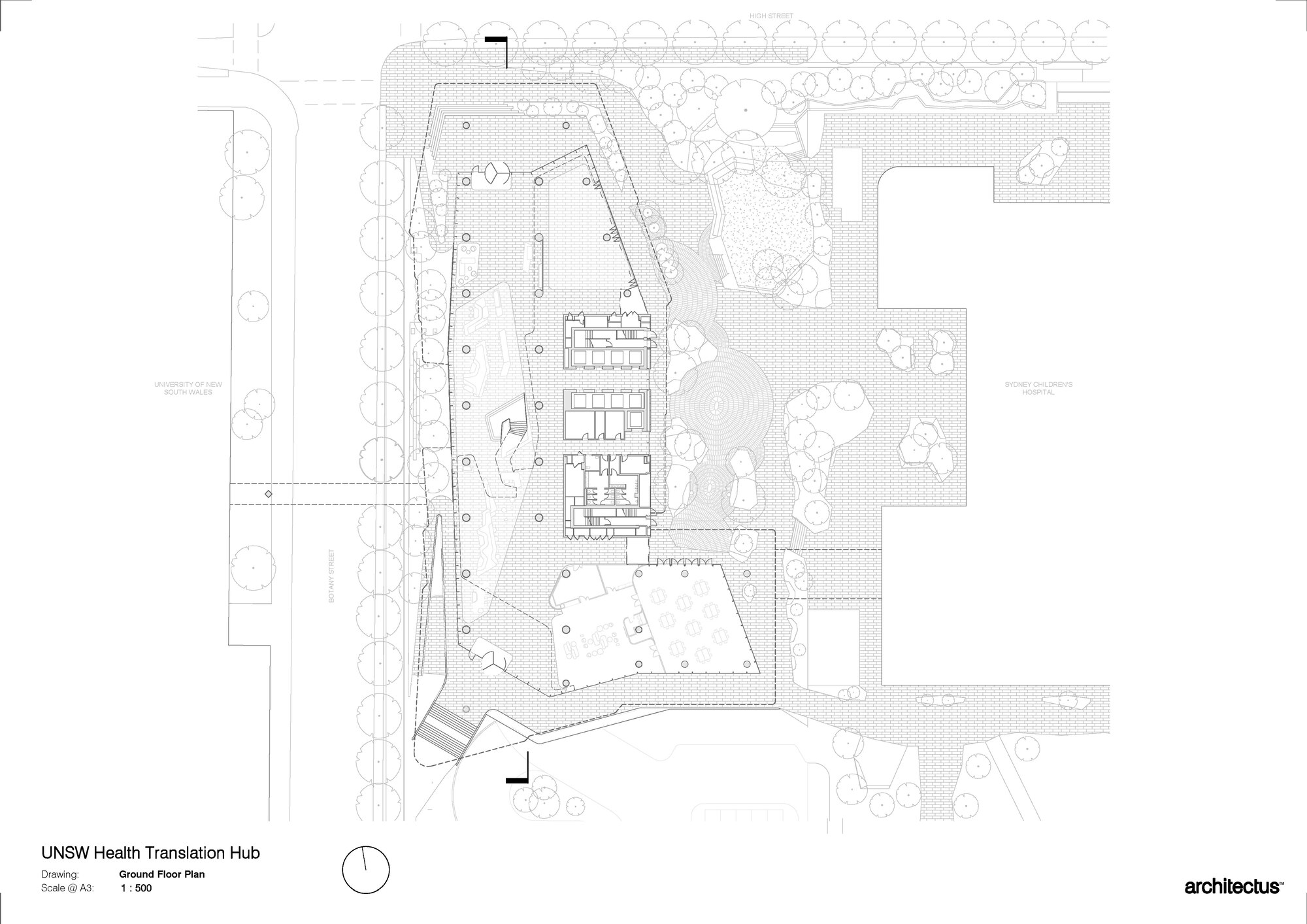

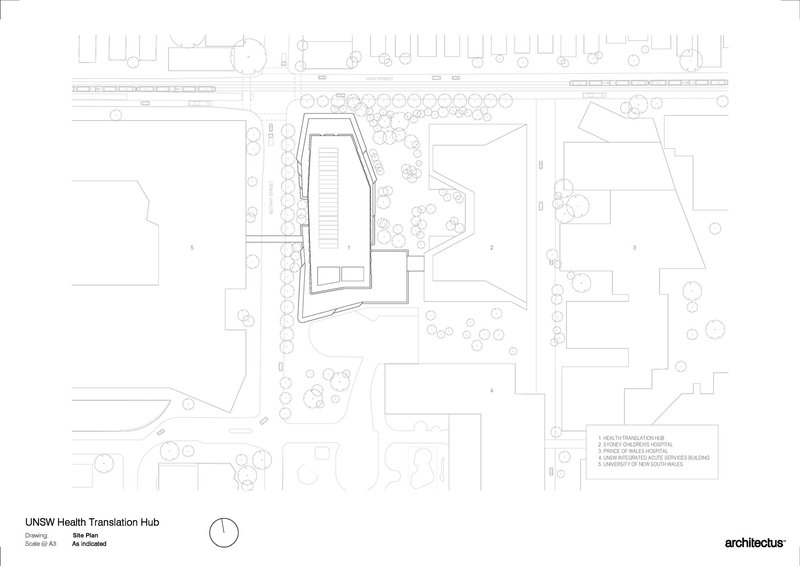

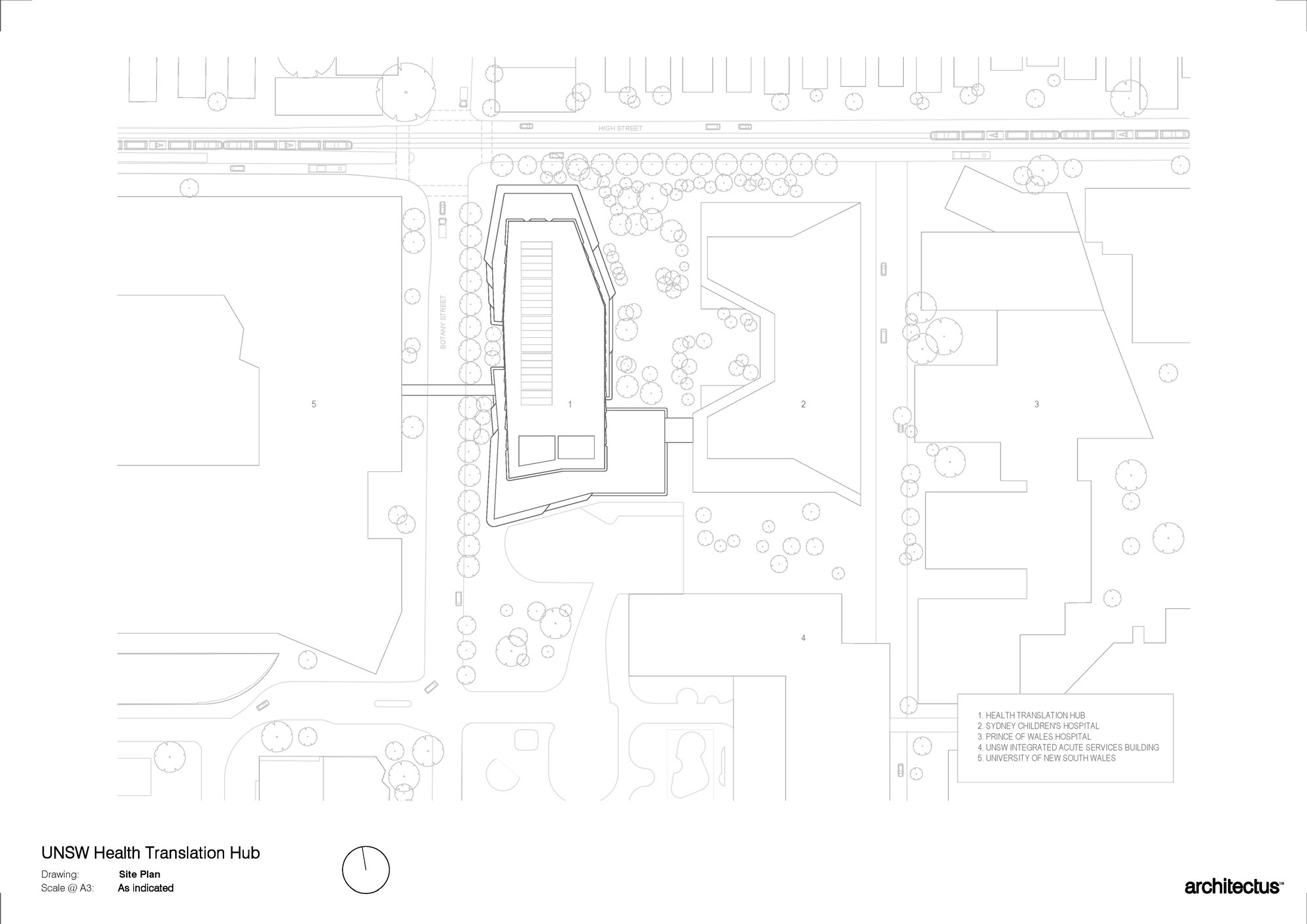

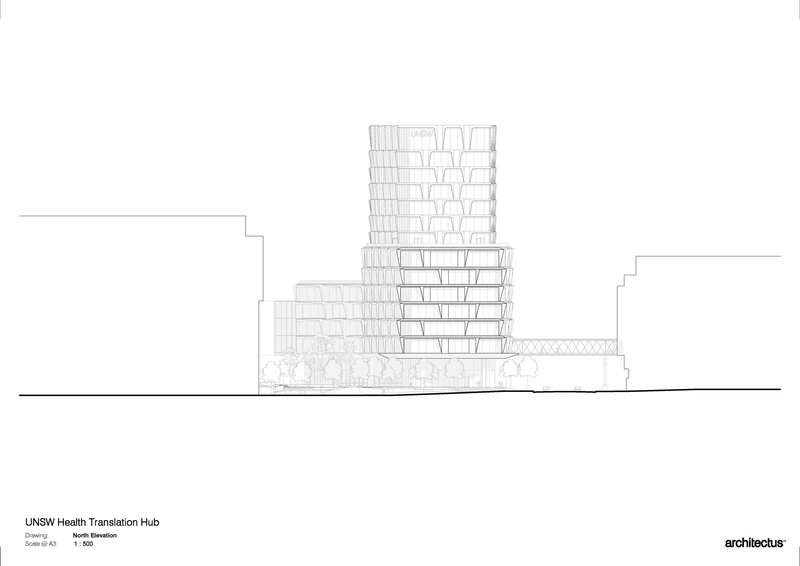

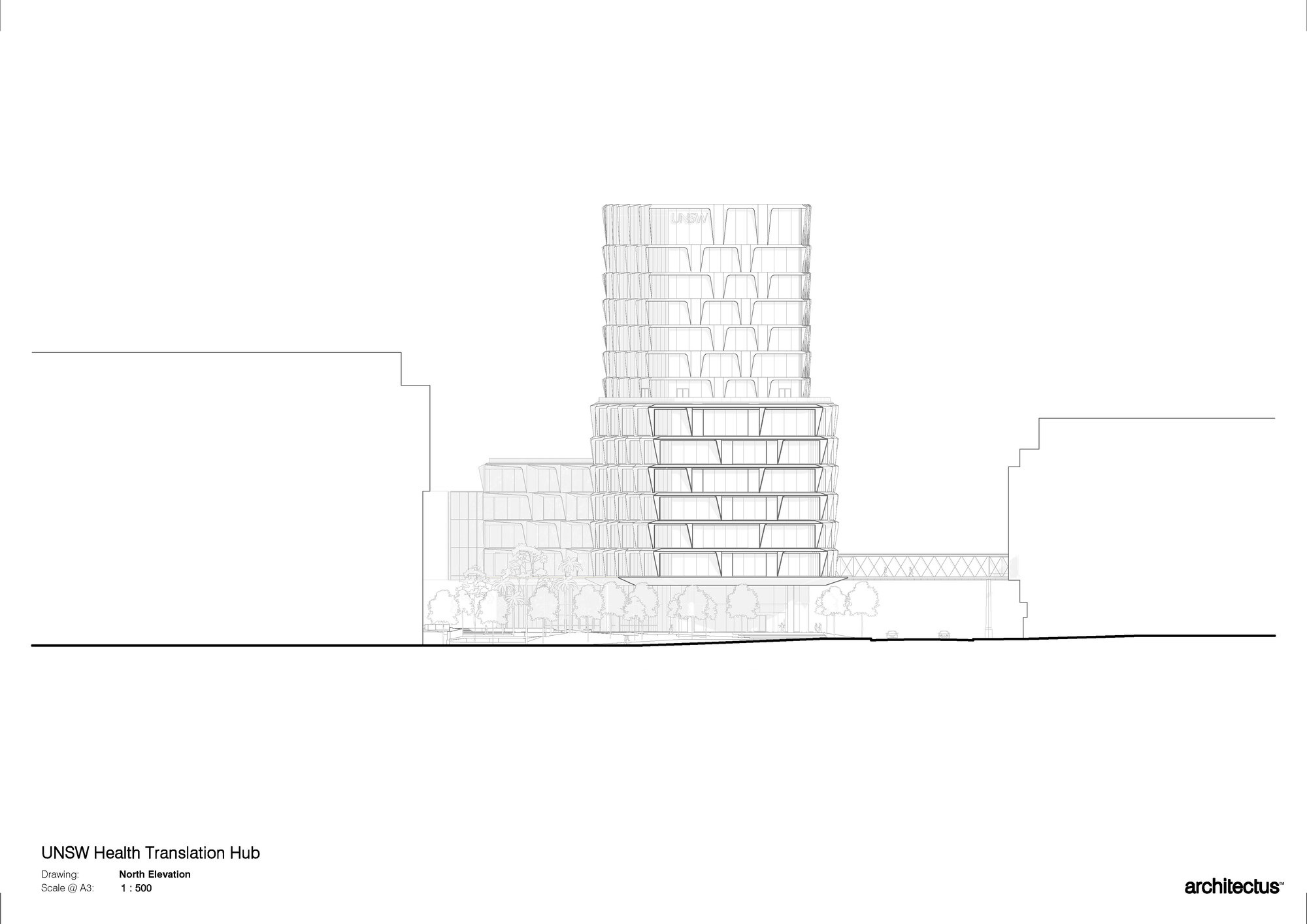

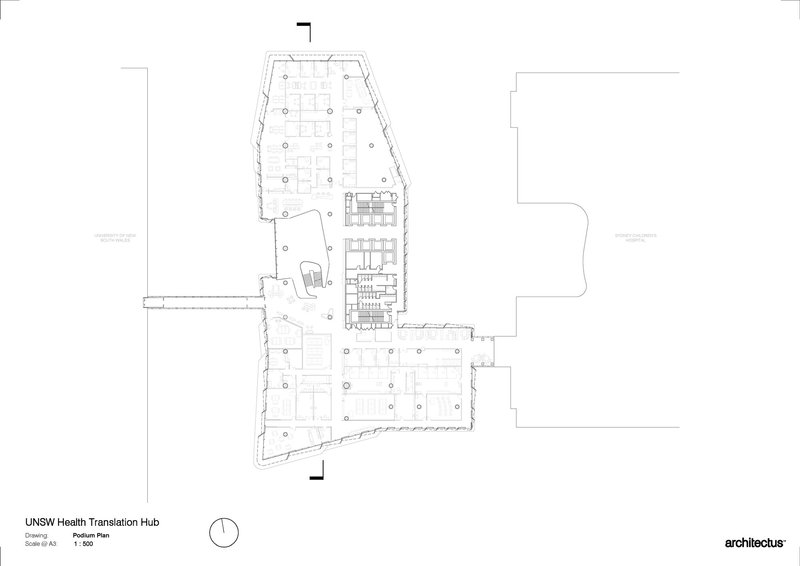

The drawings reveal the building's organizational logic with clarity. The site plan shows the tower's strategic position at the intersection, with generous tree planting reinforcing the public realm. Ground floor and podium plans illustrate the angular footprint and central core, while the typical tower floor plan exposes a tapered pentagonal layout that maximizes perimeter access to daylight. The north and west elevations read the stepped massing as three stacked volumes atop a horizontal podium, and the section drawing traces the central atrium from ground to upper floors, confirming its role as the building's connective spine.

Why This Project Matters

Healthcare buildings are too often designed as hermetic boxes: sealed, inward-looking, and disconnected from their surroundings. The UNSW Health Translation Hub is the opposite. It is a building conceived as infrastructure for a precinct, with bridges, public space, and a permeable ground plane that turn an institutional program into a civic asset. The translational research mission is built into the architecture itself, not just the org chart.

The sustainability credentials are serious, not performative. Full electrification, net zero carbon, 100 percent outdoor air, a facade calibrated to orientation: these are systems-level commitments that will shape the building's performance for decades. At a moment when many healthcare projects settle for checking boxes, Architectus and its collaborators have delivered a building that argues for a higher standard, both in how research institutions are organized and in what they owe to the neighborhoods around them.

UNSW Health Translation Hub by Architectus, with Aspect Studios, Yerrabingin, and Arup. Located in Randwick, Sydney, Australia. 35,600 square metres. Completed 2026. Photography by Hufton Crow, Nicole England, and Ned Donohoe.
