Dimster Architecture Carves an L-Shaped Hilltop Home Above Santa Monica Bay

Most hillside houses in Los Angeles try to be seen. The Ashland Residence, completed in 2023 by Dimster Architecture, would rather look out. Sitting on a 7,200-square-foot corner lot above Santa Monica Bay, the 3,546-square-foot home splits its program into two distinct timber-clad volumes arranged in an L-shaped plan. The geometry is strategic: it turns a blank shoulder to the street while opening floor-to-ceiling glass toward a garden court, a pool, and the Pacific sky beyond. The result is a house that feels both private and immersed in its coastal landscape, a balance that earned it a 2024 AIA Los Angeles Residential Architecture Merit Award.

What makes the project worth studying is how deliberately it uses sectional change, passive airflow, and a limited material palette to create variety within a compact footprint. Three bedrooms, five bathrooms, a sunken living room, and flexible zones for work, meditation, and entertaining are all organized around a single courtyard garden and connected by a concealed stairway. It is a house designed not for a single moment of occupation but for decades of changing use, including the possibility of multi-generational living.

Two Volumes, One Courtyard

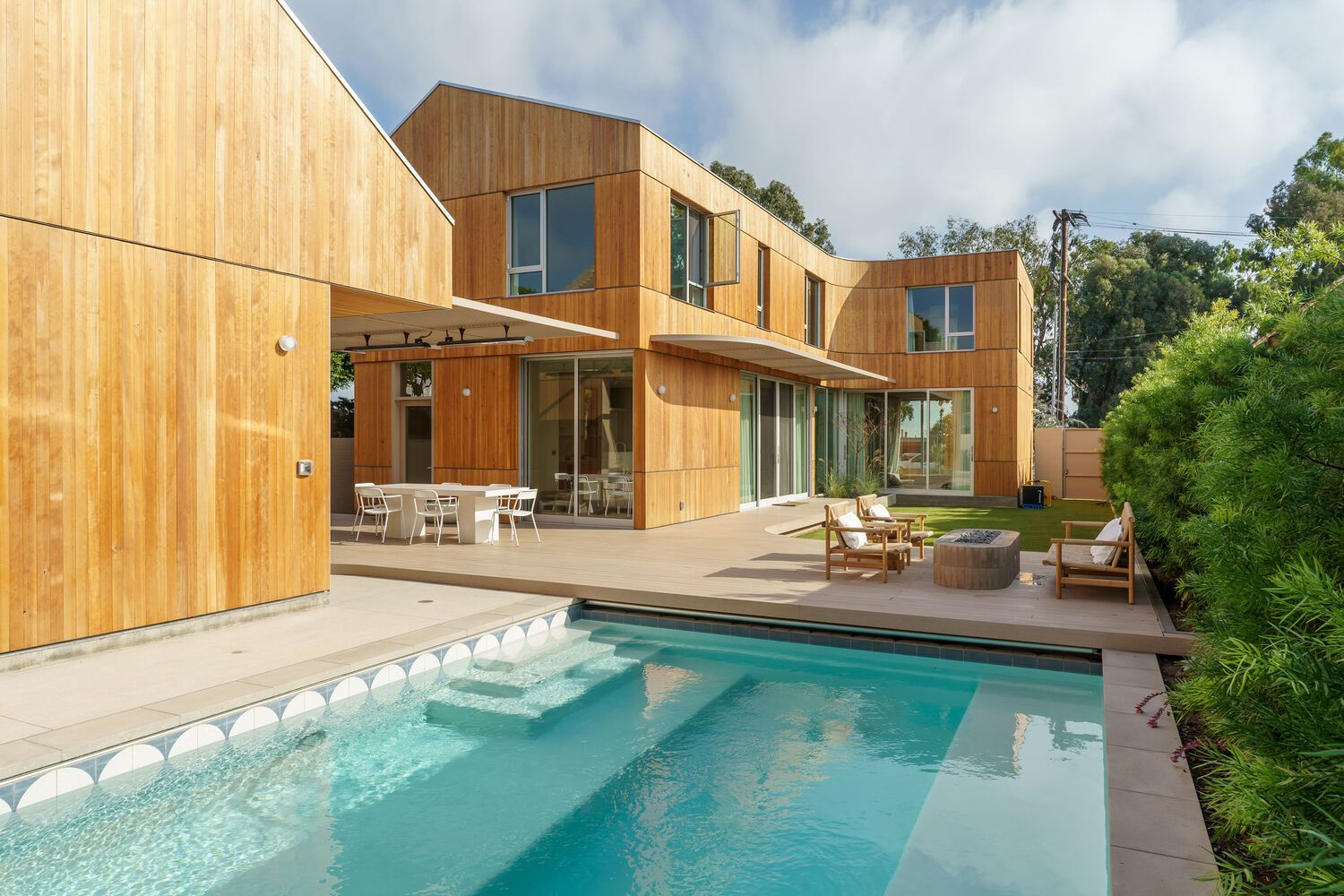

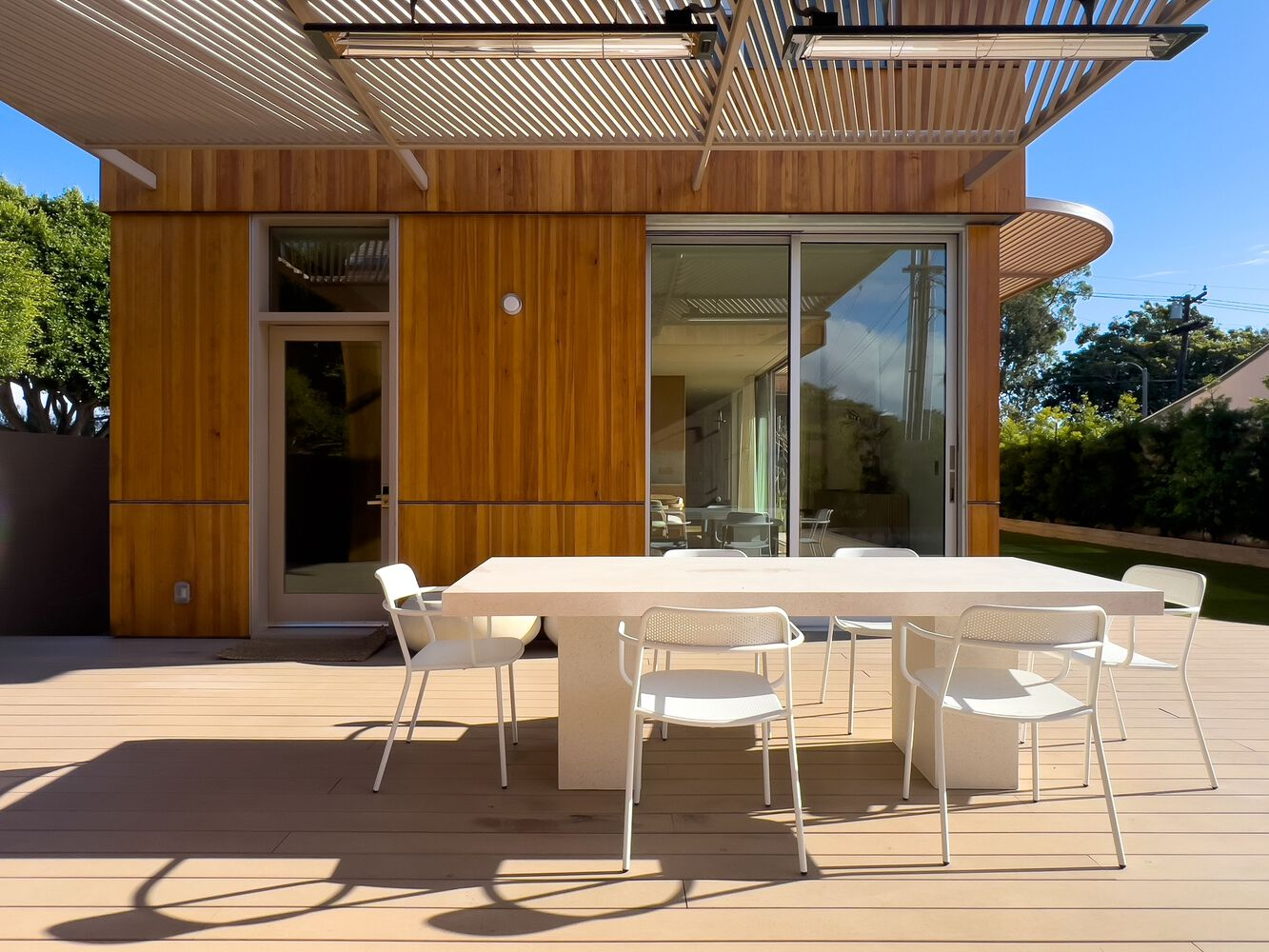

The architectural massing reads clearly from the rear: two timber-clad boxes, each with its own roof line, separated by a slatted pergola that defines an outdoor dining deck between them. The gap is not decorative. It creates a second entry sequence, a trellised canopy passage that leads from the side gate to the kitchen on one branch and the pool on the other. Visitors arriving through the formal front garden encounter native plantings and a quieter procession. Having two routes into the house is a subtle luxury that keeps the social life of the ground floor from colliding with the private life upstairs.

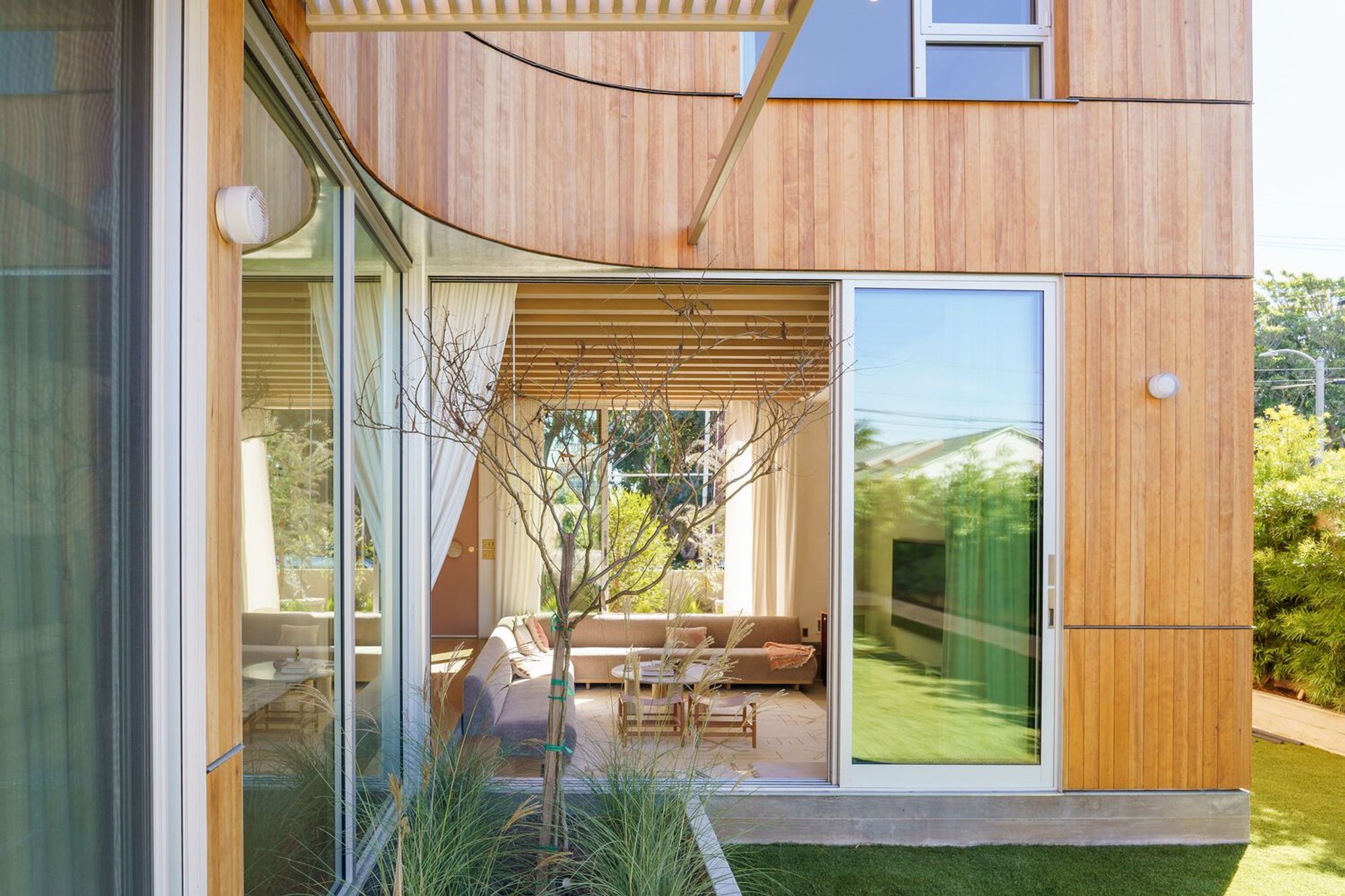

The L-shaped plan pivots around a small courtyard visible through the glazed openings of the connecting zone. A single young tree planted in this court acts as a living focal point, softening the hard geometry of the volumes and drawing light deep into the interior. It is a classic California courtyard move, but the proportions here feel tight and intentional rather than sprawling.

The Timber Skin

Vertical timber cladding wraps both volumes in a warm, consistent envelope that reads as a single material gesture from every angle. The wood siding is installed as a rainscreen system, meaning there is an air cavity between the cladding and the structural wall behind it. That cavity does triple duty: it ventilates moisture away from the wood to extend its life, it adds a layer of thermal insulation against Southern California's occasional heat spikes, and it acts as a sound buffer on a hilltop exposed to coastal wind.

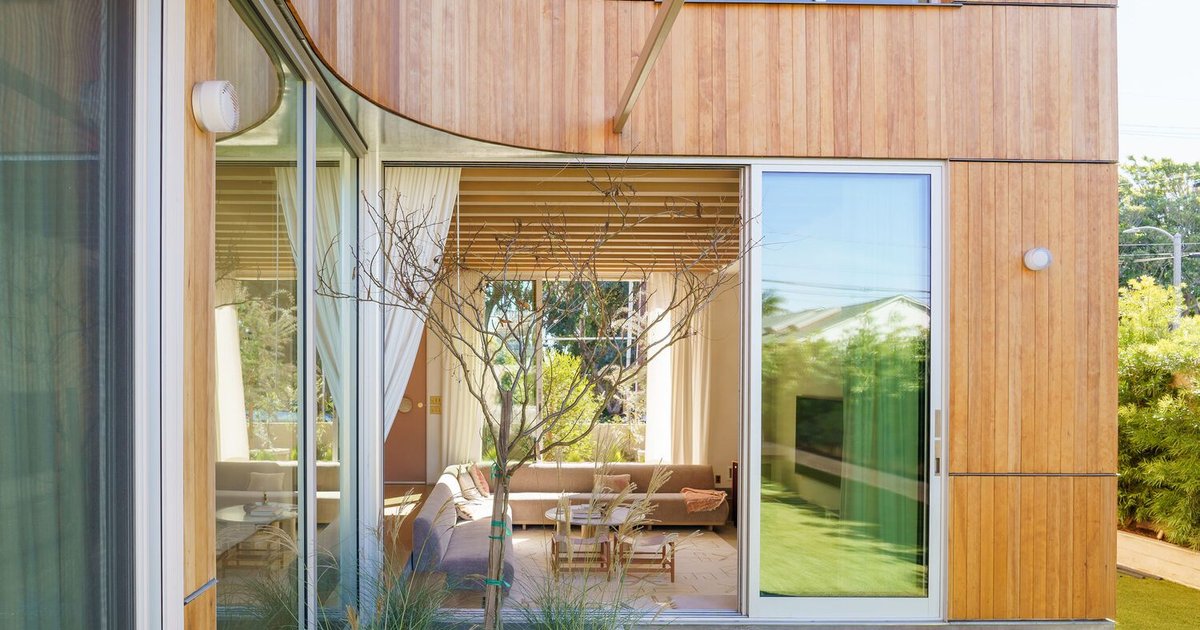

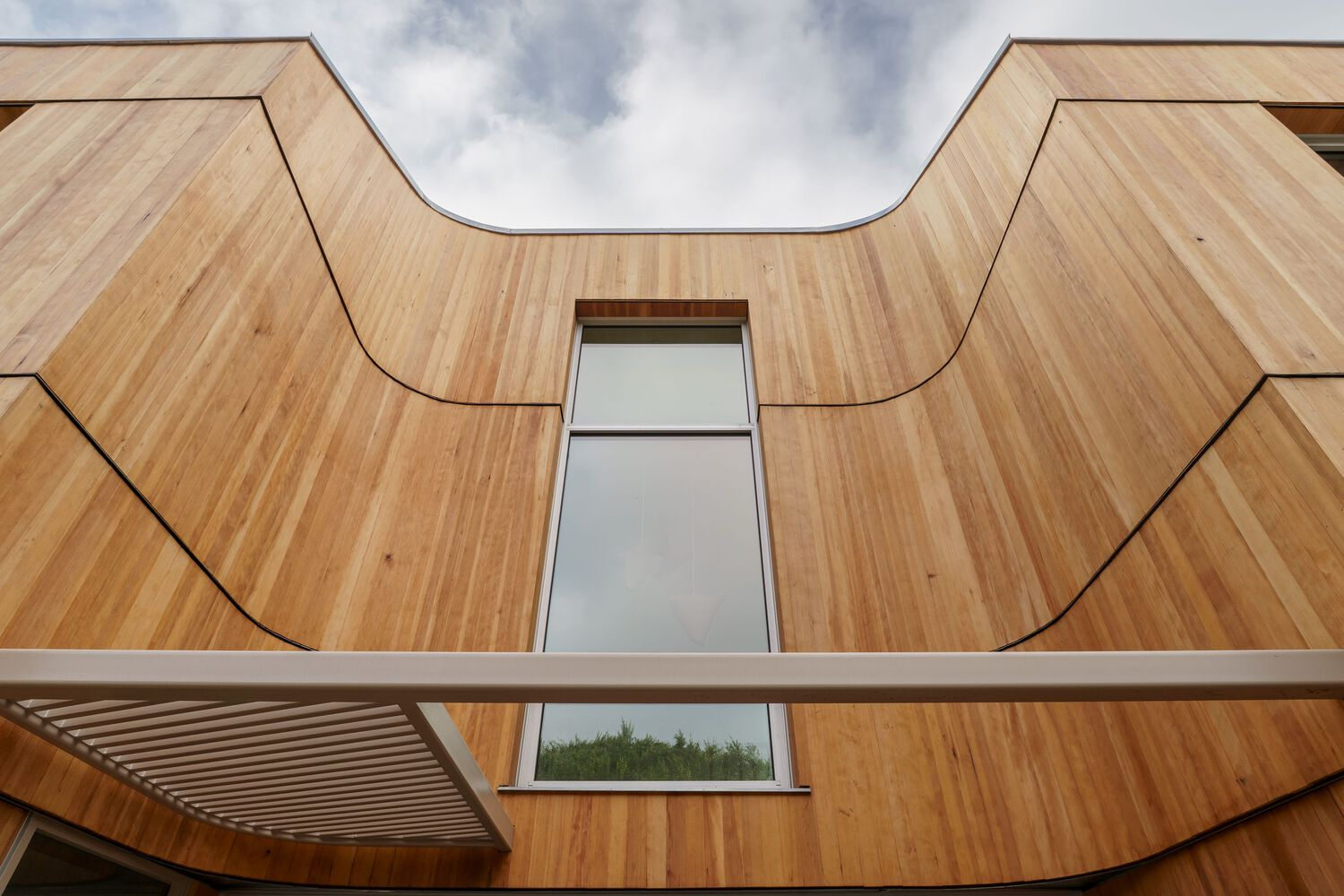

Where the facade curves, it does so gently, with undulating recesses that break the rectilinear silhouette and introduce shadow lines that shift with the sun. A narrow vertical window slot punched through the timber wall on the street-facing side lets light into an interior corridor without sacrificing privacy. The overall effect is monolithic from a distance yet textured up close, a quality that timber handles better than almost any other cladding material.

Kitchen as Social Core

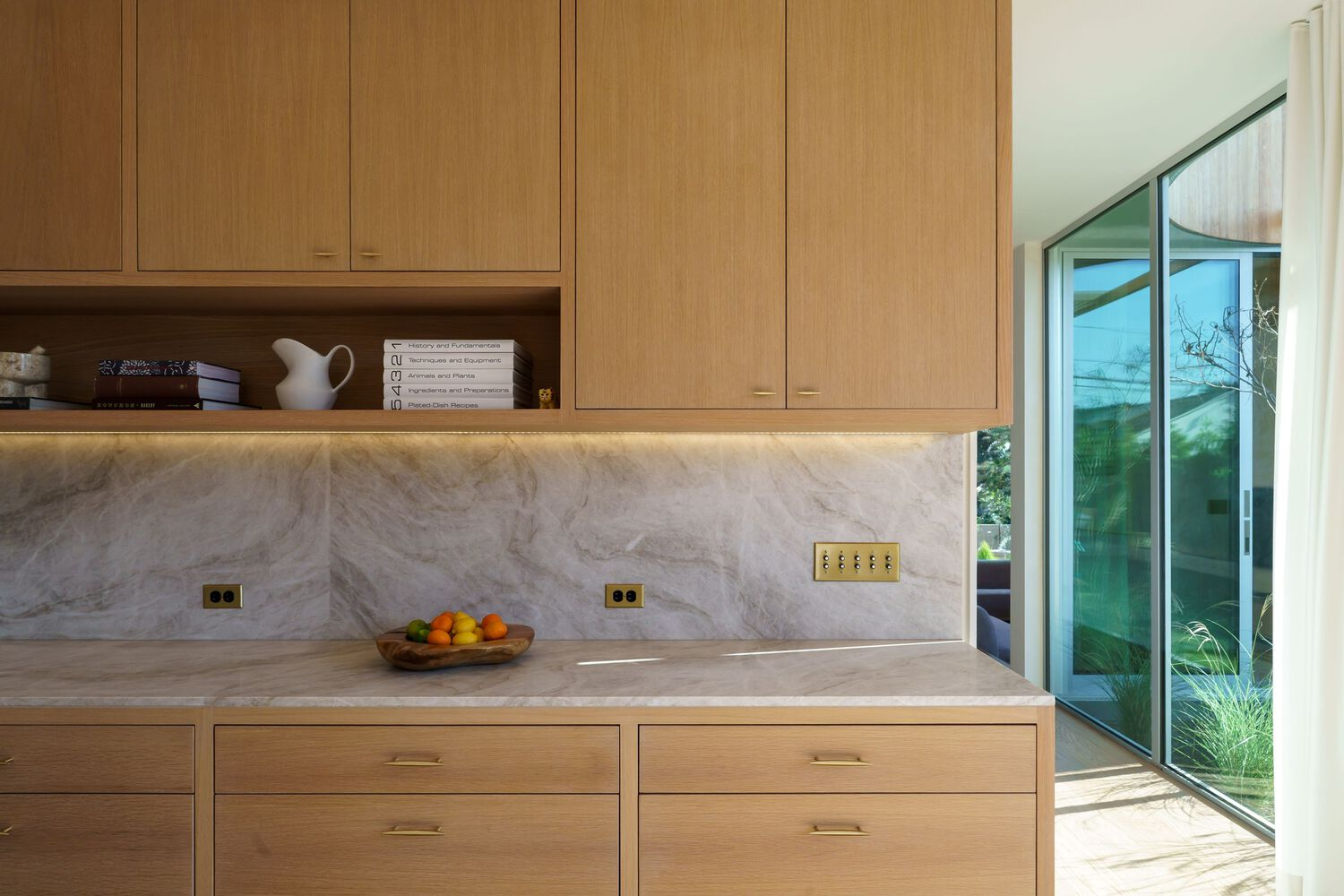

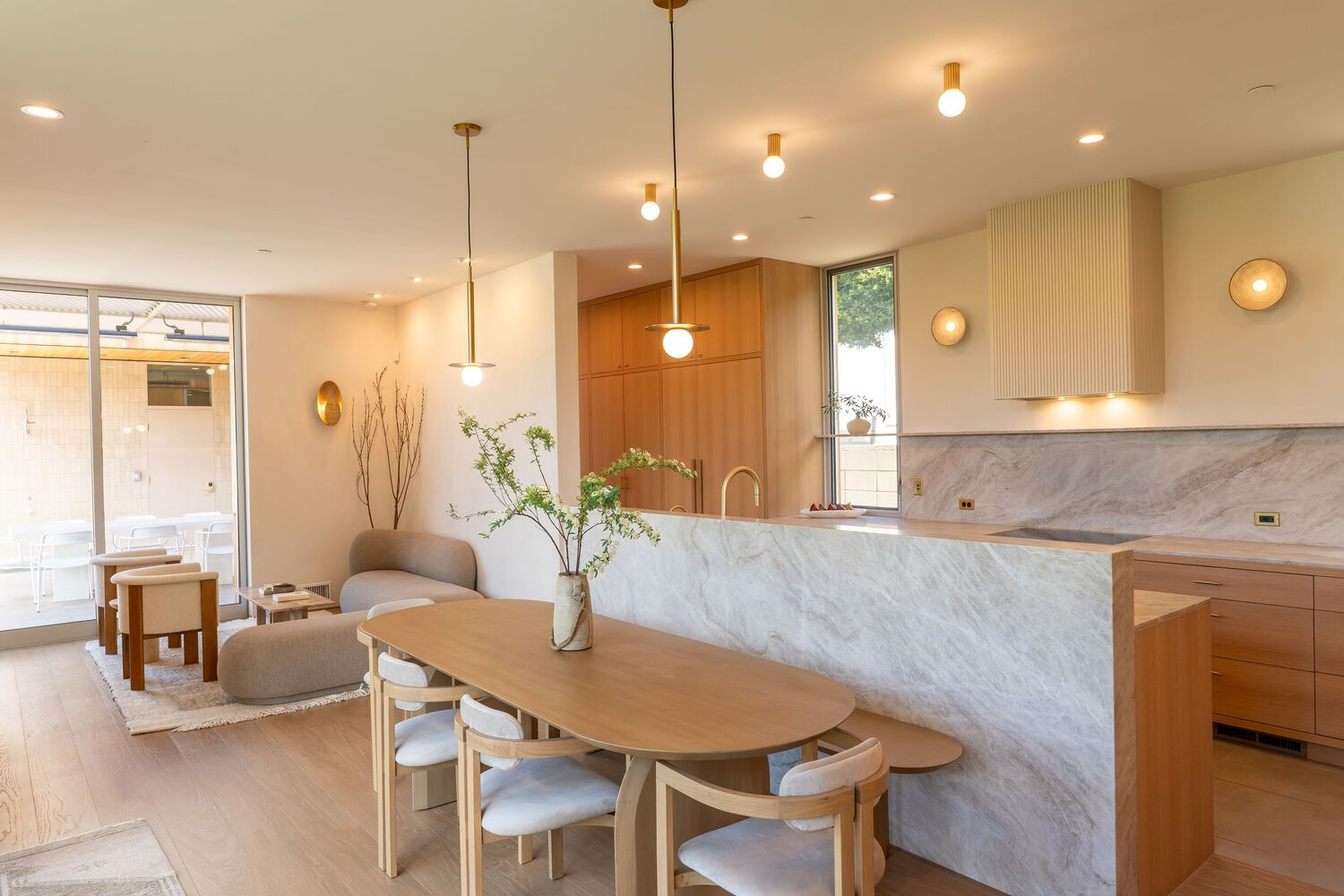

The open kitchen and dining area occupies the hinge point of the L, looking through to the courtyard on one side and the living room on the other. A large marble island anchors the space, flanked by brass pendant lights that provide warm, focused illumination without competing with the natural light flooding in through the sliding glass doors. The stone counters, visible in detail alongside brass switch plates and cabinetry, establish a material hierarchy: stone for work surfaces, wood for walls and screens, metal for hardware and fixtures.

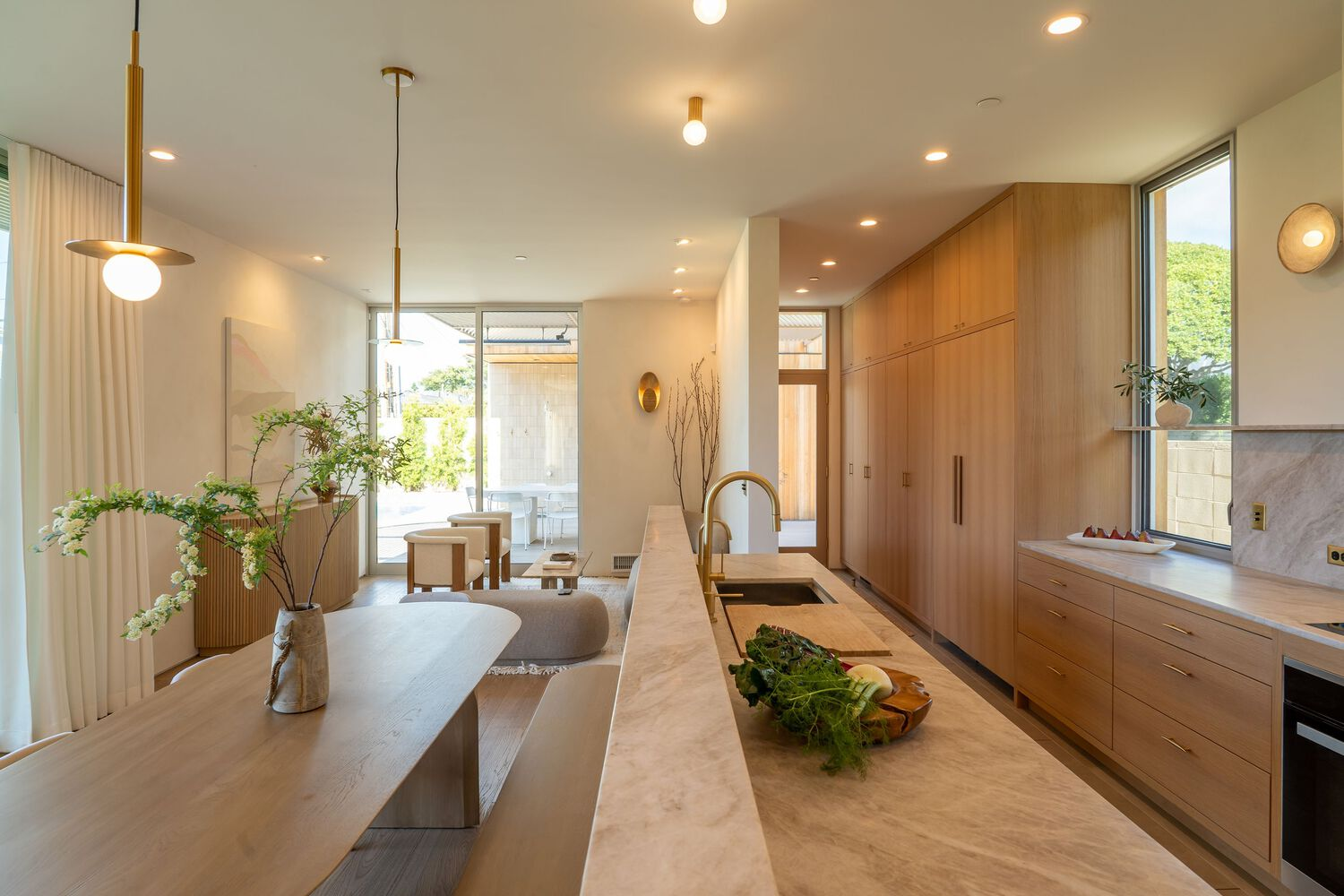

Interior consultant Lillian Lim kept the palette restrained. The marble backsplash in the kitchen is the most visually active surface in the house, and even that reads as calm against the neutral cabinetry. Looking from the kitchen counter through to the courtyard beyond, you can trace a clear sightline from the interior's controlled warmth to the greenery outside. It is a practical arrangement for entertaining and daily life alike, with the kitchen positioned so that the cook is never isolated from guests or from the view.

The Hidden Stairway

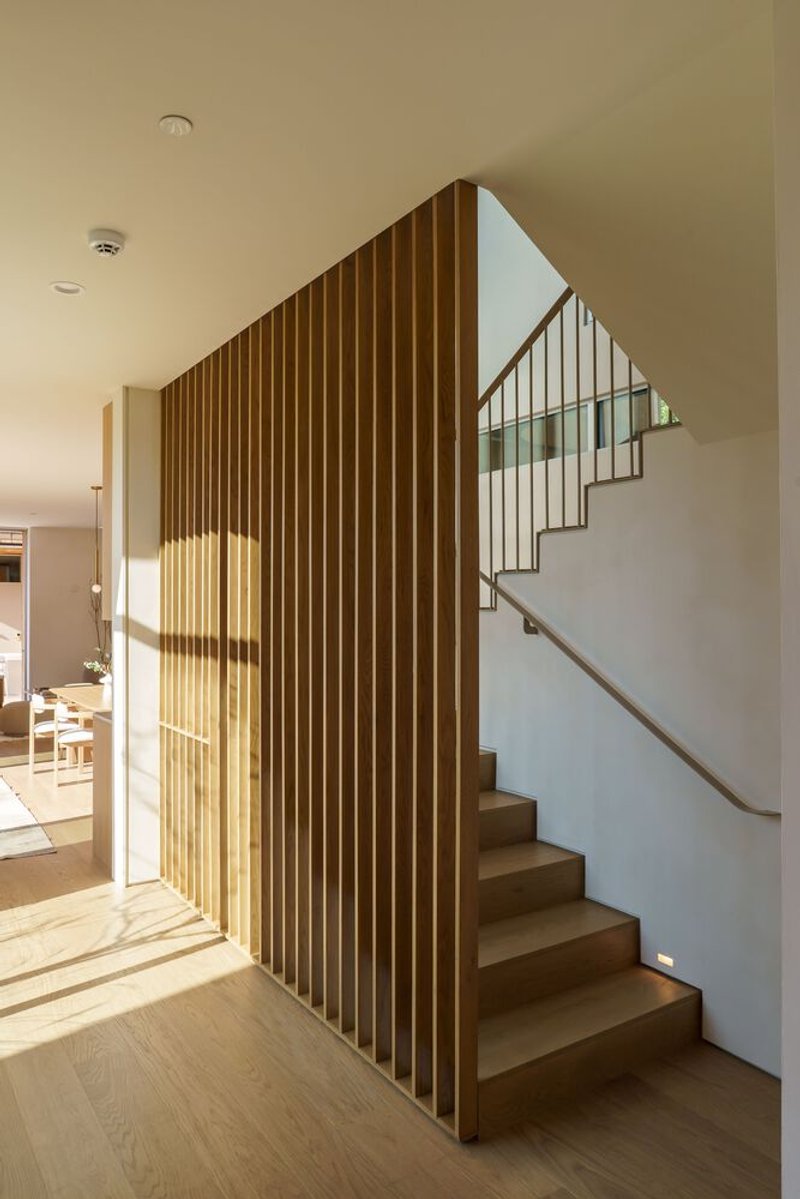

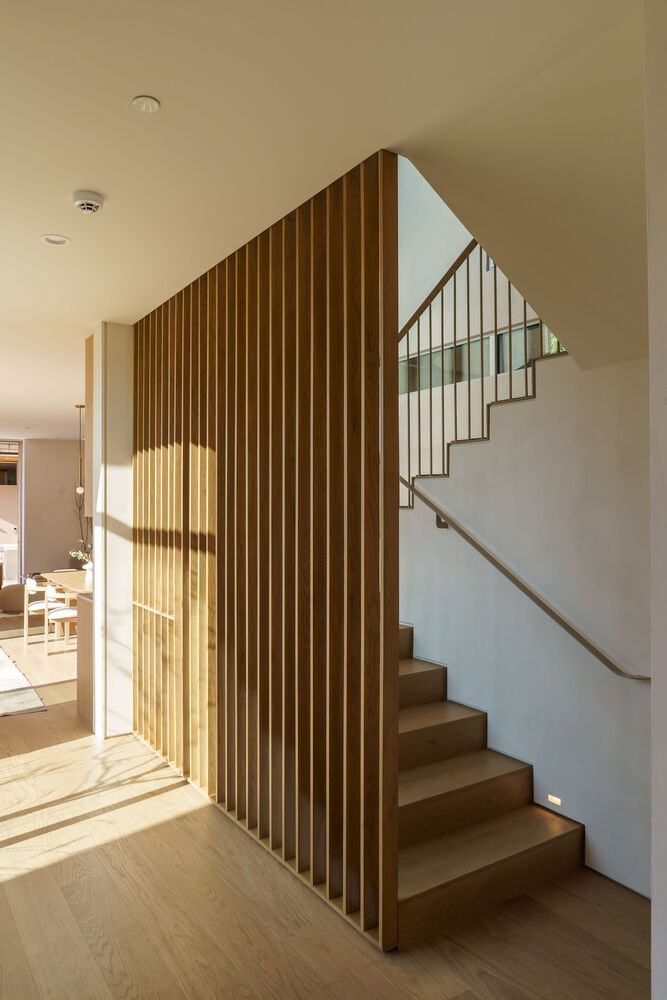

Access to the second floor is handled with unusual discretion. A staircase rises behind a vertical timber slat screen that filters light and partially conceals the circulation path from the main living spaces. Sunlight streams through the slats in the morning, projecting striped shadows across the white wall opposite. The effect is cinematic, turning a simple act of moving between floors into a sensory event.

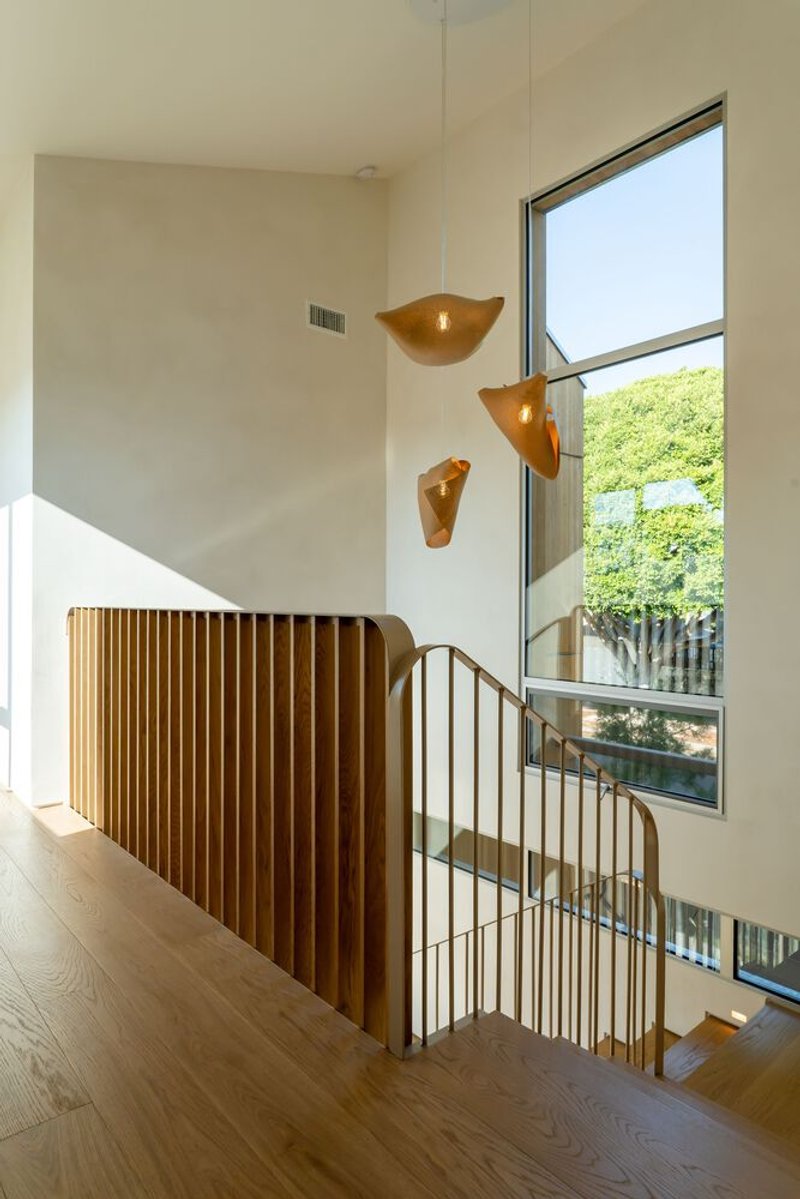

The two-story stairwell extends the screen into a curved, full-height element that wraps alongside a tall window framing summer foliage outside. Structurally, the screen is straightforward: timber slats spaced at regular intervals. But by curving them and pairing them with a generous window, the architects transform what could have been a dark service core into one of the most memorable moments in the house. The interplay of natural light, wood grain, and the green canopy visible through the glass gives this narrow vertical space a sense of scale well beyond its footprint.

Treetop Bedrooms

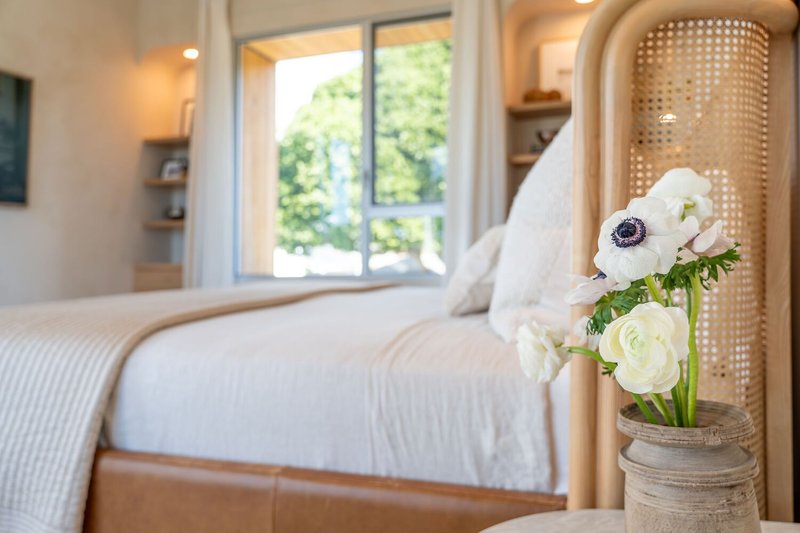

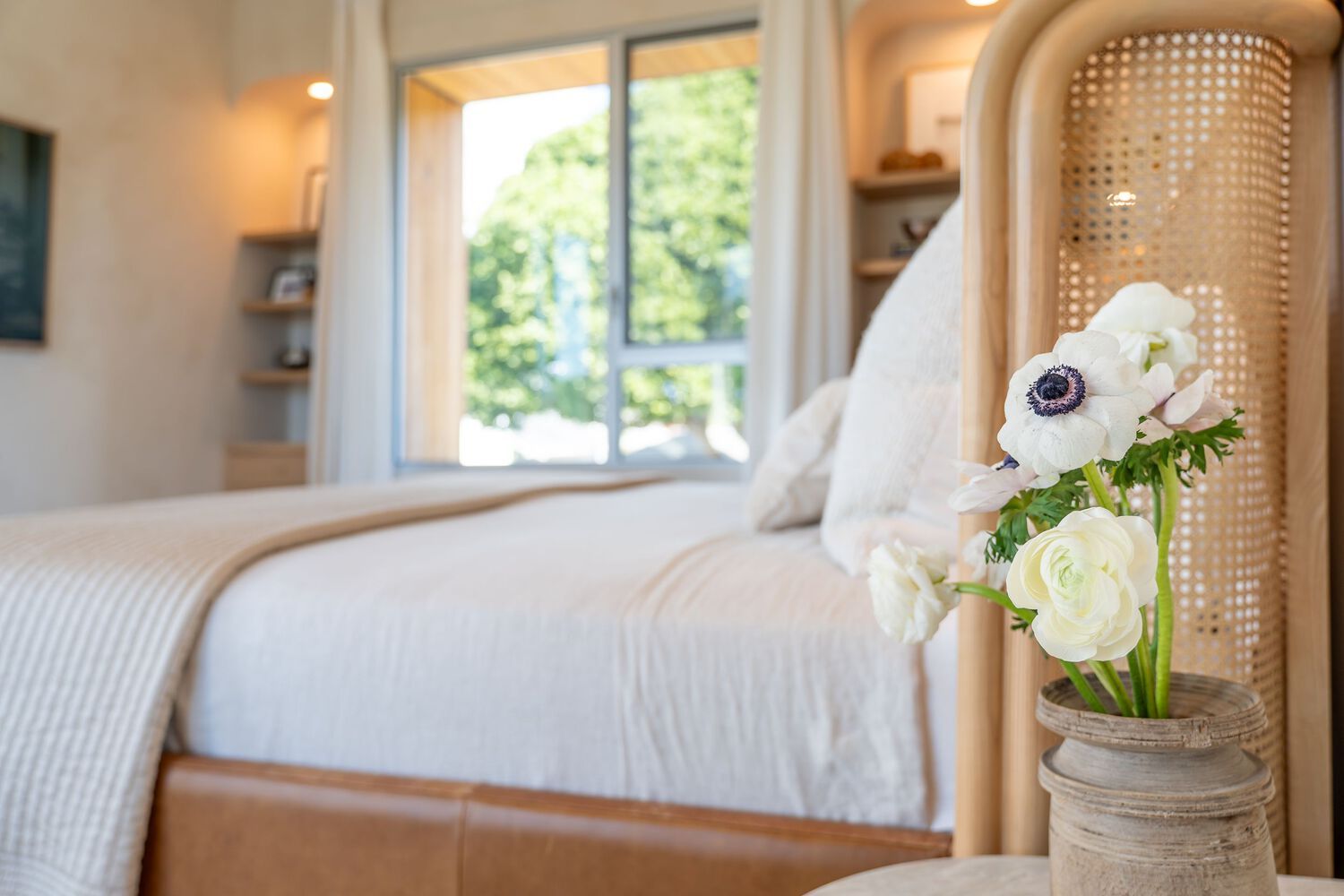

Upstairs, the master suite spans the full width of one volume, but the secondary bedrooms may be more interesting spatially. Positioned at the upper level, they look directly into the canopy of the mature trees that surround the lot. A cane headboard and a vase of white flowers beside a window framing dense green branches: the composition in the bedroom is almost too perfectly calibrated, but it reflects a genuine condition. The hilltop site, combined with the building's modest height, places the upper rooms right at the elevation where the neighborhood's tree cover is thickest.

These are not bedrooms designed primarily for ocean views, despite the proximity to Santa Monica Bay. They are oriented inward, toward foliage and privacy, reinforcing the house's larger thesis: that in a dense urban hillside context, tranquility comes from looking at green things up close rather than at distant horizons.

Passive Cooling and the Sunken Living Room

The sunken living room is the most consequential spatial decision in the house. By dropping the floor level, Dimster Architecture creates a zone where cool ocean air entering through 10-foot sliding doors on two sides can pool and circulate before rising through the open plan. It is a passive cooling strategy that predates air conditioning by centuries but is rarely executed this cleanly in a contemporary California home. The section change also lends the living room a psychological weight, a sense of settling in, that a flat, continuous floor would not achieve.

Combined with the rainscreen cladding's insulating air gap and the generous cross-ventilation enabled by the L-shaped plan's dual exposures, the house manages its thermal environment with minimal mechanical intervention. Custom aluminum windows and doors by All Weather Architectural Aluminum ensure that the large glazed openings perform well when closed, while the timber pergola over the rear deck provides shading during the harshest afternoon hours. The climate strategy is not heroic or conspicuous; it is simply embedded in every decision about form, orientation, and opening.

Why This Project Matters

The Ashland Residence is a persuasive argument that a modest-footprint house on a tight urban lot can be spatially rich without relying on dramatic cantilevers, glass curtain walls, or theatrical gestures. Dimster Architecture's moves are quiet: a sunken floor, a curved slat screen, a split massing with a shaded passage between. Each decision solves more than one problem simultaneously. The L-plan provides privacy and passive cooling. The rainscreen extends material life while insulating. The courtyard delivers light, ventilation, and a garden view from the kitchen. Economy of means, generosity of effect.

For architects working on constrained residential sites in Southern California and similar climates, this project offers a useful template: prioritize section over plan acrobatics, treat landscape as infrastructure rather than decoration, and commit to a single material language that can absorb complexity through detailing rather than variety. The AIA Los Angeles jury recognized this in awarding the house a Merit Award for 2024. We think the real test will come in ten or twenty years, when the timber has silvered, the trees have grown taller, and the flexible rooms have been adapted to uses no one anticipated. That kind of longevity is what residential architecture should aim for.

Ashland Residence by Dimster Architecture. Santa Monica, California, United States. 3,546 square feet. Completed 2023. Structural Design: James Tuchscher. Interior Consultant: Lillian Lim. Builder: Arbor Construction.
