Partisans Wraps a Toronto Art Collector's House in a Self-Supporting Brick CanvasPartisans Wraps a Toronto Art Collector's House in a Self-Supporting Brick Canvas

Partisans Wraps a Toronto Art Collector's House in a Self-Supporting Brick Canvas

UNI Editorial
UNI Editorial published Story under Architecture, Housing on

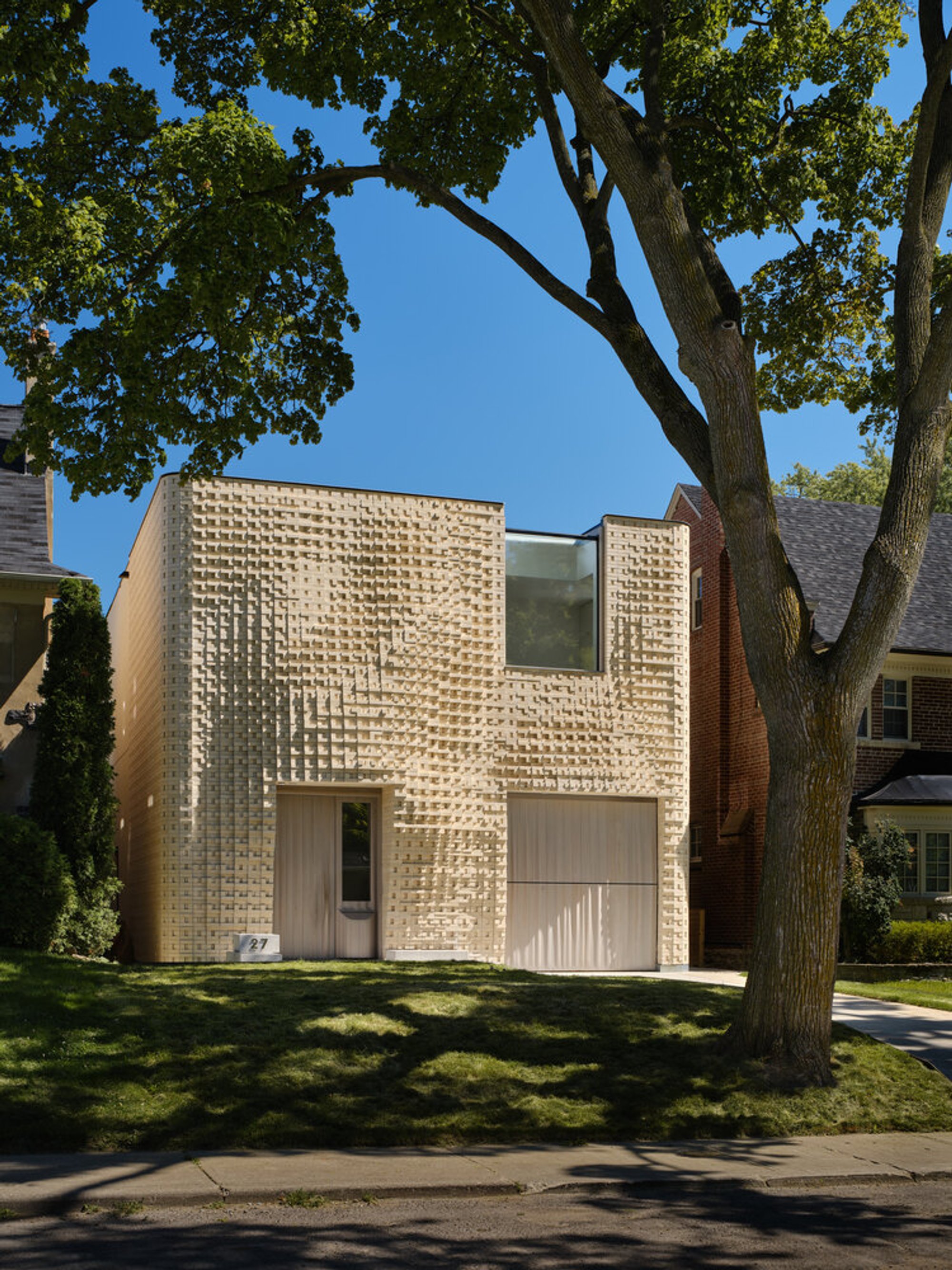

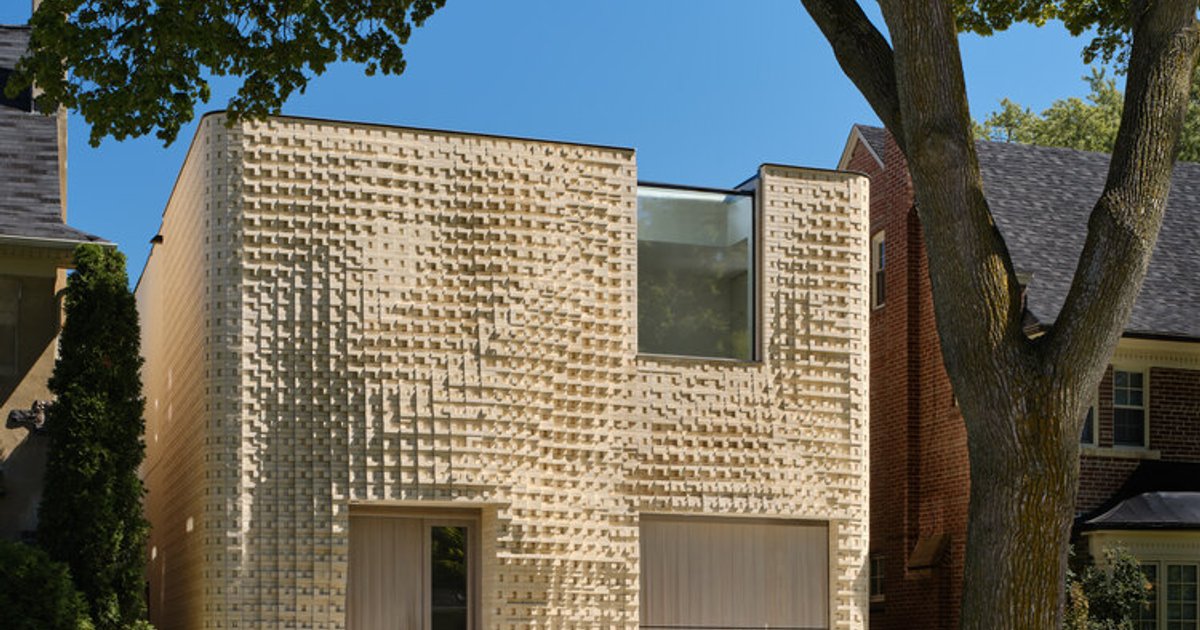

Canvas House sits in Toronto's Forest Hill, a wealthy enclave where yellow brick Georgians from the 1920s and 30s line the streets in tidy Tudor revival rows. Partisans took that familiar material vocabulary and turned it inside out, wrapping a 5,220-square-foot residence in a self-supporting brick skin that bulges, recedes, and corbles across 111 individually drawn layers. Over 16,200 bricks in three dimensions were placed by mason Finbarr Sheehan and his crew into a pattern that references Larry Poons's dot paintings and the client's background in theater production. The result is a house that reads as both sculpture and vessel, an architectural object that happens to contain a private art gallery, three bedrooms, a basement cinema, and a gym.

What makes the facade technically interesting is not the undulation alone but the precision required to make it work. Each brick was dimensioned back to the building's sheathing. The corbelling follows a repeating five-brick module programmed as what Partisans calls voxel bonds, algorithmic units that create relief without custom cutting. The facade is independent from the home's structure, which means the brick carries its own weight while the interior frame does something else entirely. Where the skin swells inward around a second-story window, it funnels light into the stairwell. Where it bulges outward above the entrance, it creates an overhang. The moves are formal, but they are also functional, and that duality keeps the project from tipping into pure formalism.

The Brick Envelope

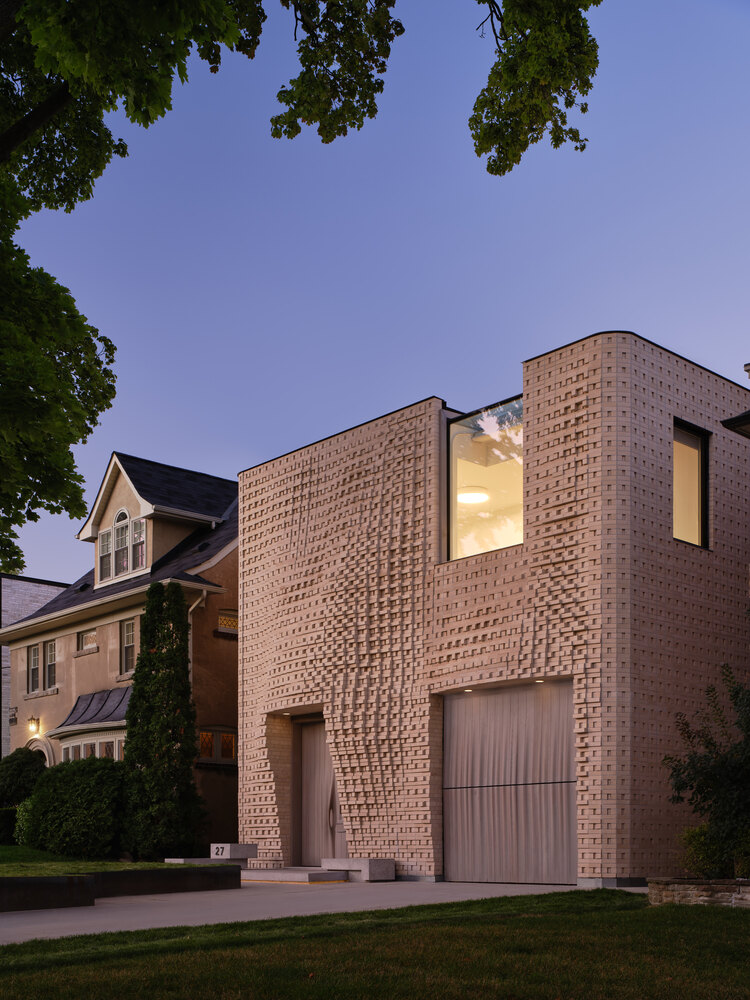

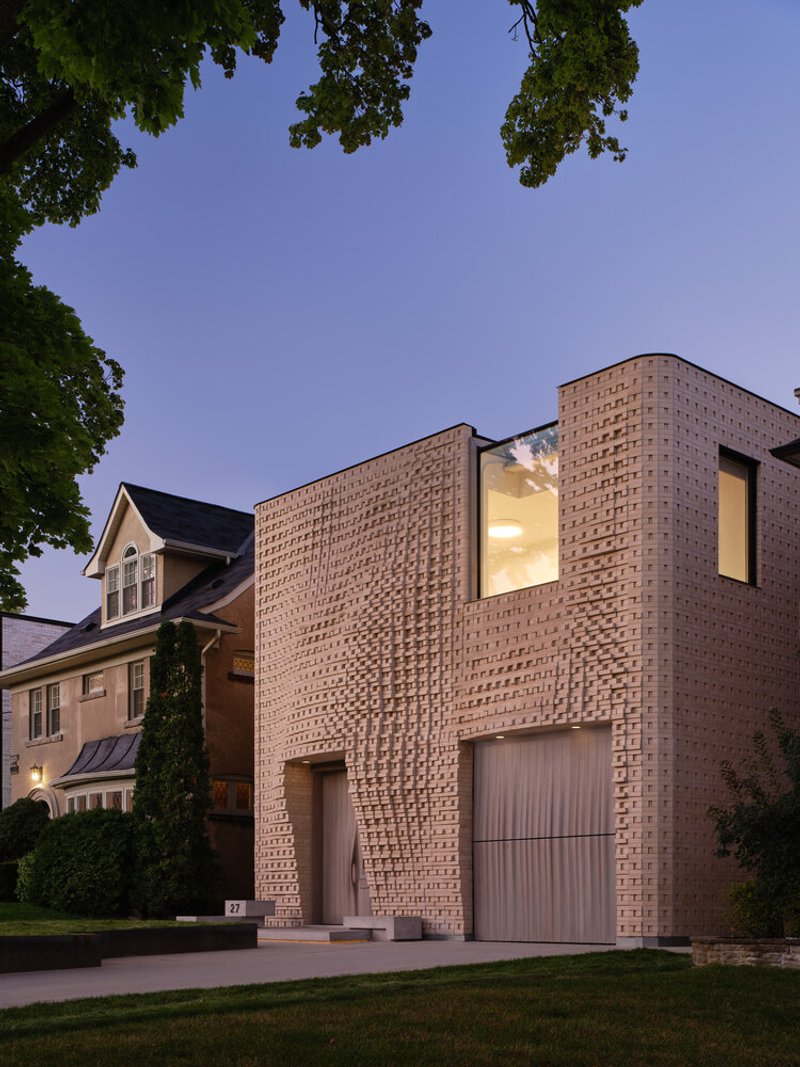

Textured basketweave brick facade with vertical window openings at dusk next to a neighboring house
Textured basketweave brick facade with vertical window openings at dusk next to a neighboring house

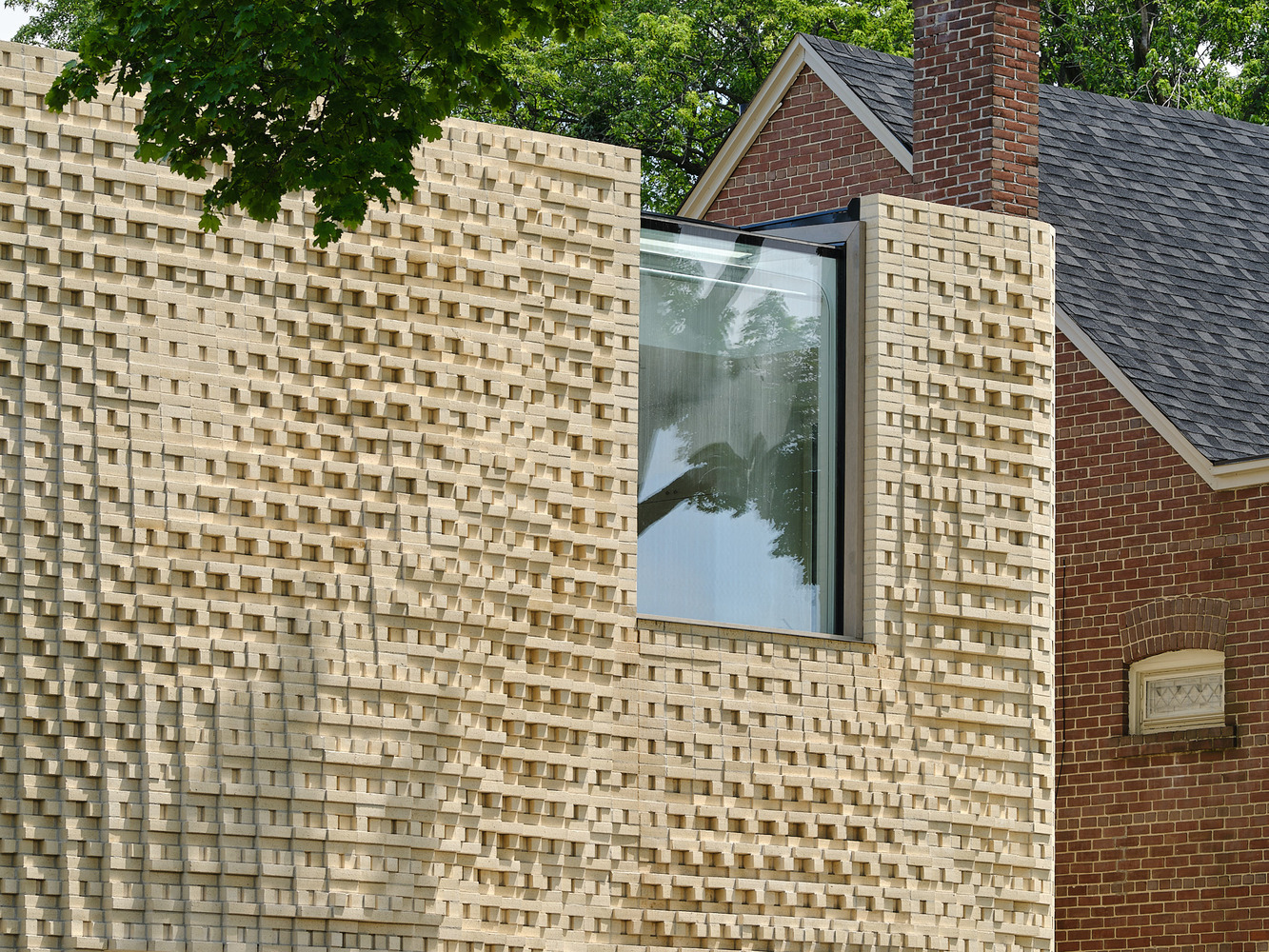

Close-up of the basketweave brick pattern with a corner window reflecting surrounding trees
Close-up of the basketweave brick pattern with a corner window reflecting surrounding trees

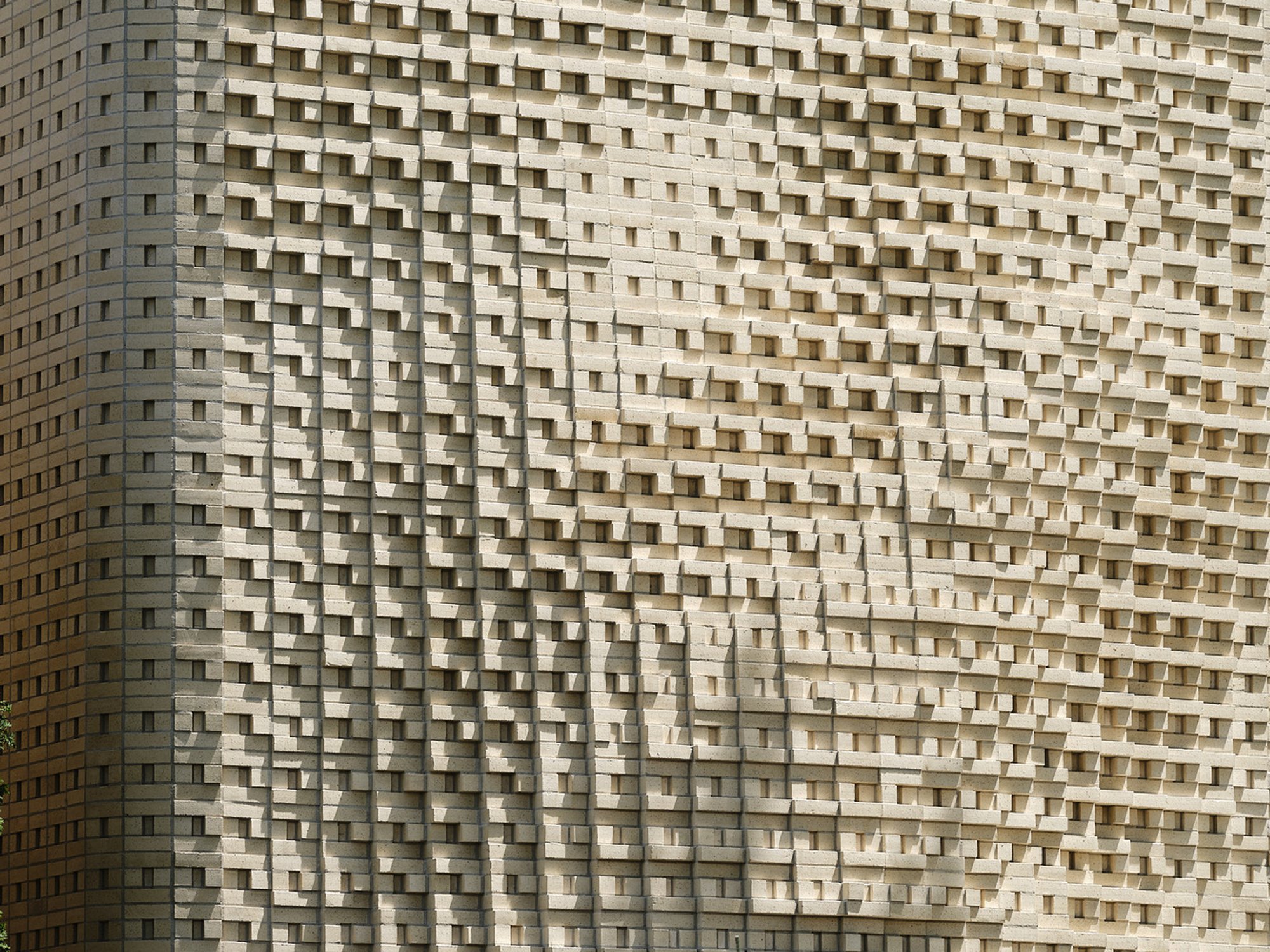

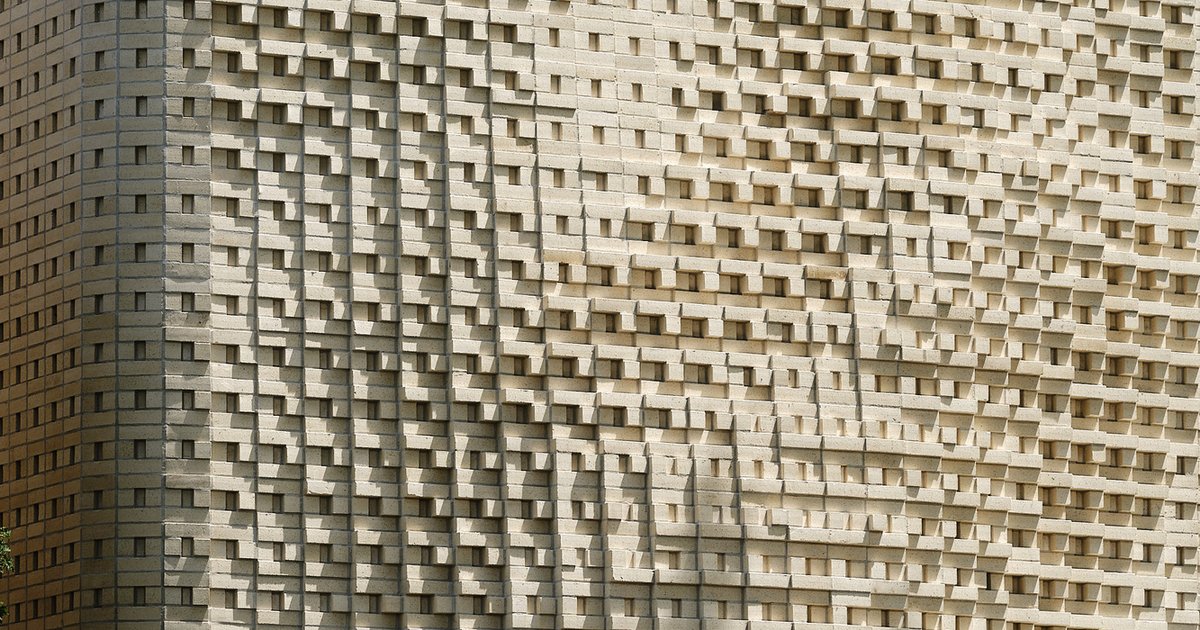

Undulating basketweave brick wall surface showing varied depths and shadow patterns in natural light
Undulating basketweave brick wall surface showing varied depths and shadow patterns in natural light

The basketweave bond is not new, but Partisans uses it as a canvas for variation. Instead of flat repetition, the pattern incorporates corbelled reliefs that shift the facade plane in and out by inches. The effect at dusk or in raking light is textile-like, a surface that catches shadow and reflects the movement implied in Poons's paintings. The choice of a single brick type in three dimensions keeps the palette monochromatic while allowing enough dimensional play to avoid monotony.

The corner window detail shows how the skin negotiates openings without breaking rhythm. Custom-milled wood frames the triple-glazed glass, and the corbelling continues right up to the edge. The brick does not stop or simplify; it adapts. This is the kind of detailing that requires close collaboration between architect, engineer, and mason, and it shows in the crispness of the execution.

Interior Continuity

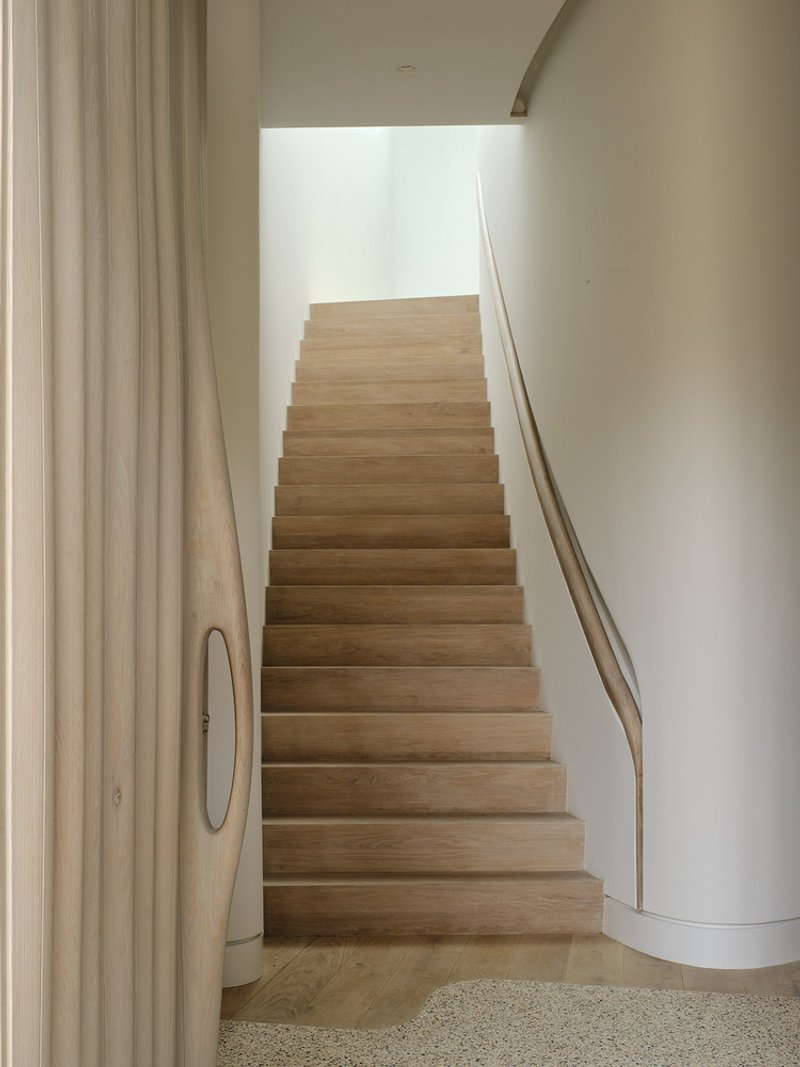

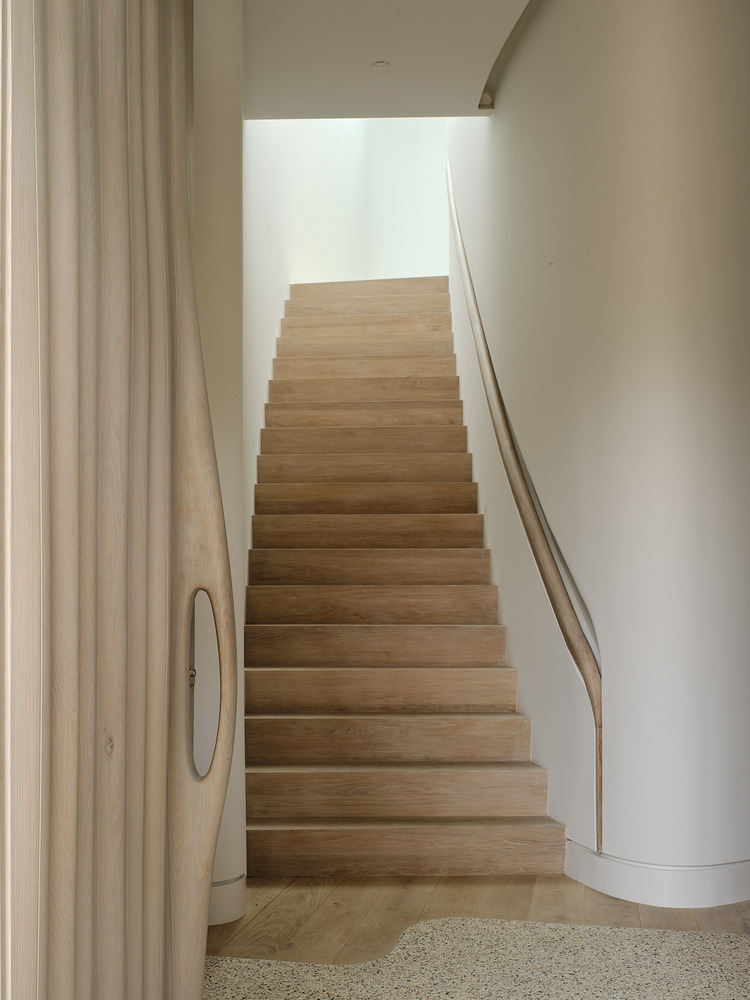

Light wood staircase ascending through a curved white stairwell with natural light from above
Light wood staircase ascending through a curved white stairwell with natural light from above

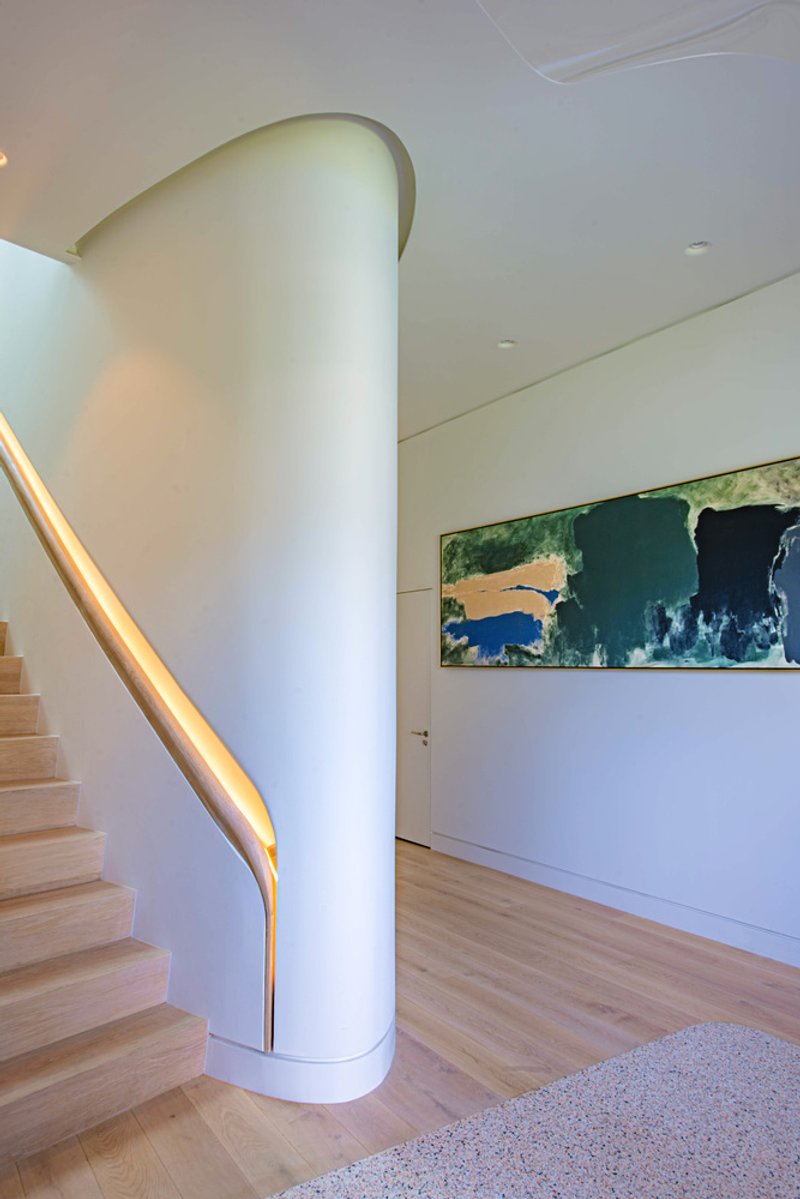

Curved white column anchoring a timber staircase with illuminated handrail and abstract painting beyond
Curved white column anchoring a timber staircase with illuminated handrail and abstract painting beyond

Inside, the same formal language continues. The stairwell is a carved white volume that curves from floor to ceiling, lit from above by a skylight positioned where the facade recedes. The timber stair treads float within this volume, and the handrail is not applied but carved directly from the plaster wall. This is not a detail added for effect; it is the logical extension of a design strategy that treats walls, ceilings, and functional elements as a single continuous surface.

The rounded core that divides the entry corridor from the staircase is another example of this approach. It is a wedge-shaped volume that anchors the ground floor plan, separating circulation from the open living, dining, and kitchen space at the rear. The core is not a column or a wall; it is a spatial device that organizes movement and sight lines while maintaining the fluidity the facade promises.

Art and Function

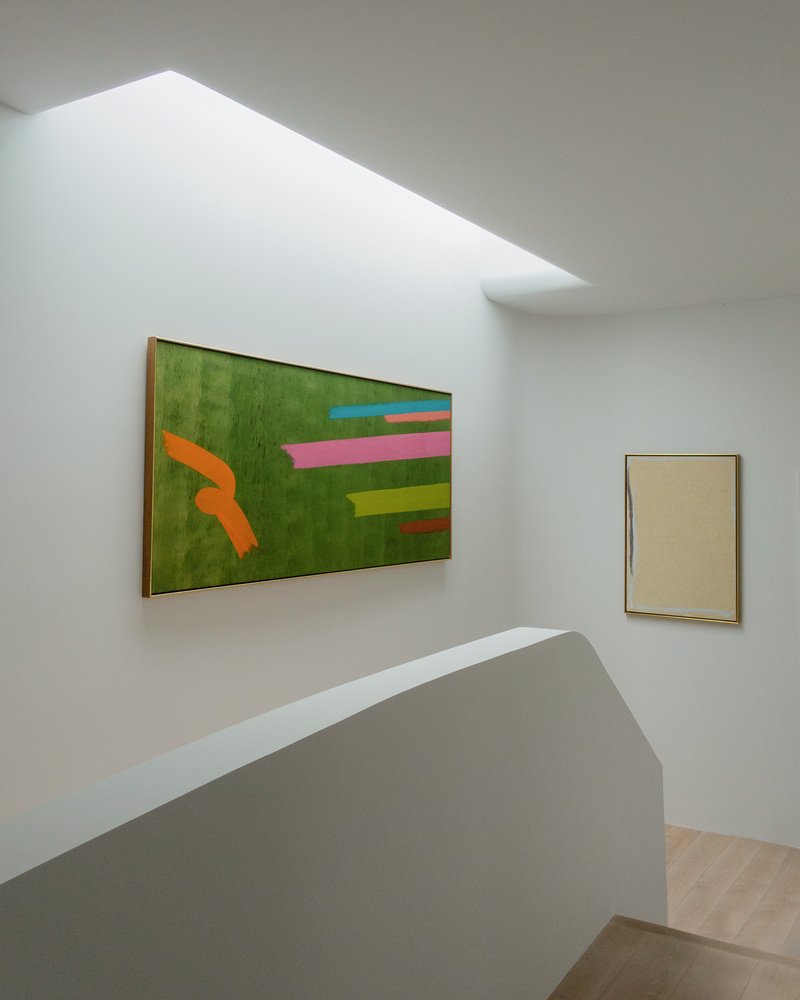

White gallery wall with curved soffit above two framed paintings and a rounded plaster balustrade
White gallery wall with curved soffit above two framed paintings and a rounded plaster balustrade

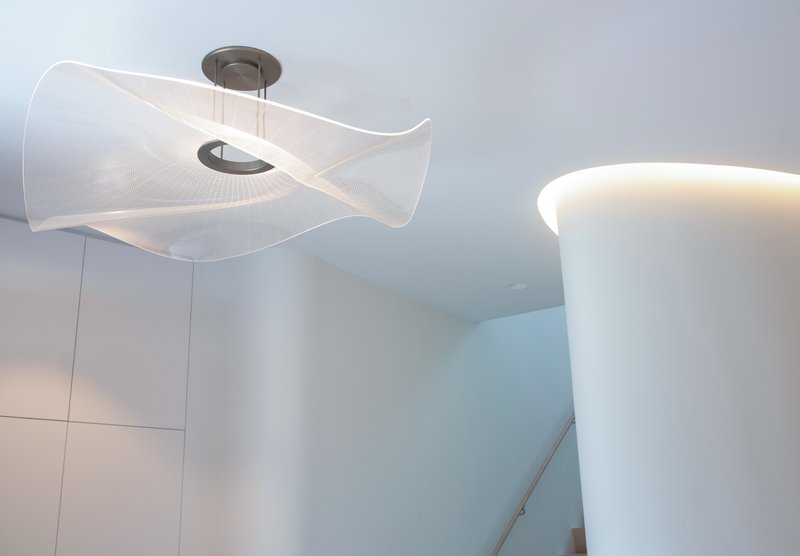

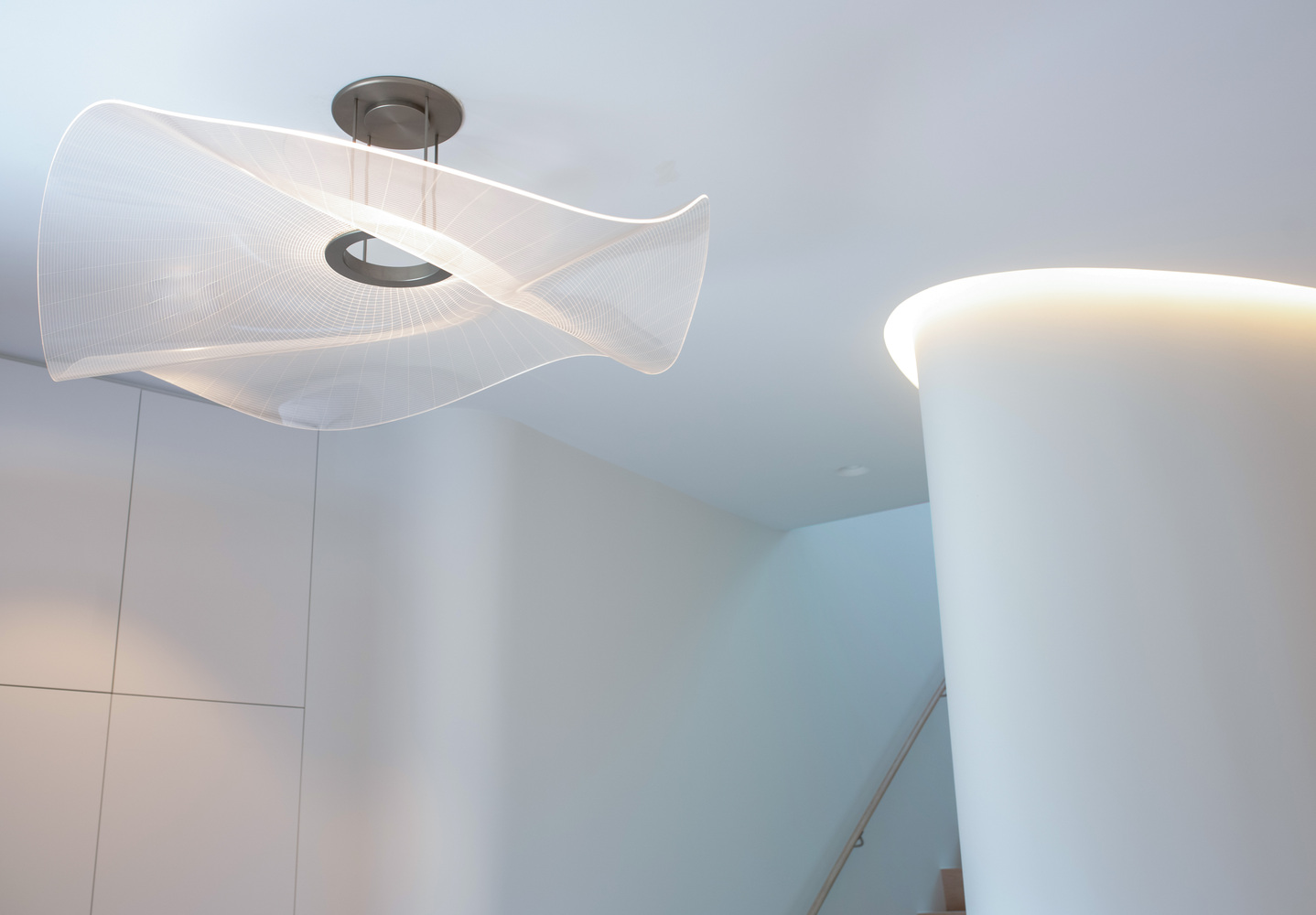

Sculptural white mesh ceiling fixture next to a curved cylindrical column in a minimal interior
Sculptural white mesh ceiling fixture next to a curved cylindrical column in a minimal interior

The house functions as a private gallery, which means the walls need to hold art without competing with it. Partisans solves this by keeping the interior palette neutral and the detailing minimal. The curved soffits and plaster balustrades create visual interest without pattern or texture that would distract from the paintings. The sculptural mesh ceiling fixture is an exception, a moment of ornamentation that works because it is isolated and relates to the same organic geometry that governs the rest of the space.

The basement level contains a cinema, a gym, and a private apartment, all tucked below grade and insulated from the main living floors. The top level splits into three bedrooms at the front and a primary suite at the rear, with the suite occupying roughly a third of the plan. This is a straightforward program, and the architecture does not overcomplicate it. The spatial interest comes from how the envelope modulates light and how the interior carving creates moments of compression and release.

Material and Detail

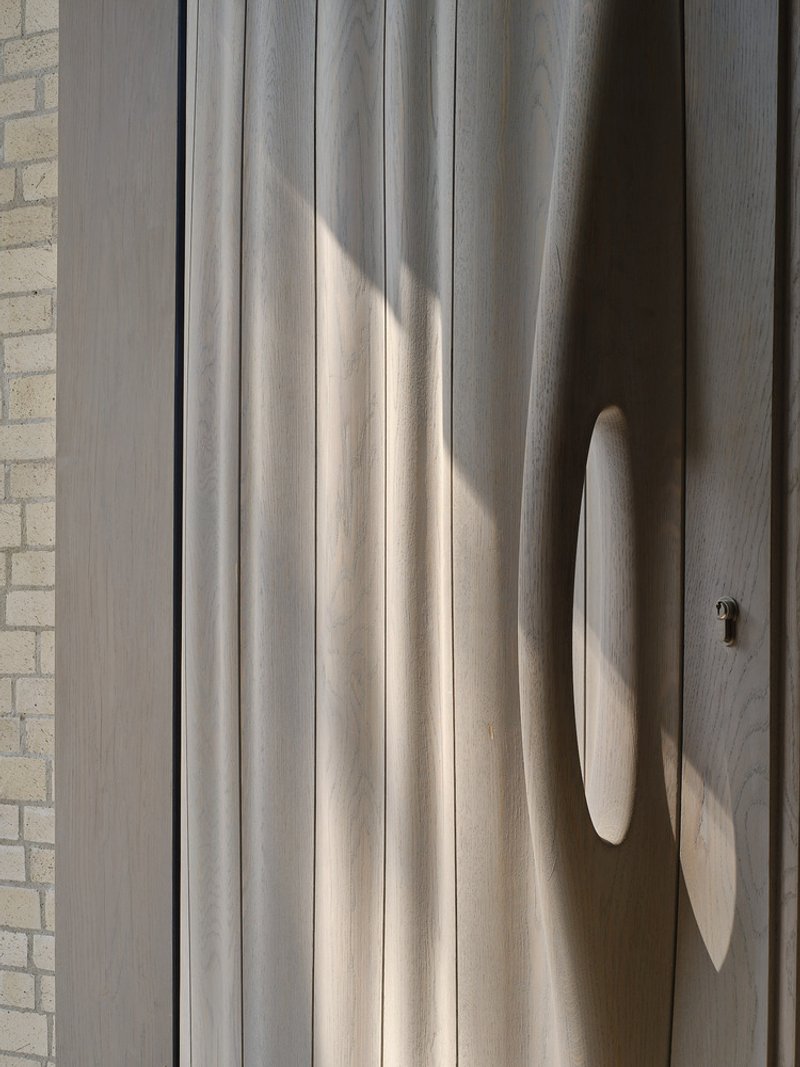

Vertical timber door panel with sculptural oval handle catching dappled sunlight
Vertical timber door panel with sculptural oval handle catching dappled sunlight

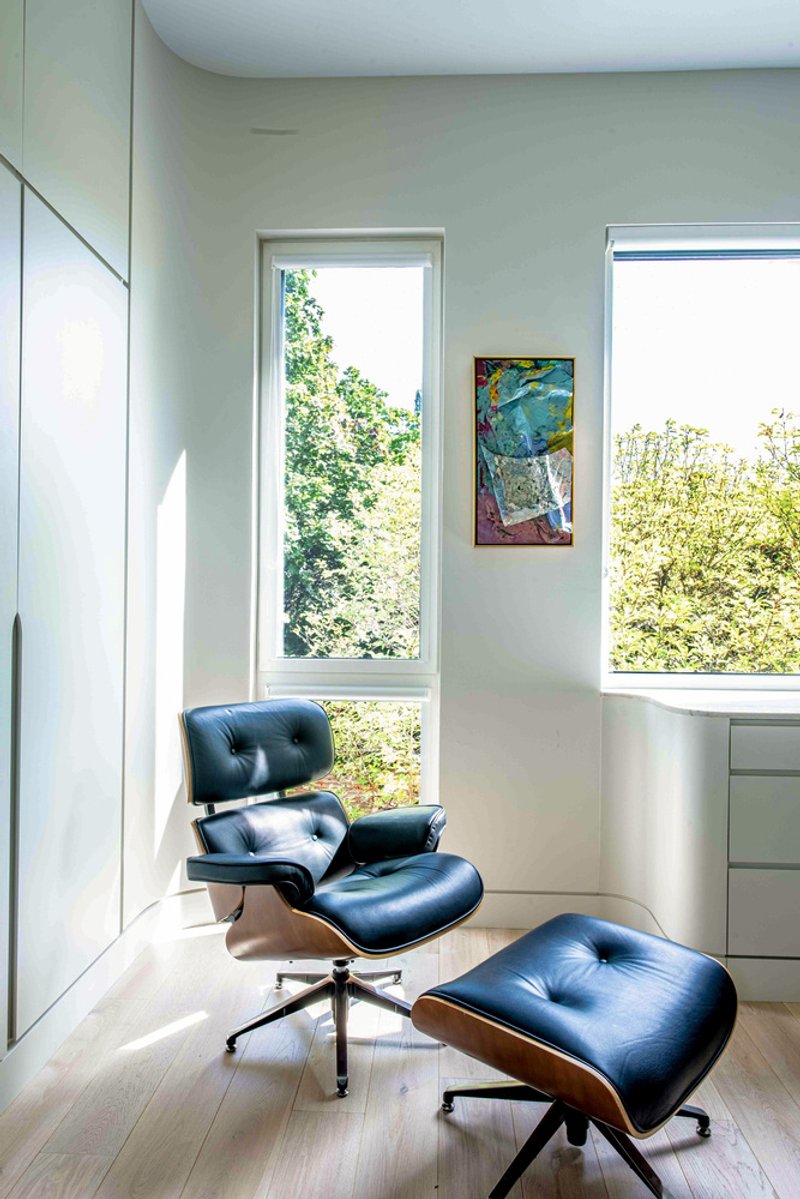

Corner reading nook with leather lounge chair and ottoman framed by tall windows overlooking greenery
Corner reading nook with leather lounge chair and ottoman framed by tall windows overlooking greenery

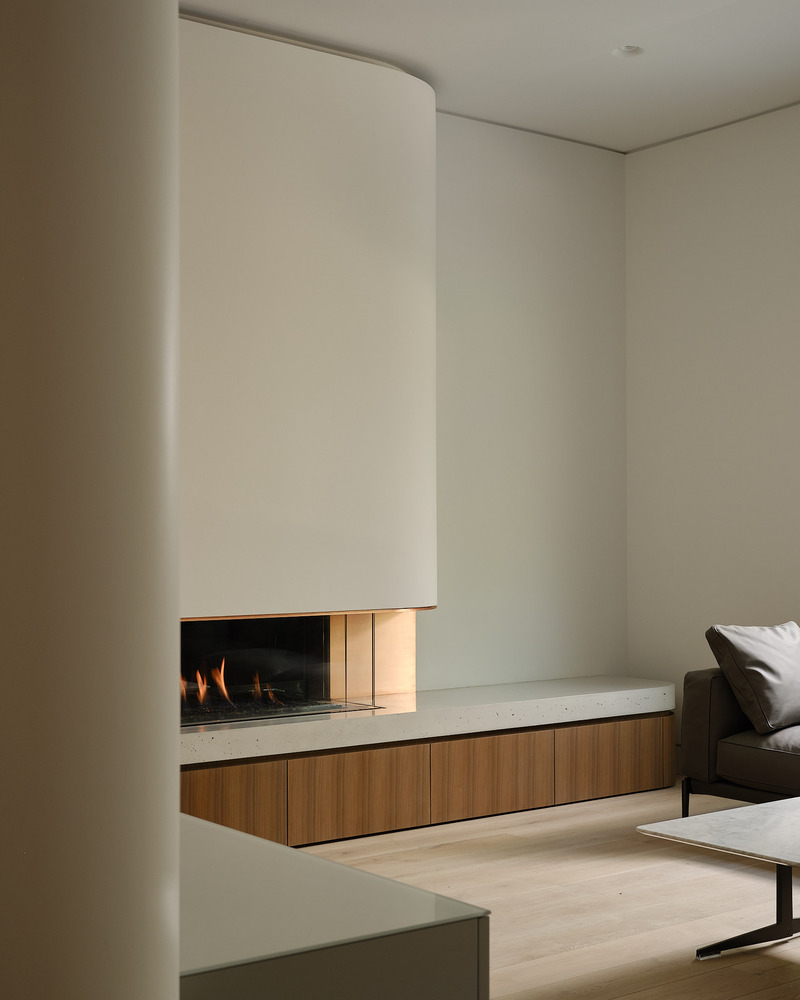

Living room fireplace insert with timber and concrete surround set into a curved white wall
Living room fireplace insert with timber and concrete surround set into a curved white wall

The timber door panel with its sculptural oval handle is representative of the level of craft throughout the house. The handle is not attached; it is carved from the door itself, a technique that echoes the carved handrails and baseboards elsewhere. This kind of detailing is time-consuming and expensive, but it produces a tactile quality that mass-produced hardware cannot match.

The corner reading nook and the fireplace insert show how the house balances intimacy with openness. The nook is a carved alcove framed by tall windows, a place to sit and look out at the greenery without feeling exposed. The fireplace is a timber and concrete surround set into a curved white wall, a moment of material contrast that anchors the living room. Both details are simple, but they are specific, and specificity is what makes a house feel considered rather than templated.

Climate and Systems

The facade is not just a decorative envelope; it contributes to the building's thermal performance. The triple-glazed windows and well-insulated walls keep the house tight, and the roof is designed to accommodate a future green roof. The hydronic heating and cooling system was installed to protect the art collection, which requires stable temperature and humidity levels. The facade overhang at the entrance provides passive shading, and the recessed window at the second floor allows natural light without excessive heat gain.

These systems are not visible, but they matter. A house that functions as a gallery has different environmental requirements than a typical residence, and the architecture accommodates those requirements without making them the dominant narrative. The facade does the heavy lifting aesthetically, but the building envelope and mechanical systems are what make the house livable year-round in a Toronto climate.

Why This Project Matters

Canvas House is significant because it demonstrates how masonry can be both structural and sculptural without resorting to cladding or applied ornament. The brick facade is load-bearing and independent from the frame, which means it is not a screen or a rainscreen but an actual wall. The corbelling and undulation are achieved through careful detailing and construction sequencing, not through prefabrication or digital fabrication. This is a project that required a skilled mason, multiple engineers, and 111 layers of drawings, and the result is a building that could not have been built any other way.

The house also matters because it shows how a contemporary residence can engage with its context without mimicking it. Forest Hill is full of yellow brick Georgians, and Canvas House uses the same material and a similar massing but arrives at a completely different expression. The project does not reject tradition; it reinterprets it. That is a more interesting strategy than either nostalgia or total rupture, and it produces architecture that feels specific to its place and time without being derivative.


Canvas House, Partisans, Forest Hill, Toronto, Canada, 5,220 square feet, completed 2022. Photography by Younes Bounhar and Teddy Shropshire.
