Cocoon Project: Flood-Resilient Architecture Rooted in Kerala's Water Landscape

What if the most effective flood defense wasn't a wall but an entire neighborhood redesigned to let water pass through it? The Cocoon Project takes that premise seriously, proposing a settlement model for Kerala where barrier walls, mangrove buffers, step-wells, and permeable dwelling units work in concert to absorb, redirect, and ultimately coexist with floodwater. Rather than fortifying against nature, the design choreographs a controlled relationship with it, treating recurring floods not as anomalies to resist but as cyclical events to accommodate.

Designed by Esha Savarnya, Yagvinder Mamoria, and Isaac Vaarzon Morel, the project was shortlisted in the HEAL+ competition, which called for regenerative housing solutions in flood-prone Kerala. The team identified four systemic vulnerabilities in existing settlements: weak structures that collapse under water pressure, unorganized layouts that complicate evacuation, poor road connectivity that obstructs emergency response, and inadequate drainage that causes post-flood stagnation and health hazards. The Cocoon Project addresses all four through a layered urban and architectural strategy.

A Master Plan Built Around Water, Not Against It

The site plan reveals the project's foundational logic: organize the settlement into a grid of clustered dwellings with clearly differentiated primary vehicular routes and inner pedestrian pathways. Impact zones, marked in turquoise and red, map out the anticipated flood reach, and the layout responds directly to these gradients. Dwellings are grouped around shared courtyards in clusters of 25 families, a scale chosen to foster collective safety, resource sharing, and efficient evacuation. The periphery is lined with mangrove plantations that decelerate water inflow before it reaches inhabited zones.

At the center of the neighborhood sits the step-well, functioning simultaneously as a water collector, a public landmark, and an early warning system. As water levels rise in the well, the community receives a visual and measurable signal of escalating flood conditions. Outside of flood periods, these same step-wells and their connected canals transform into recreational and communal gathering spaces, ensuring year-round utility from infrastructure that might otherwise sit dormant.

Layered Flood Mitigation: Barriers, Mangroves, and Canals

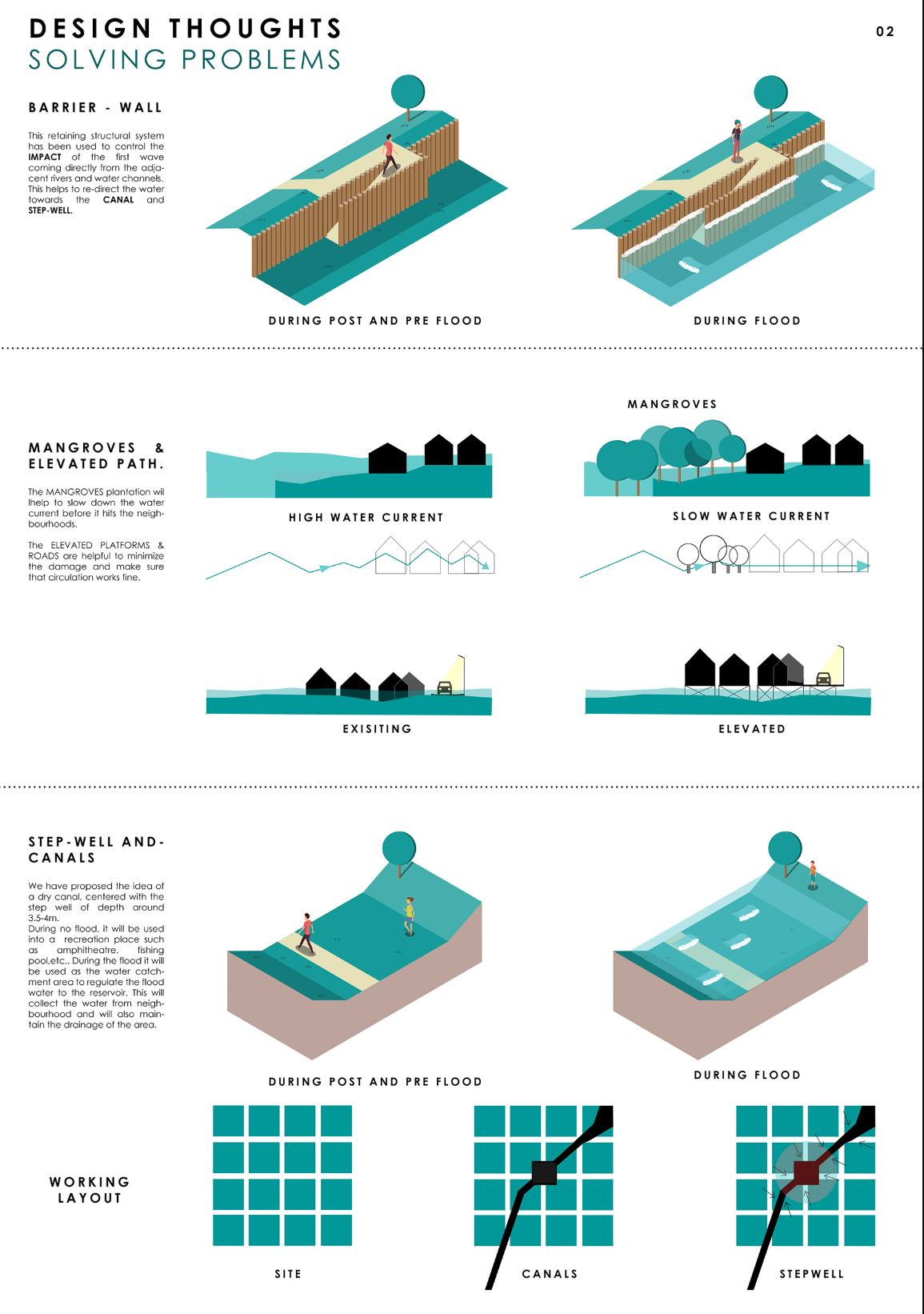

The diagram sheet lays out the project's multi-layered defense system with clarity. Barrier walls act as first-line retaining structures, strategically placed to redirect floodwaters toward canals and step-wells rather than into dwelling areas. Behind these walls, mangrove plantations slow water currents, a biophilic solution that merges ecological restoration with infrastructure performance. Elevated pathways run through the neighborhood, ensuring pedestrian mobility even when ground-level zones are submerged. The canals capture and channel excess water into reservoirs, creating a managed drainage network that prevents the stagnation responsible for post-flood contamination.

What makes this system compelling is its redundancy. No single element bears the full burden of flood protection. The barrier walls, mangroves, elevated paths, step-wells, and canals each address a different phase or intensity of flooding, and together they create a resilience gradient that degrades gracefully rather than failing catastrophically.

Clustered Courtyards and the Geometry of Community Safety

The isometric drawing shows how the dwelling clusters translate from plan to experience. Housing units line a public street flanked by trees, with a central community building anchoring the composition. The courtyard arrangement is not merely aesthetic; it structures evacuation routes, creates shared open ground for emergency staging, and maintains social cohesion by keeping families physically proximate. In a flood scenario, this layout means neighbors are within immediate reach of one another, and access to common services remains unobstructed.

The designers frame this as cultural continuity by design. Public spaces sustain social interaction during normal conditions and become critical support infrastructure during crises. The architecture holds both states without needing to transform; it simply shifts in emphasis from communal leisure to collective survival.

Dwelling Units That Let Water Through

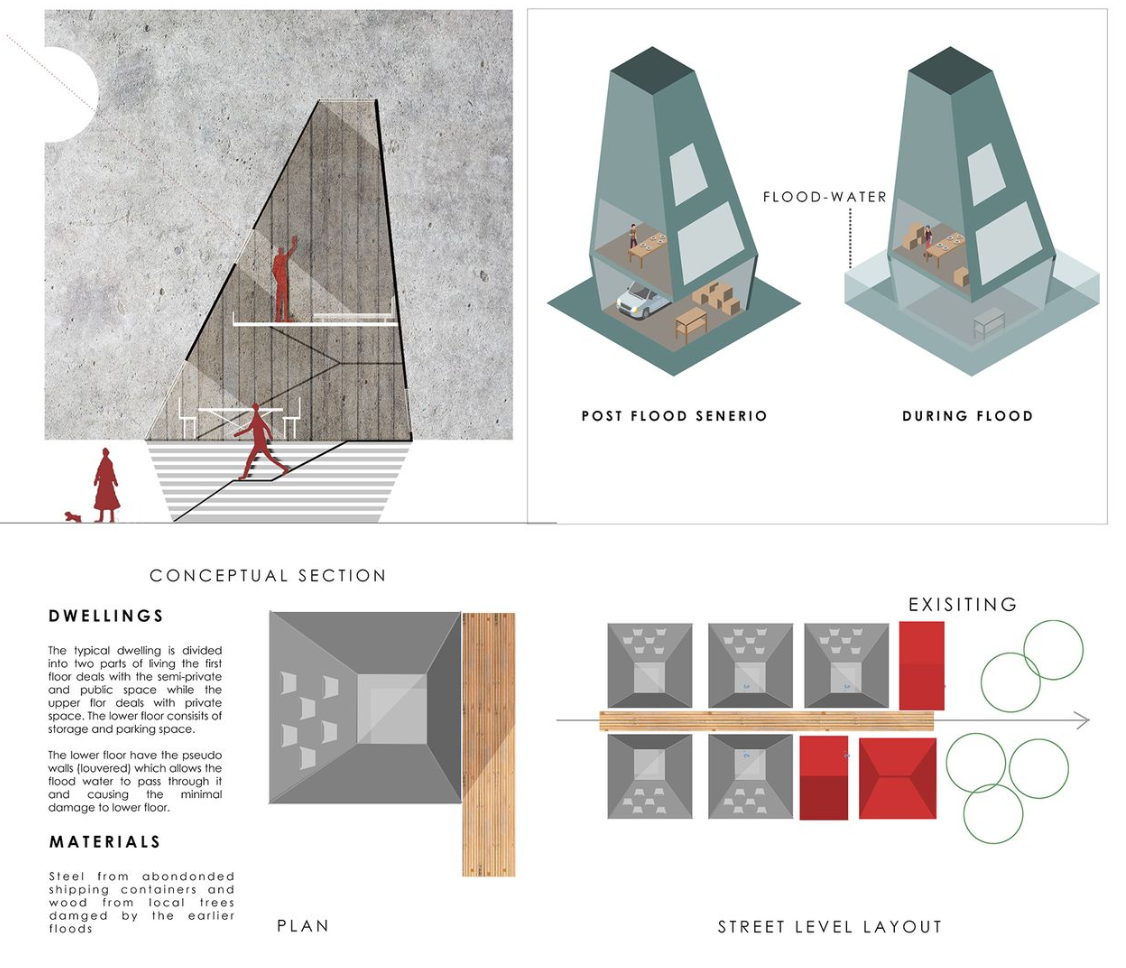

At the unit scale, the design commits to a two-part vertical division. Ground floors serve as storage and parking, deliberately sacrificial zones that accept water intrusion. Living spaces are elevated above anticipated flood levels. The section and plan drawings reveal pseudo walls at the lower level, permeable structures that allow controlled water passage rather than resisting it. This is a critical detail: by letting water move through the ground floor, the building avoids the hydrostatic pressure that causes conventional walls to buckle and collapse.

Material choices reinforce the project's sustainability agenda. Abandoned shipping containers and reclaimed wood are repurposed as primary construction elements, visible in the timber cladding shown in the drawings. The flood-water storage zones integrated into the dwelling's section add another layer of water management, capturing and holding floodwater at the building scale before it is released into the neighborhood's canal system. Each dwelling becomes a micro-infrastructure node within the larger resilience network.

Why This Project Matters

The Cocoon Project's strength lies in its refusal to treat flood resilience as a single technical problem with a single technical answer. Instead, it distributes resilience across scales, from the regional mangrove buffer to the neighborhood step-well to the permeable ground-floor wall of an individual dwelling. Each intervention is modest on its own; together, they form a system that is structurally redundant, ecologically restorative, and socially cohesive. The designers have understood that in Kerala's flood context, survival depends not just on building stronger but on building smarter, with communities organized to support each other and infrastructure designed to serve multiple purposes across seasons.

For a student team, the sophistication of thinking here is notable. The step-well as early warning device, the pseudo wall as pressure-release mechanism, the courtyard cluster as evacuation geometry: these are not decorative concepts but operational design decisions. The Cocoon Project demonstrates that resilient architecture doesn't require high-tech solutions or massive budgets. It requires a thorough reading of site conditions, a willingness to learn from traditional infrastructure like step-wells and mangroves, and the discipline to coordinate interventions across every scale of the built environment.

View the Full Project

About the Designers

Designers: Esha Savarnya, Yagvinder Mamoria, Isaac Vaarzon Morel
