Reborn: Disaster Resilient Architecture as an Urban Healing System

A post disaster urban design proposal by Basia M

Reborn, a project by Basia M, rethinks the role of architecture after an earthquake. Instead of treating reconstruction as a temporary emergency response, the project proposes disaster resilient architecture as a long-term urban framework, one that repairs damaged neighborhoods, supports displaced residents, and strengthens the social life of the city.

The project begins with a clear urban question: what happens when a disaster interrupts the structure, rhythm, and function of a city? Reborn answers through the idea of “healing patches”, a spatial planning strategy that inserts new residential, public, and service systems into the urban fabric. These patches are not isolated shelters. They are planned as flexible districts that can grow before, during, and after disaster events.

At its core, Reborn is both an architectural and urban design proposal. It works across scales, from the individual dwelling unit to the larger city plan. The project combines housing, green corridors, public nodes, service areas, underground parking, workshops, and shared spaces into one adaptable recovery system.

Disaster resilient architecture beyond emergency shelter

Many post disaster housing solutions focus only on speed. Reborn expands that logic. It argues that recovery must include safety, dignity, community, employment, and long-term urban integration.

The project is structured around four main principles: mitigation or prevention, preparation, response, and recovery. These principles guide the design from the earliest urban planning stage to the final residential unit. Permanent residential units can be developed before a disaster, while additional transient shelters can be added after an earthquake. This allows the urban fabric to densify without losing its spatial identity or aesthetic value.

This is where Reborn becomes a strong example of disaster resilient architecture. It does not simply provide shelter after destruction. It creates a prepared urban system that can absorb shock, adapt to changing needs, and support recovery without producing new social or spatial problems.

Healing patches in the urban fabric

The site plan shows a network of residential clusters arranged along a green belt. Roads, public nodes, water features, and community spaces are organized as part of a larger recovery landscape. Rather than replacing the existing city, the proposal introduces a complementary typology that can be inserted into different urban contexts.

These healing patches act as bridges between damaged neighborhoods and future reconstruction. They bring structure to uncertain conditions by creating zones for living, gathering, working, and healing.

The masterplan includes:

Residential clusters that create smaller neighborhood units within the larger site. Green corridors that connect districts and soften the density of recovery housing. Public nodes that support care, education, rehabilitation, temporary healthcare, and social services. Water features and open spaces that give the plan ecological and psychological value. Service areas and workshops that help residents regain employment and routine.

This layered approach makes Reborn more than a housing proposal. It becomes a civic recovery framework.

Housing designed for dignity and flexibility

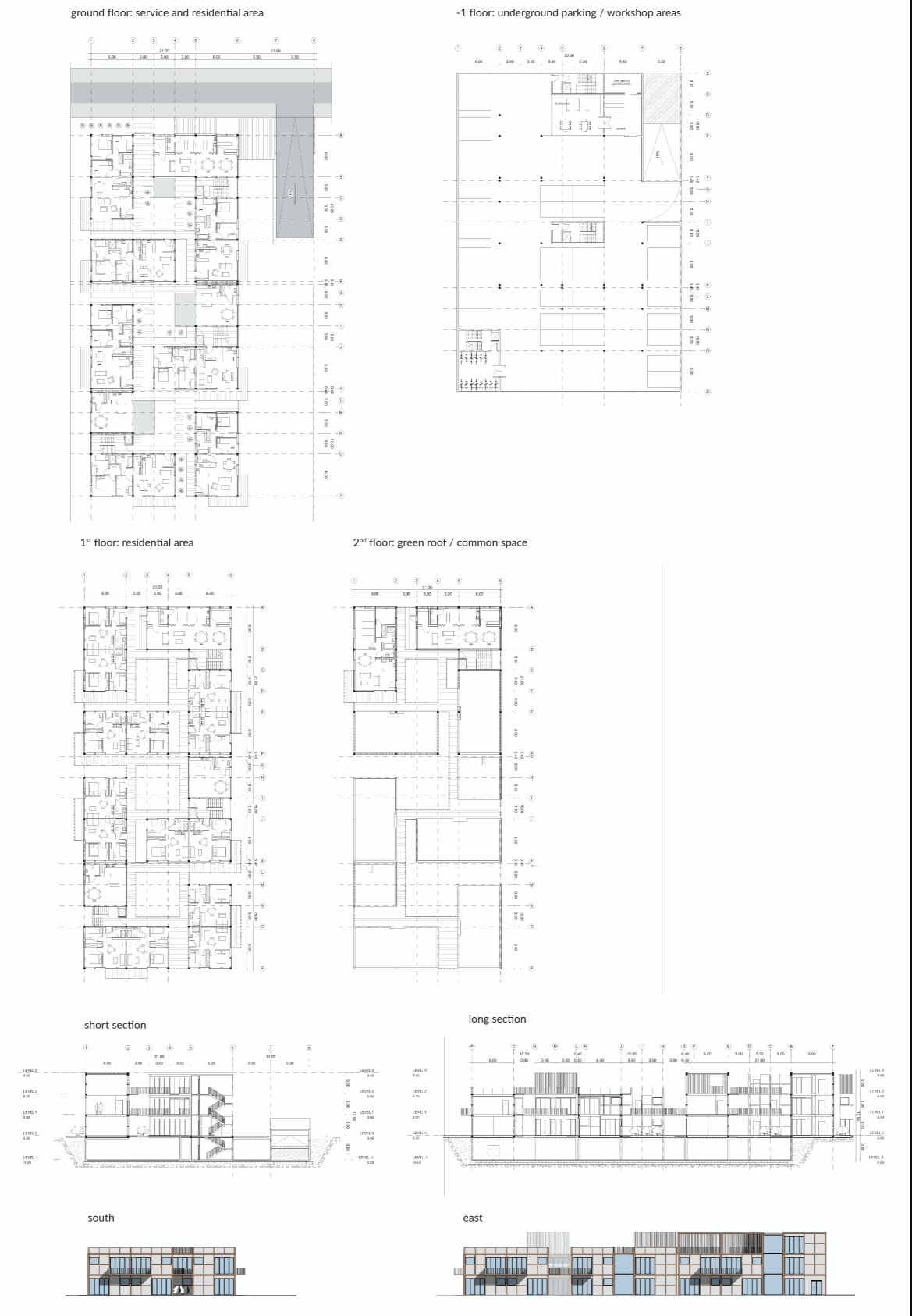

The residential units are planned as modular, adaptable structures. The drawings show ground floor service and residential areas, first floor housing, second floor green roof and common space, and an underground level for parking and workshop functions. This stacking of programs allows the building to operate as a hybrid unit, combining private life, shared space, and productive activity.

The basic apartment layouts include options for different household sizes. The interior system supports small and large units, with layouts that can be adjusted based on urgency, financial conditions, and family needs. A basic apartment can serve four people, while larger arrangements can accommodate six. Smaller units provide compact dwellings for two families.

This flexibility is critical in post disaster contexts. Families are rarely displaced in identical ways. Some need temporary shelter. Others need permanent housing. Some require access to care facilities, while others need spaces for work or education. Reborn responds by making the interior plan adjustable rather than fixed.

Community as a recovery tool

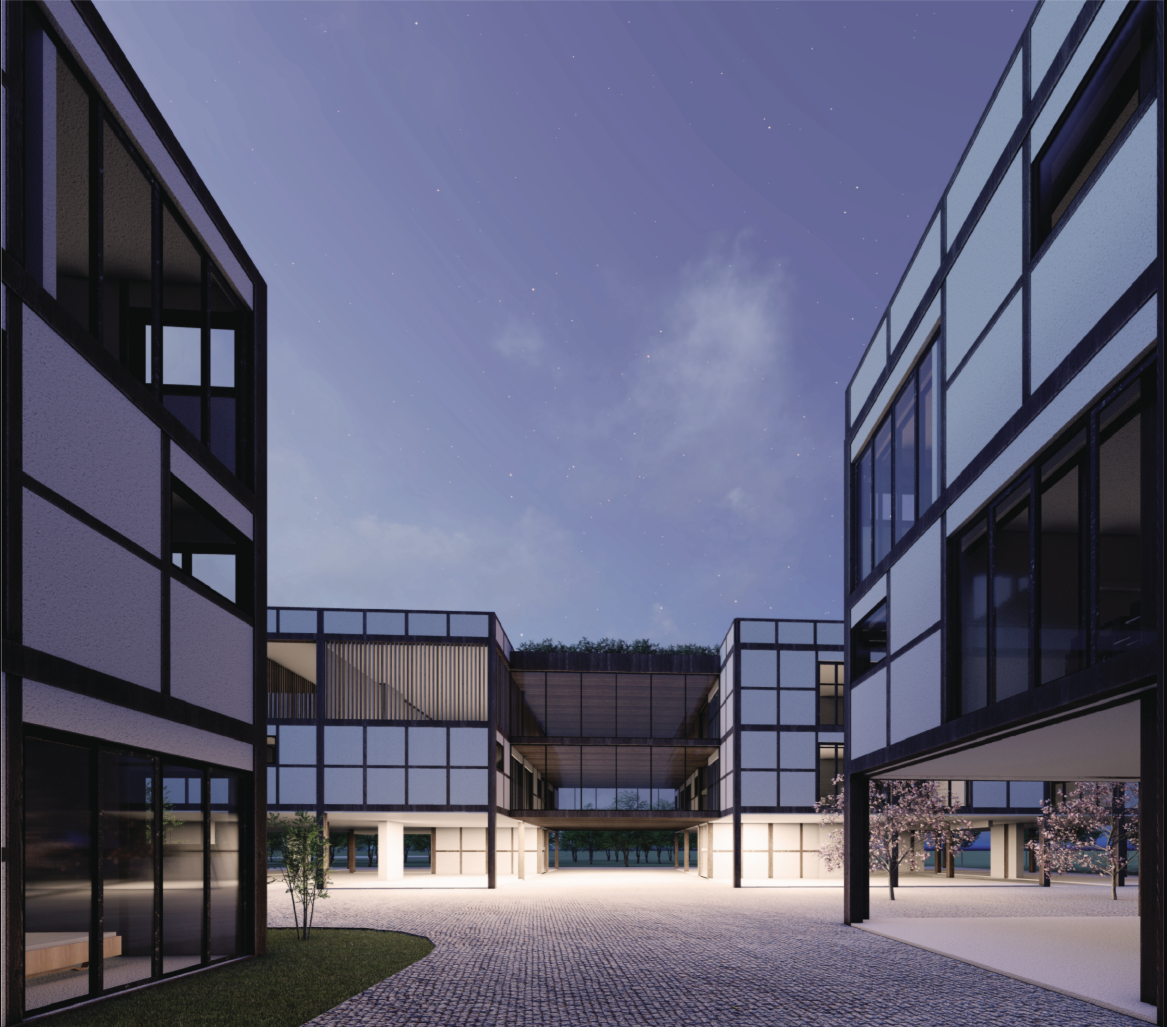

The psychological dimension of disaster recovery is central to the project. The dwellings are organized in clusters that create a sense of community. Each dwelling has access to inner semi-private space, which forms a common area for residents.

This arrangement reduces isolation. It allows displaced people to rebuild social connections while still maintaining privacy. The cluster system gives residents shared courtyards, collective thresholds, and recognizable neighborhood spaces.

In Reborn, architecture becomes a tool for emotional recovery. The project understands that people need more than walls and roofs after a disaster. They need proximity, routine, safety, and a sense of belonging.

Each cluster also includes a public service node. These nodes can serve multiple functions, including care centers, rehabilitation centers, temporary hospitals, educational centers, shops, offices, workshops, and daycare facilities. By integrating these uses into the housing system, the project avoids the common problem of isolated shelter settlements that lack employment, public life, and social infrastructure.

Earthquake resistant architecture inspired by local techniques

Reborn’s construction strategy is inspired by the local technique of dhajji dewari, a traditional earthquake resistant system known for its low-tech efficiency. The project reinterprets this method through a modern patchwork wall system, using lightweight infill instead of stone.

This gives the design a strong connection to vernacular architecture while improving speed, flexibility, and adaptability. The structural system is based on a wooden brace framework that can be quickly built and later transformed into housing or public service units.

The material logic is practical. The basic unit uses locally available wood. The wooden frame can be filled with insulation and bracing boards. This reduces complexity and allows the system to be implemented in areas where rapid construction and accessible materials are essential.

The result is a form of earthquake resistant architecture that does not rely only on advanced technology. It combines local knowledge, modular assembly, and contemporary urban planning.

A scalable urban system

The project’s scalability is one of its strongest features. The system is not designed for one fixed site only. It operates as an action plan that can be implemented in different areas.

The diagrams show a phased urban strategy. First, road axes are extended. Then basic residential units and public nodes are inserted. Over time, the green belt and additional housing structures grow into a complete urban system. In a disaster scenario, additional units can be added to densify the structure.

This makes Reborn useful not only after an earthquake but also before one. It can work as a preparedness strategy, giving cities a spatial framework that is ready to expand when needed.

The project also avoids a purely temporary solution. Instead of creating shelters that remain disconnected from the city, Reborn proposes an integrated recovery model where temporary and permanent uses can coexist within one urban plan.

Architecture, public space, and long-term recovery

Reborn’s public spaces are not decorative. They are structural parts of the recovery system. Green corridors connect housing clusters, while shared courtyards and semi-private zones support everyday interaction. Public nodes create access to essential services. Rooftop common spaces add another layer of collective life.

The proposal recognizes that disaster recovery is not only about rebuilding buildings. It is about rebuilding urban relationships. Roads, green belts, service nodes, courtyards, workshops, and housing units all contribute to a healthier recovery process.

This is why the project fits strongly within the keyword disaster resilient architecture. It connects building performance with social resilience. It links construction speed with dignity. It treats urban design as a method of care.

Modular facades and adaptable identity

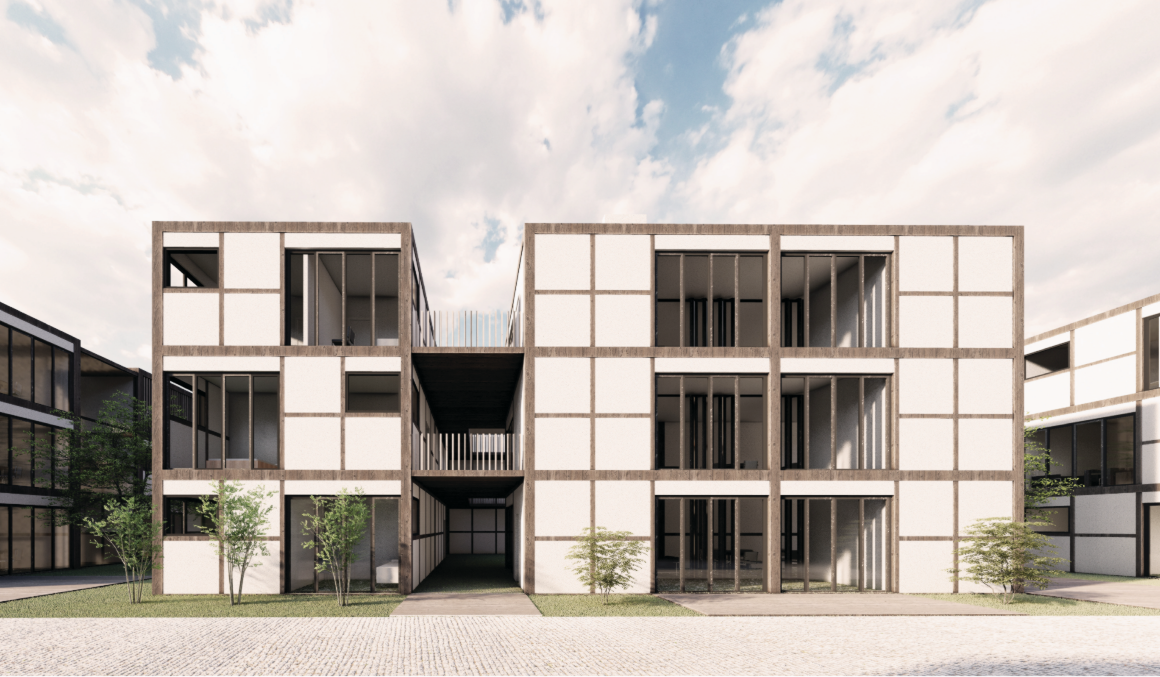

The elevation studies show a modular panel arrangement that creates variation within a standardized system. This is important because post disaster housing often risks becoming repetitive and anonymous. Reborn uses modularity without flattening identity.

The facade system allows different panel compositions, window arrangements, and service configurations. This gives the architecture a recognizable rhythm while still allowing efficient construction.

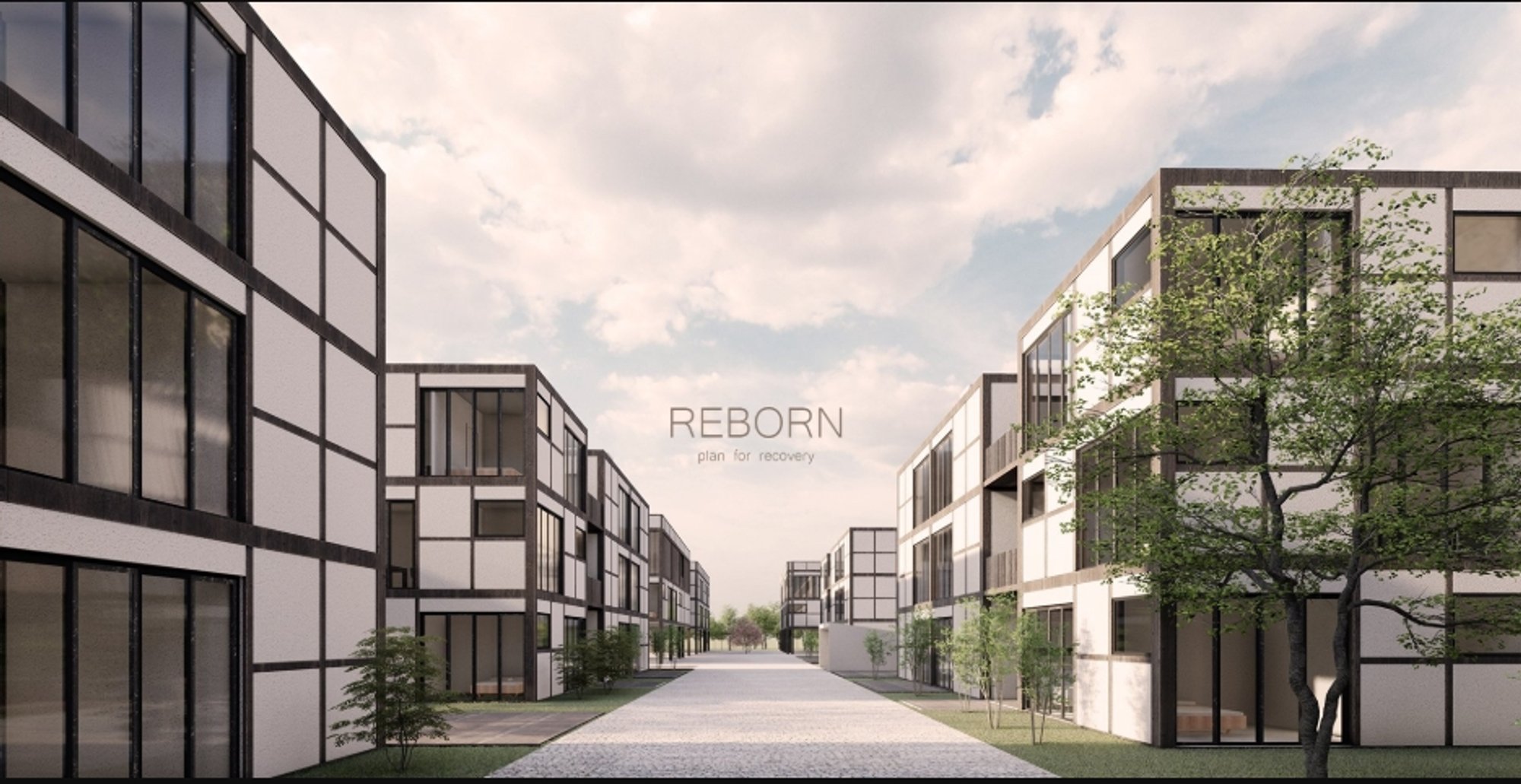

The renderings show a calm urban environment with white and dark framed facades, open walkways, green pockets, and shared pedestrian streets. The architecture is restrained, clear, and repeatable, but it avoids the visual harshness often associated with emergency housing.

Reborn as a model for resilient urban design

Reborn by Basia M proposes a mature vision for cities facing disaster risk. It positions architecture as a decision-making tool that must respond to socio-economic needs, ecological concerns, aesthetic values, and emotional recovery.

Its strength lies in the way it connects multiple systems:

Housing and public life. Temporary shelter and permanent settlement. Local construction and contemporary modular design. Urban density and green corridors. Private dwellings and collective care.

By organizing these systems into healing patches, Reborn offers a thoughtful approach to rebuilding after disaster. It does not see affected residents as temporary occupants of emergency shelters. It sees them as citizens who need safety, work, community, and a path back into everyday urban life.

Reborn is a compelling exploration of disaster resilient architecture because it treats recovery as an urban process rather than a single building response. Through modular residential units, public service nodes, green corridors, earthquake resistant construction, and cluster-based community planning, the project creates a flexible framework for post disaster reconstruction.

Basia M’s proposal demonstrates how architecture can prepare cities before disaster, respond during crisis, and support long-term recovery after the event. In doing so, Reborn turns spatial planning into an act of repair, making the city not only safer but also more humane.
