Sata Na Architect Blocks the River View on Purpose in This Thai Vacation House

Most houses on a river orient themselves to maximize the view from the moment you walk in. Sata Na Architect, led by Chalermchai Asayote, does the opposite. At Baan Nakhonnayok, the main design move is deliberate obstruction: walls block sight lines to the Nakhon Nayok River upon arrival, creating a compressed, almost hidden threshold that only gradually opens up to the water. It is a house built around the discipline of withholding something good.

The result is a 446-square-meter, two-story vacation home that treats sequence and revelation as its primary architectural tools. Completed in 2022 on a narrow, curving lane that constrained material deliveries and forced the use of small-format cladding, the house sits on the highest point of its lot so that every room eventually commands a river prospect. But you earn that view. The journey from car to living room is a choreographed passage through stone, timber screens, planted courtyards, and shifting light before the landscape finally unfolds.

Arrival as Compression

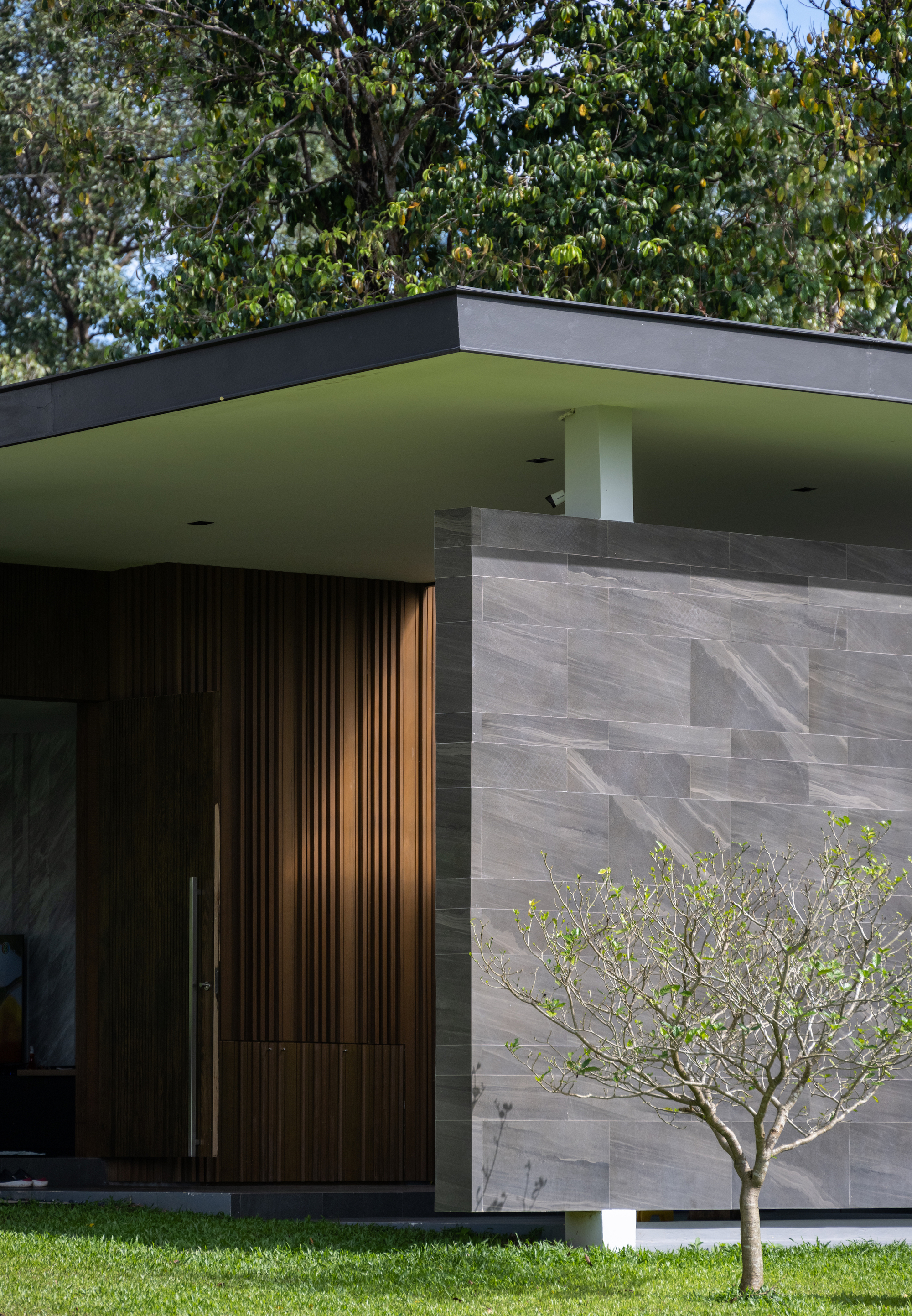

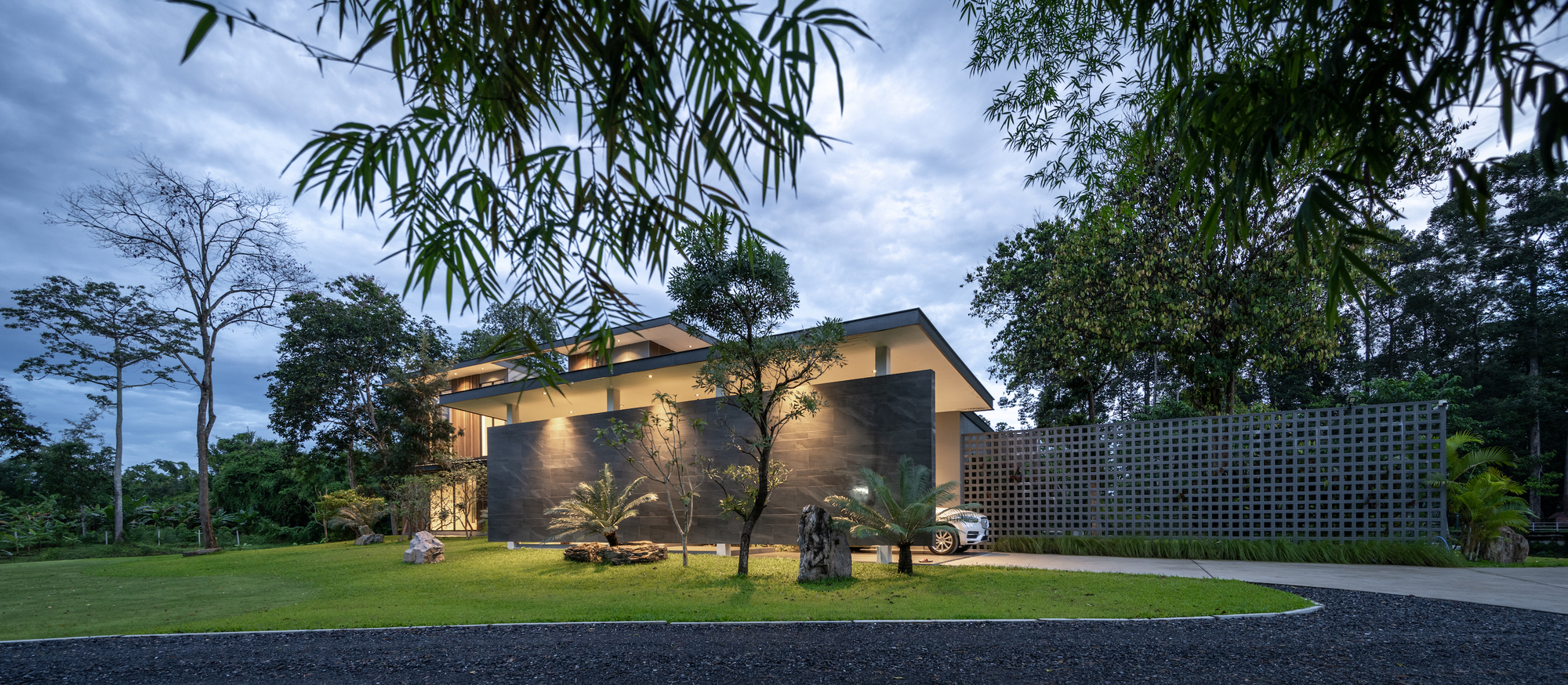

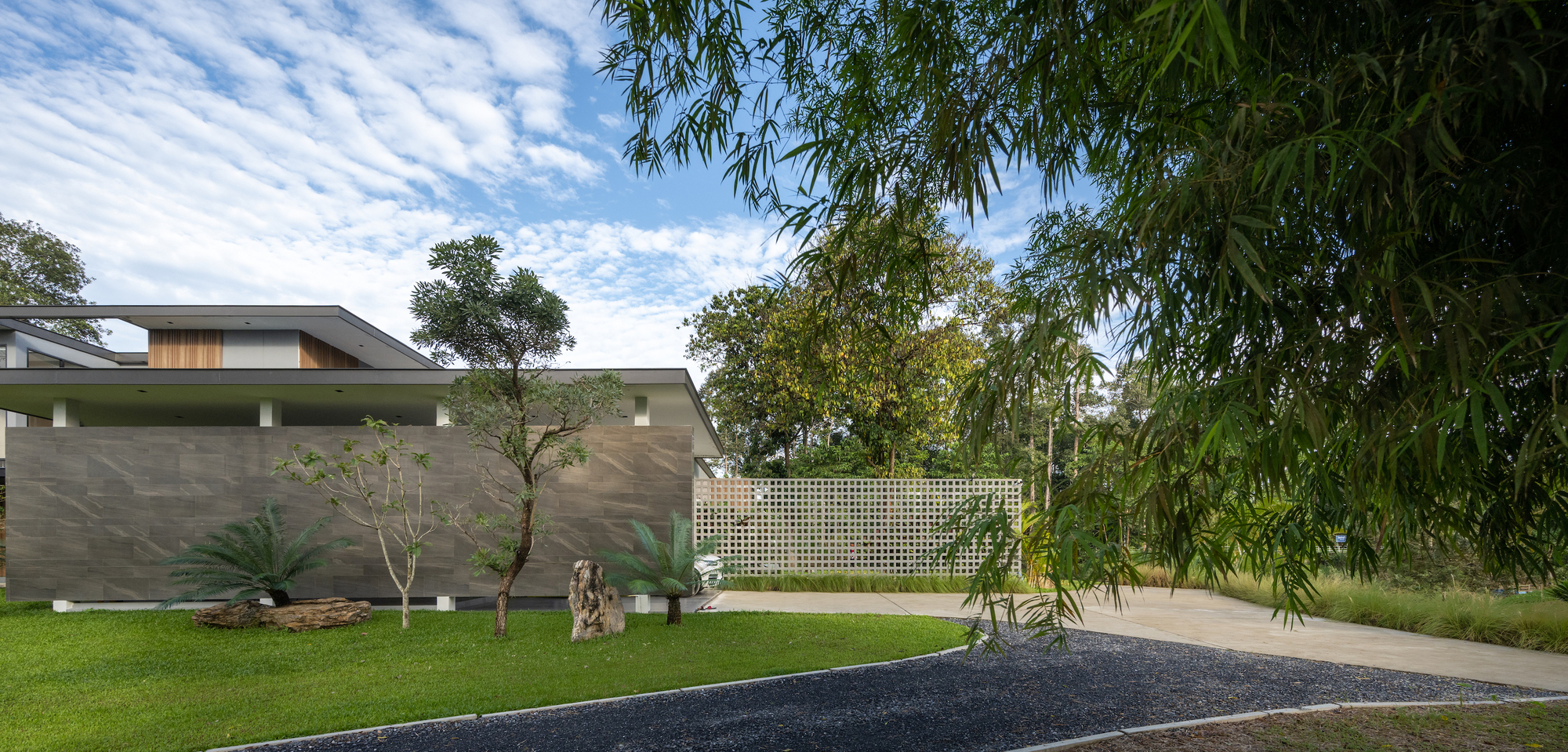

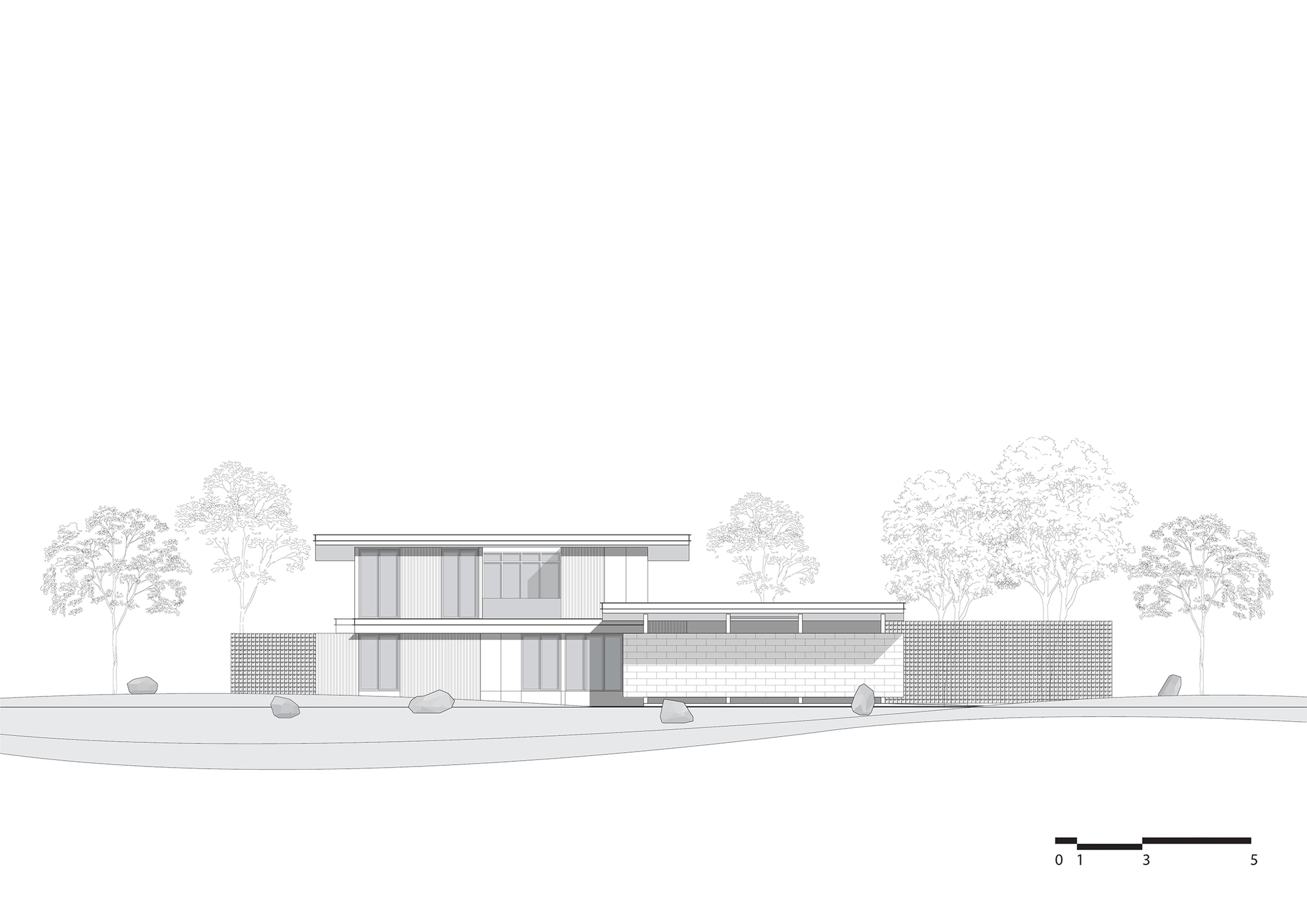

The entrance facade is intentionally opaque. A grey stone wall and a perforated timber screen greet visitors, offering zero river information. The gabled rooflines and olive-green soffit at the entry corner suggest a house that is both precise and warm, but the composition is closed, almost urban in its street manners. You register materiality and proportion before you register landscape.

This is the "blocking" strategy made physical. By denying the river at the point of arrival, the architects set up a spatial debt that the house spends its remaining rooms paying back. It is a simple idea, but executing it on a lot where the river is right there, just beyond the tree line, takes conviction.

Passage Through Planted Thresholds

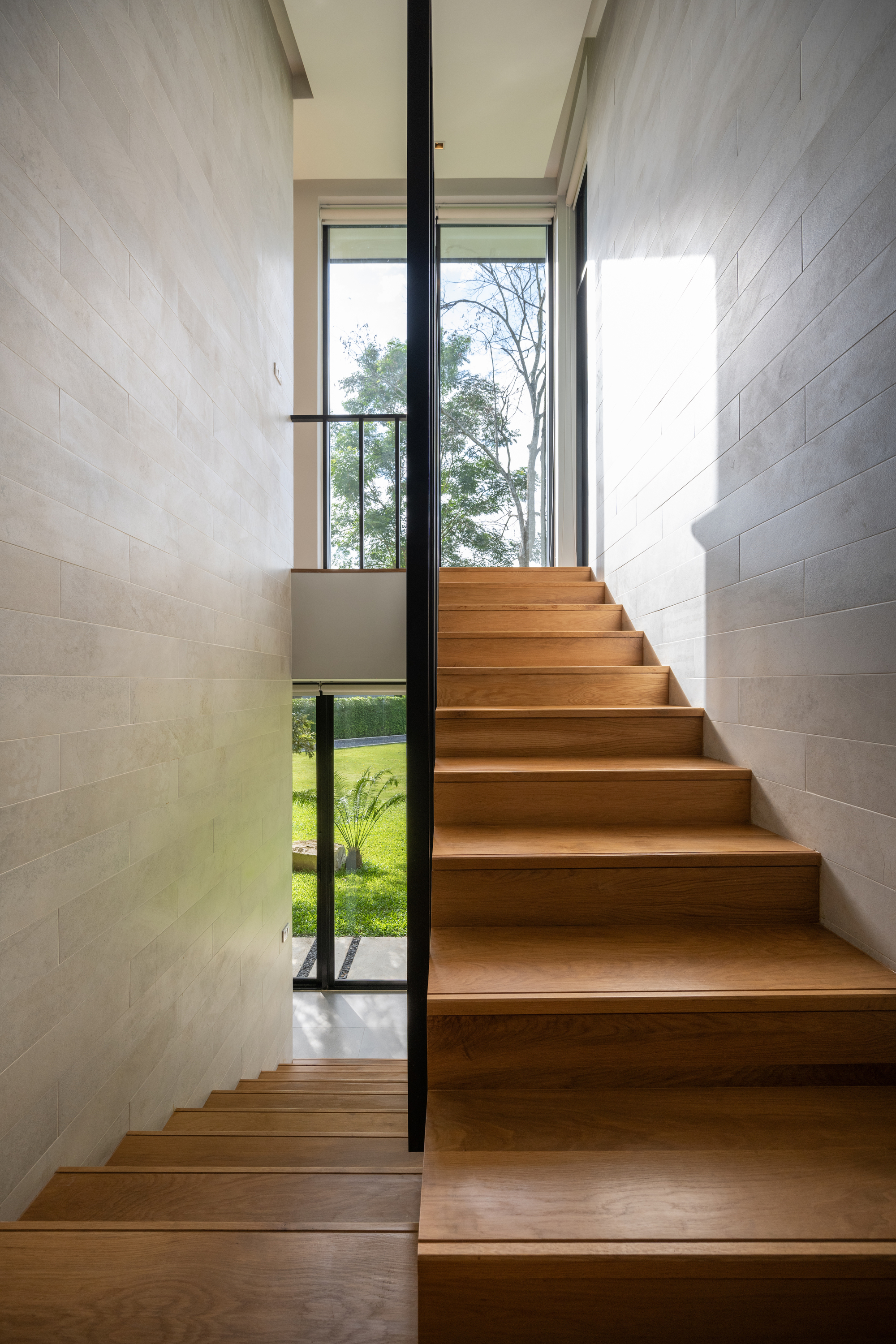

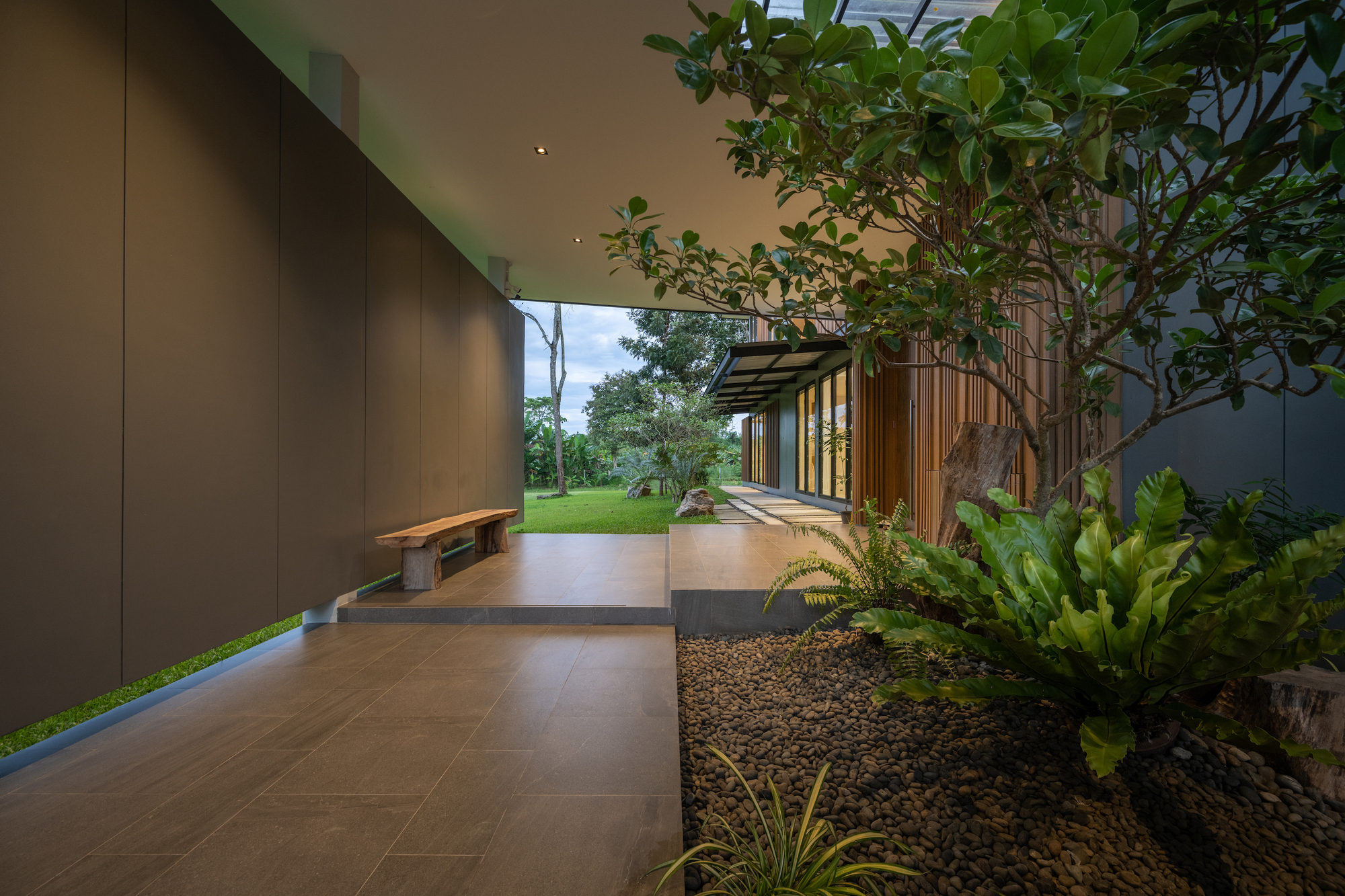

Between the entrance wall and the open living spaces, the house routes you through covered walkways and planted courtyard beds. These intermediate zones are neither fully interior nor fully exterior. The timber staircase, flanked by pale stone walls and a black steel handrail, doubles as a vertical threshold: looking up, you see sky and canopy; looking sideways, you catch garden fragments.

Existing mature trees were retained throughout the site, and the architects lean on them for shade, especially on the west-facing riverfront where afternoon sun would otherwise overheat the living areas. The canopy becomes infrastructure. Rather than deploying mechanical louvres or deep brise-soleils, the project uses trees it did not plant as the primary solar strategy.

The Open Interior Reveals the River

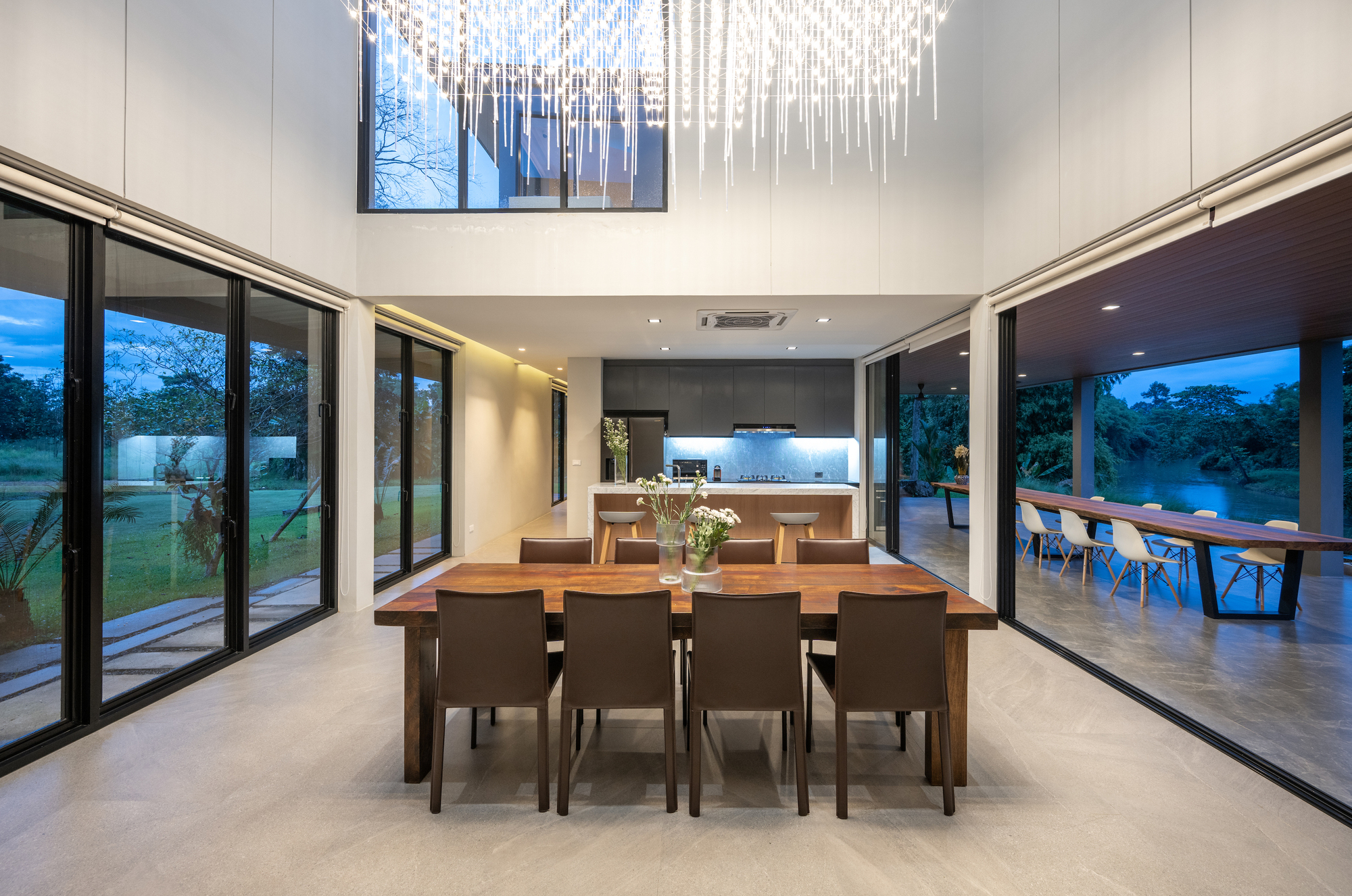

Once past the threshold sequence, the house opens up dramatically. The ground-floor living and dining spaces use an open plan with floor-to-ceiling sliding glass walls that dissolve the boundary between interior and lawn. At dusk, these rooms glow outward, framing the forested riverbank like a continuous panorama. The payoff for that compressed entry is total.

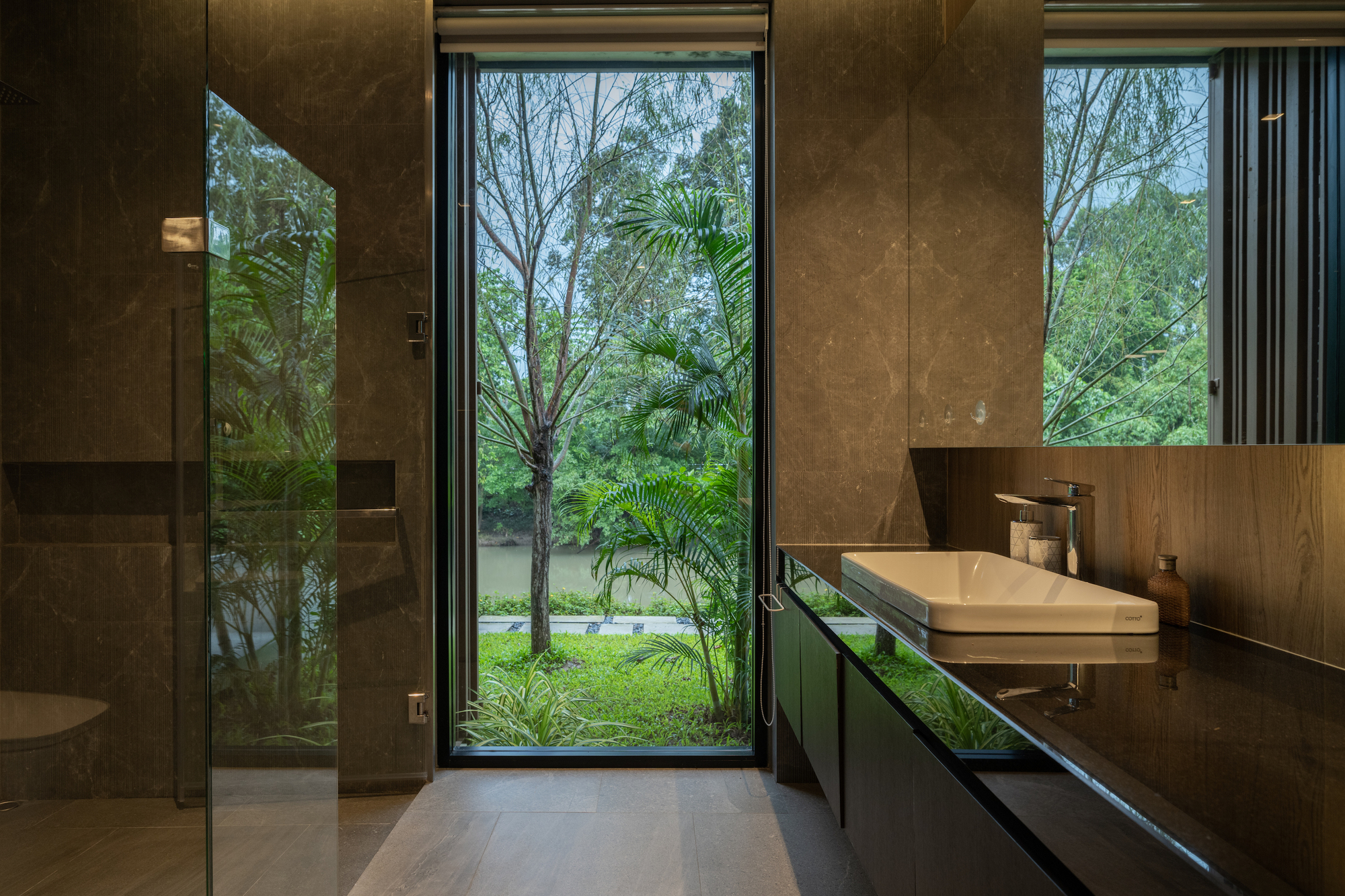

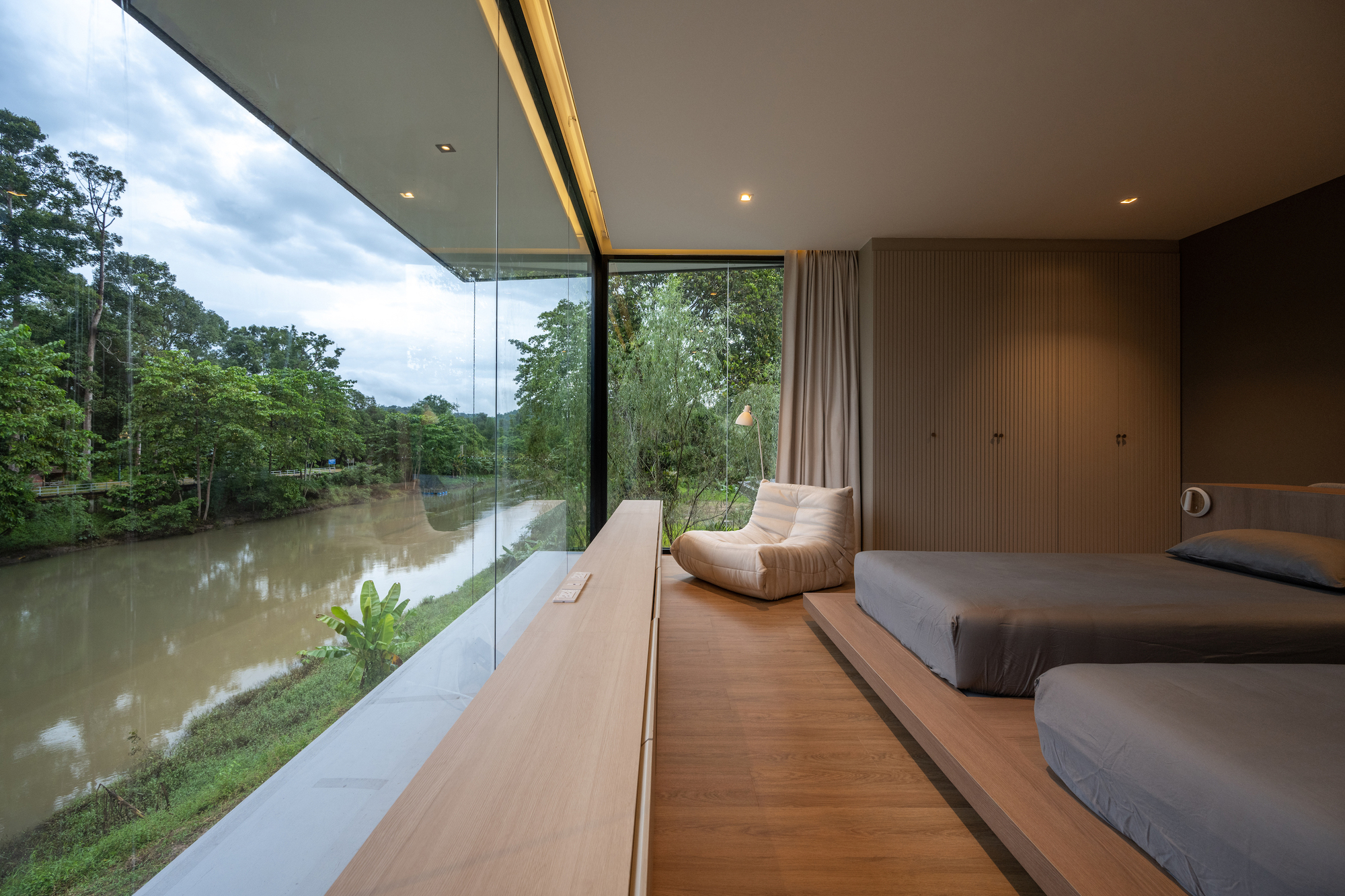

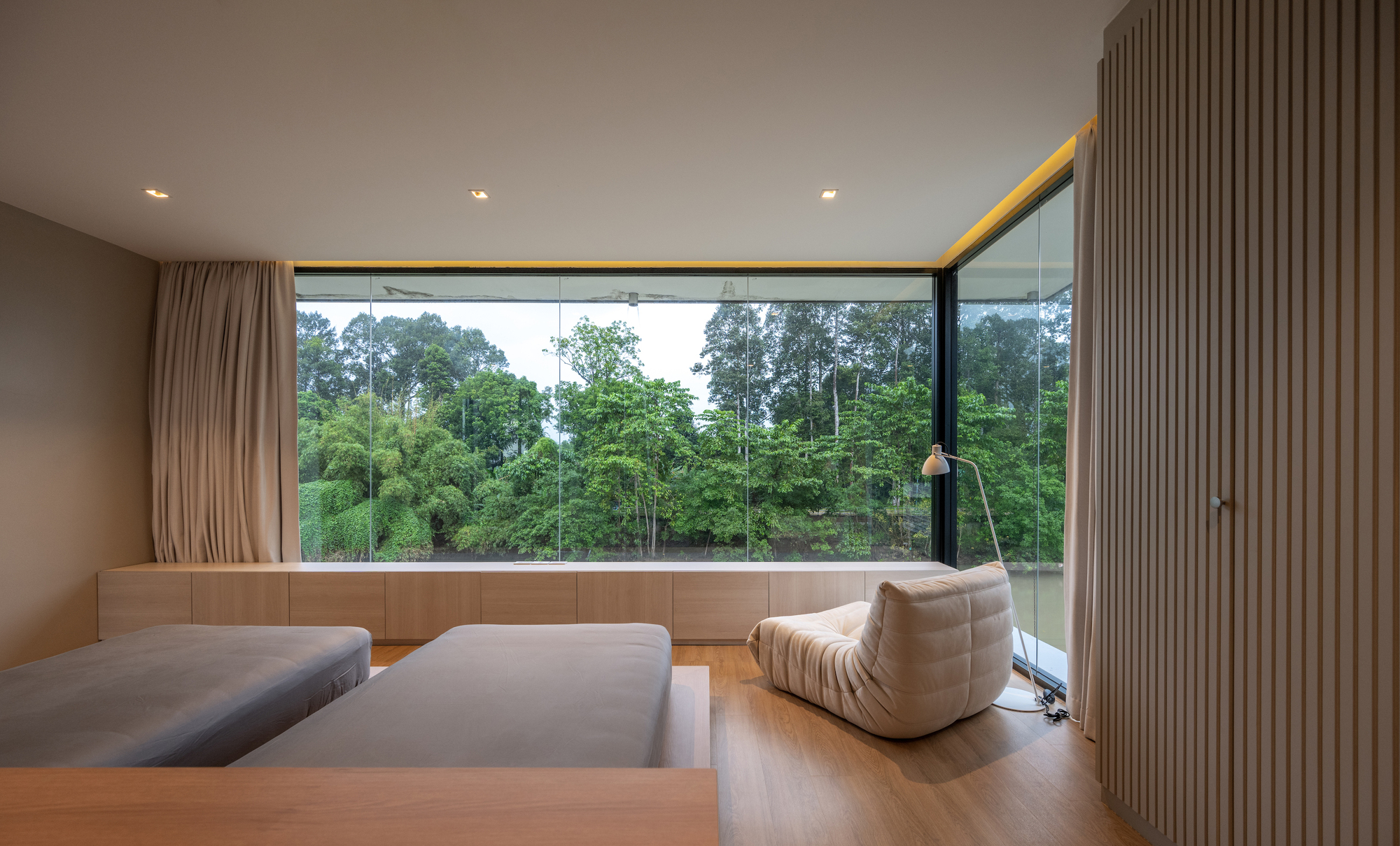

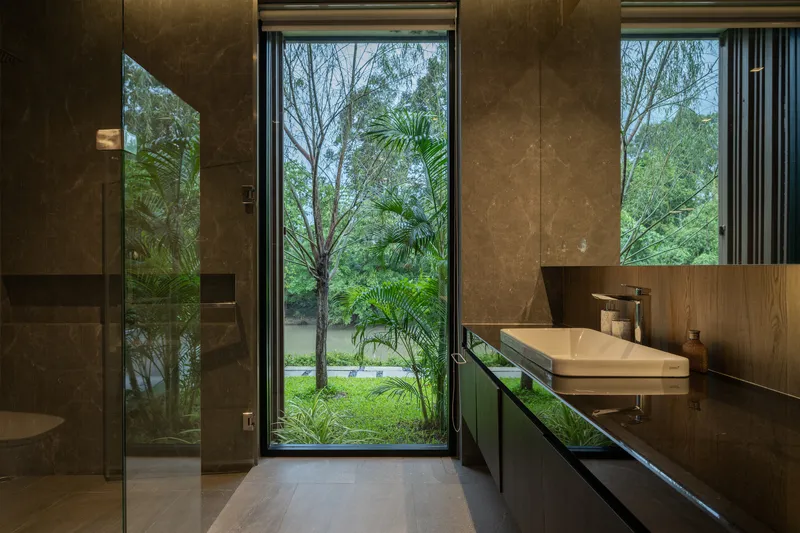

Upstairs, the bedrooms continue the strategy. A timber-floored room with full-height glazing opens directly onto the river view, the water visible at the bottom of the frame. Even the bathroom gets a wall of glass facing palm trees and garden. There is no hierarchy of service and served: every space is treated as worthy of the landscape.

Stacked Volumes and Material Logic

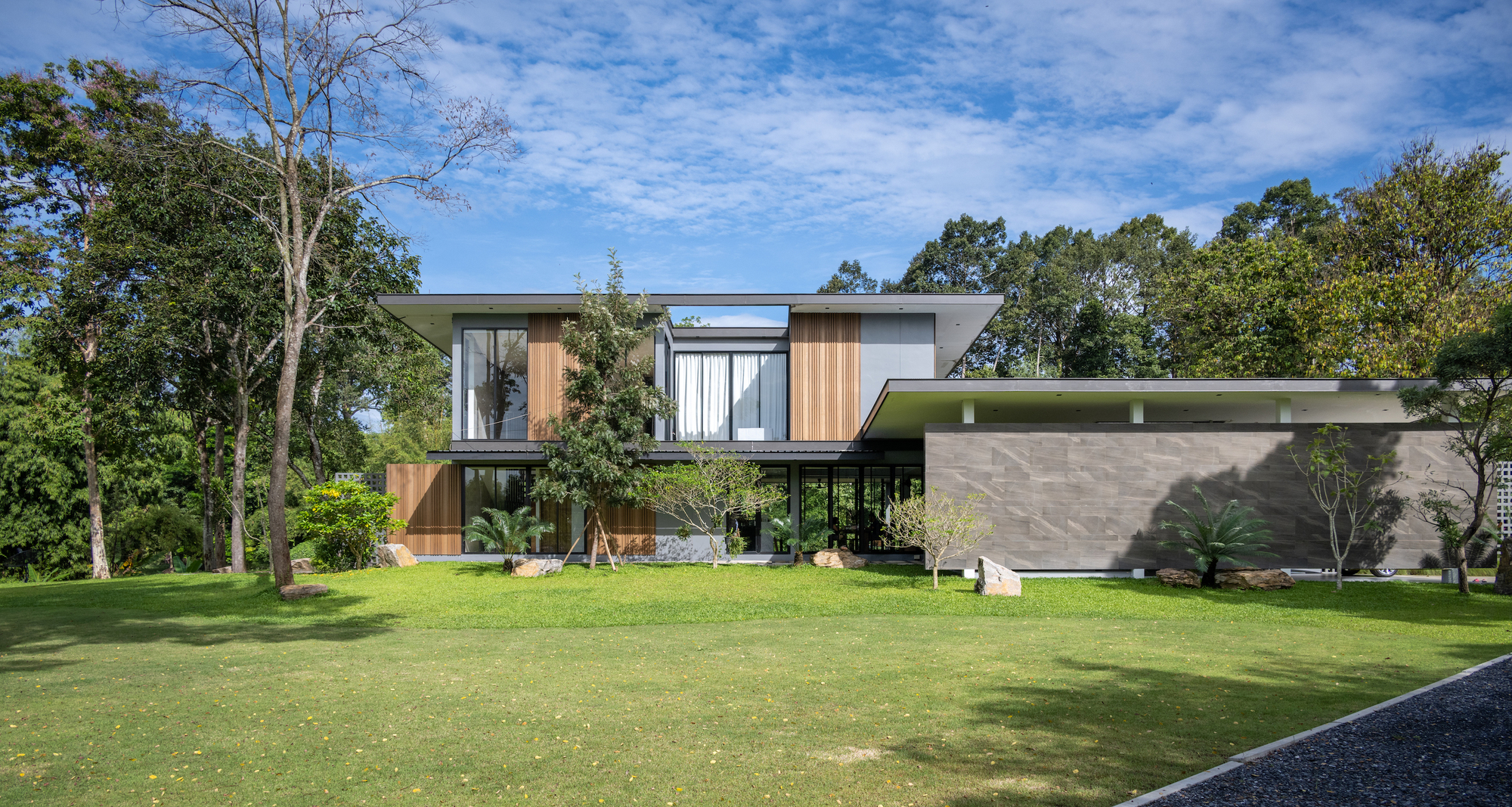

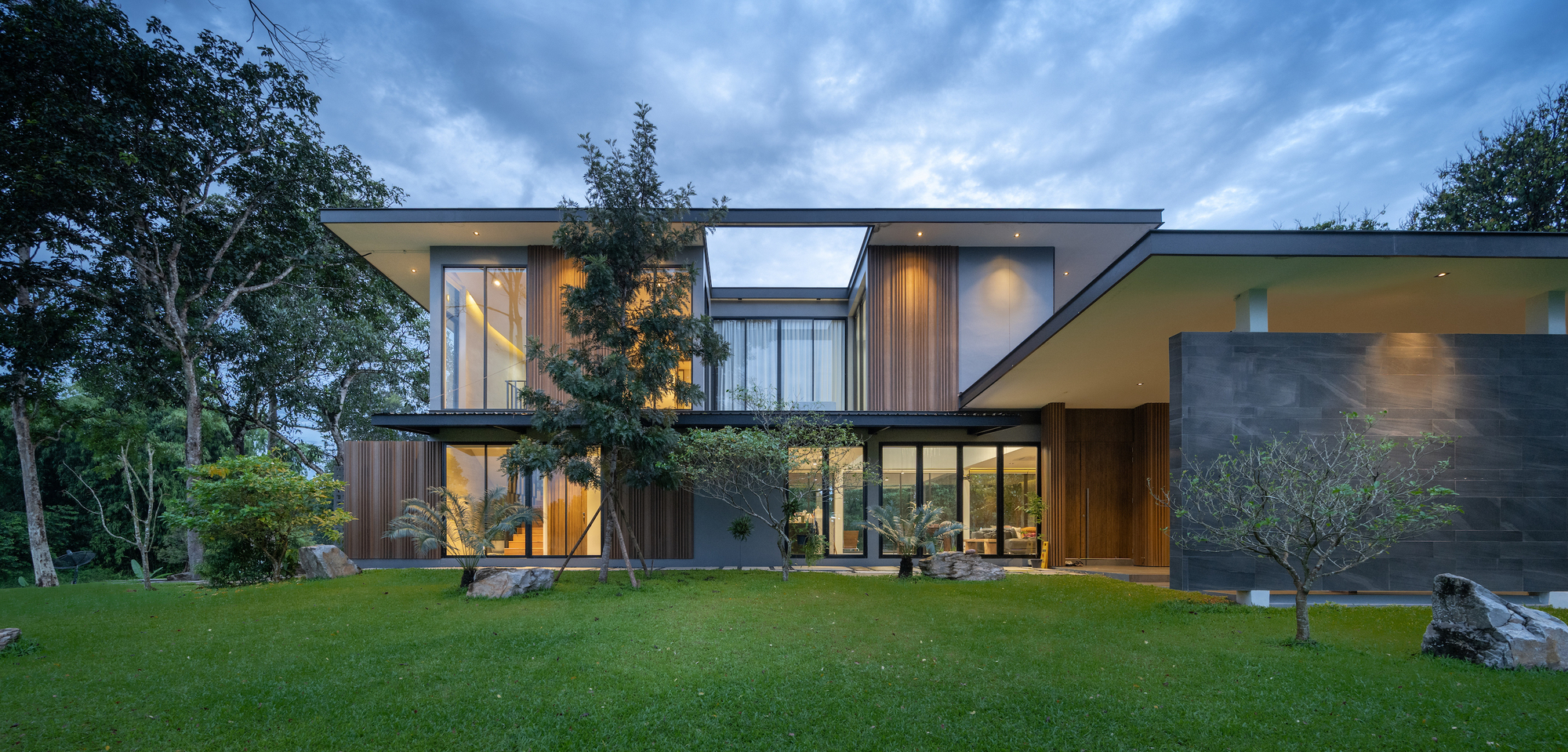

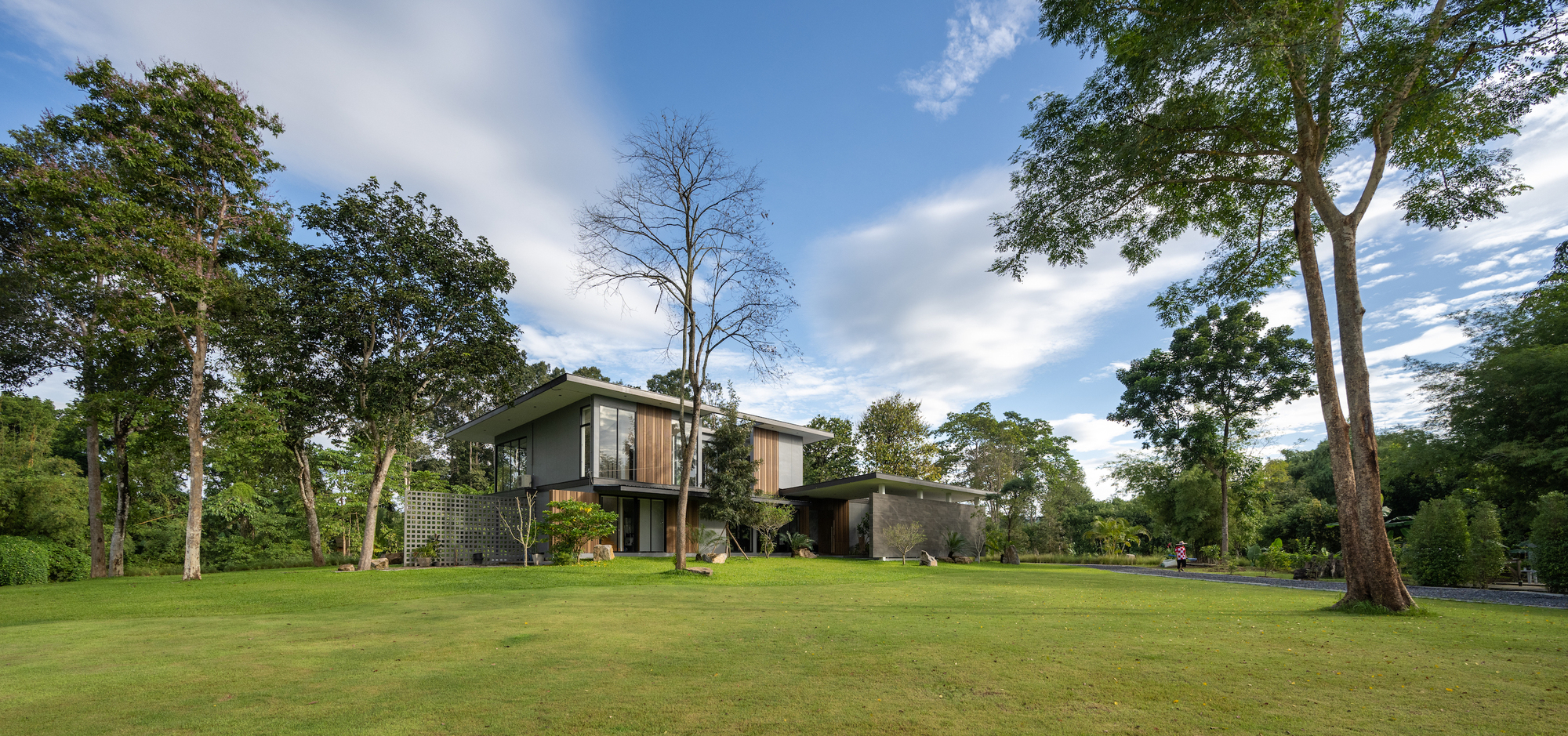

The house reads as a composition of stacked and staggered volumes clad in two contrasting materials: grey stone and vertical timber slats. The choice was not purely aesthetic. The narrow, curved access road made transporting large panels impractical, so small-format materials became the design vocabulary by necessity. Stone and timber boards could be carried in, piece by piece, on trucks that could navigate the alley.

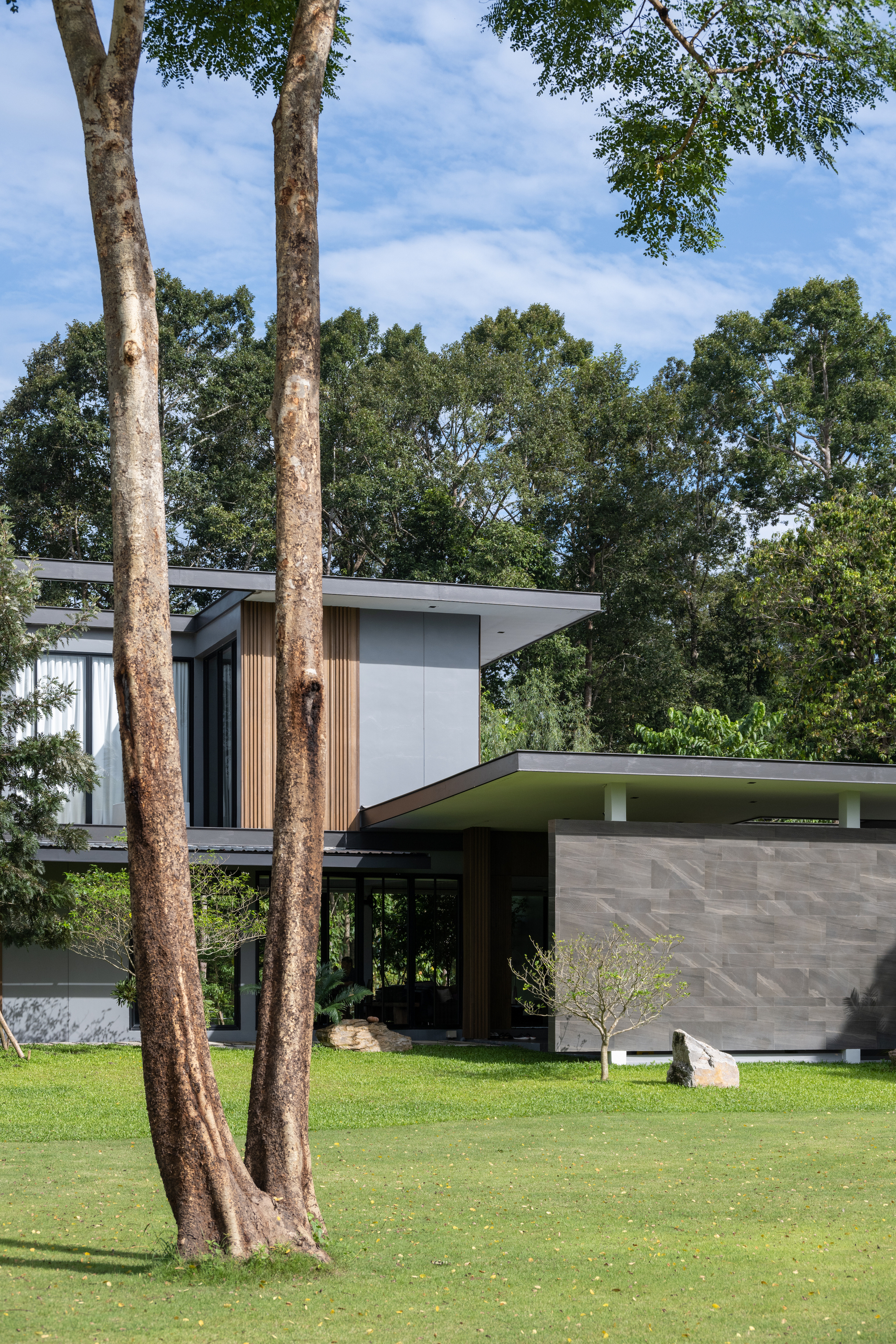

Architecturally, the constraint pays dividends. The mix of cladding gives each volume a legible identity, and the cantilevered upper level creates sheltered terraces below without resorting to columns. Seen from among the tree trunks, the house has the quality of a series of carefully placed boxes rather than a single monolith.

The River Elevation

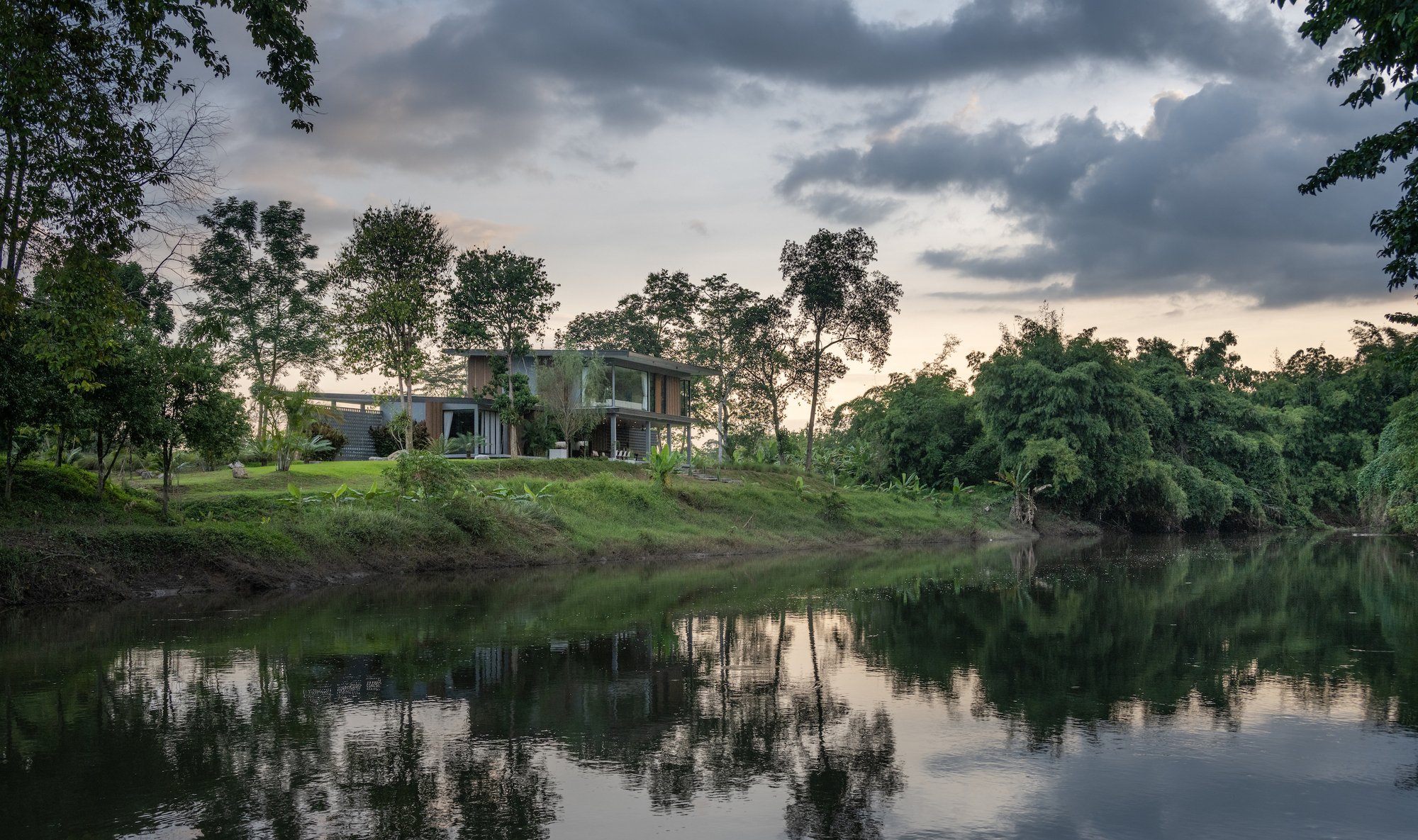

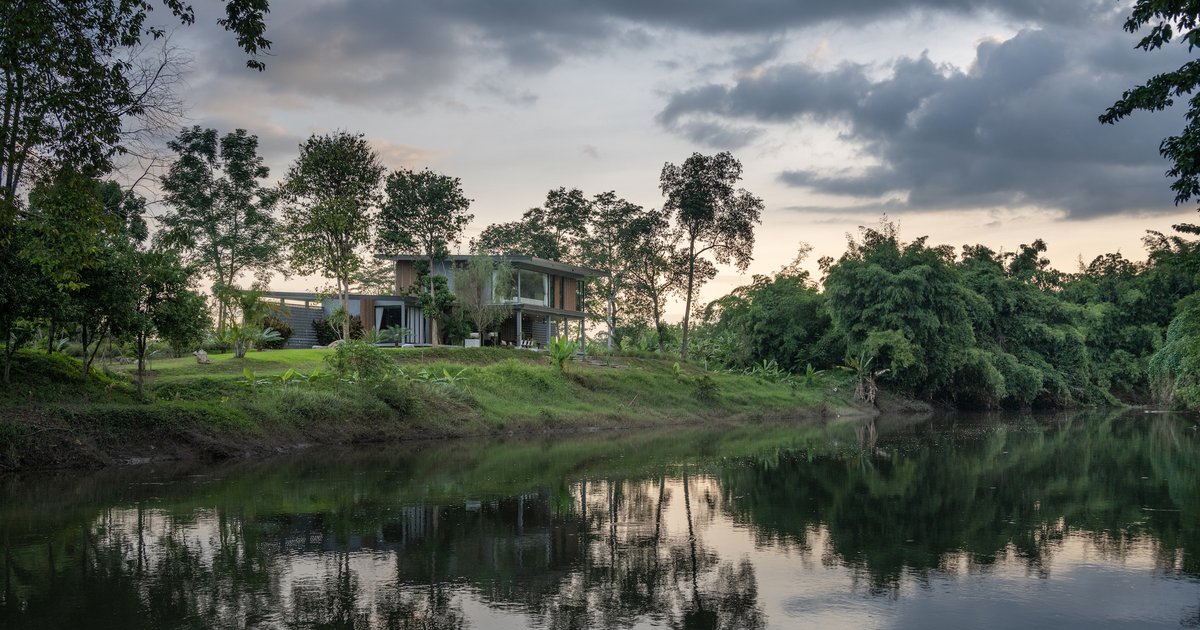

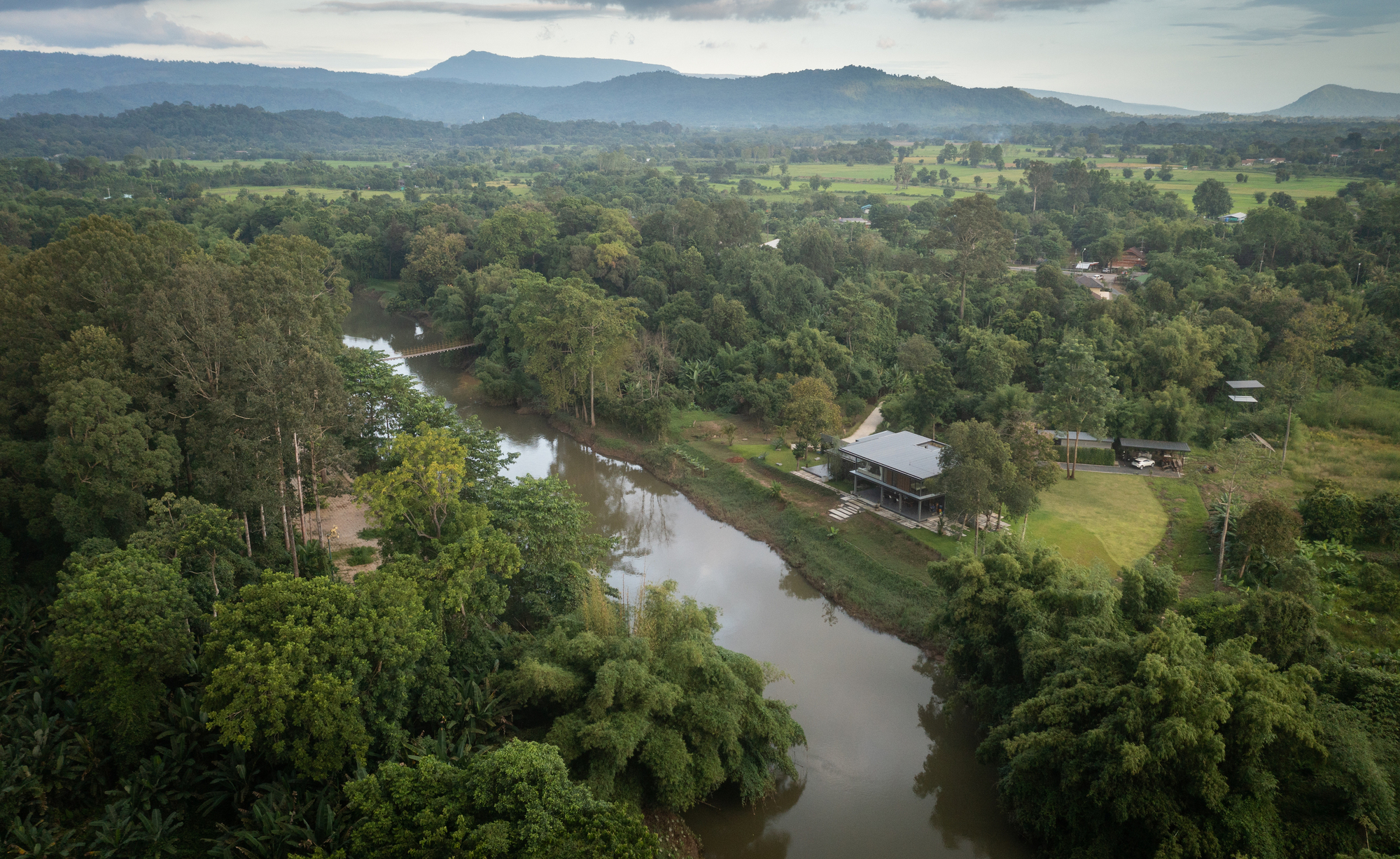

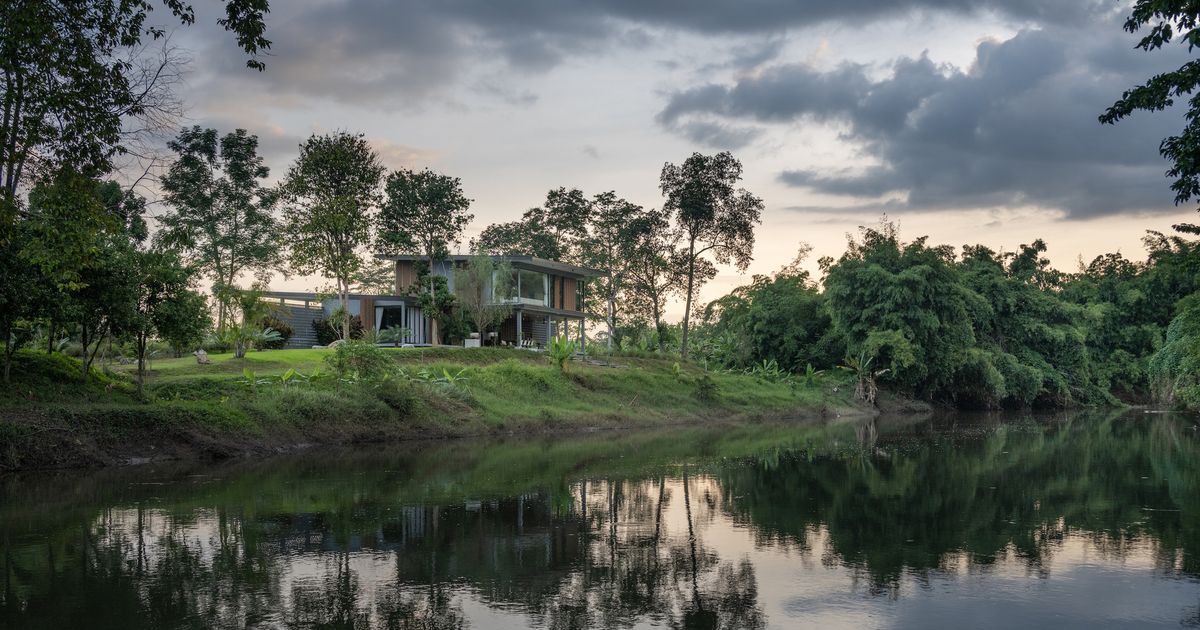

From the river, the house is a different building. The dramatic clouds and water reflections in the bank-level view reveal a horizontal composition that sits low and parallel to the waterline. The aerial photograph confirms how tightly the house is threaded into its tree cover, nestled along the meandering river rather than asserting itself above it.

Positioning the structure on the lot's highest point ensures river views from all rooms, but it also lifts the house above potential flood levels. The lower terrace at the riverfront, placed beneath the main floor, acts as a shaded ground-level room that also serves as a buffer against direct western sunlight hitting the living spaces above. Climate, view, and flood resilience collapse into a single section decision.

Terrace and Garden Life

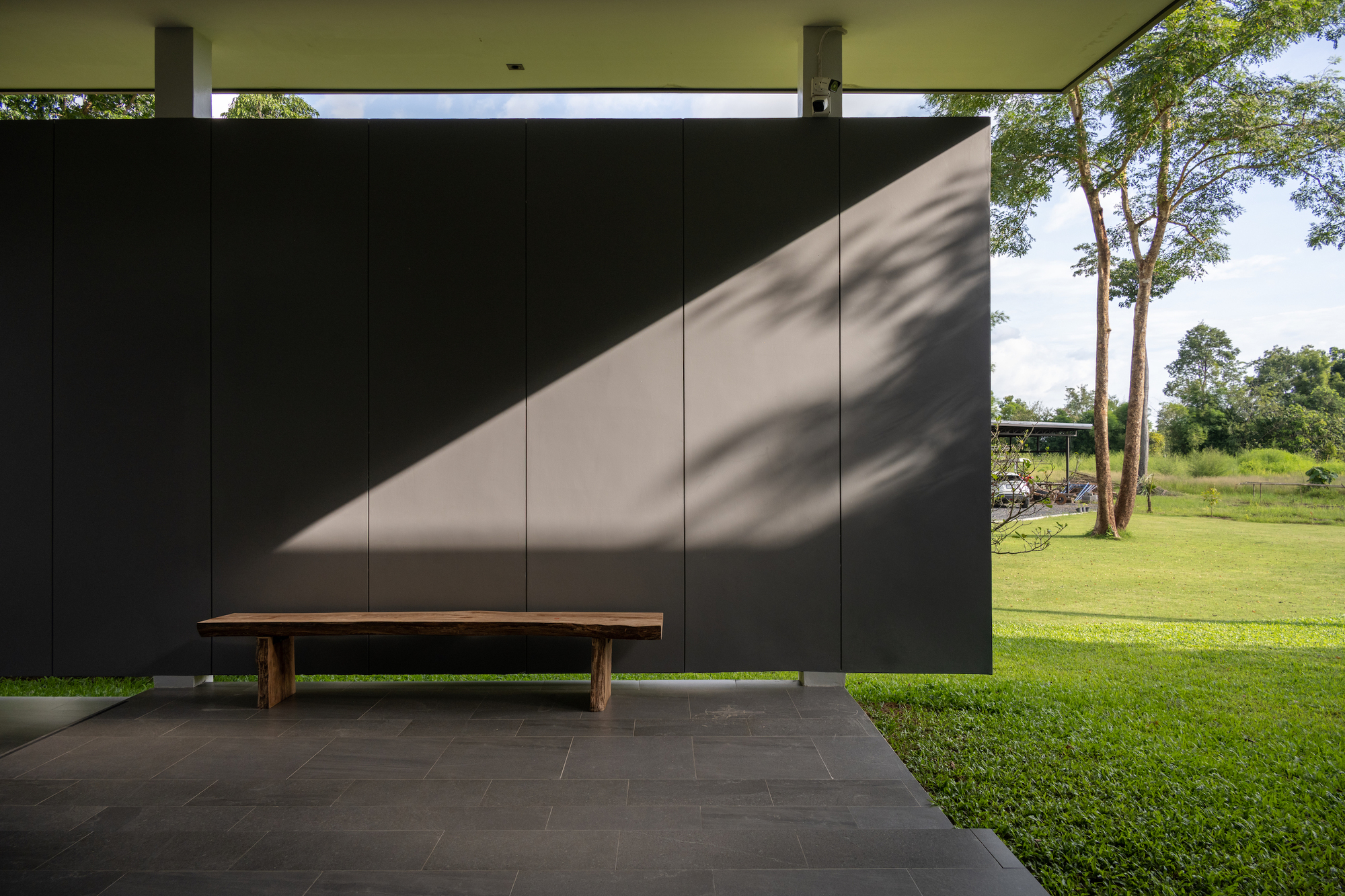

The covered terrace with its dark panel wall and timber bench is designed for long hours of doing nothing, which is exactly the program for a vacation house. The extended eaves on the west-facing side are dimensioned to cut afternoon glare while keeping the horizon open. You can sit here through the hottest part of the day without retreating indoors.

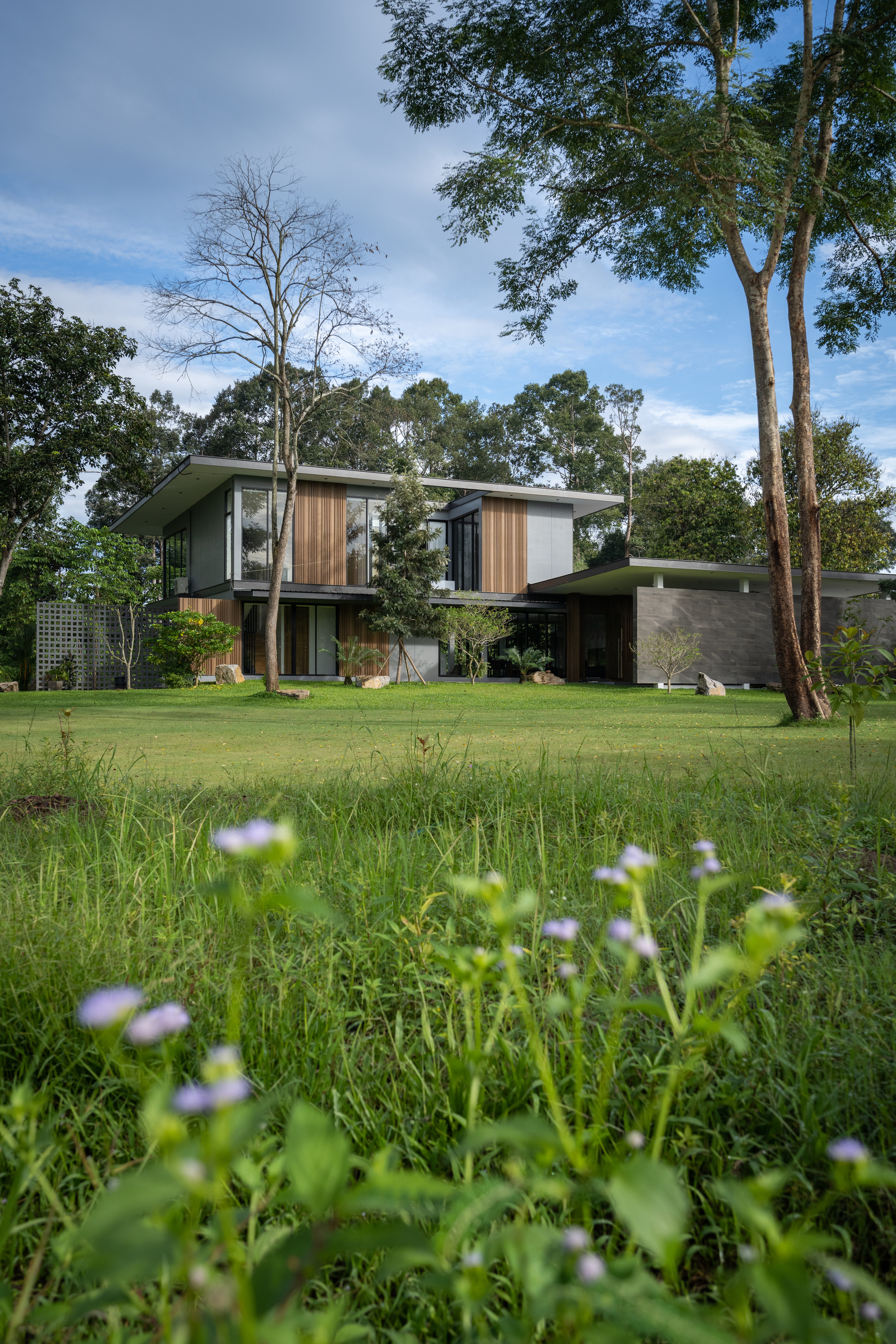

The surrounding garden is deliberately loose. Wildflowers and tall grasses soften the edges of the flat-roofed volumes. Mature deciduous trees frame the elevations and contribute to an atmosphere that is lush without being manicured. The boundary between designed landscape and riverbank ecology is kept intentionally blurry, which suits a house that wants to feel like a retreat rather than a statement.

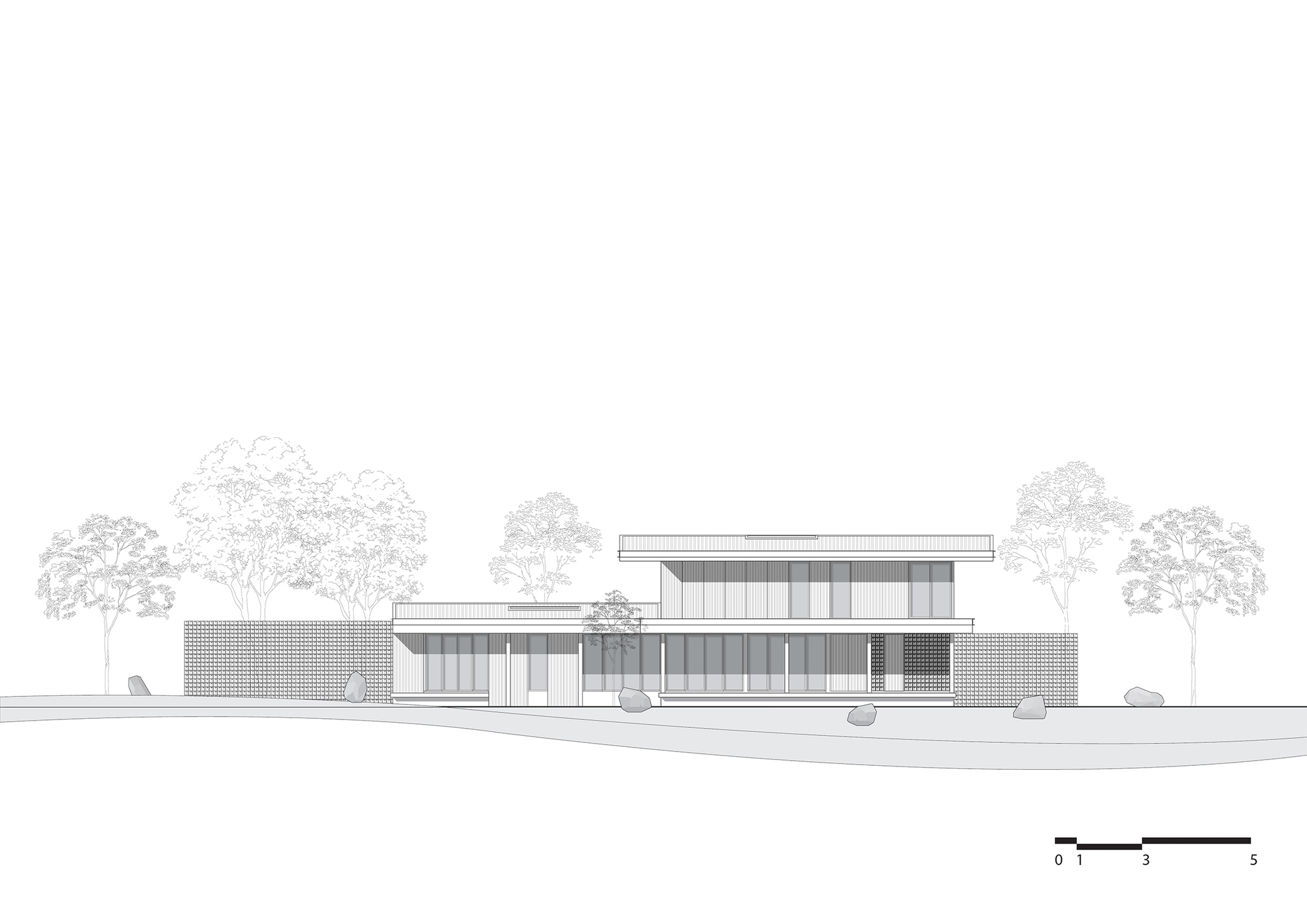

Plans and Drawings

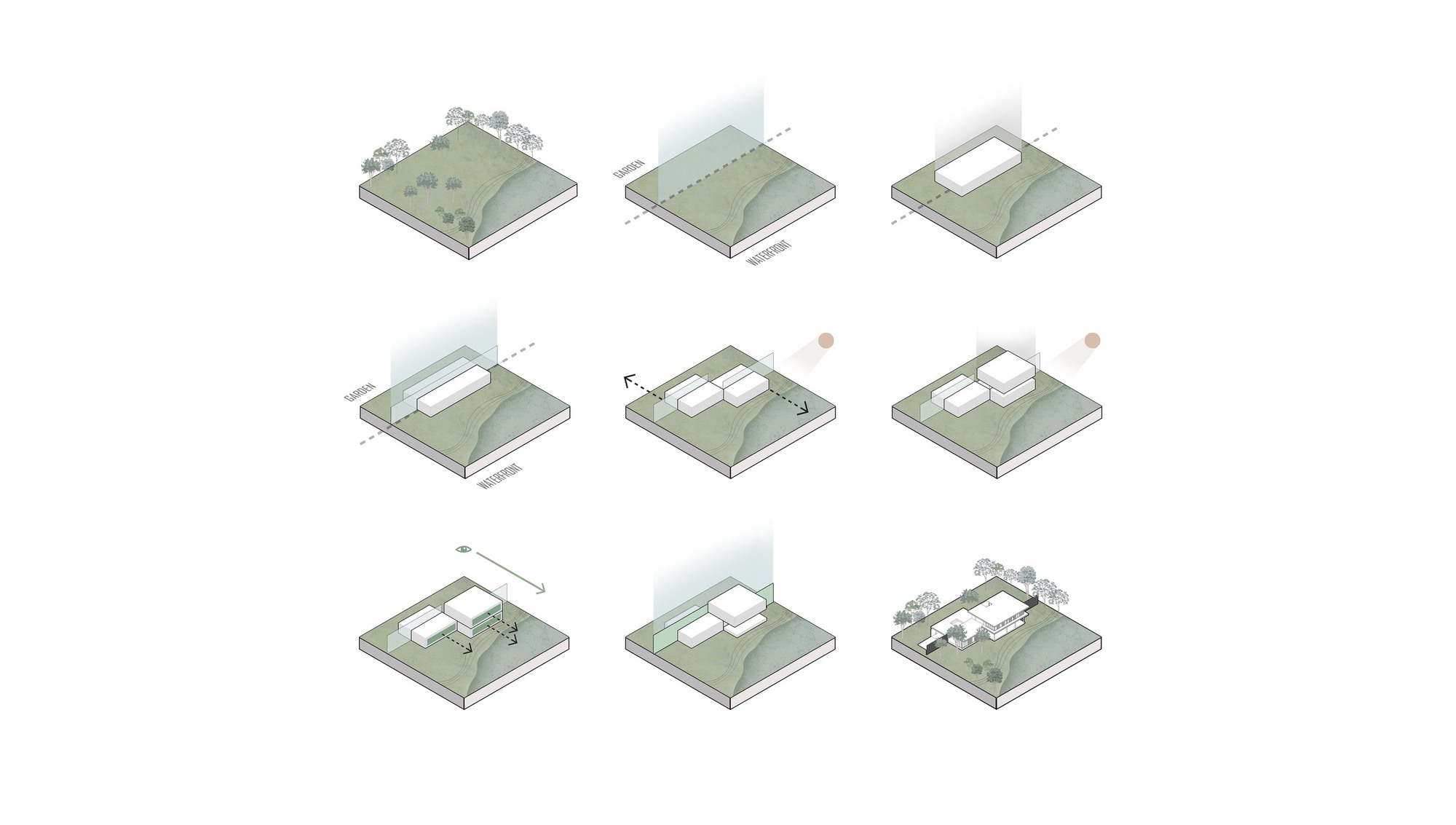

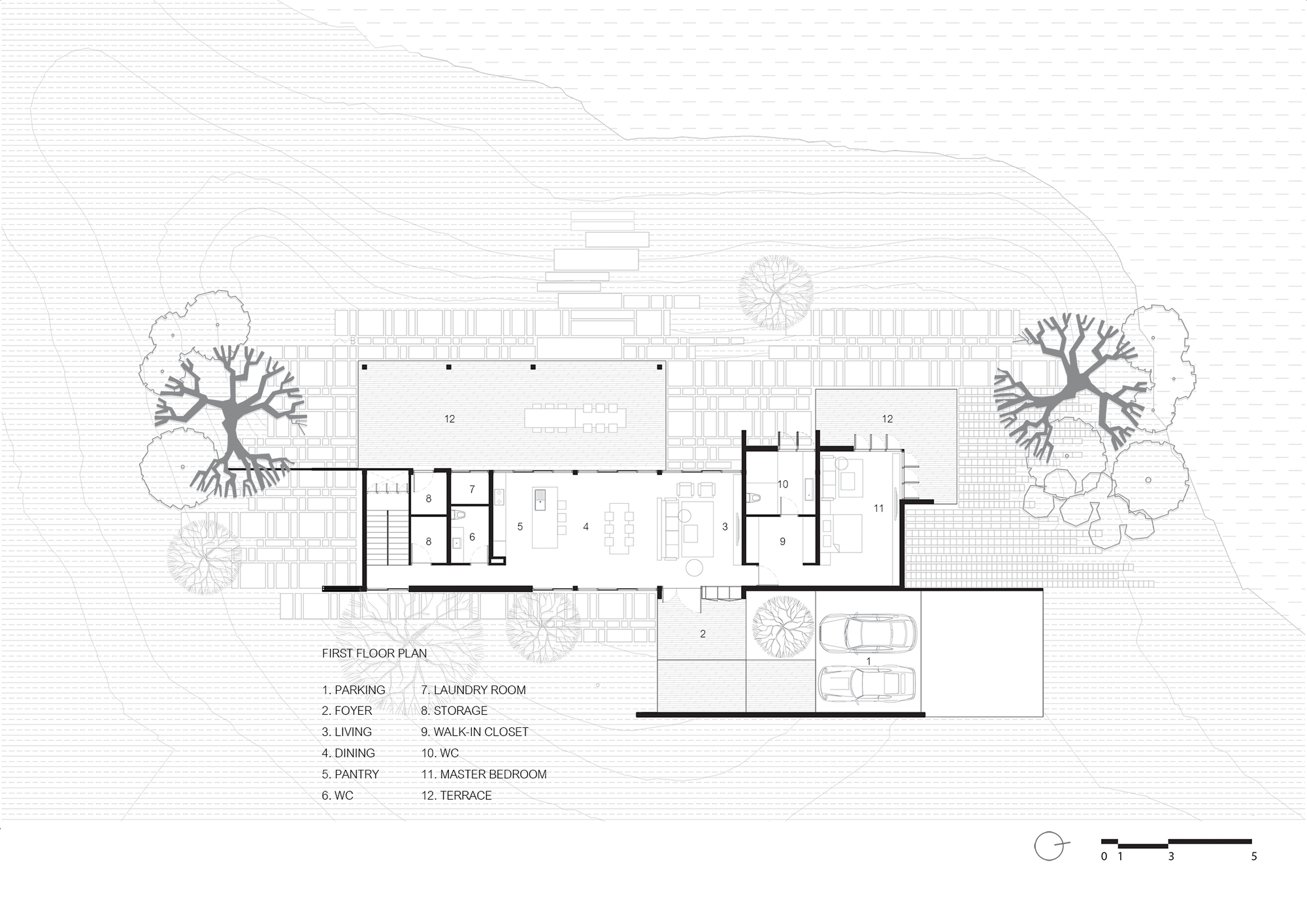

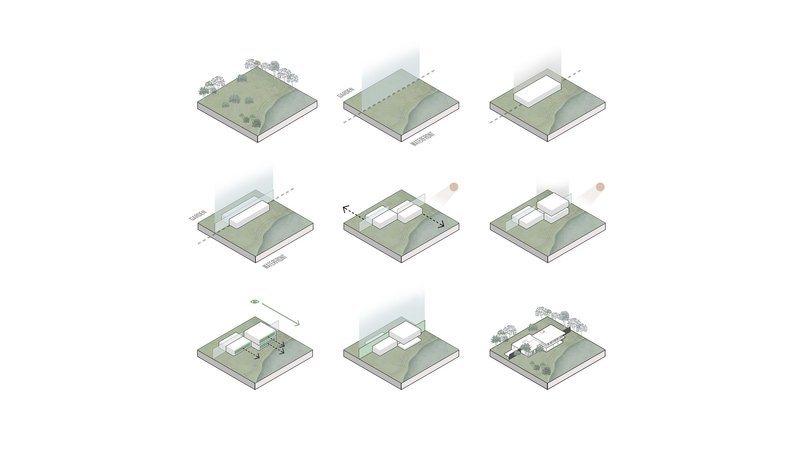

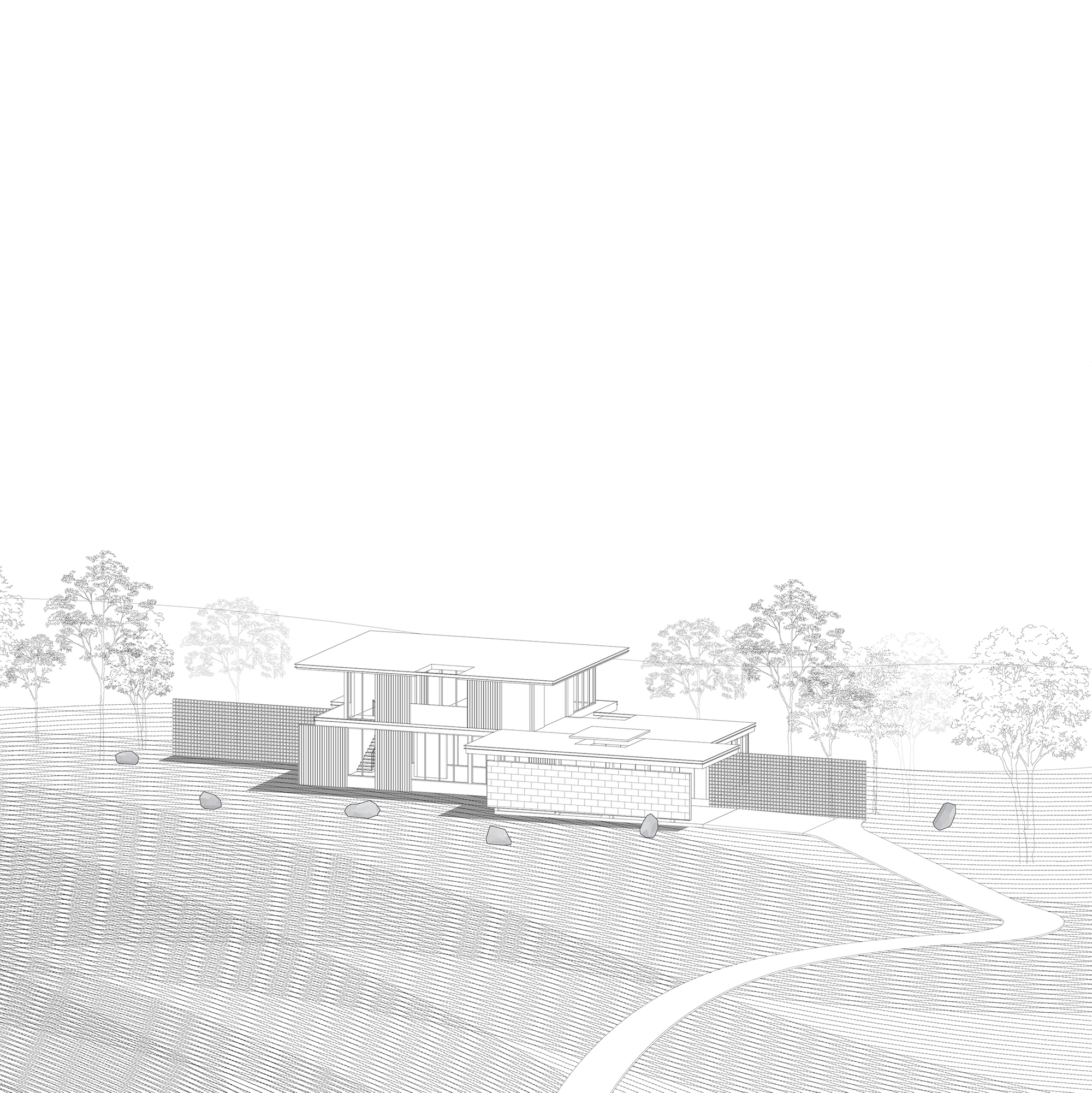

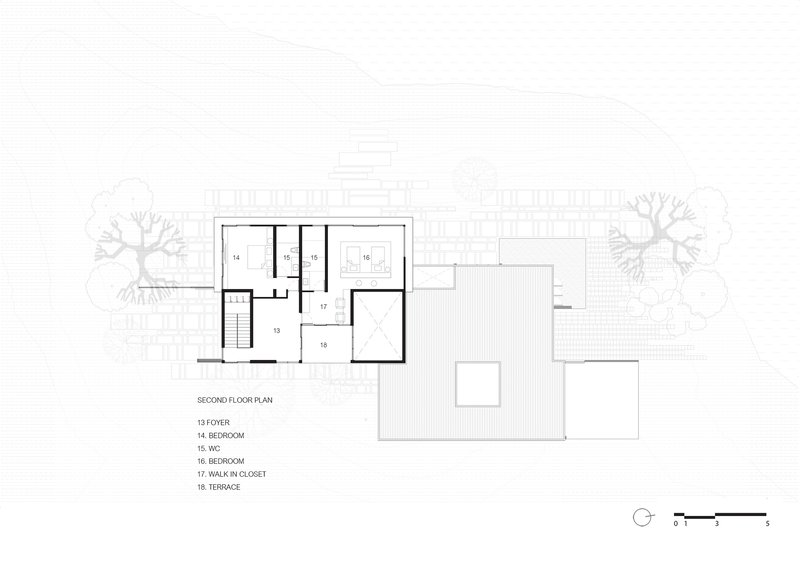

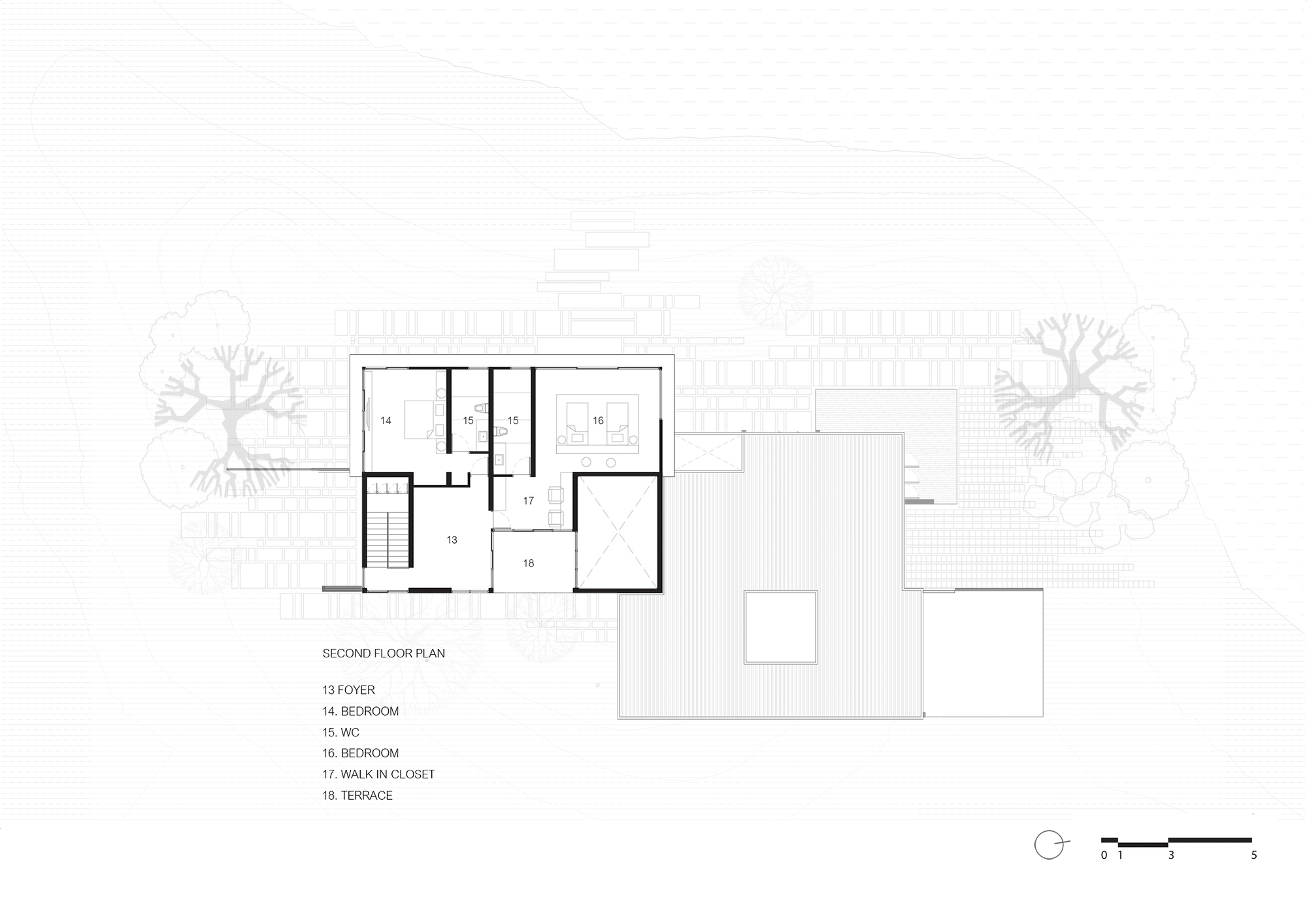

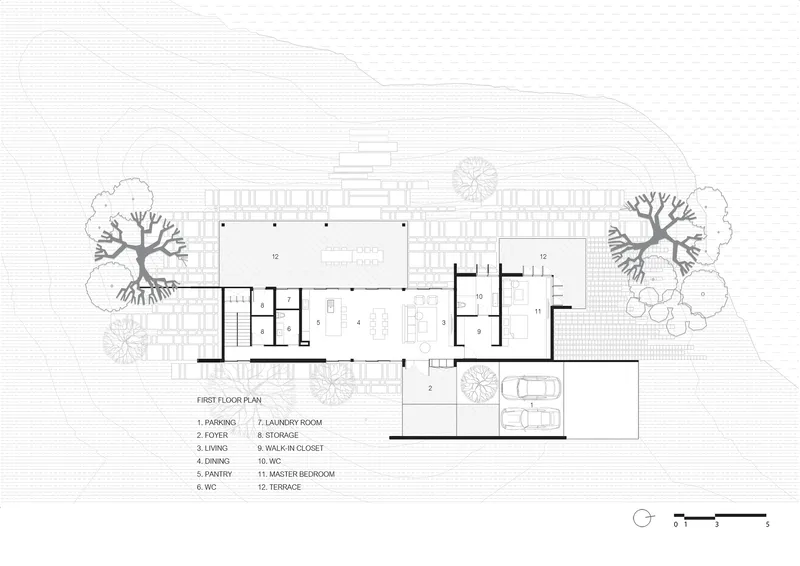

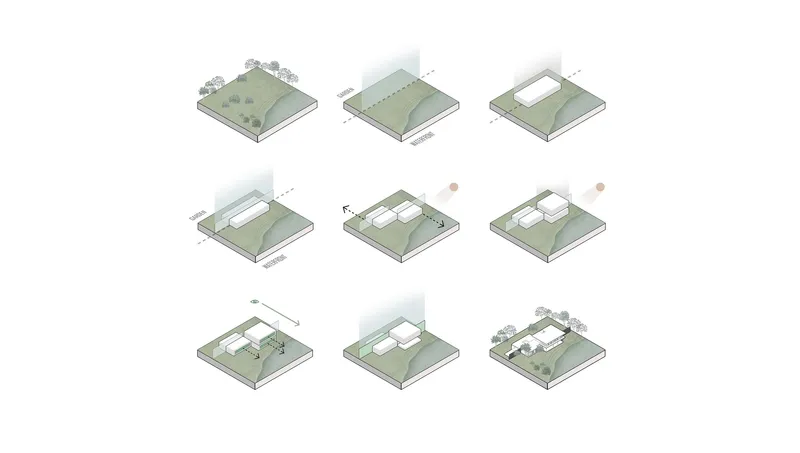

The first and second floor plans confirm the open-plan ground floor with terraces wrapping the living and dining zones, while the upper level separates bedroom zones with generous upper terraces. The axonometric massing sequence, shown in nine steps, makes the volumetric logic explicit: volumes are added and subtracted to create cantilevers, courtyards, and sheltered thresholds.

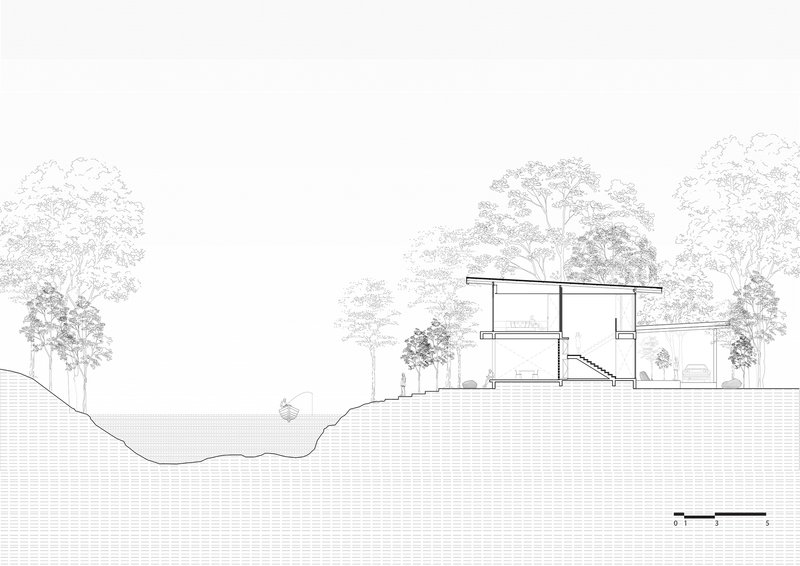

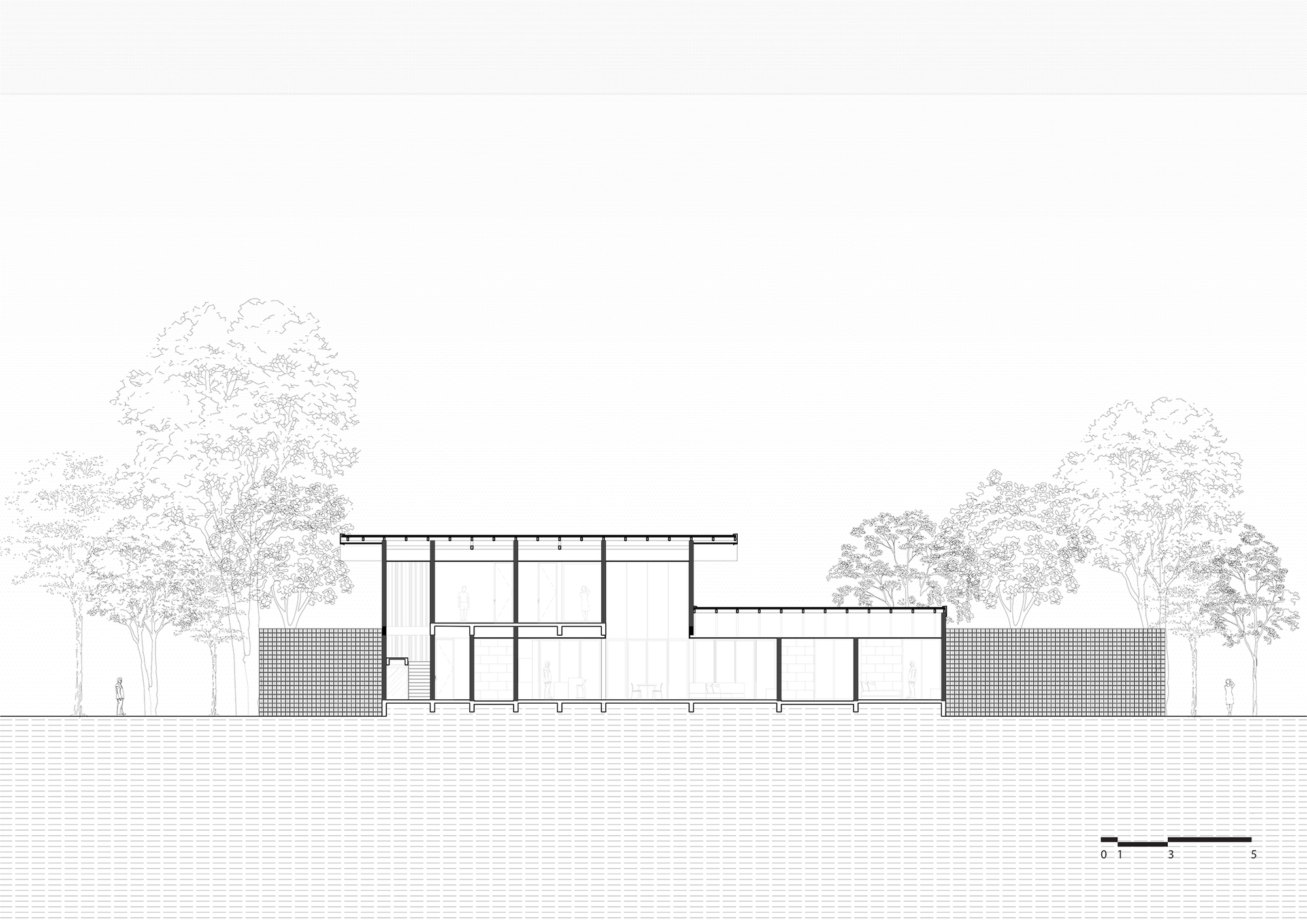

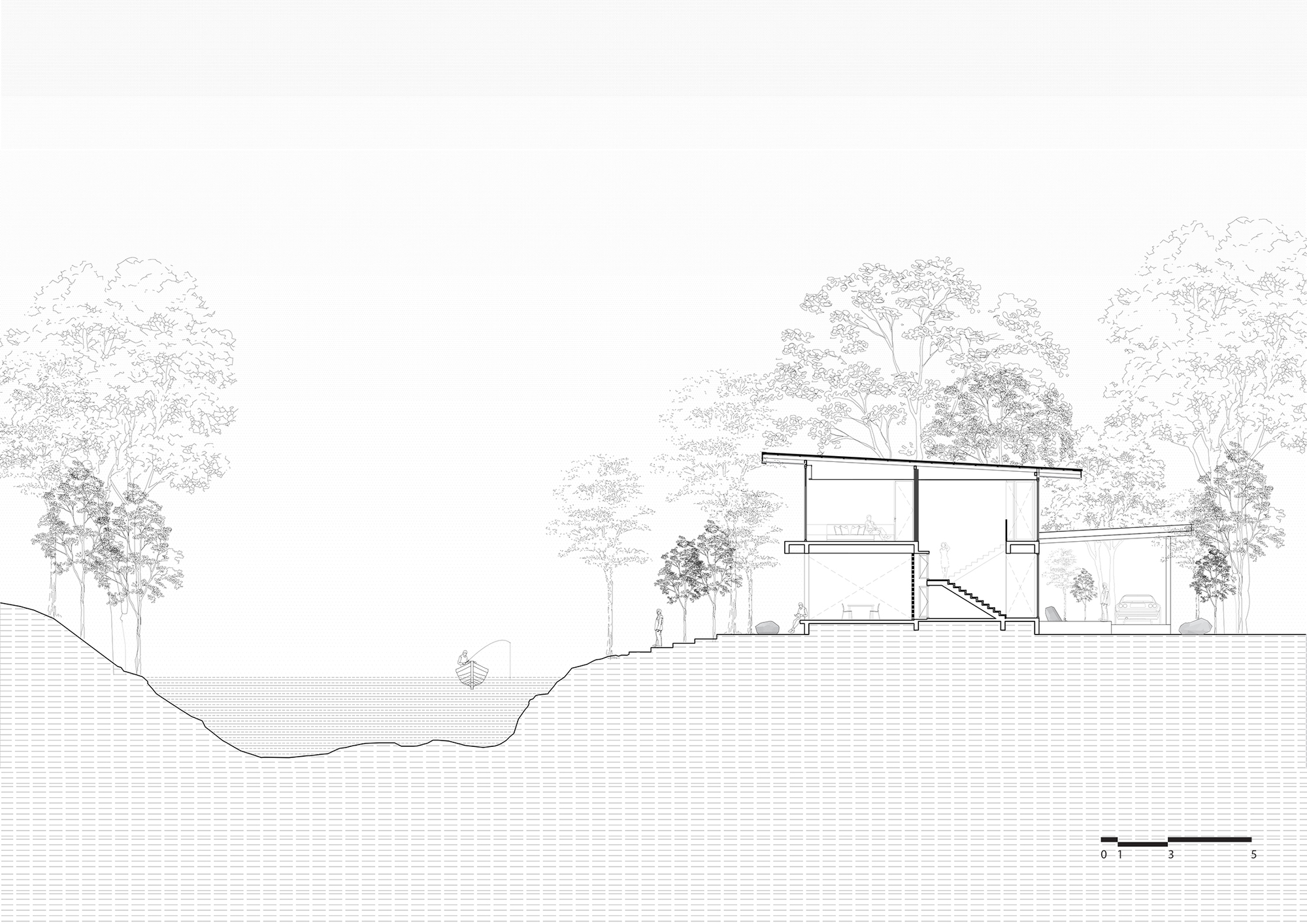

The sections are the most revealing drawings. They show how the sloping site is exploited to create the lower riverfront terrace beneath the main living level, and how the double-height spaces inside give vertical generosity to what is, in plan, a compact footprint. The relationship between roof overhang, tree canopy, and interior floor level is calibrated tightly, and the sections make clear that this calibration is the house's real subject.

Why This Project Matters

Baan Nakhonnayok is a quiet argument against the reflex to maximize views at all costs. By blocking the river at the threshold and releasing it gradually, Sata Na Architect turns a straightforward vacation house into a spatial narrative with a clear beginning, middle, and climax. The technique is not new, but it is executed here with unusual clarity, and the fact that it emerges from site constraints (a narrow alley, an existing tree canopy, western sun) rather than formal ambition makes it more persuasive.

The project also demonstrates that logistical limitations can sharpen a material palette rather than diminish it. The small-format stone and timber that arrived via the curved access road became the house's visual identity. For architects working on remote or difficult-to-access sites, this is a useful case study in turning a delivery problem into an aesthetic advantage. The house does not look constrained. It looks deliberate.

Baan Nakhonnayok Riverside House by Sata Na Architect, lead architect Chalermchai Asayote. Nakhon Nayok, Thailand. 446 m², completed 2022. Photography by Rungkit Charoenwat.
