The Three Planes of Resurrection: Stacking Mumbai's Mobility Into Three Vertical Layers

Mumbai moves on rails. Its suburban railway network carries millions daily through a linear geography that compresses population density into narrow transit corridors, and the system is buckling under the load. The Three Planes of Resurrection responds with a deceptively simple structural idea: stop fighting for horizontal space and start building vertically. The project proposes three stacked functional planes, a ground level for public life and ecology, a mid-level at +6 meters for slow trains and buses, and an upper plane at +9 meters for express and intercity rail, each operating independently but synchronized into a single mobility framework.

Designed by Jaivardhan Singh and Sumedh Gangurde, the project reimagines Mumbai's railway infrastructure not as a singular corridor but as a multi-tiered urban ribbon. The proposal goes beyond transportation engineering; it treats the rail corridor as a continuous landscape for markets, farming zones, detention ponds, and cycle tracks, turning what is typically a source of noise and segregation into connective tissue for the communities it passes through.

A Viaduct That Doubles as a Linear City

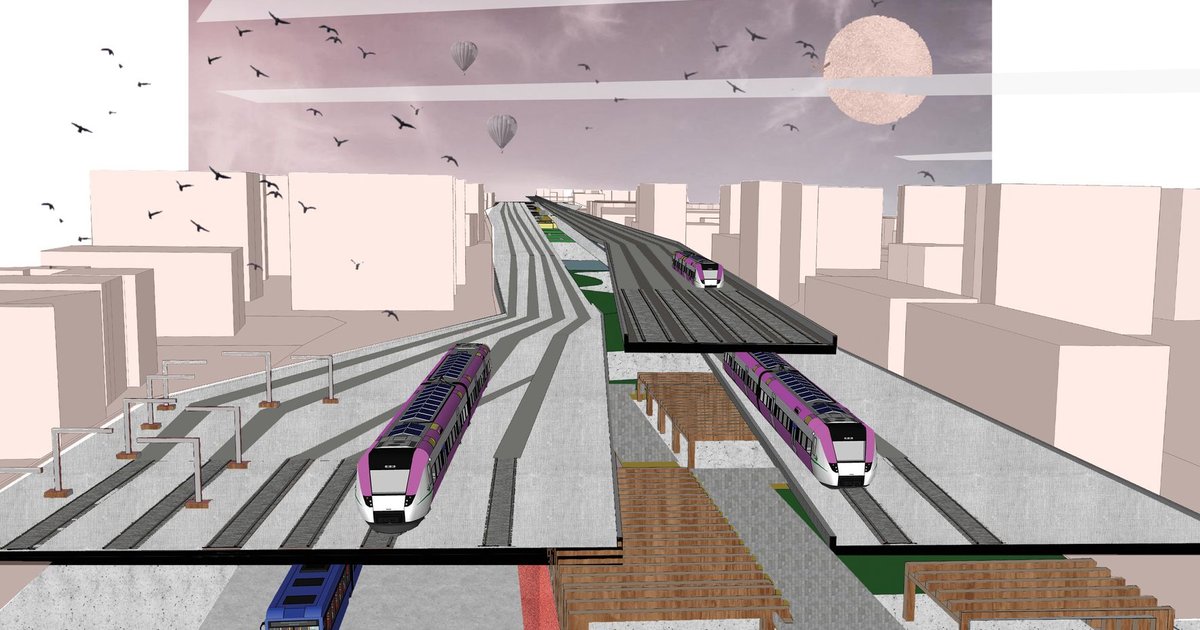

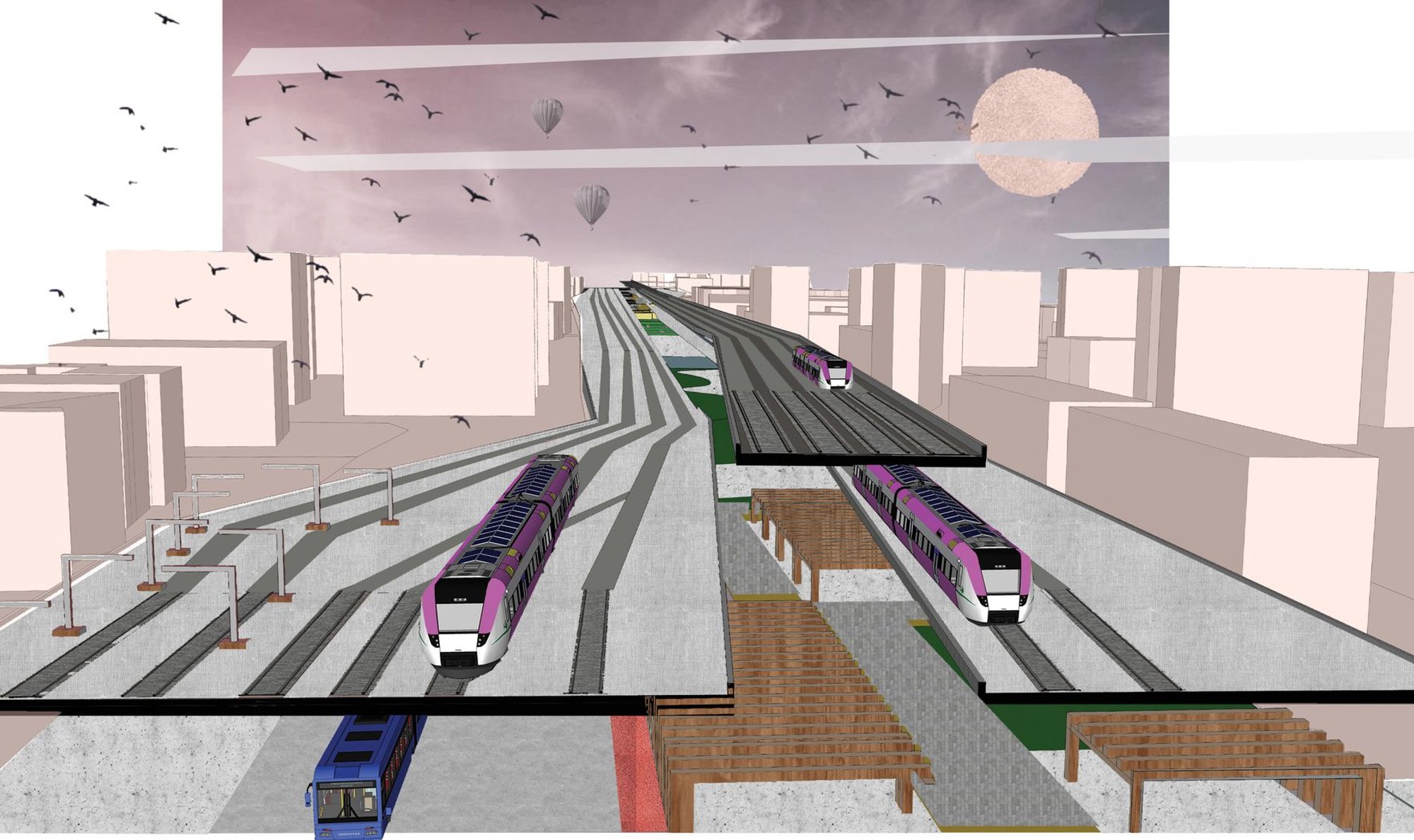

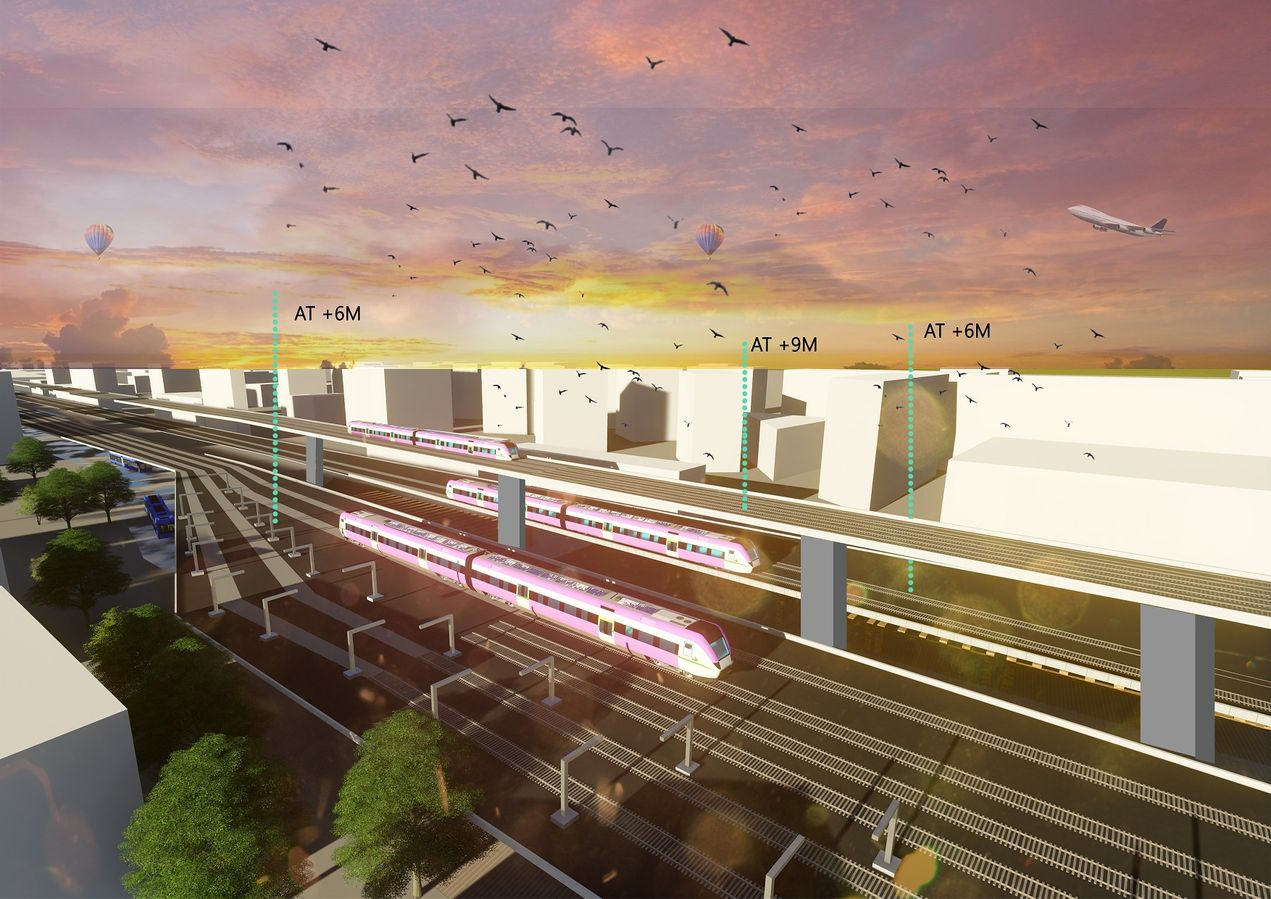

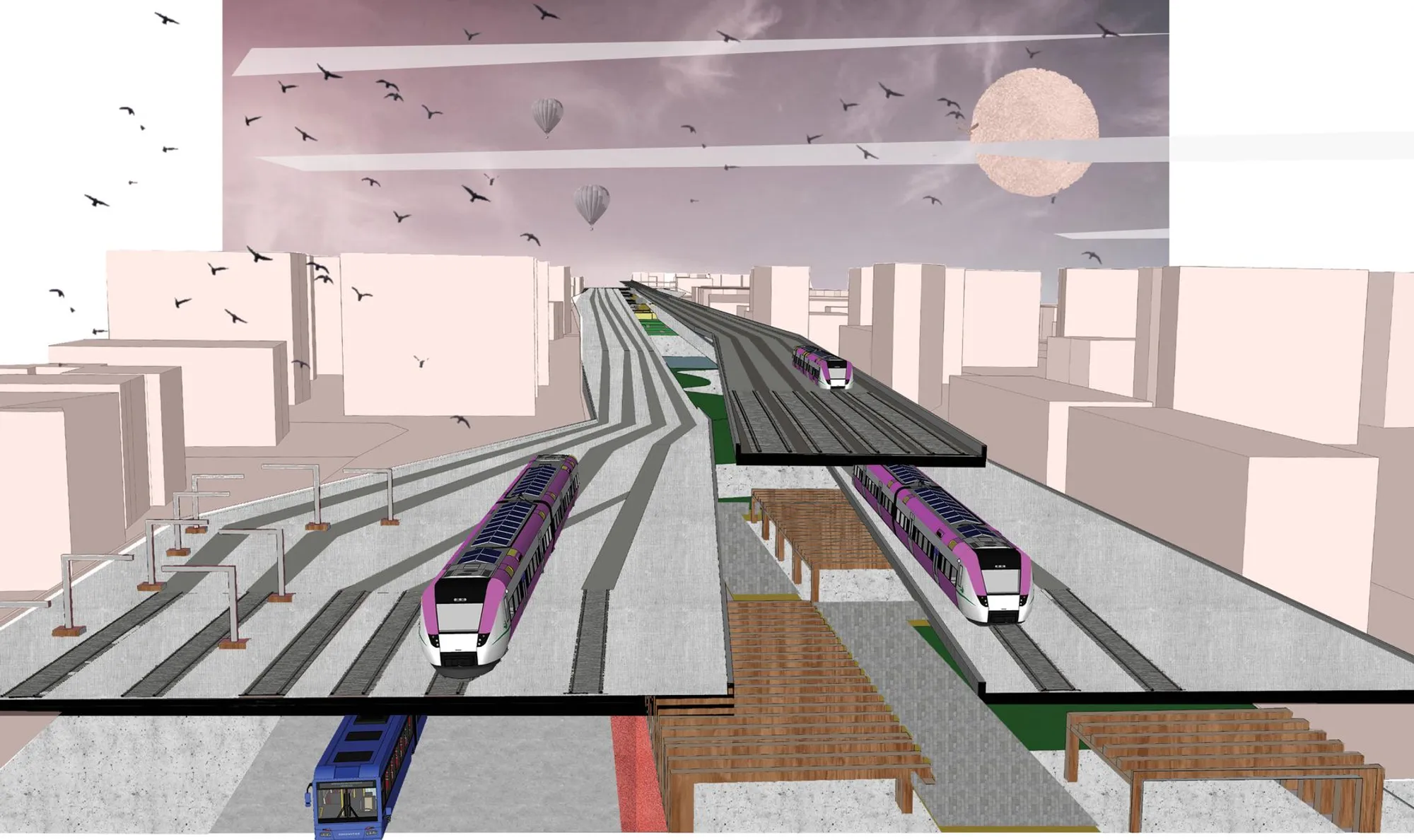

The elevated rail viaduct stretches across the landscape as a continuous infrastructural spine, but its ambitions extend well beyond moving trains. Beneath and around the structure, the ground plane activates underutilized space below elevated tracks with markets, bicycle lanes, bus networks, and detention ponds that serve as flood-mitigation systems during Mumbai's monsoon seasons. The axonometric rendering reveals how the mid-level plane at +6 meters accommodates AC solar-powered slow trains and BEST buses equipped with cycle and luggage shuttles, while the upper plane at +9 meters is reserved for express services. Separating slow and fast transit modes vertically is the core operational logic: it reduces platform congestion, balances commuter load, and eliminates the conflicts that arise when local and express services share infrastructure.

Merging Metro and Railway Into One Framework

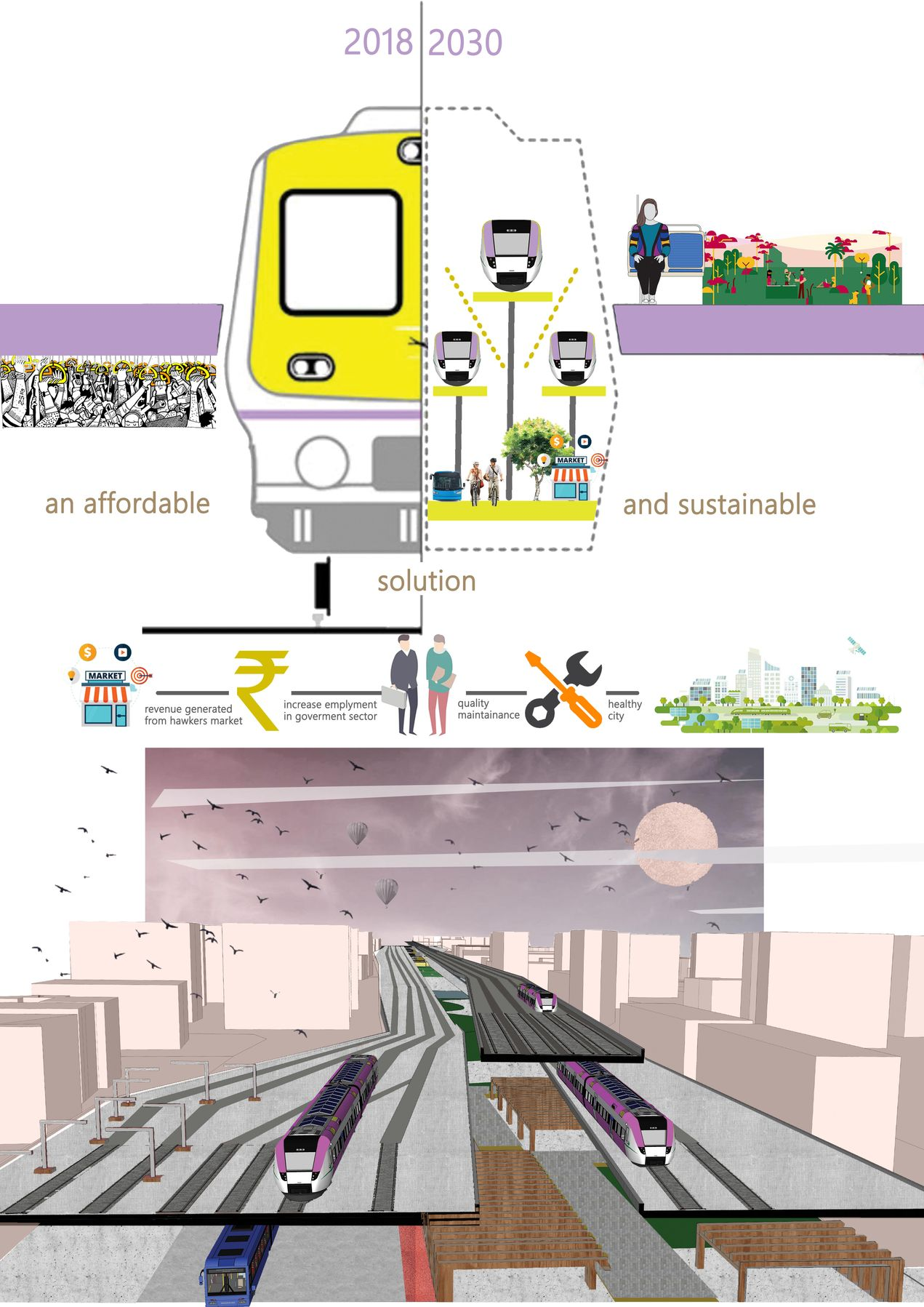

One of the proposal's most assertive moves is the amalgamation of Mumbai's Metro and Railway corridors into a single integrated mobility system. Rather than treating these networks as competitors with redundant coverage, the design unites them into an interdependent framework that simplifies intermodal transfers and reduces operational waste. The conceptual diagram maps how buses, trains, pedestrians, and development phases converge into a phased integration strategy. The proposed Malad to Airoli to Mulund link is particularly notable: it passes through Aarey Colony enclosed in vibration-resistant casings, threading new infrastructure through one of Mumbai's most sensitive green zones without environmental disturbance.

Solar Panels on Trains and Detention Ponds Below Tracks

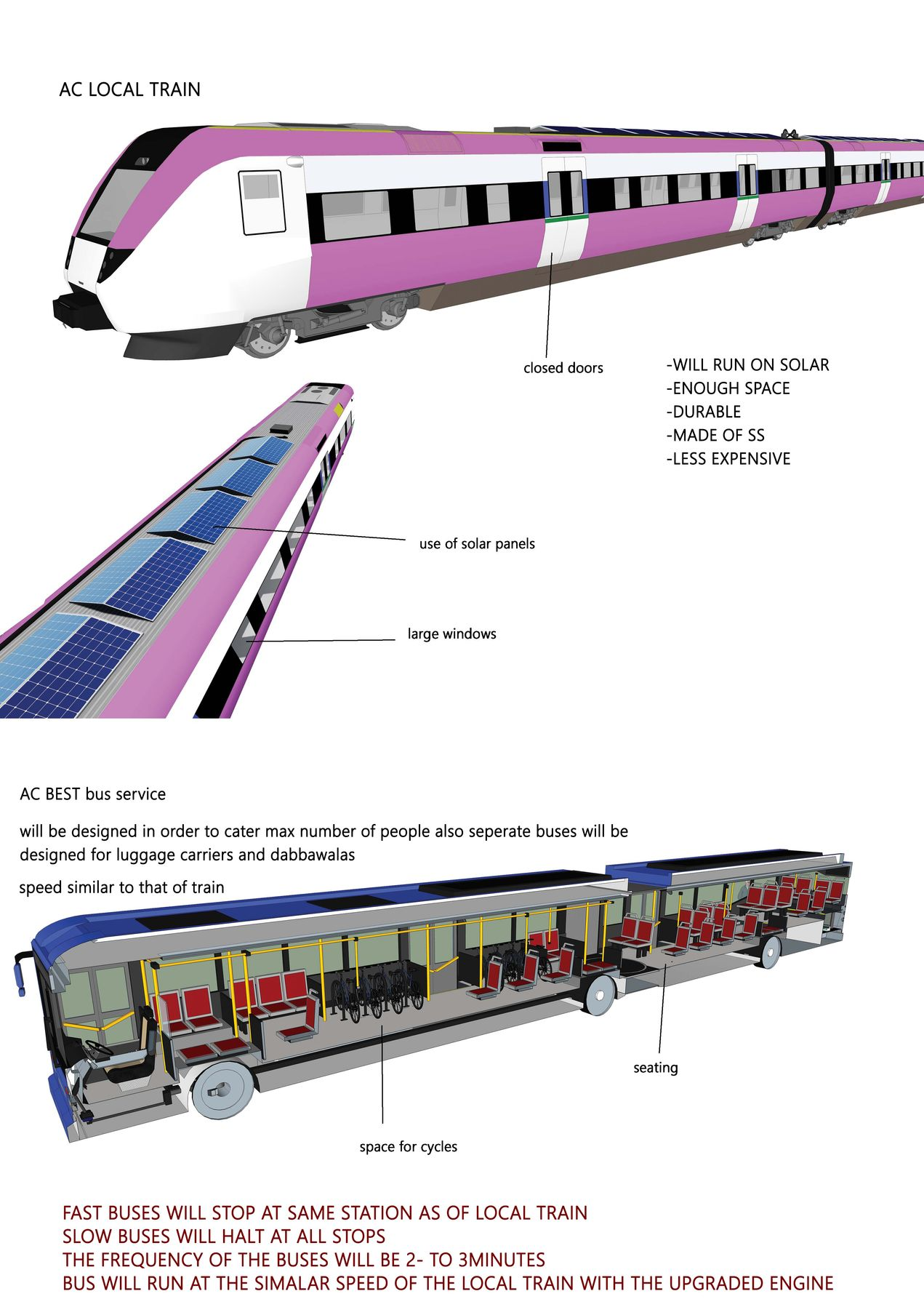

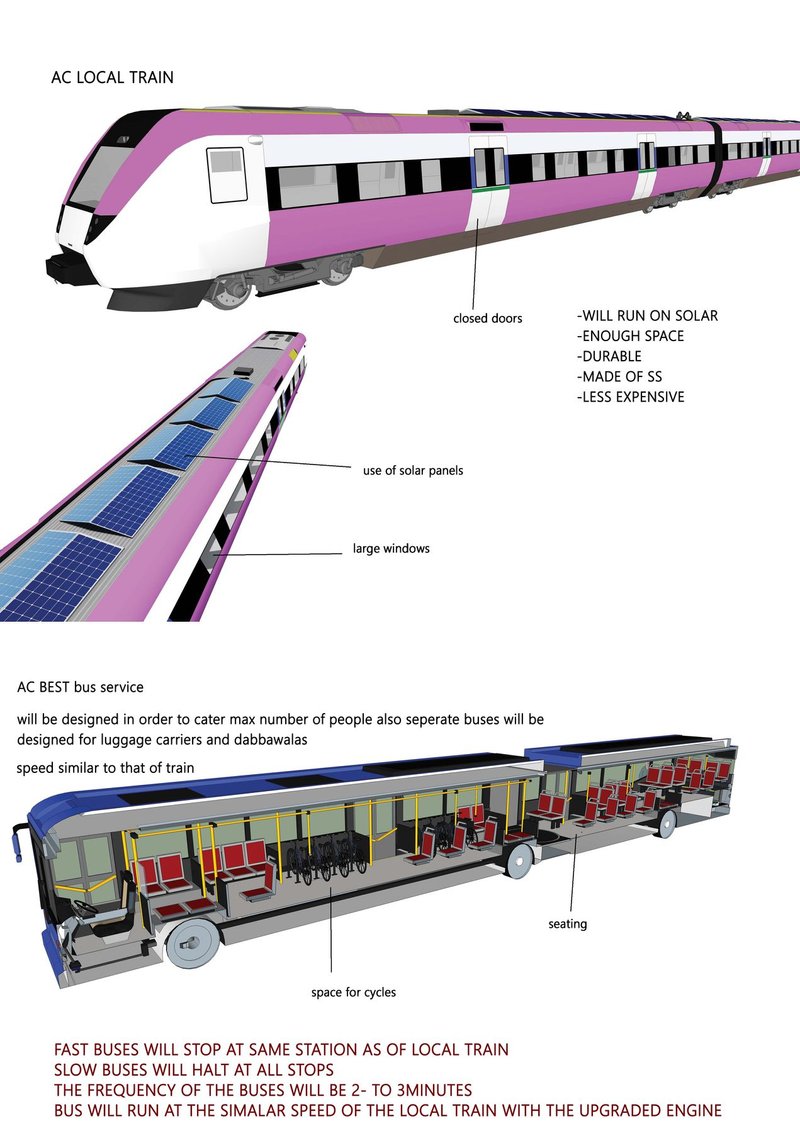

Sustainability here is not an overlay; it is embedded in the hardware. The technical drawing details a train car with roof-integrated solar panels and a cutaway of the bus interior seating arrangement, showing how each vehicle is designed for energy efficiency and inclusive ridership. Both trains and buses generate power on the move, reducing reliance on fossil fuels. Below the tracks, detention ponds and green buffers channel monsoon rainwater to underground basins connected to the Mithi River, directly addressing one of Mumbai's most persistent crises: urban flooding. The addition of farming areas and recreational spaces along the corridor transforms transport infrastructure from a dividing line into a connective landscape.

Distributing Load Along a Linear Corridor

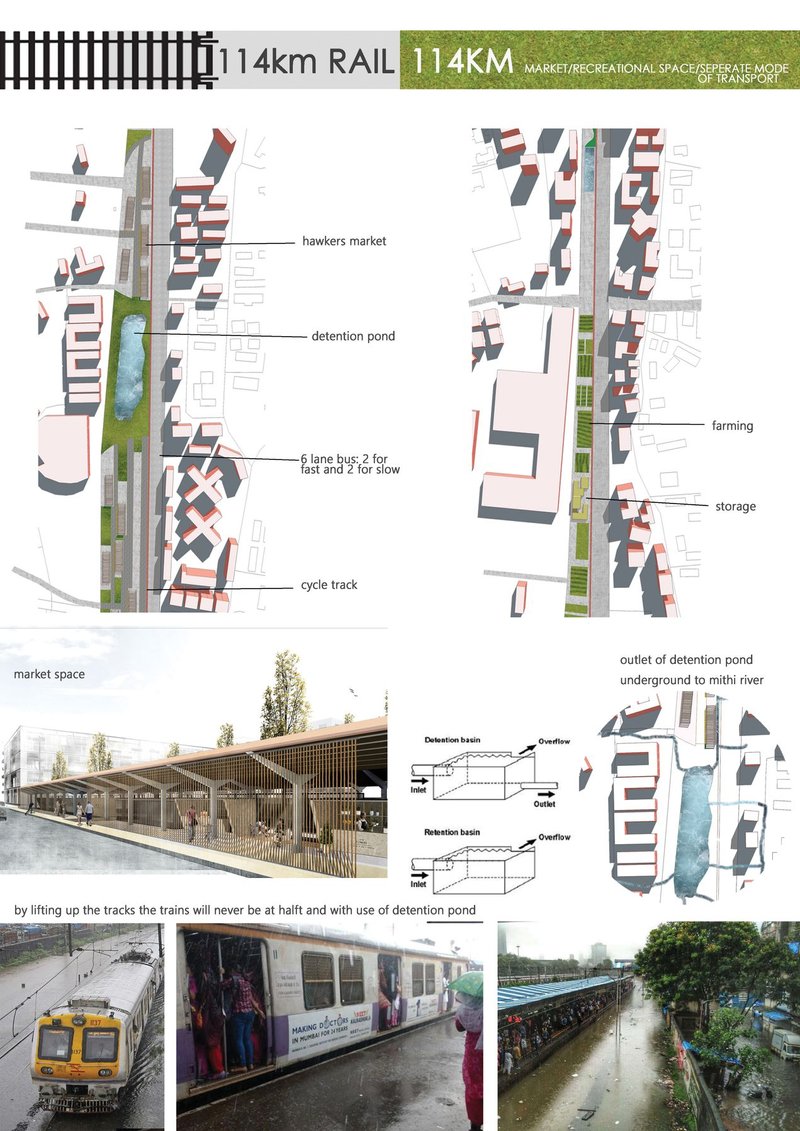

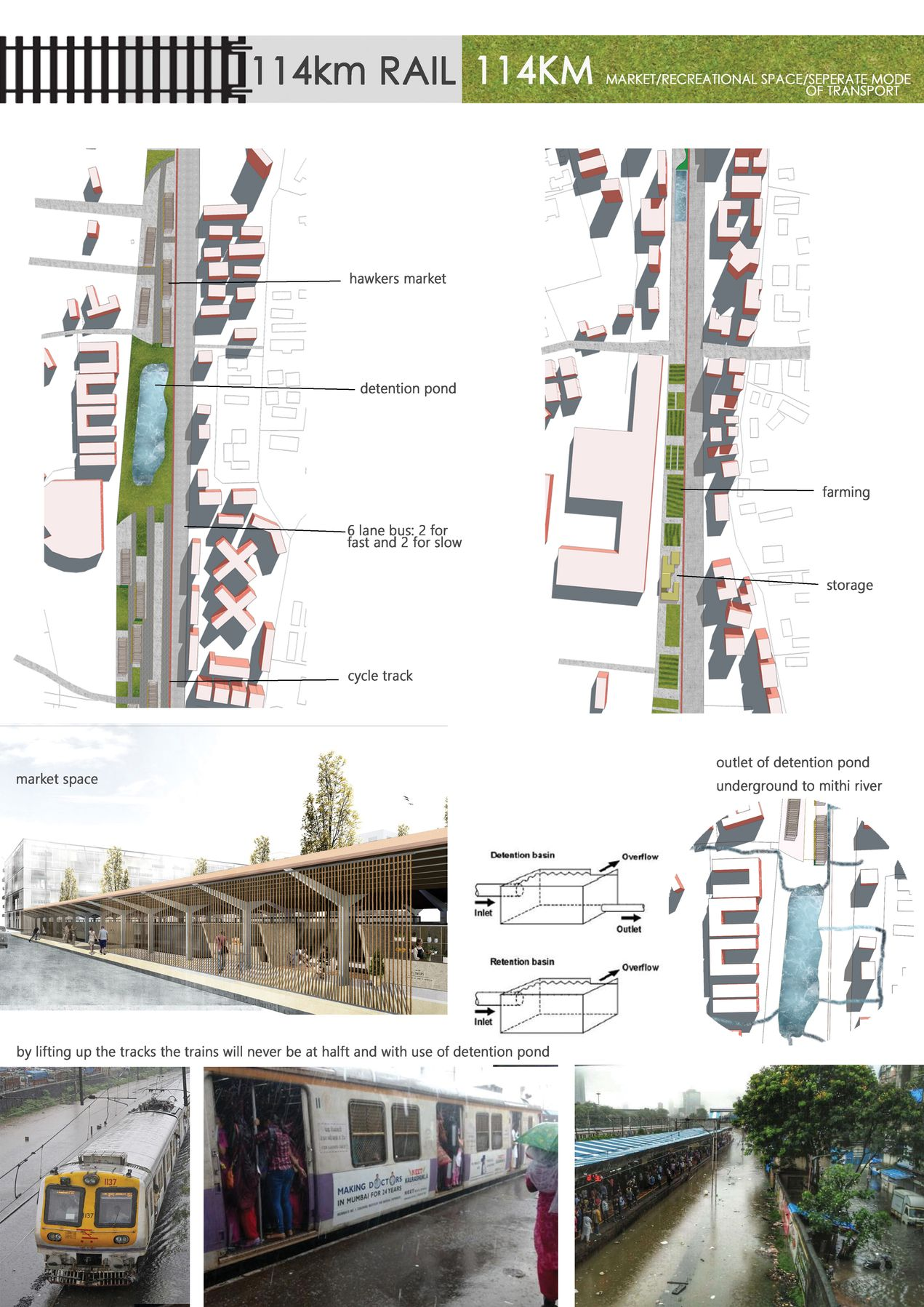

Mumbai's linear geography concentrates density along narrow corridors, creating bottlenecks at major stations. The site plan reveals how the project counteracts this by distributing programs evenly between stations: hawker markets, cycle tracks, and parking zones are spaced along the north-south axis to prevent overcrowding at specific nodes. East-west distribution follows a clear zoning logic, allocating 50% of corridor land to transport and 20% to community and ecological functions. The result is a corridor that does not simply move people through space but gives them reasons to stop, linger, and inhabit the infrastructure itself.

Adjacent housing blocks visible at the edges of the plan suggest that the designers see this not as a standalone transit project but as the armature for a broader urban restructuring. Detention ponds sit alongside market spaces, cycle tracks run parallel to rail lines, and the entire composition reads as a section through a city that has learned to layer its needs vertically rather than sprawl horizontally.

Why This Project Matters

The Three Planes of Resurrection makes a pointed argument: in a city where land is the scarcest resource, the answer is not more corridors but deeper ones. Stacking transit modes vertically while activating the ground plane for ecology and community life challenges the conventional model where rail infrastructure exists as a barrier between neighborhoods. The proposal's integration of Metro and Railway systems into a single framework, and its insistence on threading new links through sensitive sites like Aarey Colony with protective casings, signals a maturity of thinking about infrastructure as environmental stewardship, not just engineering.

Jaivardhan Singh and Sumedh Gangurde have produced a vision that is simultaneously systemic and granular. They zoom out to rethink how an entire metropolitan rail network should be organized, then zoom in to detail solar panels on train roofs and seating layouts inside buses. That oscillation between urban strategy and material specificity is what gives the project its credibility. Mumbai's infrastructure crisis will not be solved by a single gesture, but the principle of vertical stratification, community activation of transport corridors, and ecological integration of water management into rail design offers a framework worth taking seriously.
