Directing the Flood: Designing a Neighborhood That Channels Water Instead of Fighting It

What if urban design stopped treating floodwater as the enemy and started treating it as a collaborator? "Directing the Flood" does exactly that, proposing a neighborhood where the main street sits lower than the surrounding ground plane, letting excess water drain away from homes and into a landscape park that doubles as a natural reservoir. The logic is counterintuitive and precisely correct: instead of raising every surface to keep water out, the design carves deliberate low points that guide monsoon runoff along a predictable, managed path.

Designed by Ekaterina Popova, the project addresses one of the most persistent challenges facing flood-prone cities: how to build livable neighborhoods in areas subject to seasonal inundation and the increasing unpredictability of climate change. The scheme spans neighborhood-scale urban planning, landscape infrastructure, and residential architecture, offering a coordinated system rather than isolated technical fixes. The full project is available on uni.xyz.

A Sunken Street as Drainage Spine

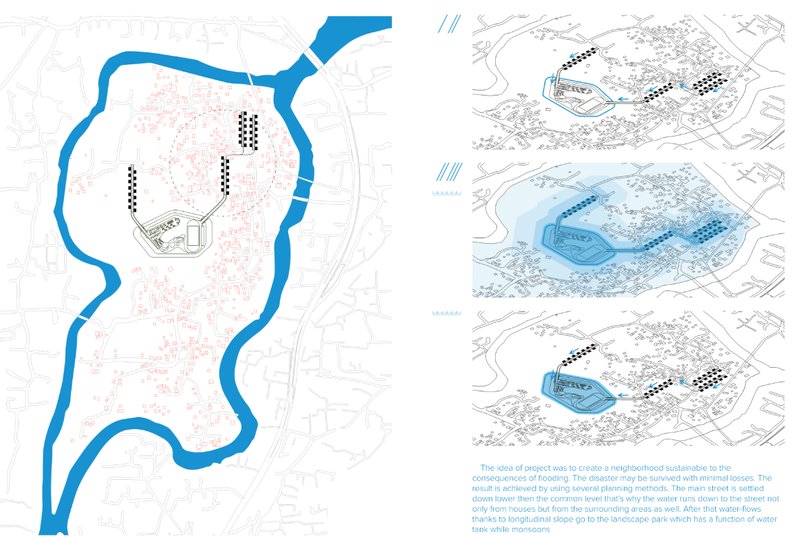

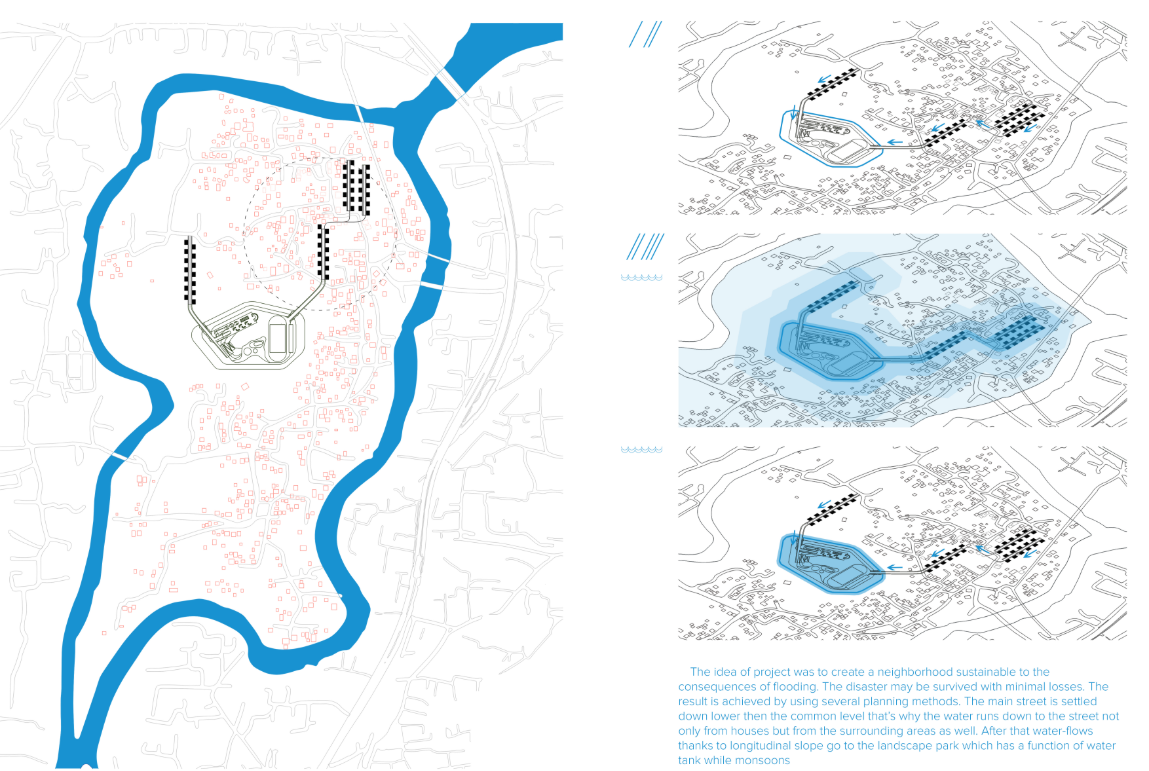

The site plan reveals the project's core move: the main street is deliberately set at a level lower than the common ground of the residential blocks flanking it. This isn't a design compromise but a calculated strategy. Water flows downhill from houses and public areas into the street corridor, which acts as a linear channel during heavy rainfall. The axonometric diagrams adjacent to the plan walk through progressive flooding scenarios, showing how the neighborhood responds as water levels rise from mild to extreme. The site's natural longitudinal slope does most of the work, directing collected water toward the landscape park at the neighborhood's edge.

Landscape Park: Recreation and Reservoir in One

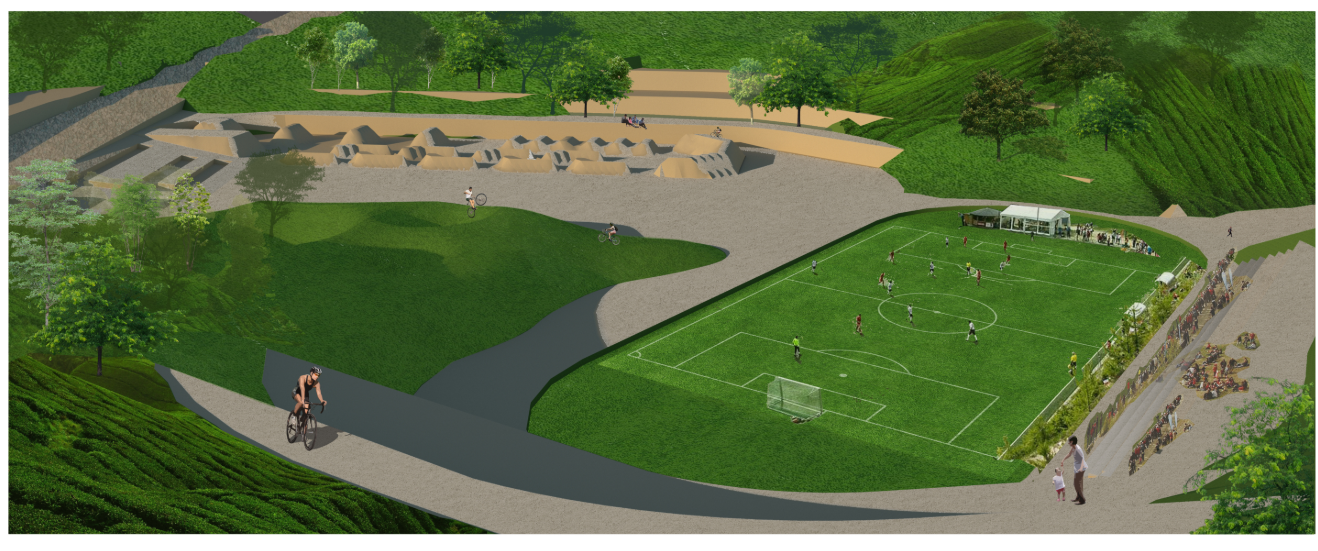

In dry conditions, the landscape park reads as a generous public amenity: sports fields, gathering pavilions, curved cycling paths, and open green space. The aerial rendering captures a relaxed civic scene, with a cyclist tracing the path around a playing field and clusters of people under a shaded pavilion. Nothing about the space screams "flood infrastructure."

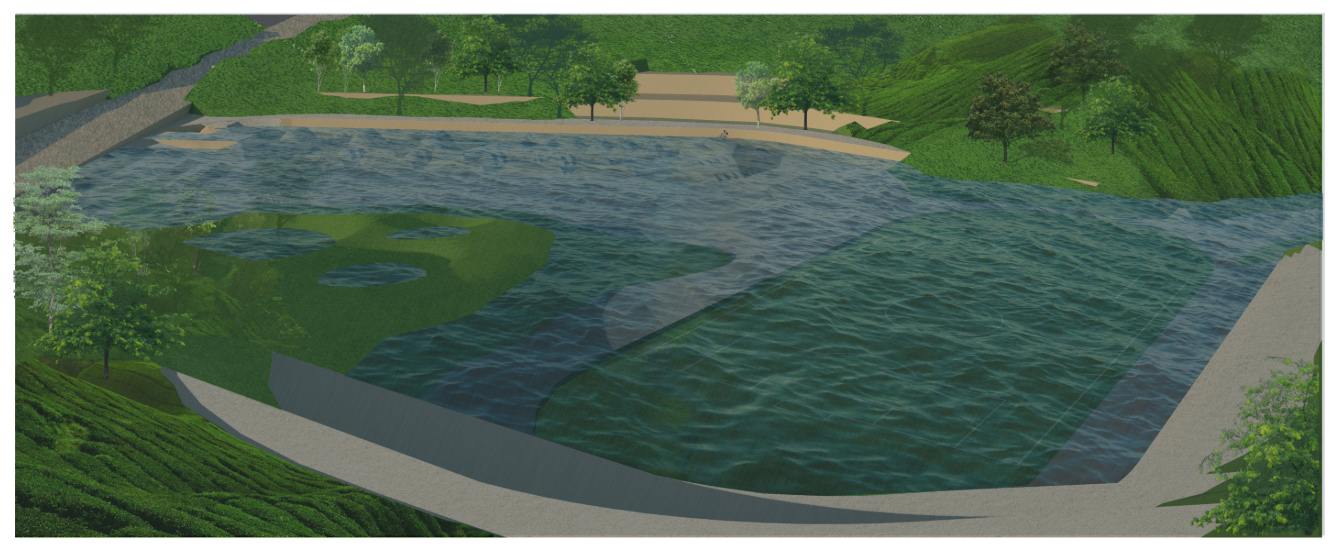

Then the second rendering shows the same view during monsoon conditions, and the transformation is striking. Water covers the playing fields and paths, and the park reveals its second identity as a natural retention basin. The design exploits the area's topographic low point to collect and hold rainwater, buffering the residential zones from the worst of the flooding. It is a dual-use strategy that treats landscape not as decoration but as critical infrastructure, enriching the urban ecosystem while protecting the community.

Three Typologies for Three Water Levels

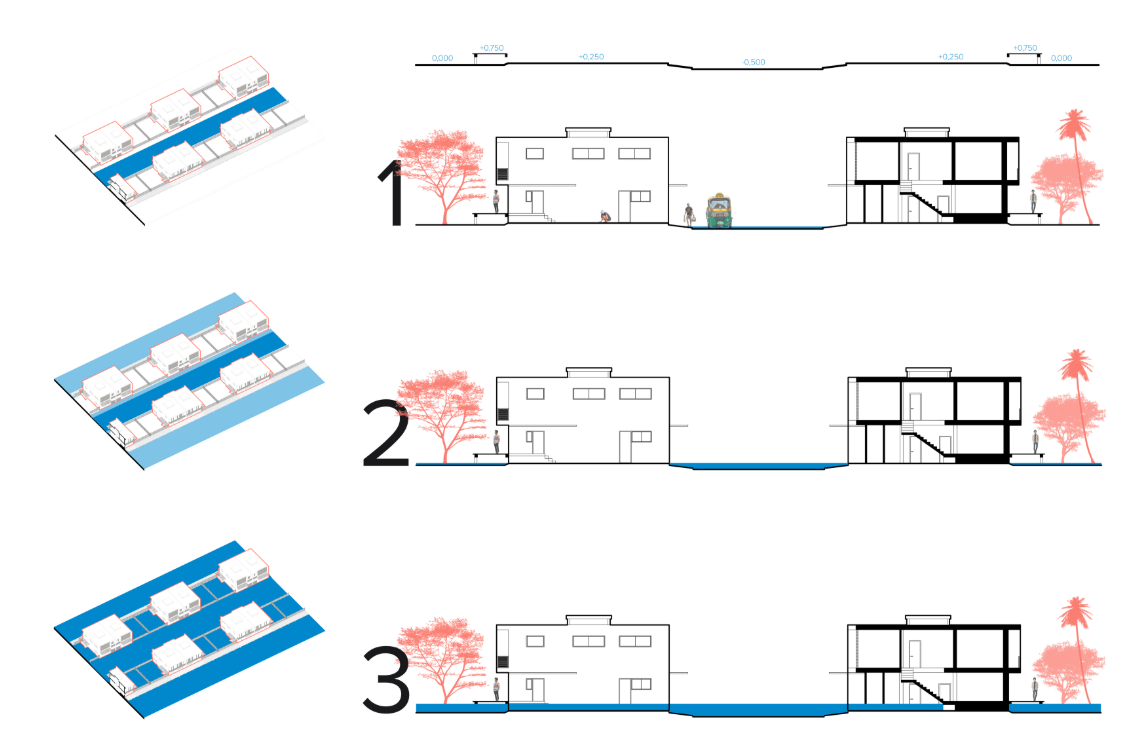

The sectional drawings present three residential adaptation models, each calibrated to a different flood severity. The first shows slightly elevated homes with safe pedestrian zones at grade. The second raises buildings further, accepting controlled street-level flooding while keeping living spaces dry. The third pushes residential floors well above ground, designed to remain habitable even during extreme inundation events. Elevated plinths, split-level planning, and resilient material selections are consistent across all three types. What matters here is the scalability: different communities, different topographies, and different risk profiles can select the typology that fits their conditions without abandoning the larger drainage logic of the neighborhood plan.

Clear Sky, Storm Sky: The Same Buildings, Two Realities

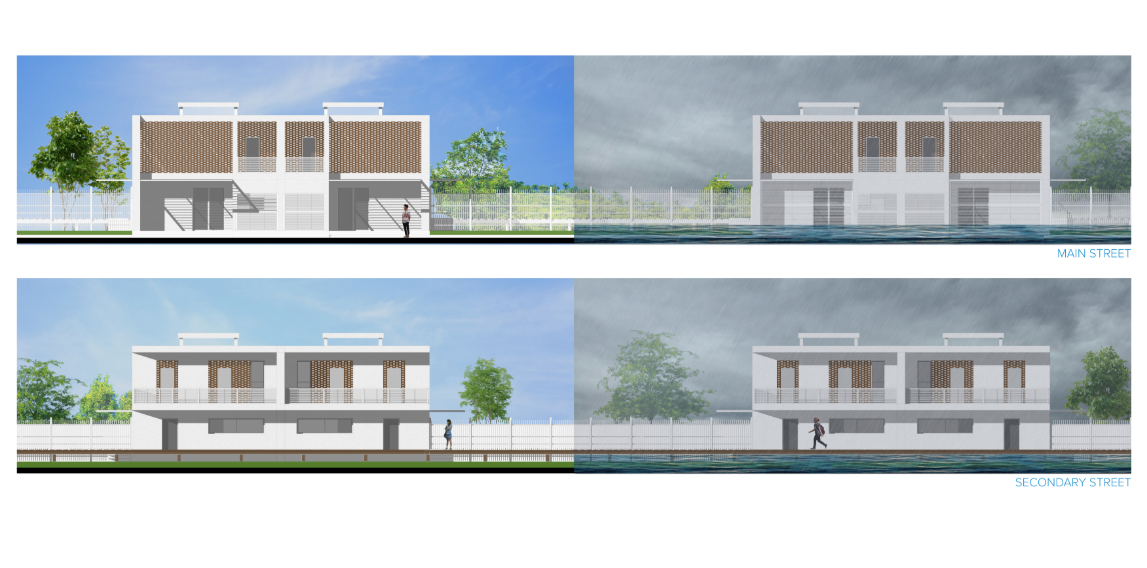

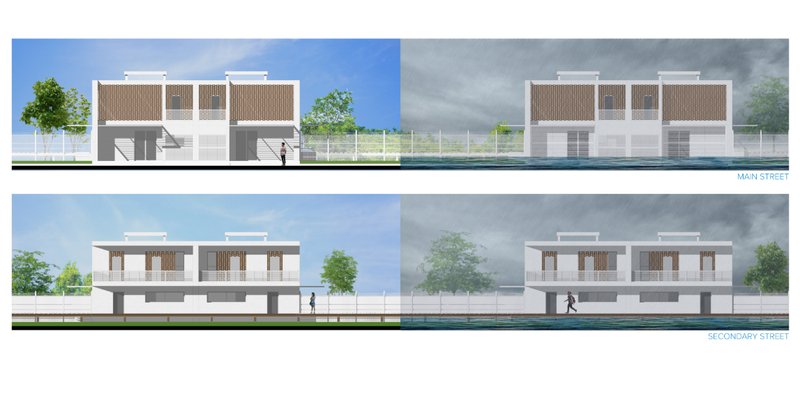

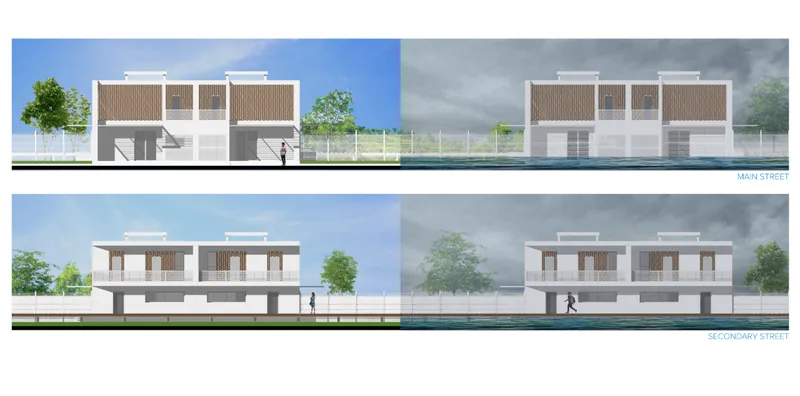

The elevation drawings of the two-storey residential blocks are presented side by side under contrasting sky conditions: calm and clear on one hand, dark and stormy on the other. The pairing is more than atmospheric. It forces the viewer to evaluate whether the architecture holds up under both states. In fair weather, the blocks integrate comfortably into a typical neighborhood streetscape. Under storm conditions, the same buildings remain legible and composed, their elevated bases and resilient detailing ensuring continued habitability. The visual argument is straightforward: flood-resilient design does not require sacrificing everyday livability.

Why This Project Matters

Most flood mitigation strategies operate at the scale of the individual building or the regional drainage system, rarely addressing the neighborhood as a coherent design unit. Popova's project fills that gap by coordinating street grading, landscape retention, and housing typology into a single integrated system. The sunken street is not an afterthought bolted onto a standard masterplan; it is the organizing principle from which every other decision follows.

In an era when climate projections make flood risk harder to ignore, the instinct to build higher walls and bigger pumps persists. "Directing the Flood" offers a more elegant counter-proposal: work with the water. Let it move where it wants to go, give it room to collect, and design the buildings to tolerate its presence. The result is a neighborhood that adapts to natural forces rather than bracing against them, and that is a model worth taking seriously as cities around the world confront the same escalating challenge.
