EIXO Z Arquitetos Stack Three Stories of Light and Brick on a Narrow São Paulo Plot

Narrow urban lots are one of São Paulo's most common design constraints, and one of its most productive. Tangerine House, a 220 m² residence designed by EIXO Z arquitetos for a young couple of doctors in the Alto da Lapa neighborhood, takes an elongated sliver of land hemmed in by neighbors and turns it into a surprisingly open, light-filled home across three floors. The core move is structural: push all columns to the plot's lateral edges, freeing the interior from obstructions and allowing a continuous open plan to run the full length of the site.

What makes the project genuinely compelling is the way it orchestrates light. A central atrium punches through all three stories, bringing a planted internal garden into the heart of the house. At the front facade, a perforated brick screen filters sunlight into shifting patterns across walls and floors throughout the day. Sliding slatted panels give residents manual control over exposure. The result is a house that breathes, in a city where that is far from guaranteed.

The Brick Screen as Protagonist

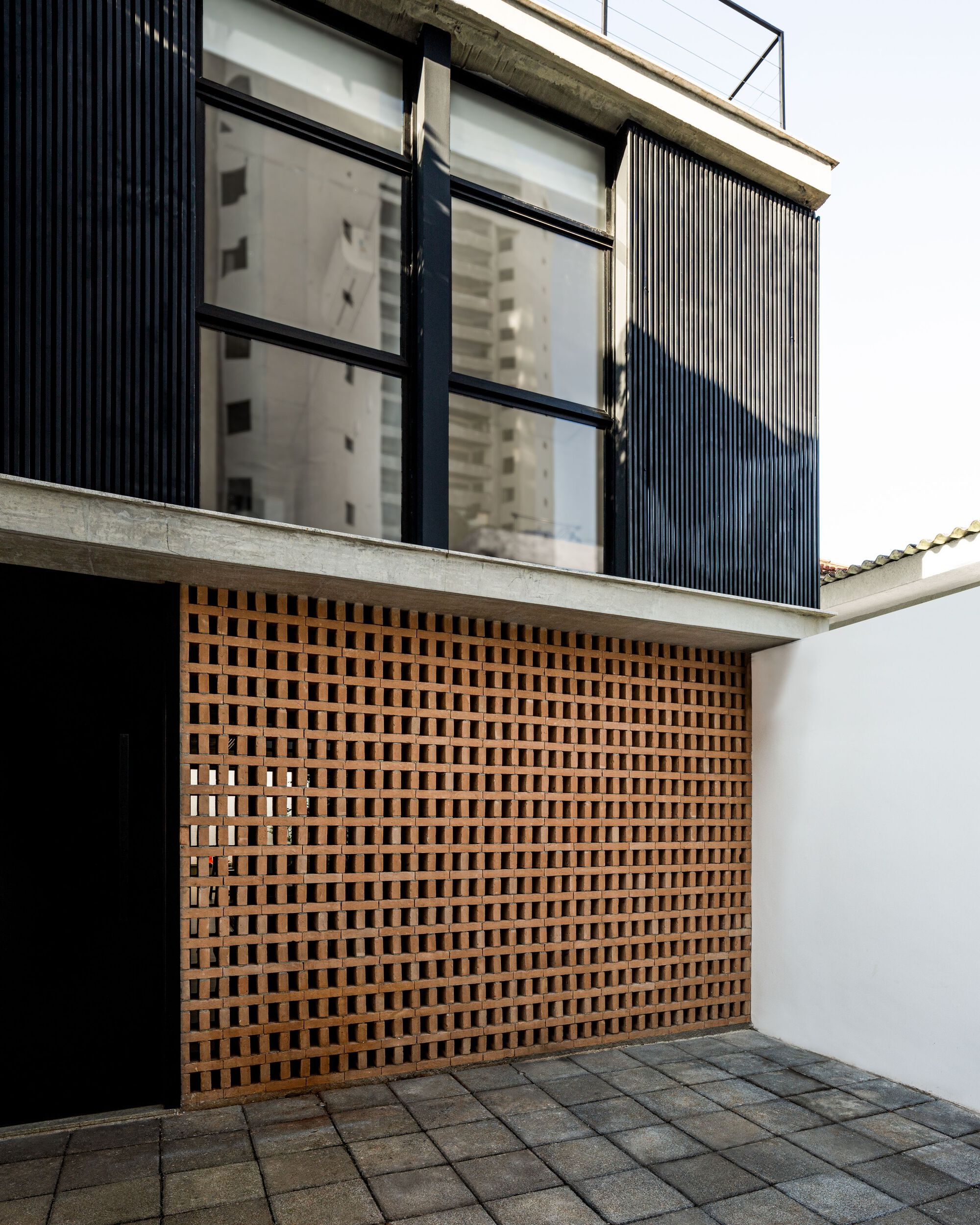

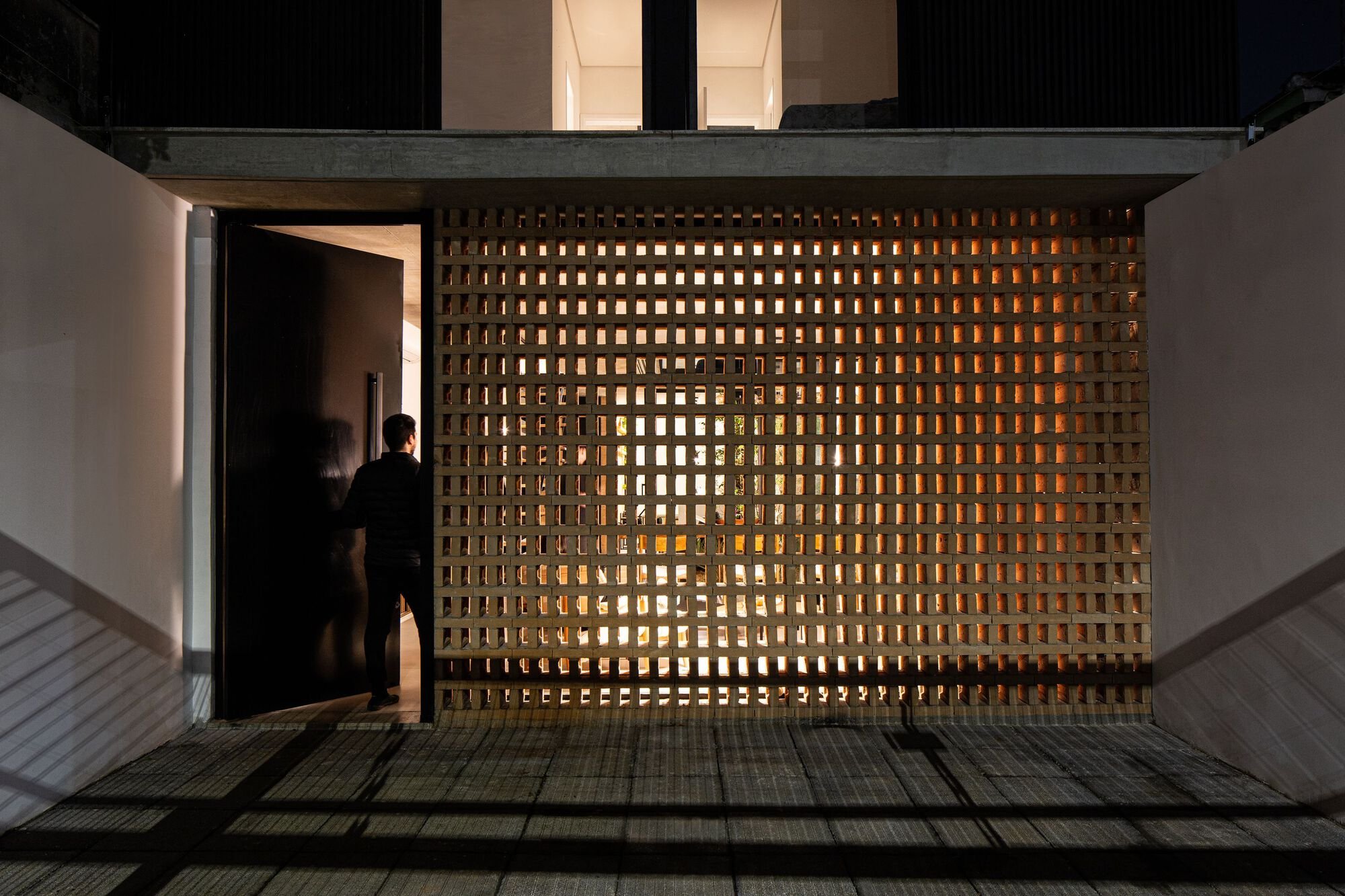

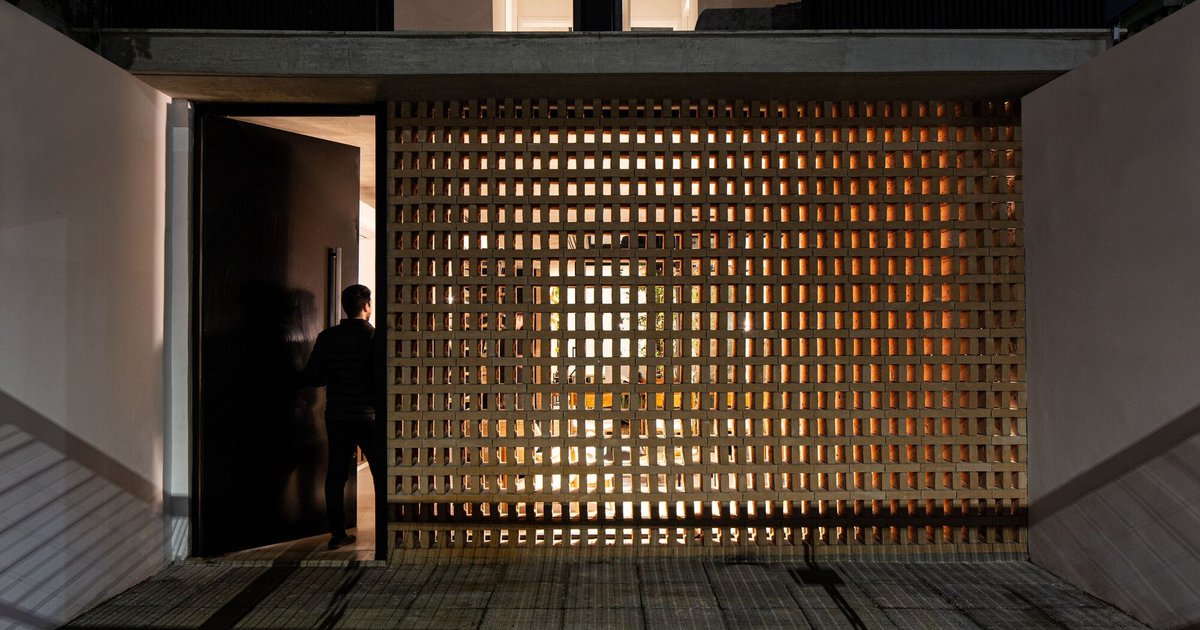

The front facade is the building's public face, and EIXO Z treats it as more than a barrier. A breeze block wall constructed from solid bricks creates a porous screen that glows from within at dusk and casts dappled light inward during the day. It is decorative, thermal, and structural all at once. The technique is deeply rooted in Brazilian modernist tradition, but the execution here feels sharp and specific to the site: the screen provides privacy from the street without sealing the house off.

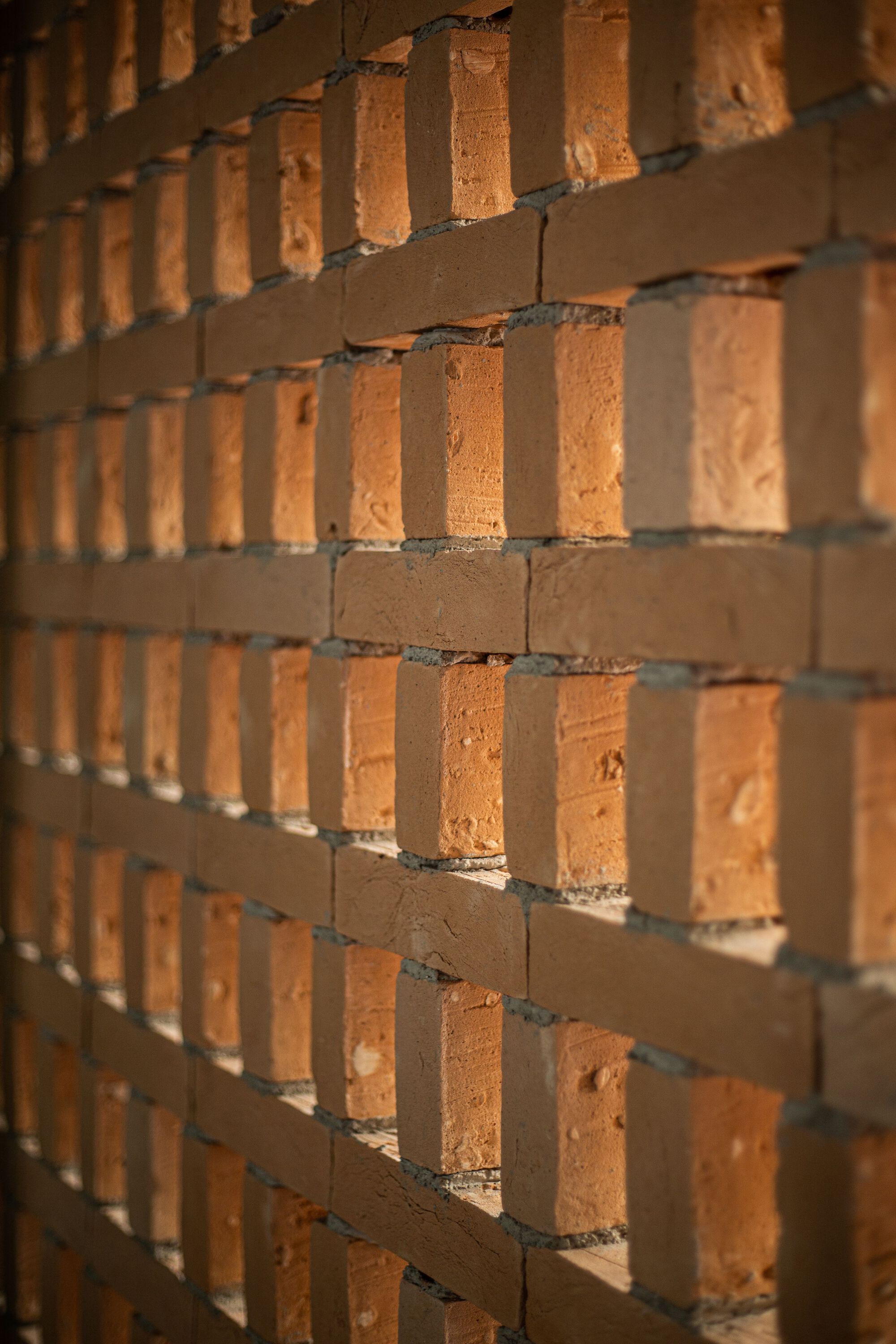

Seen close up, the angled brick corners and mortar joints reveal careful craft. The pattern is not random. It creates a rhythm of solid and void that modulates airflow and controls solar gain, reducing reliance on mechanical cooling in a city that rarely gets cold but frequently overheats.

The Atrium as Vertical Garden

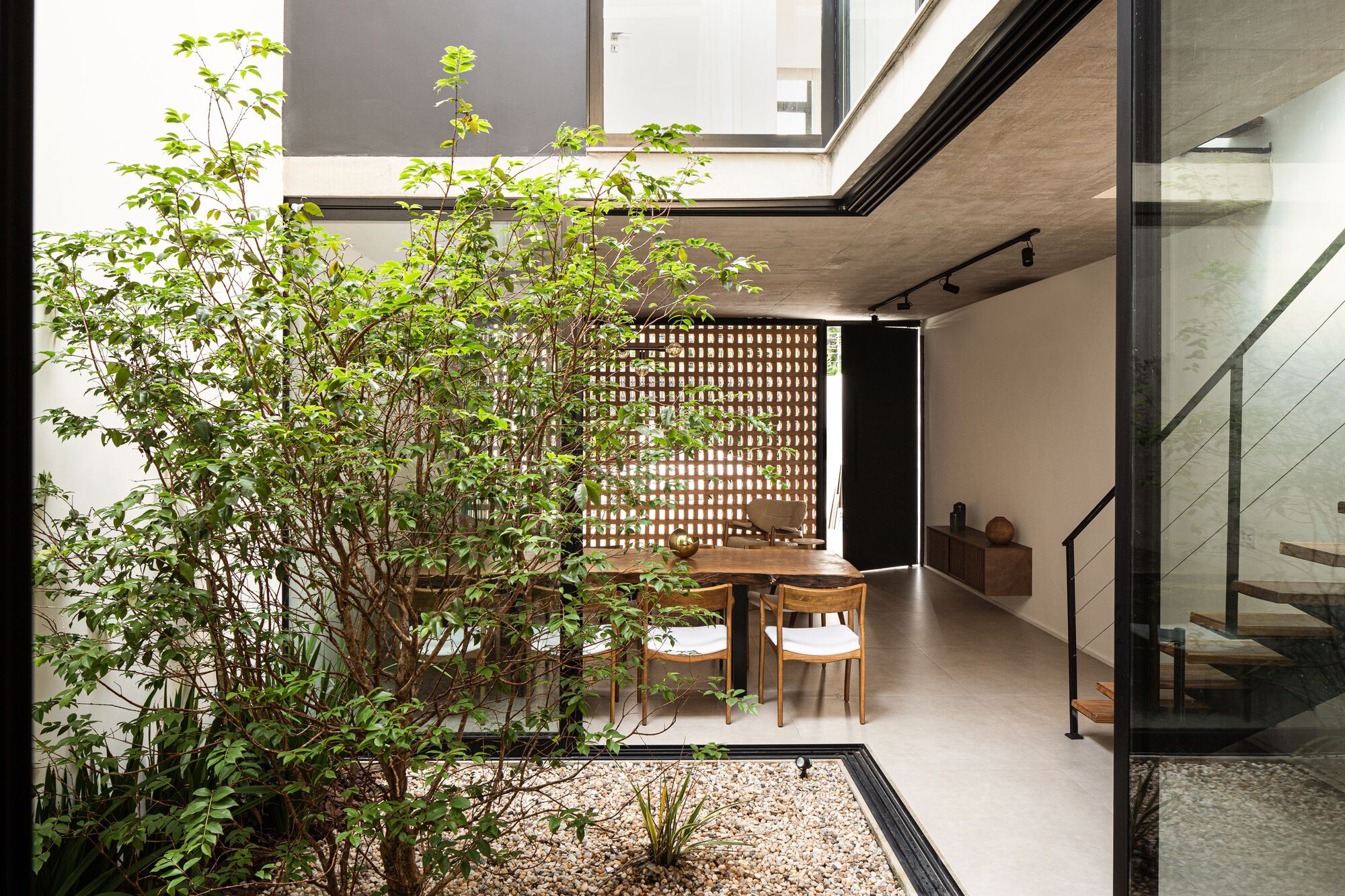

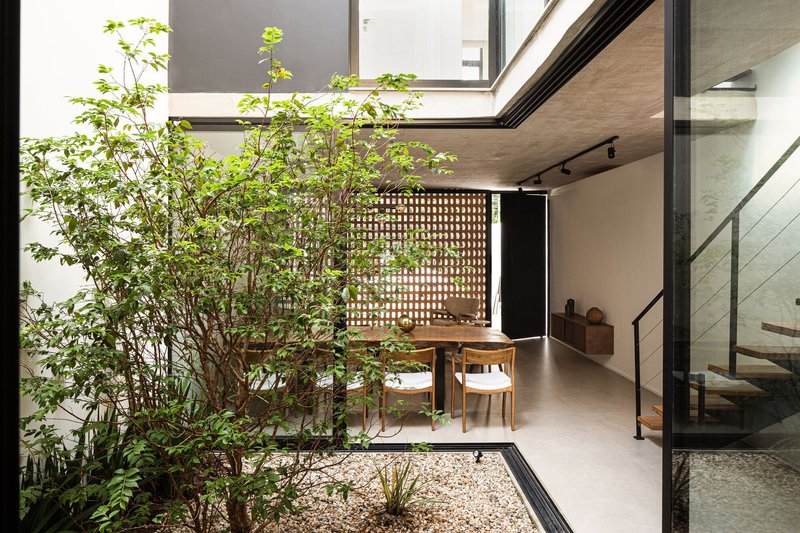

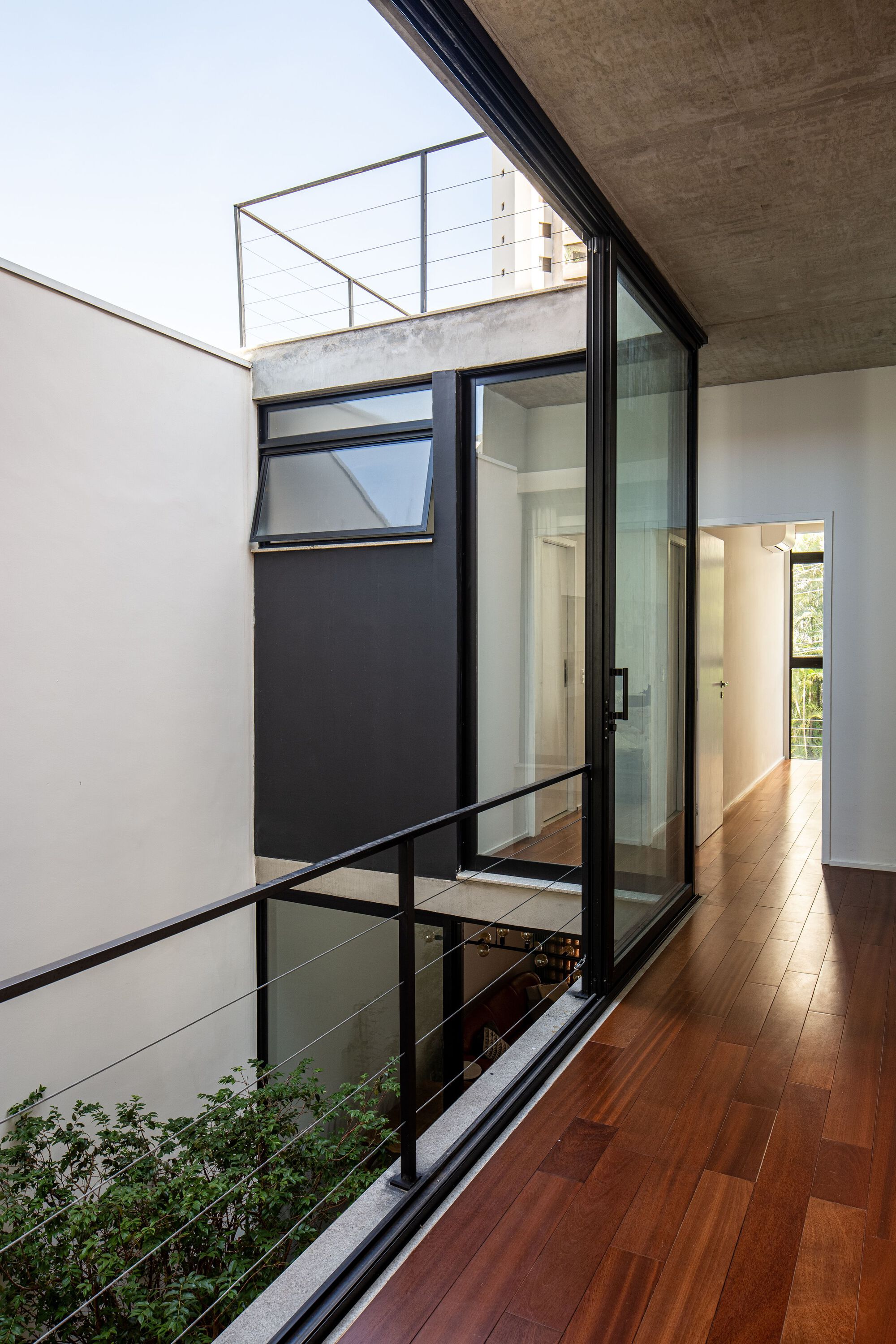

The triple-height atrium is the spatial engine of Tangerine House. At its base, a gravel bed holds a planted tree that climbs toward a skylight above. Full-height glass sliding doors separate the courtyard from the living spaces, making the garden visible from nearly every room while maintaining acoustic and climate separation. It is a simple device, but it solves a fundamental problem of narrow-lot design: how to get natural light and ventilation into the center of a deep, enclosed plan.

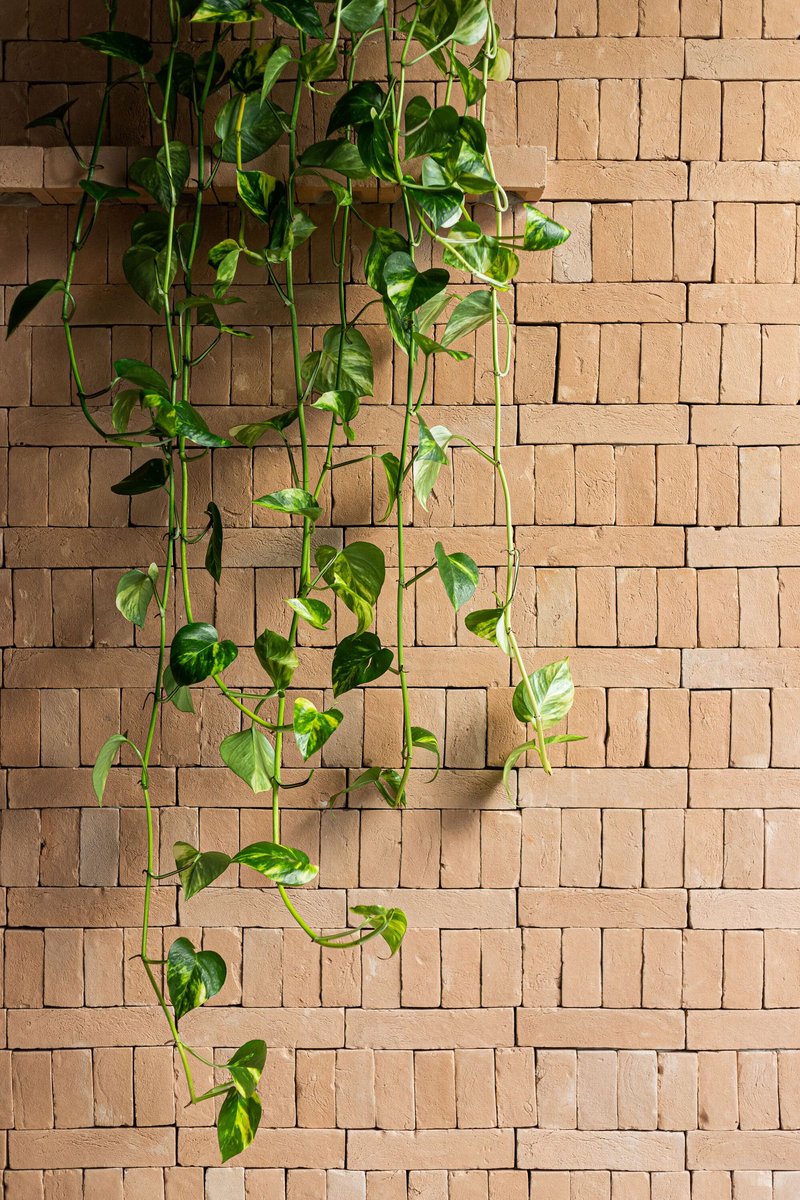

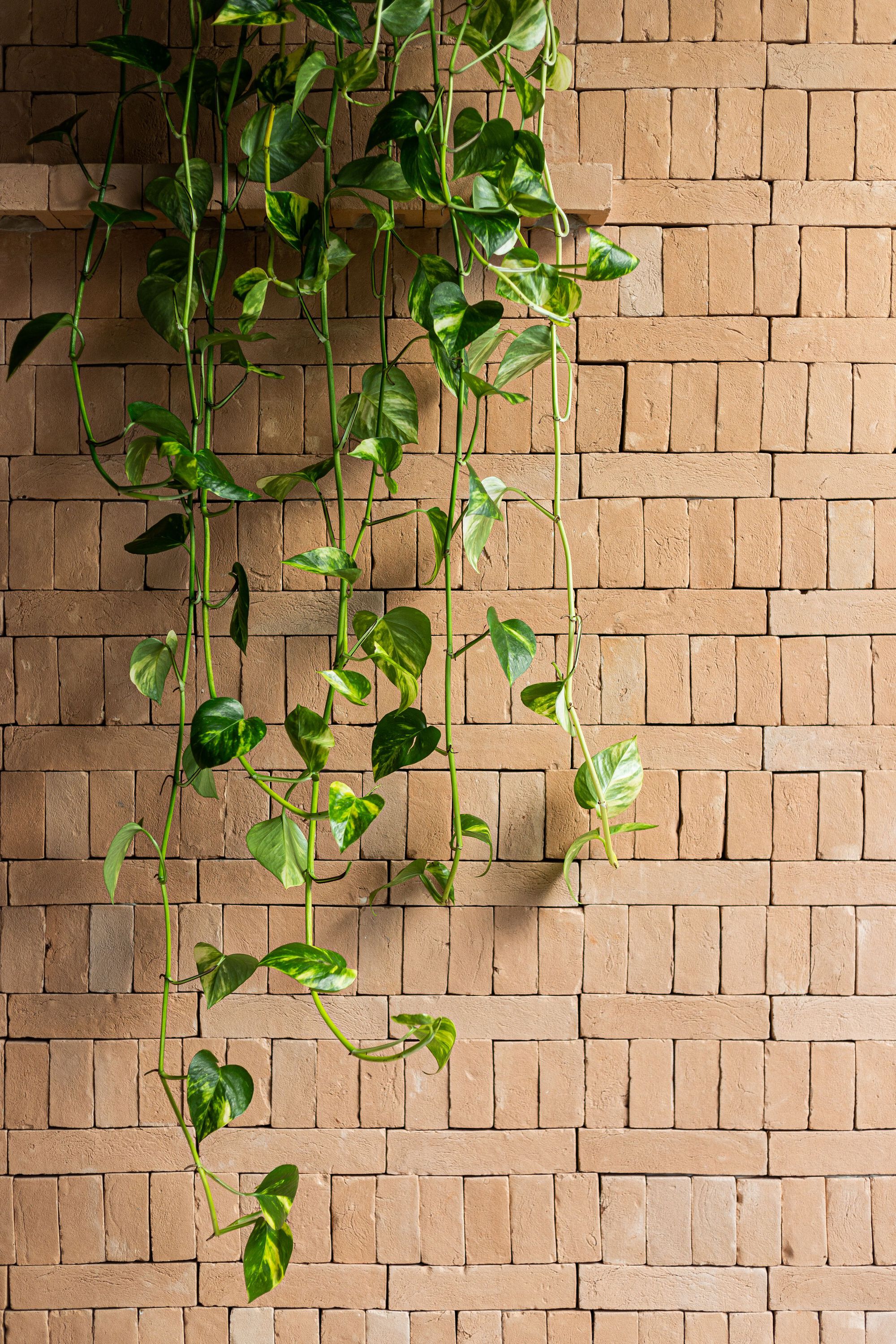

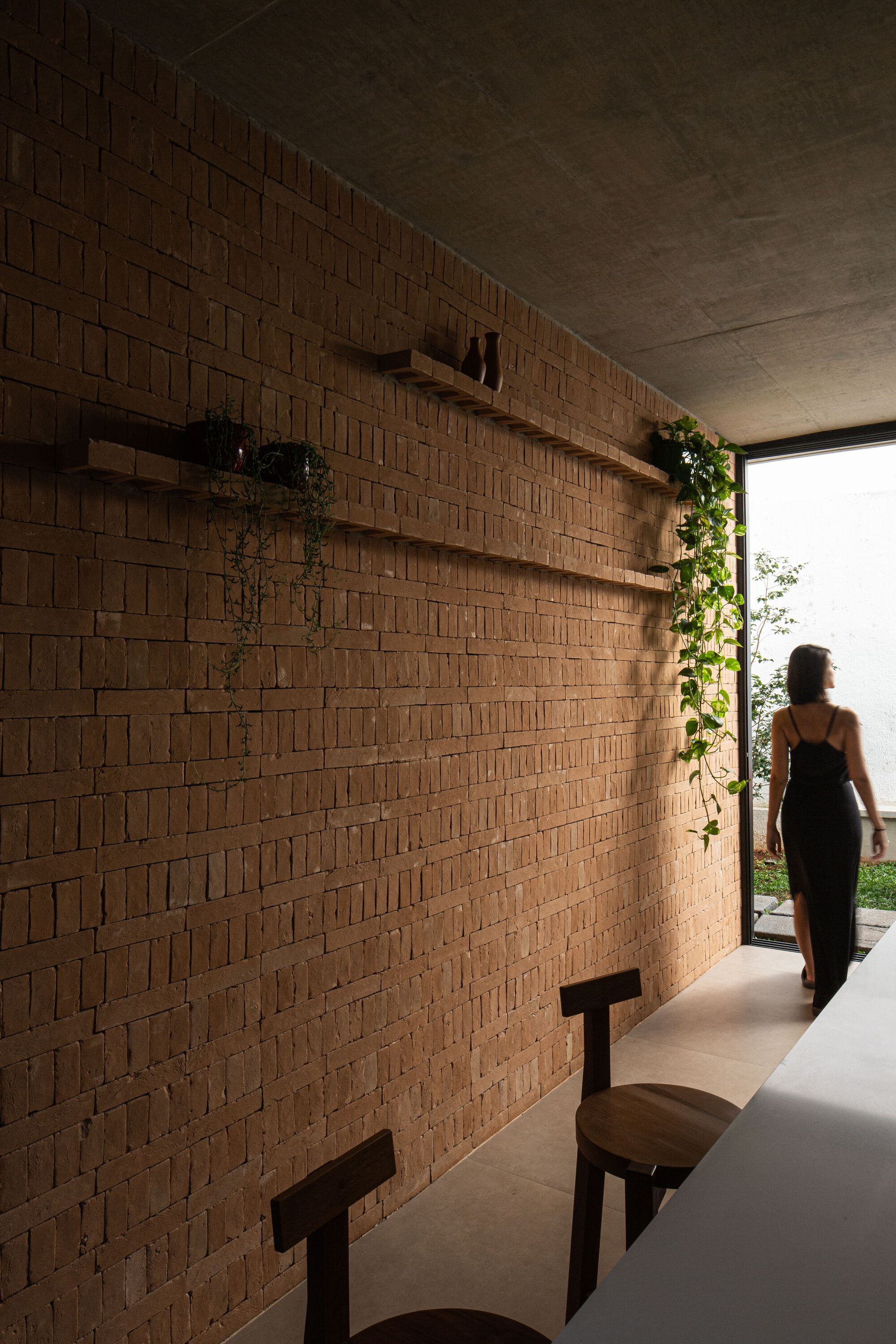

The courtyard also doubles as a visual anchor. From the dining room, the kitchen, the staircase, and the upper bedrooms, occupants look into or across this planted void. The trailing pothos vines on the basketweave brick wall add texture and softness to what could otherwise feel like a utilitarian light well.

A Staircase That Gets Out of the Way

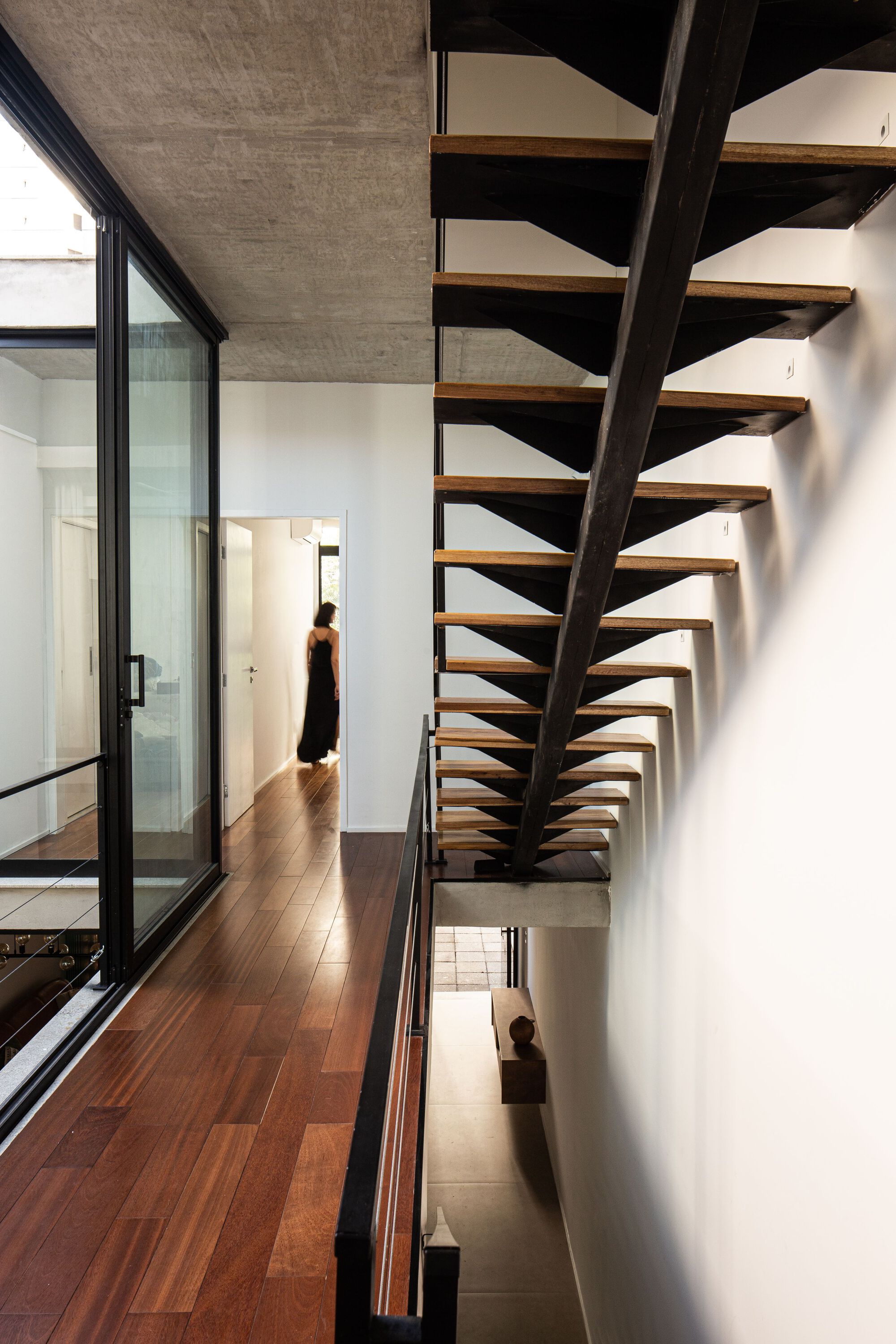

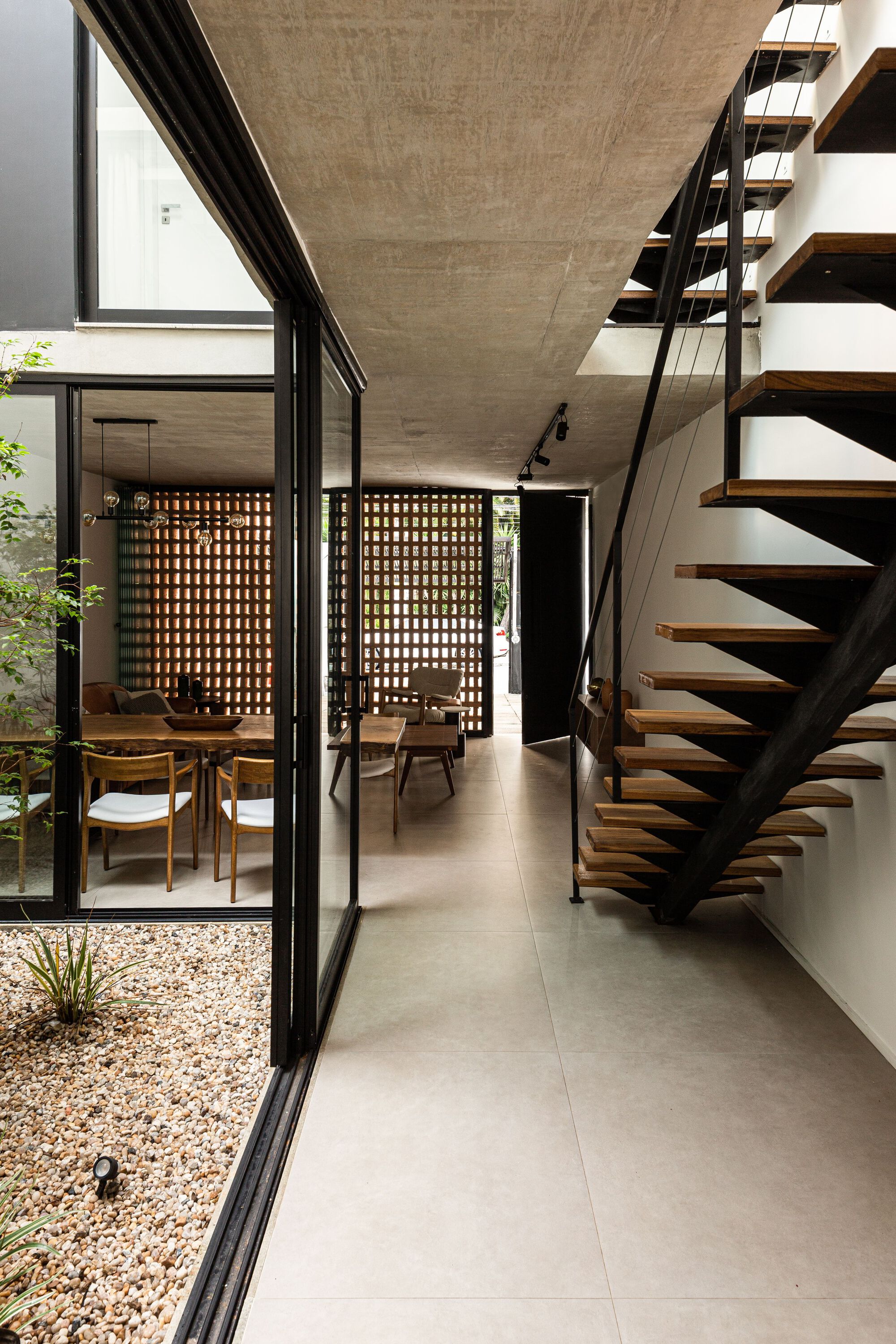

Circulation in a narrow house is a design problem that can easily consume a disproportionate share of the floor plate. EIXO Z responds with a metallic staircase fitted with open timber treads and a single black steel spine. It is deliberately minimal: no risers, no heavy balustrades, nothing that would block the passage of light through the atrium. A glass railing at certain landings keeps the stair safe without adding visual weight.

The stair runs alongside the glazed courtyard wall, so ascending through the house feels like climbing next to the garden. It binds the three floors together vertically in a way that reinforces the atrium's role as the spatial center of gravity.

Living and Cooking on the Ground Floor

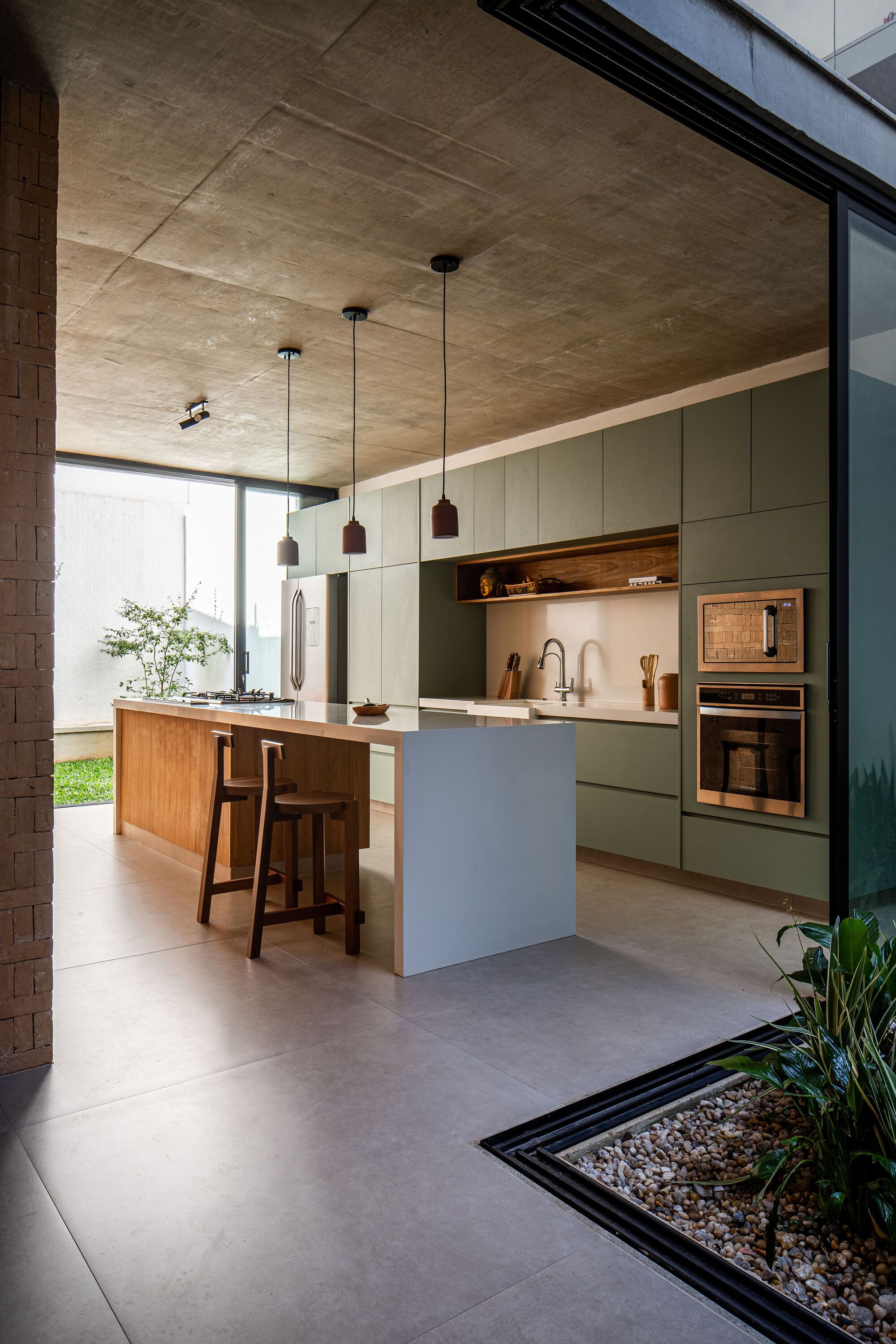

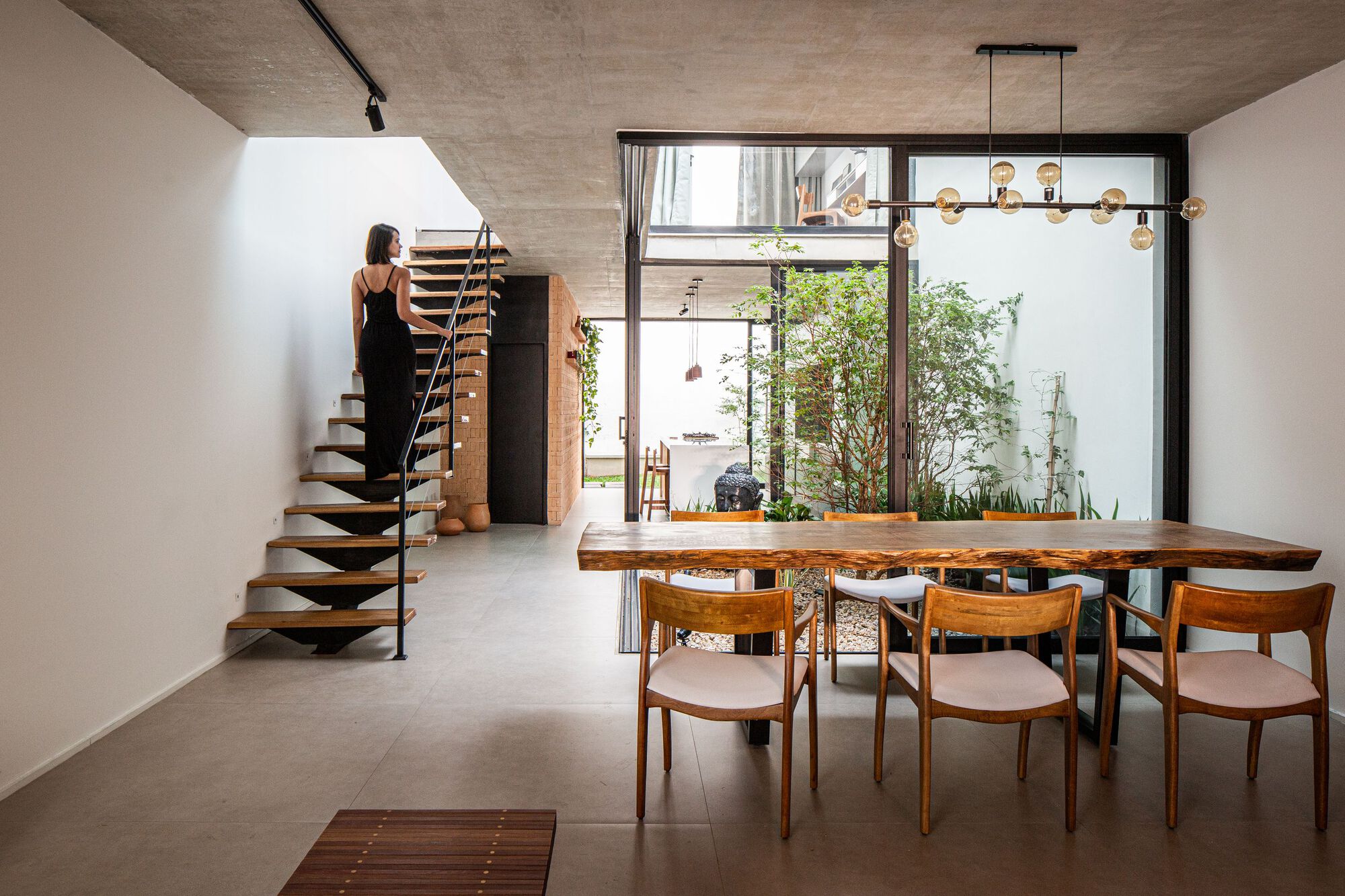

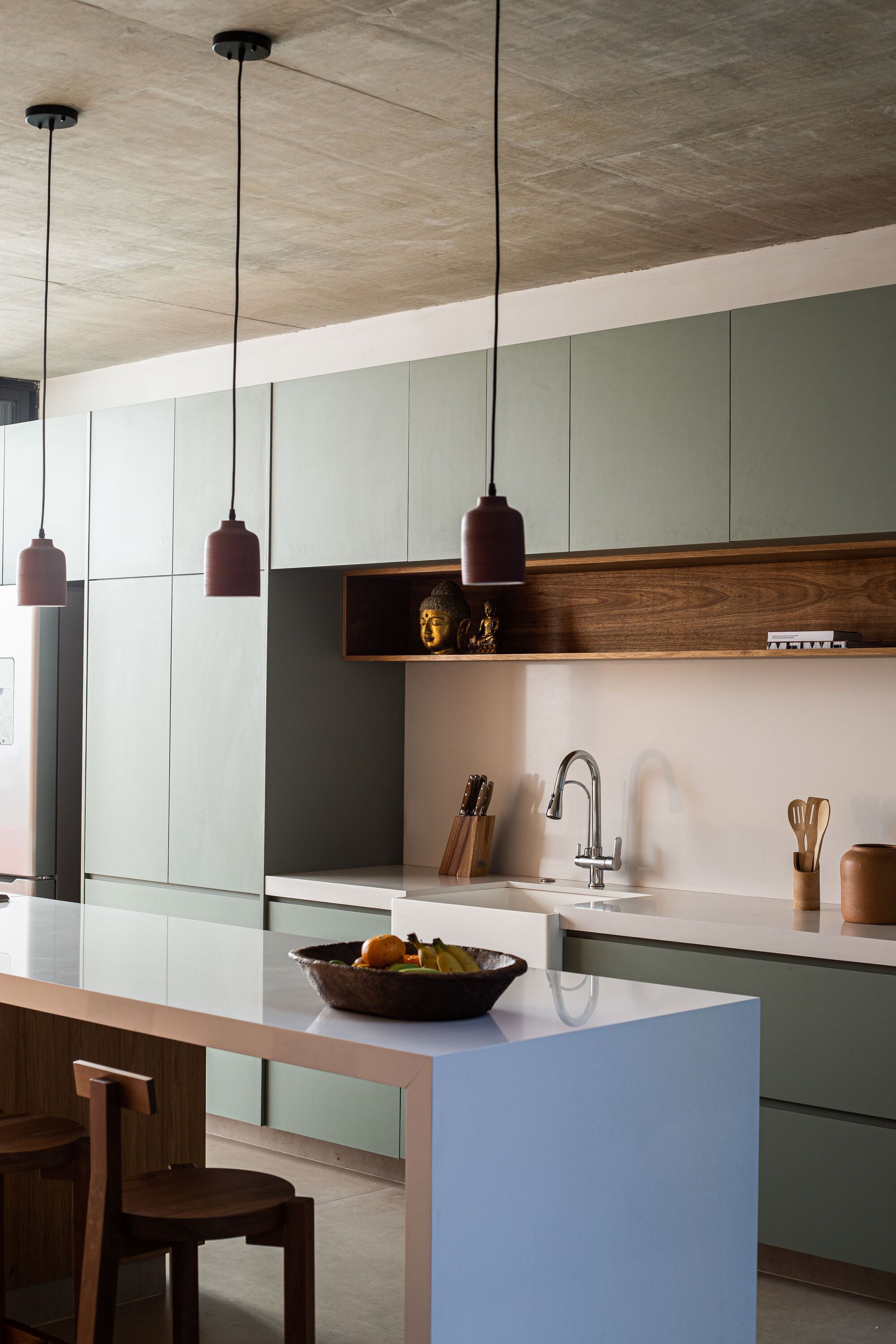

The ground floor is organized as a single continuous social space: garage at the front, living and dining in the middle, kitchen toward the back, all arranged in sequence along the site's length. A live-edge wood dining table sits next to the courtyard glazing, grounding the space with material warmth against the exposed concrete ceiling above. The kitchen features sage green cabinetry, a timber island, and cylindrical pendant lights. The palette is restrained but intentional: plywood ceiling planes, white stone countertops, and concrete soffits that are left apparent rather than clad.

EIXO Z's commitment to honest materiality is evident here. Beams, hydraulic systems, and infrastructure elements have been pushed to the perimeter, leaving the ceiling plane clean and uninterrupted. The floor is open enough to read as a single room, but the courtyard and subtle level changes create pockets of intimacy within the plan.

Intimate Spaces Above

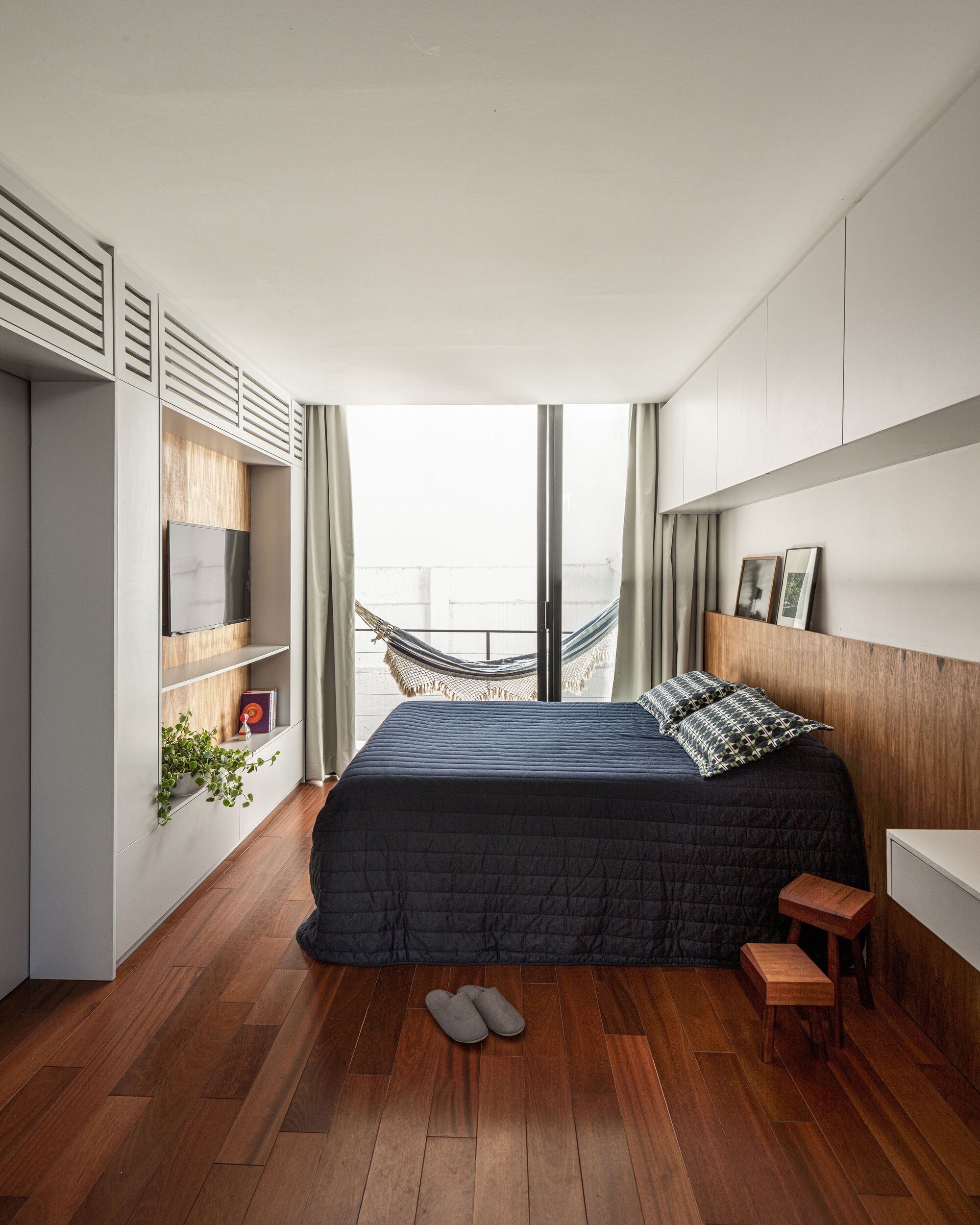

The first floor holds the bedrooms. Two ensuite rooms for future children face the street, while the master bedroom occupies the quieter rear of the lot, complete with a closet, bathroom, and private balcony. Timber flooring replaces the harder surfaces of the ground floor, signaling a shift from communal to private. One bedroom features a hammock suspended in the balcony doorway, a detail that is playful but also practical: it captures cross-ventilation from the large floor-to-ceiling openings at front and rear.

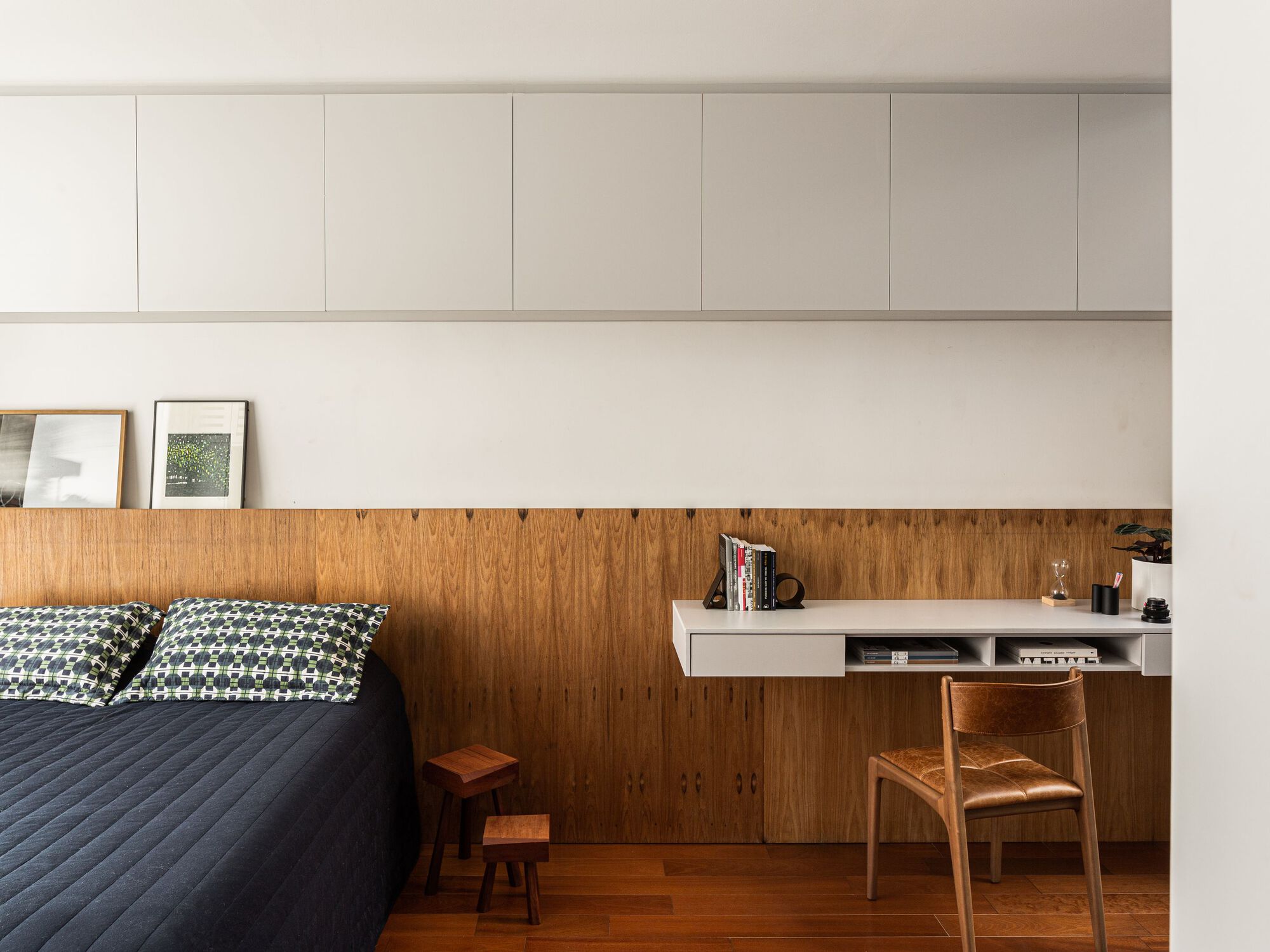

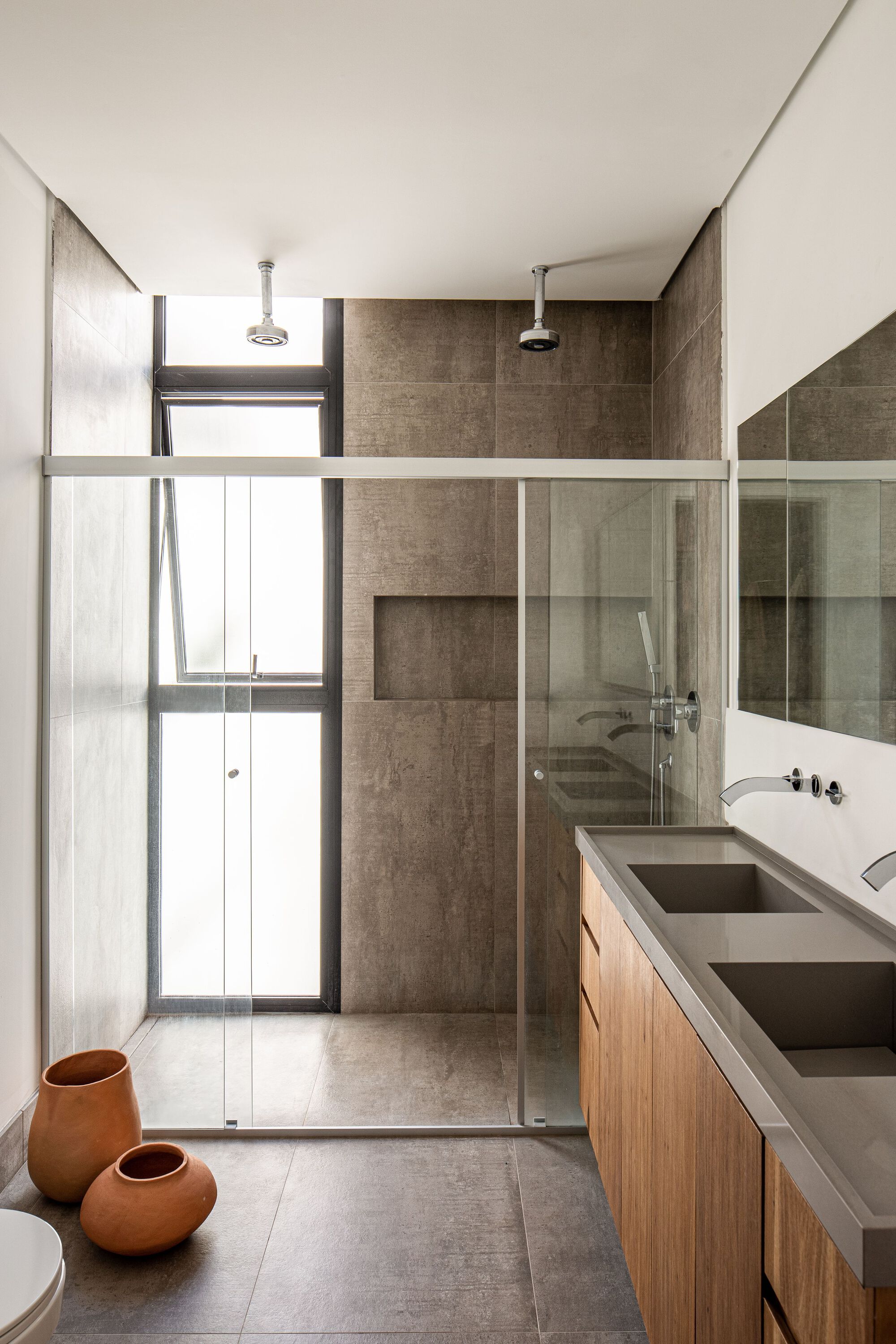

The built-in storage walls combine timber wainscoting with integrated desks and upper white cabinets, maximizing usable area within the constraints of the narrow plan. The bathroom, with its glass-enclosed shower and clerestory window, continues the house's strategy of borrowing light from above wherever possible.

The Rooftop Terrace

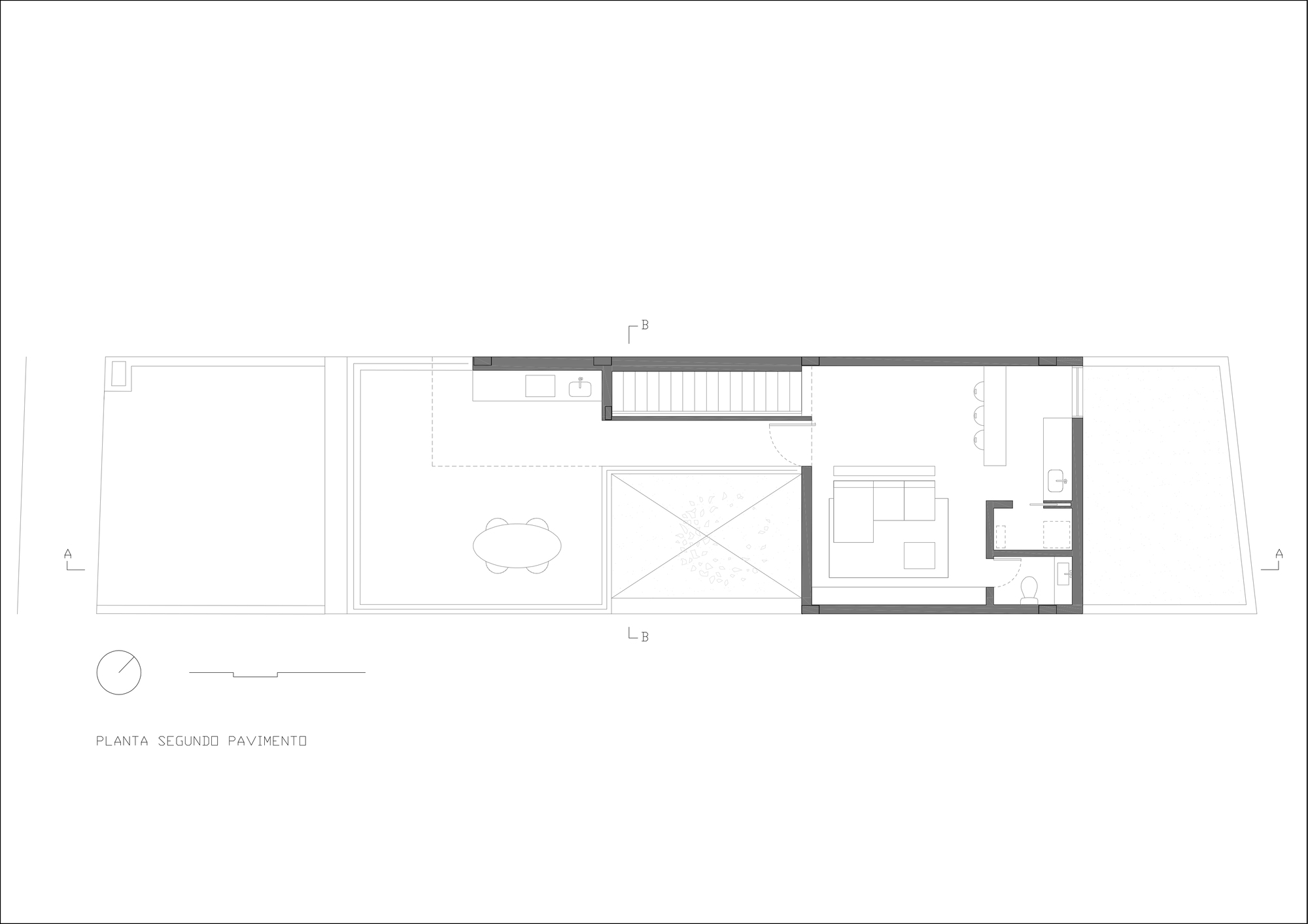

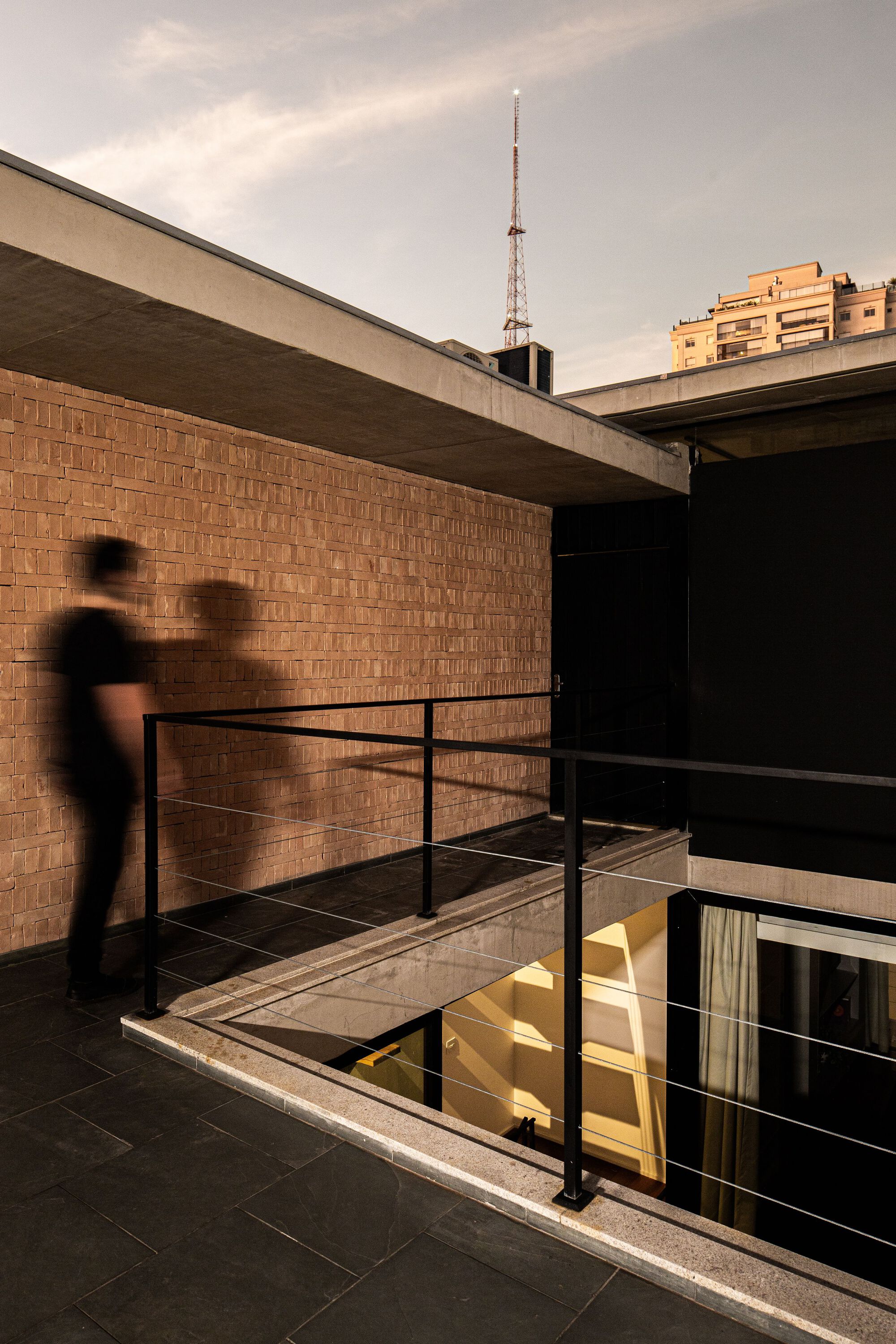

The second floor houses a multipurpose bar and TV room that opens onto a generous terrace. The concrete slab projects outward to form a canopy, shading the terrace without blocking views toward the city and Villa Lobos park. A glazed skylight punches through the floor, connecting the terrace visually to the atrium and garden below. The laundry room and washroom are enclosed in a solid brick volume that reads as a compact service block within the larger open space.

At golden hour, the terrace becomes the most atmospheric room in the house. The black metal railing keeps the edge minimal, and the warm light raking across the brick and pothos-covered walls below gives the whole vertical section a glow that justifies the project's name.

Plans and Drawings

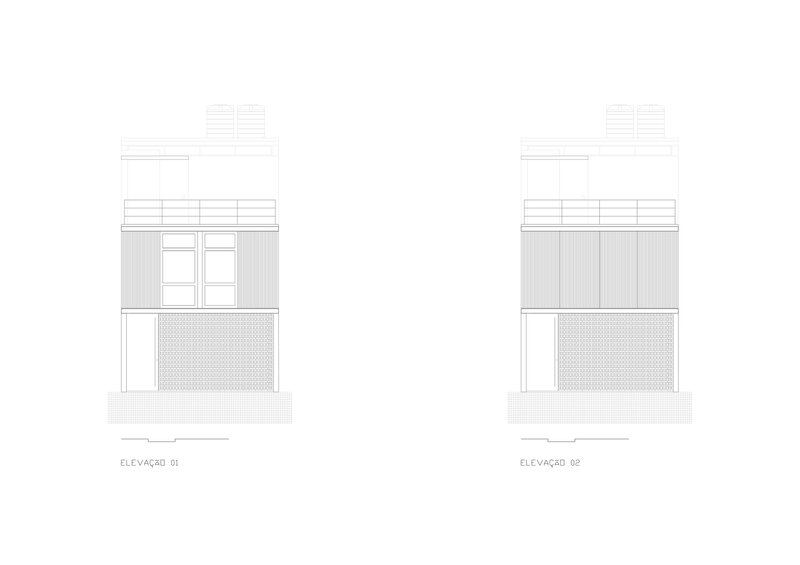

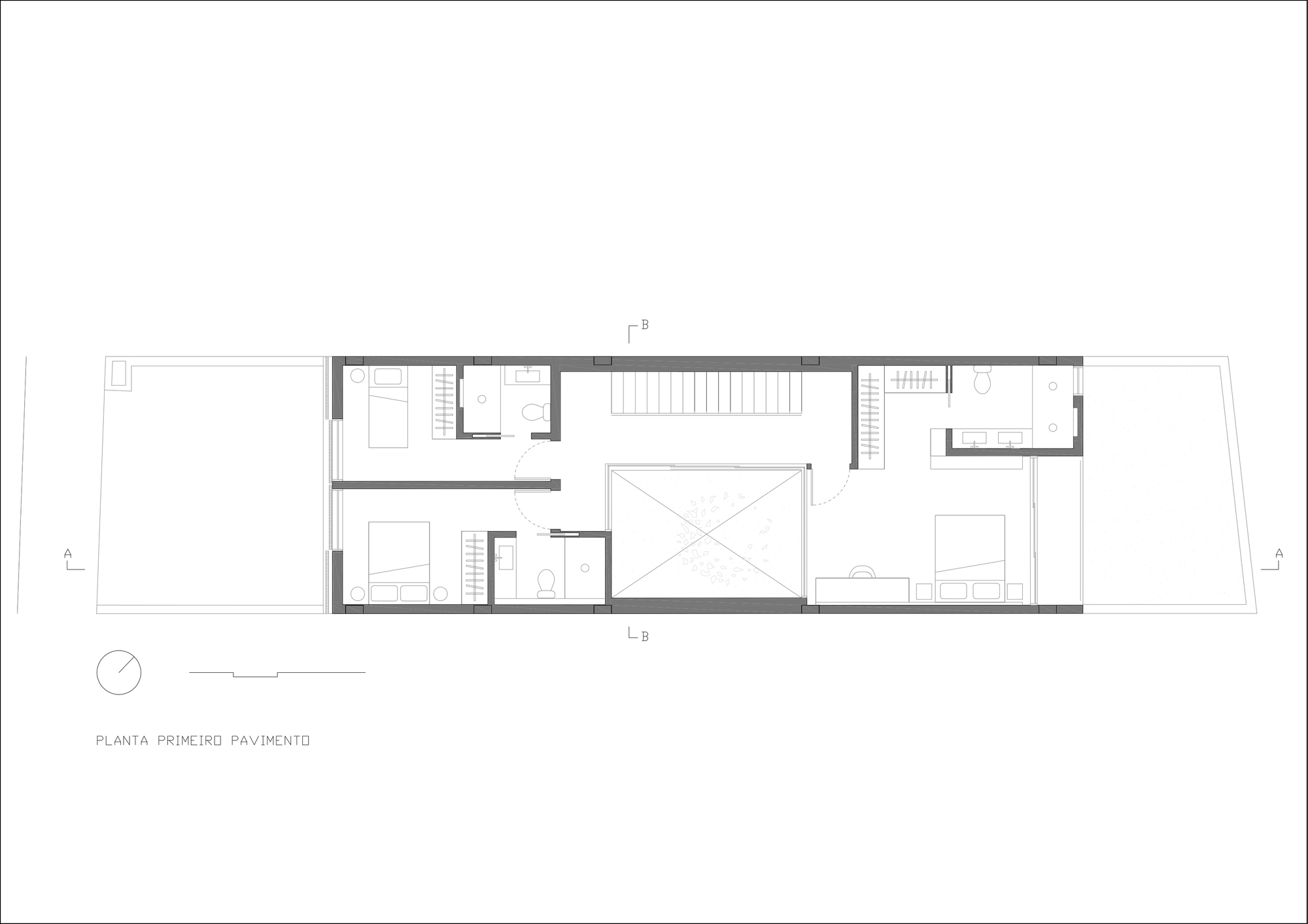

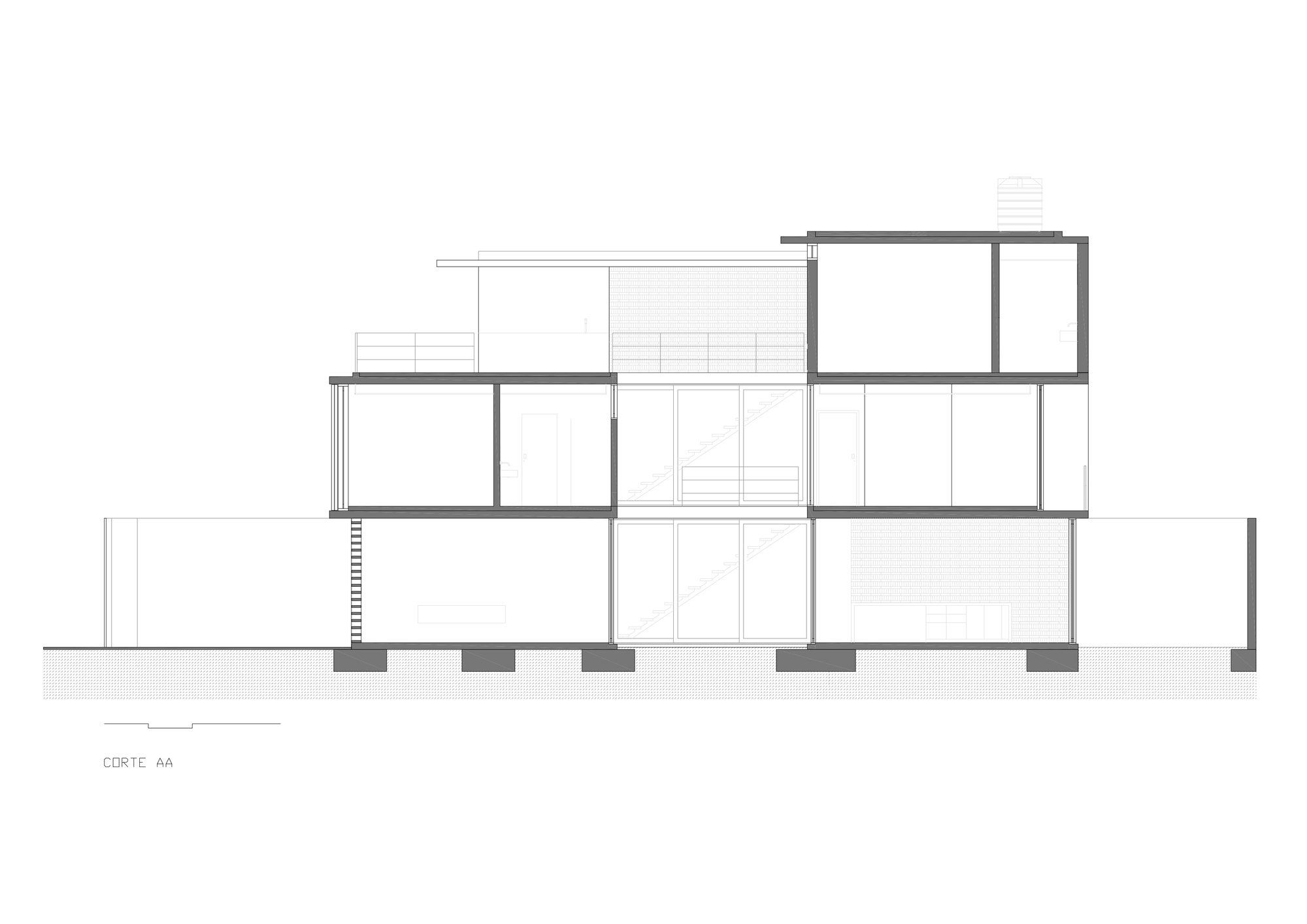

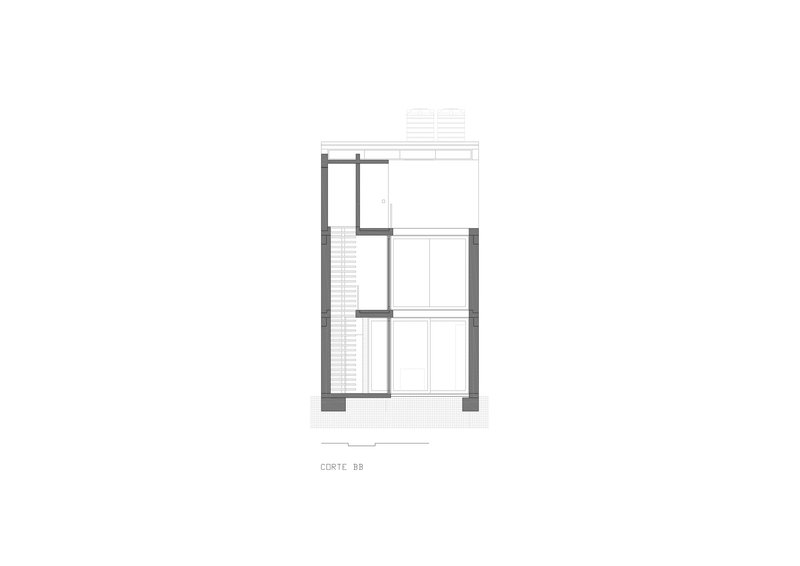

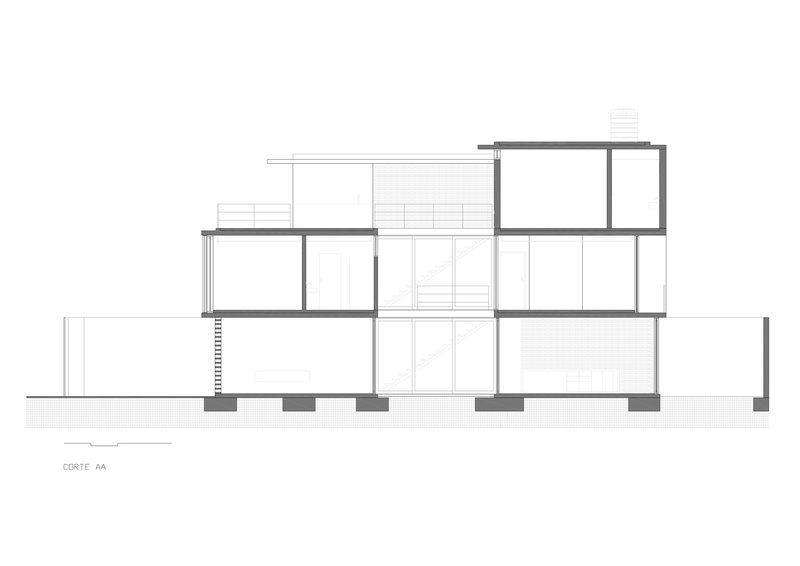

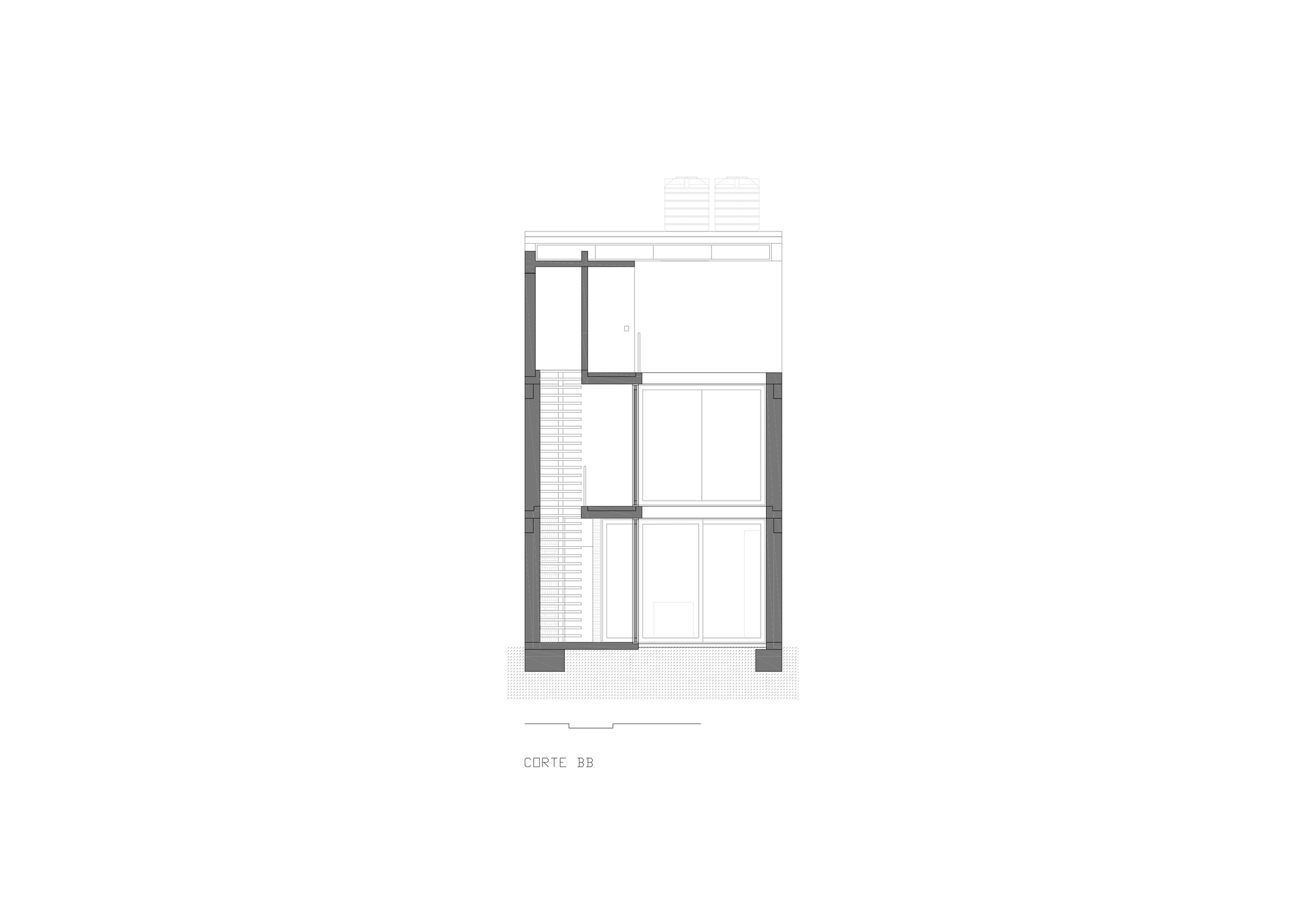

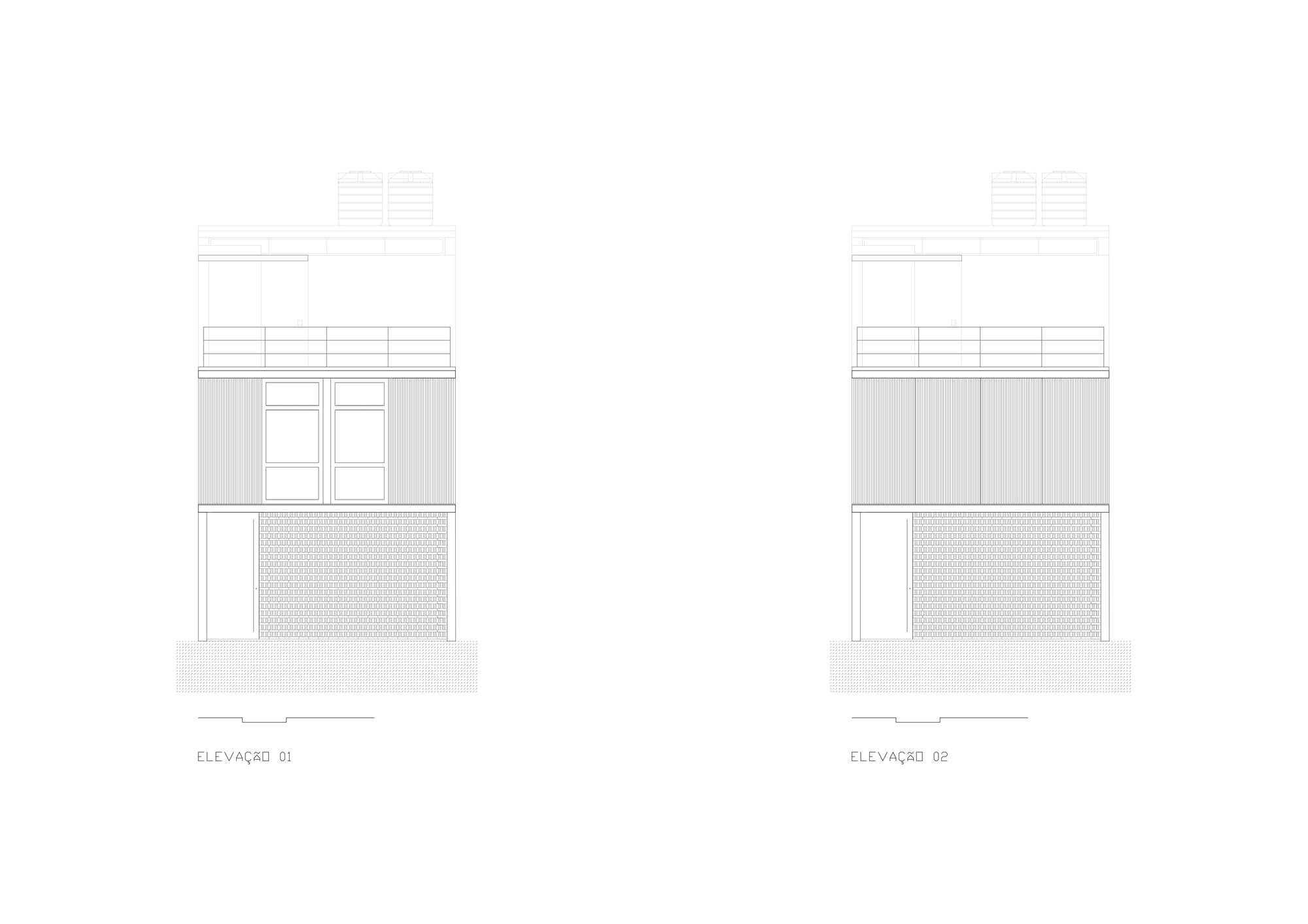

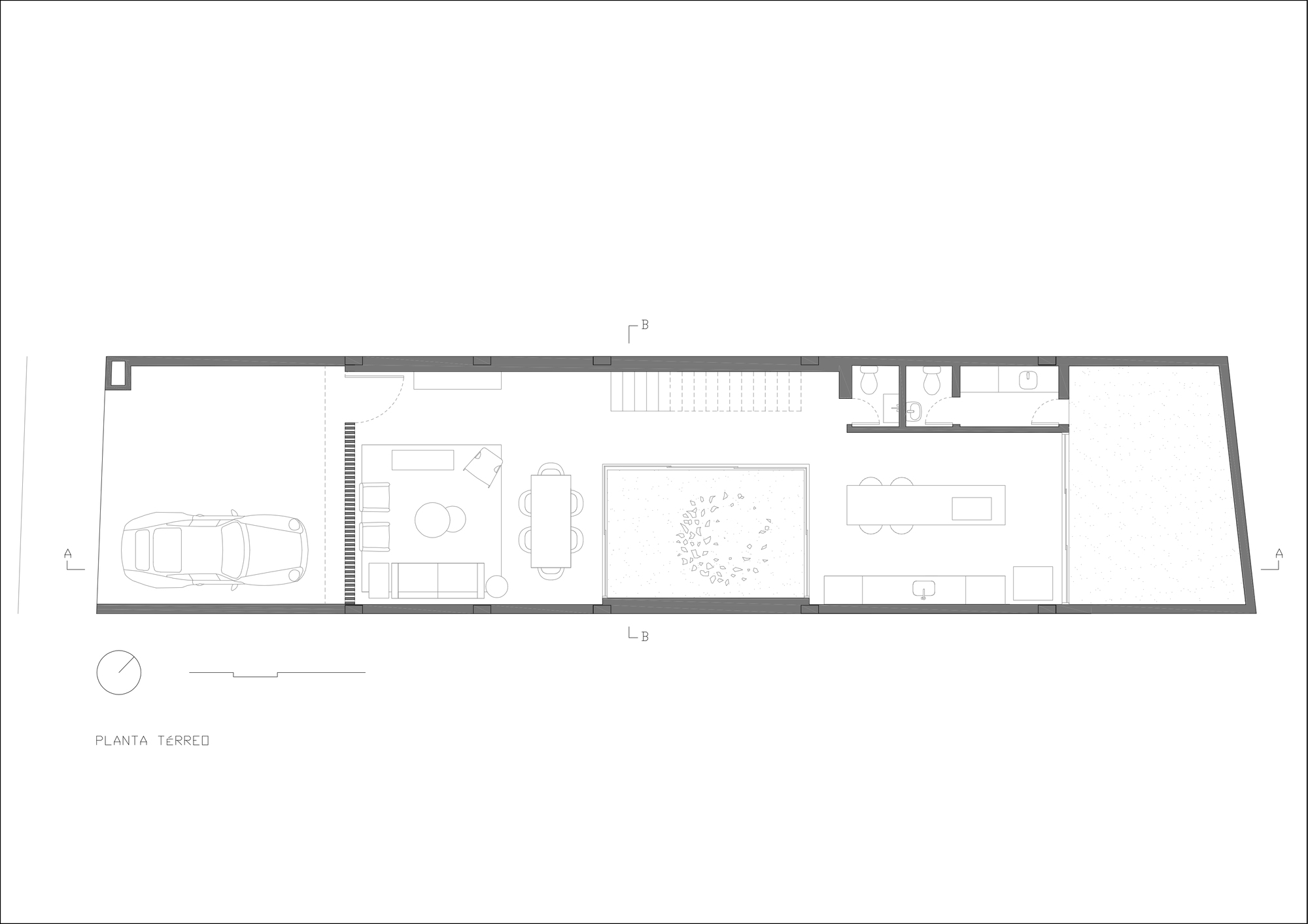

The floor plans reveal the linear logic of the house with clarity: garage and social spaces on the ground floor, bedrooms on the first, and the multipurpose terrace room on the second, all threaded together by the atrium void and the stair at one edge. The sections are particularly instructive. They show how the offset floor plates and the projecting concrete slab create distinct spatial zones while maintaining a continuous vertical connection through the courtyard. The elevations document the contrast between the perforated brick front facade and the more open rear elevation, with its vertical timber siding and stacked window openings.

Why This Project Matters

Tangerine House is not a spectacle. It does not rely on unusual form or exotic materials to make its point. Its intelligence lies in the disciplined handling of a familiar set of constraints: a tight plot, a dense neighborhood, a tropical climate, and a young family's need for space that can grow with them. EIXO Z's decision to move the structure to the edges, open the center, and build the facade from perforated brick is not novel in isolation. What is accomplished is the integration of all three moves into a house that feels calm, generous, and deeply connected to its environment.

For architects working on narrow urban sites in warm climates, the project is a useful reference. It demonstrates that permeability and privacy are not opposites, that apparent materials can be elegant without being austere, and that a well-placed tree in a gravel bed can do as much for a house as any high-tech facade system. The lesson here is one of proportion and restraint, applied with real conviction.

Tangerine House by EIXO Z arquitetos, located in Alto da Lapa, São Paulo, Brazil. 220 m². Completed in 2022. Photography by Miti Sameshima.
