genarchitects Designs a Suzhou Fire Station Around the Long Hours Between Emergencies

A fire station is a building defined by two contradictory modes of time. There is the sudden, violent moment of dispatch, when seconds count and every corridor becomes a sprint lane. And there is everything else: the hours and days of repetition, training, meals, sleep, and waiting. Most fire station designs obsess over the first condition. genarchitects, led by Fan Beilei, Kong Rui, and Xue Zhe, took the second condition just as seriously for the Yuanfeng Road Fire Station in Suzhou's Kunshan High-Tech Zone.

The result is a 3,216 m² complex that reads less like an emergency services building and more like a carefully organized compound, one where the fire engine bay sits at the center of daily life rather than apart from it. genarchitects describe the concept as a child's toolbox: everything has its designated slot, laid out plainly and directly. That disarming analogy conceals real spatial intelligence. Dormitories, fitness rooms, offices, and a basketball court orbit the garage in positions calibrated by distance to dispatch, light orientation, and the rhythms of eating, resting, and training. Around a functional hard core, the architecture resists tension and cultivates ease.

Concrete Frame as Civic Face

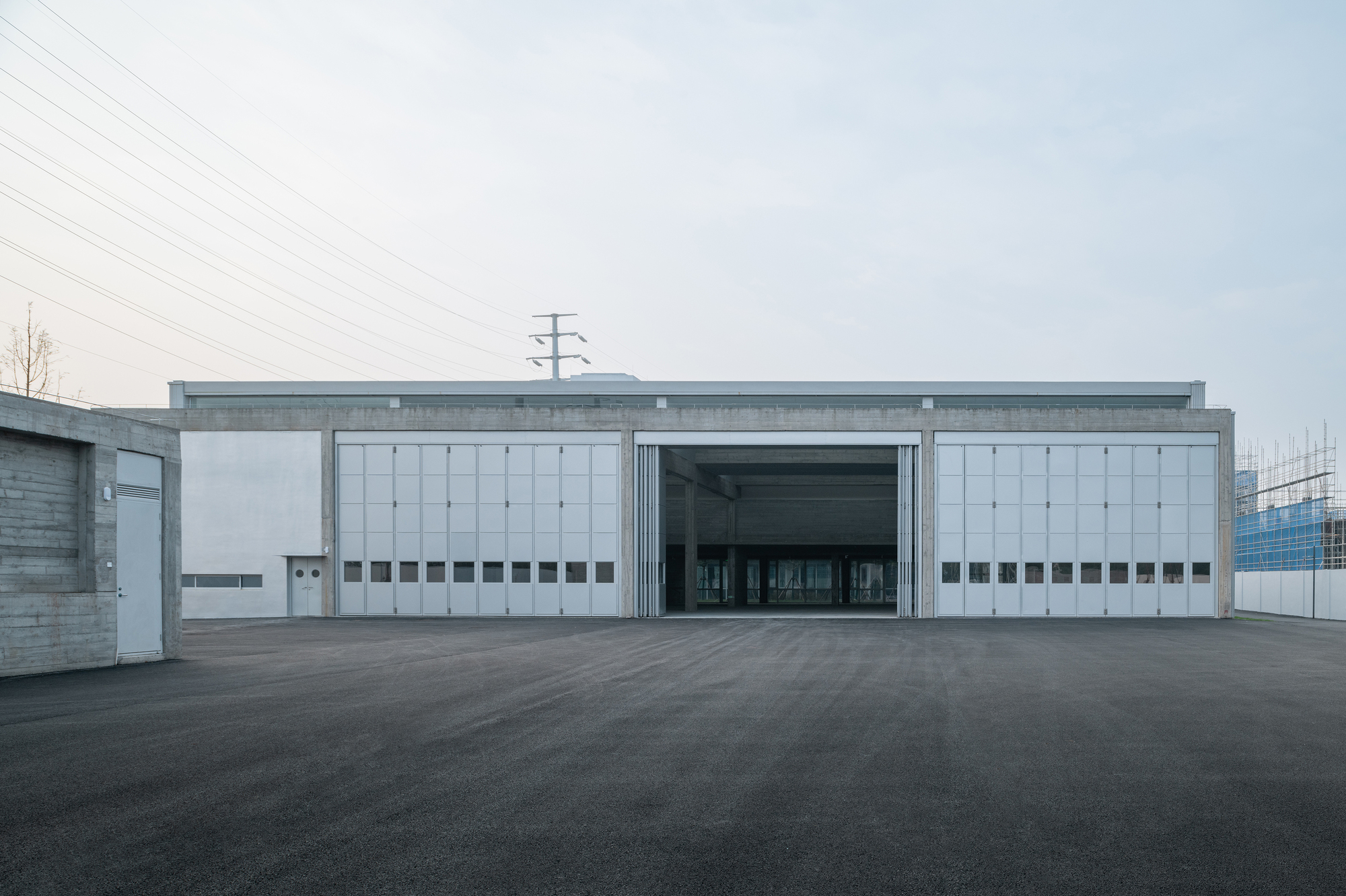

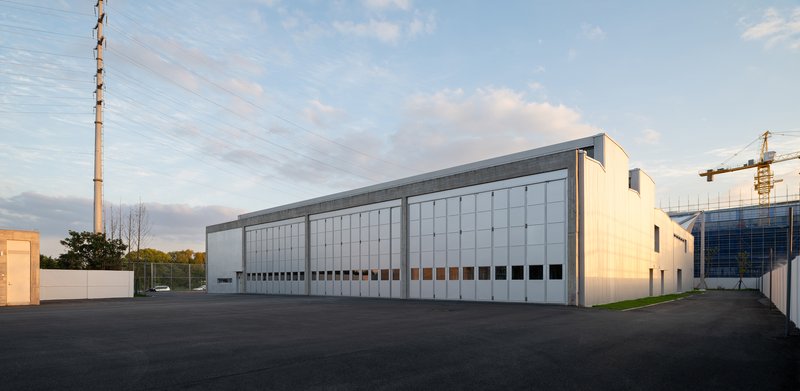

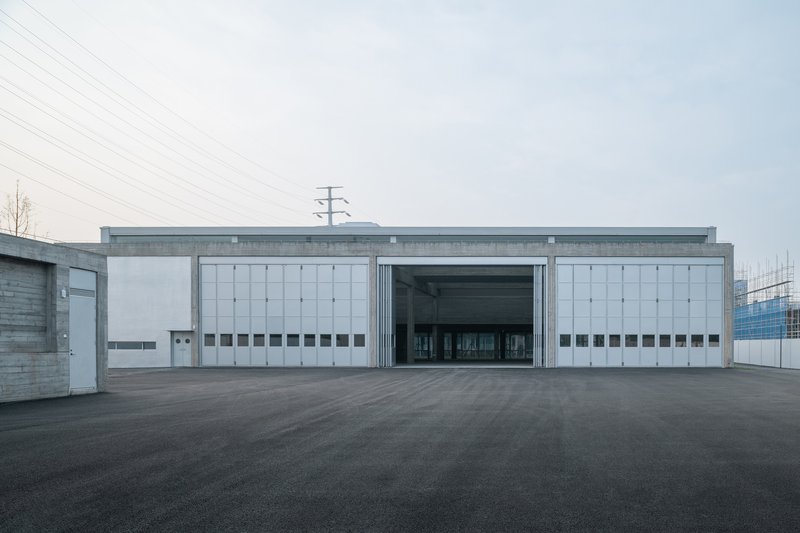

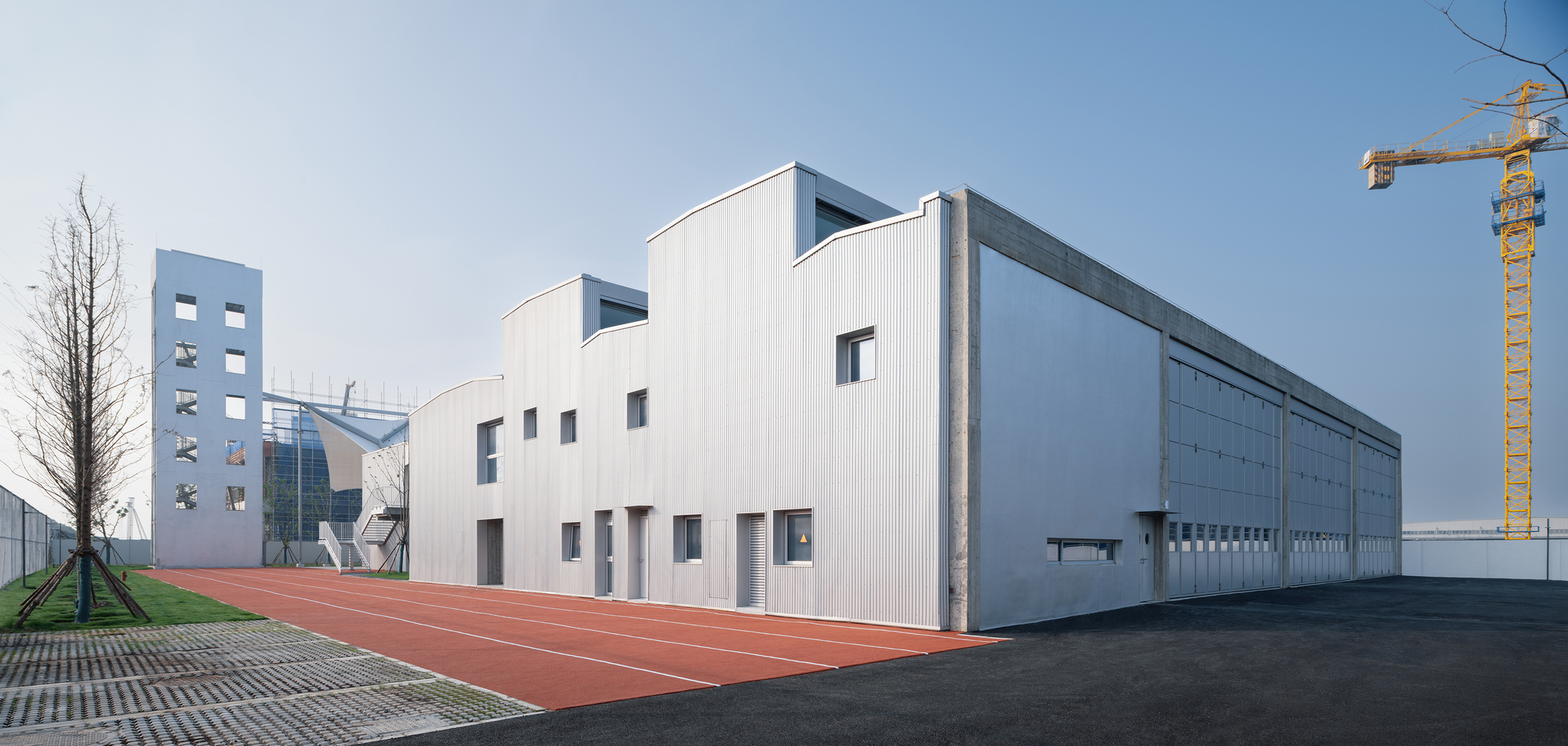

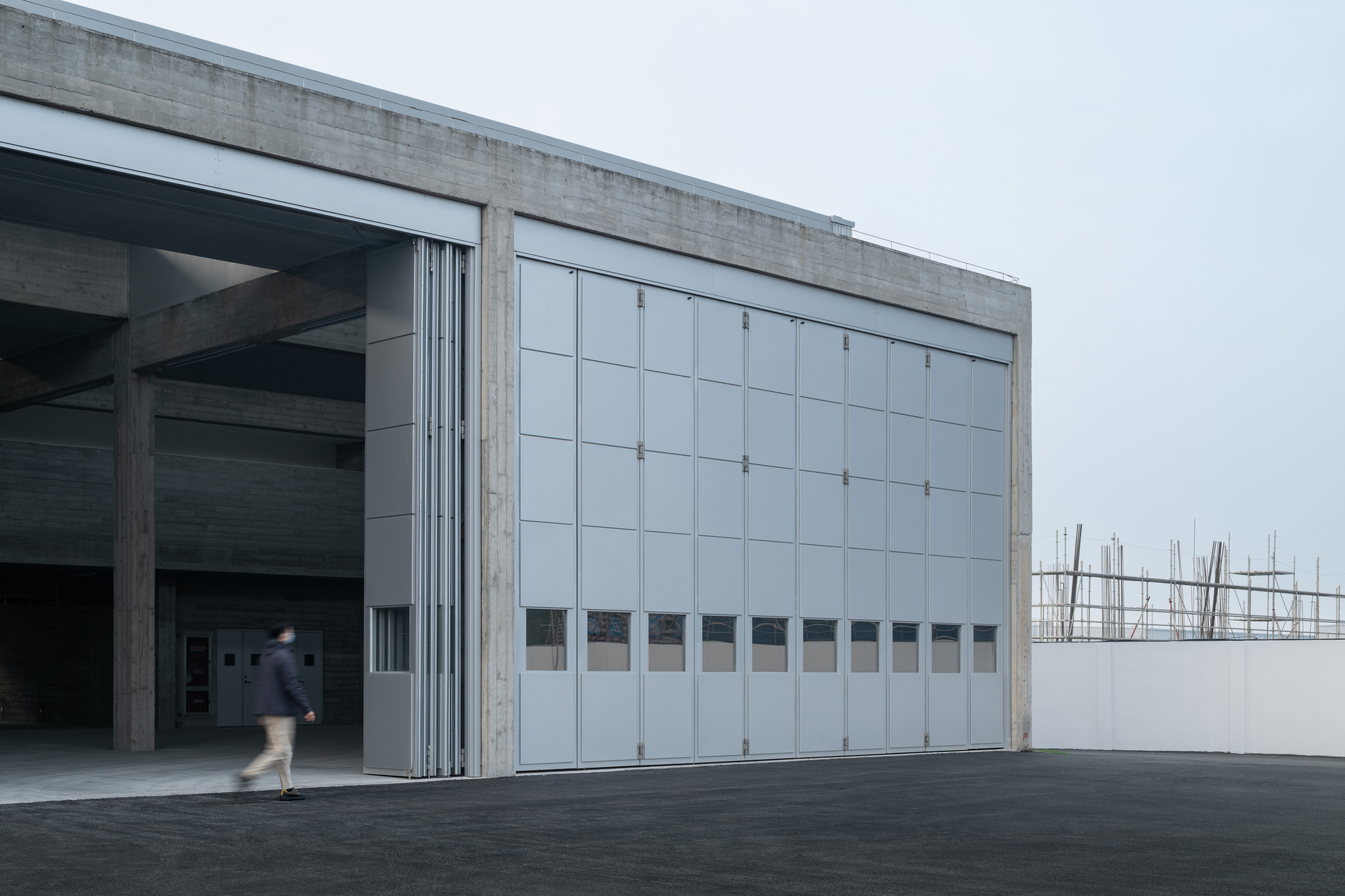

The station's street presence is restrained to the point of austerity. Large sliding metal panel doors sit within board-formed concrete frames, their symmetry giving the facade a civic gravity that most industrial park buildings never attempt. The long metal panel elevation, with its rhythmic punched openings, extends the building into an almost warehouse-like horizontality. On a site that was largely vacant land when the architects first visited, the building had to establish its own sense of place rather than borrowing from neighbors.

Electric folding doors with viewing windows at eye level serve the engine bays. They can open completely during emergency dispatch, collapsing the boundary between interior and street in seconds. When closed, they present a measured, opaque face. The building speaks two languages: calm and urgent. Both are legible from the outside.

The Engine Bay as a Room, Not Just a Garage

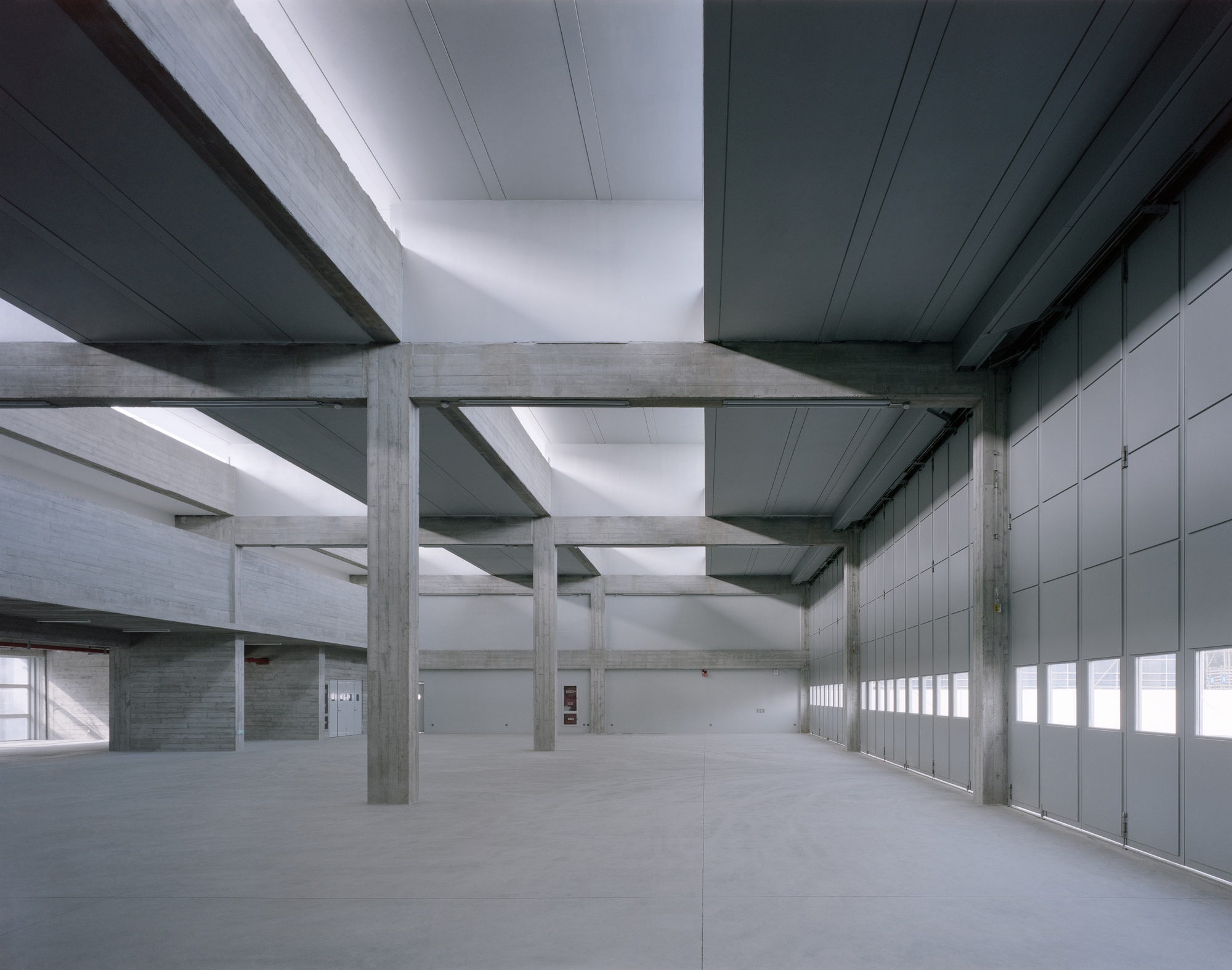

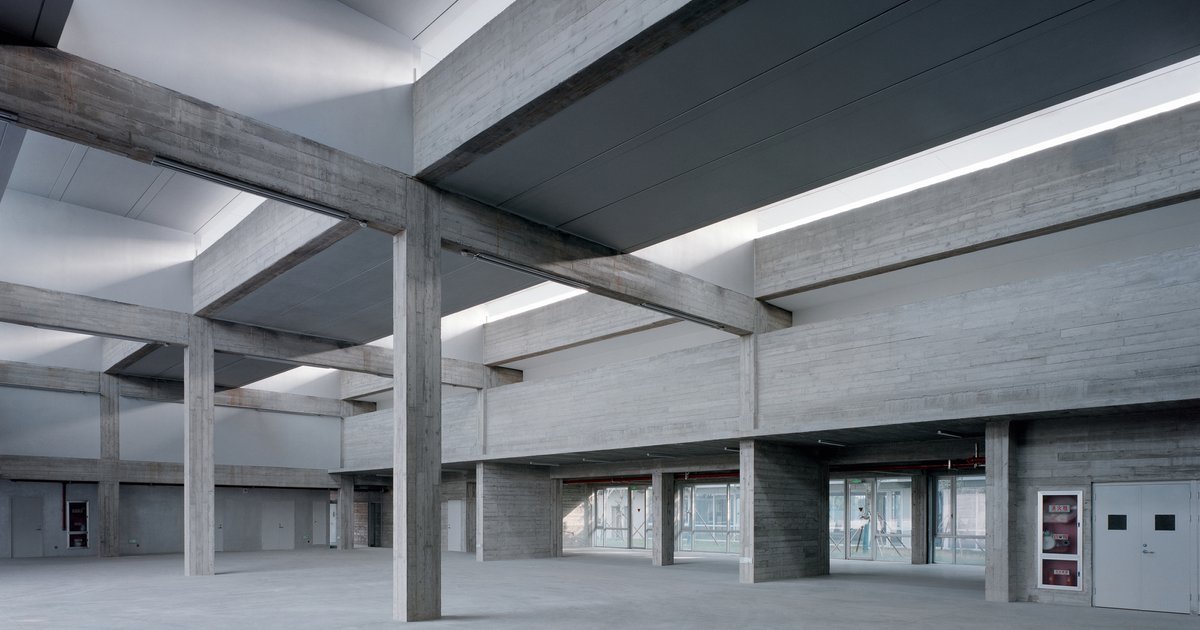

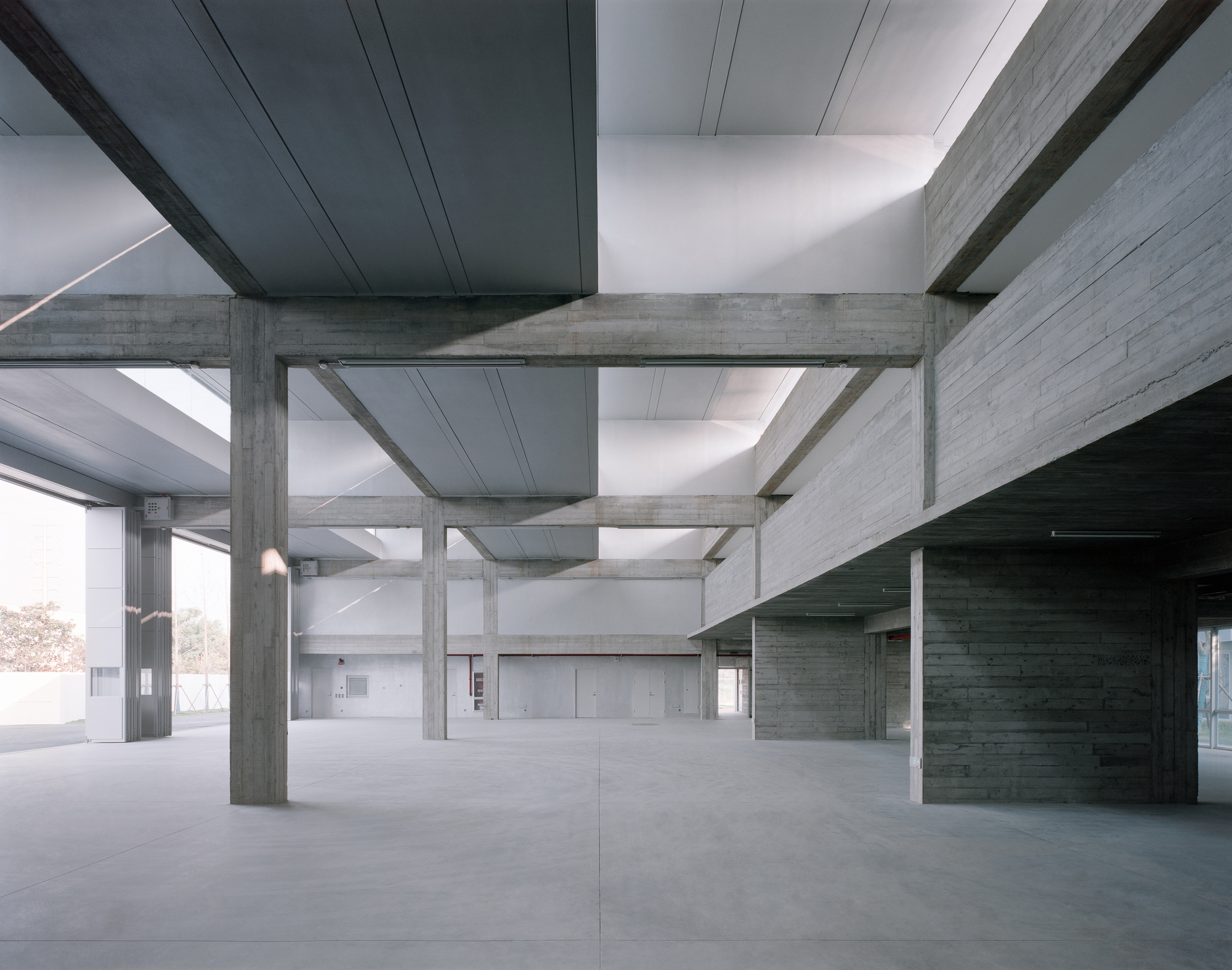

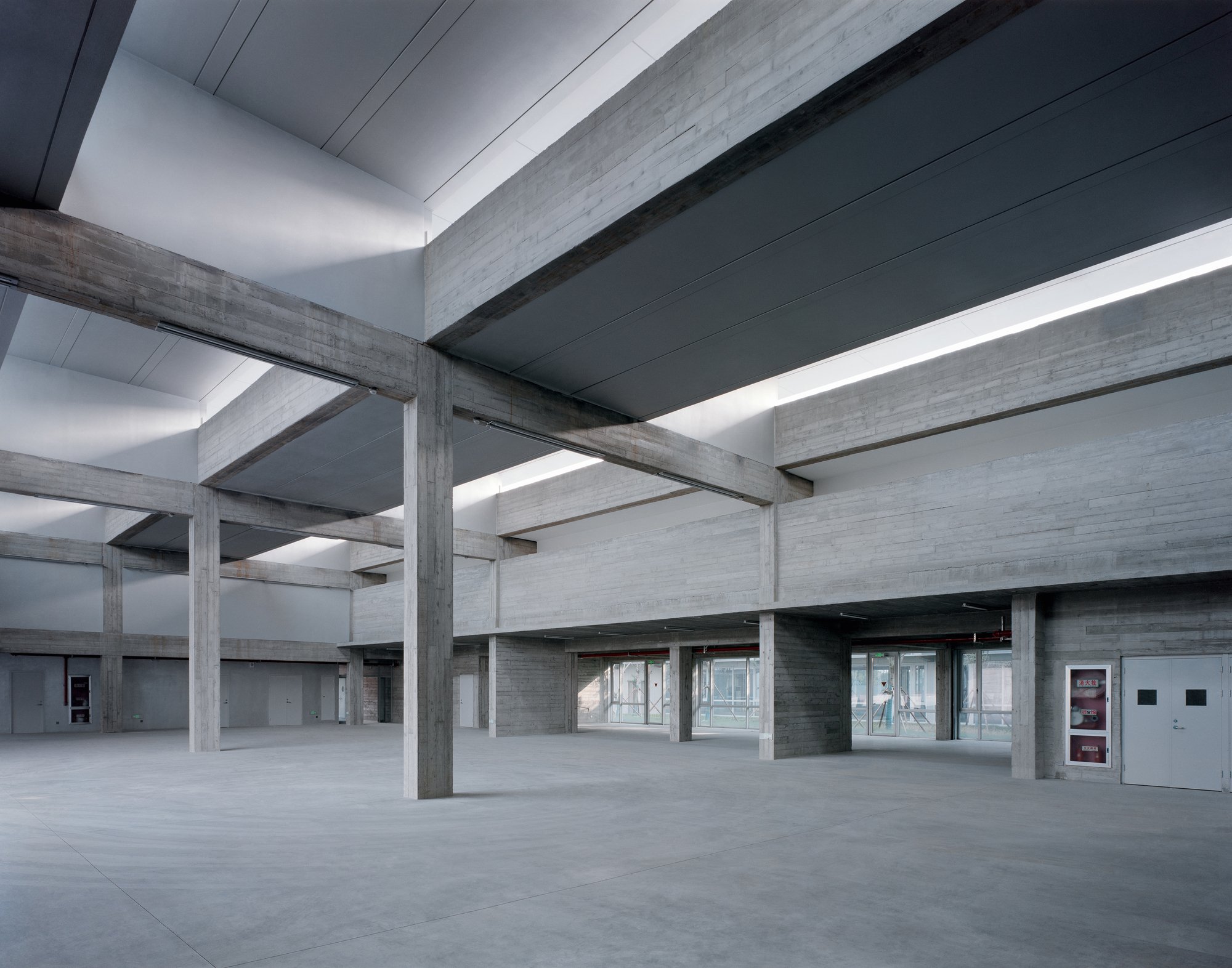

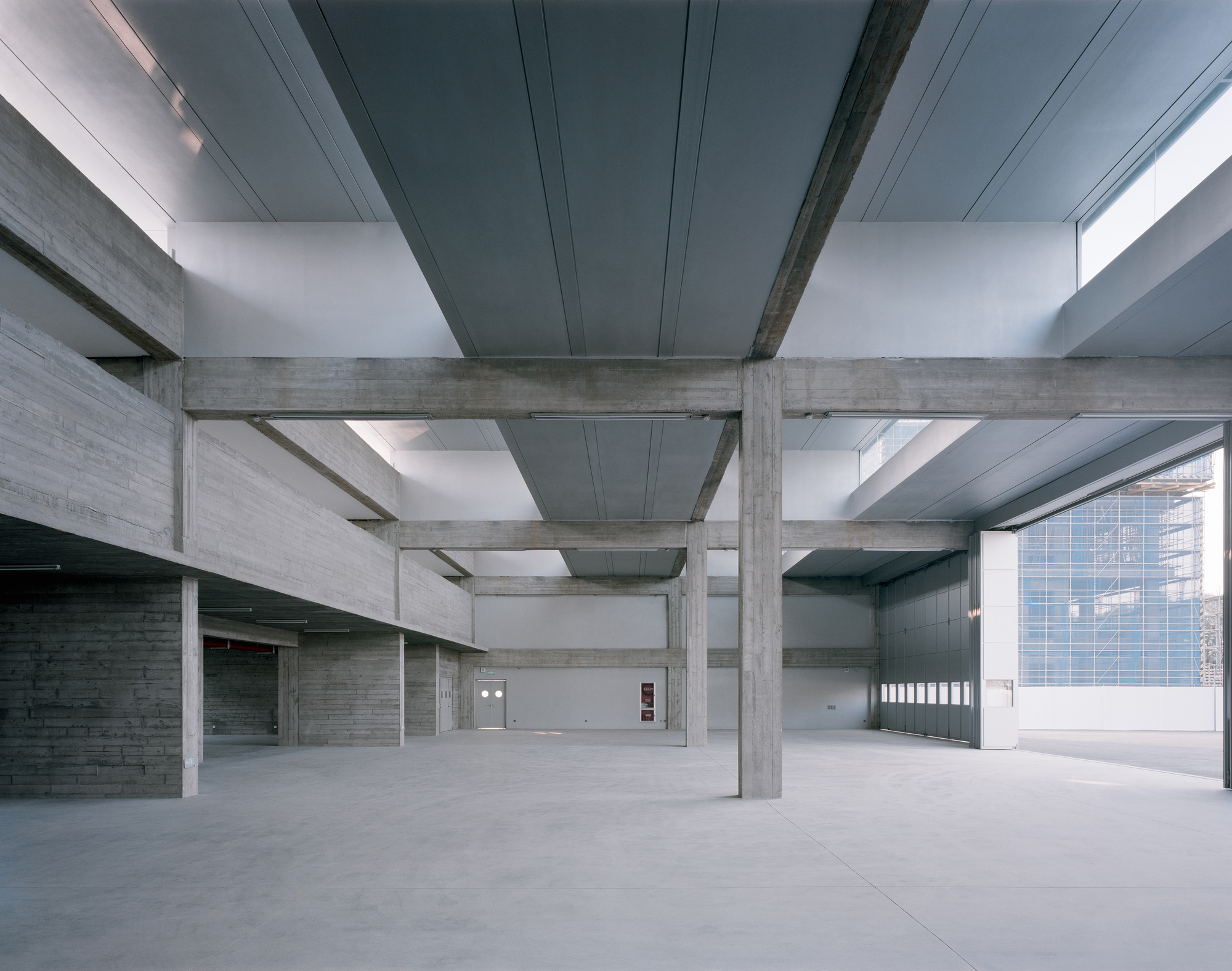

The critical decision here is treating the fire engine bay as habitable space, not merely a container for vehicles. Board-formed concrete beams and columns form a visible structural grid overhead, with metal ceiling panels tucked between them. Continuous high windows and narrow exhaust slots crown the bay, flooding it with daylight and enabling natural ventilation. The effect is closer to a workshop or a nave than to a parking structure.

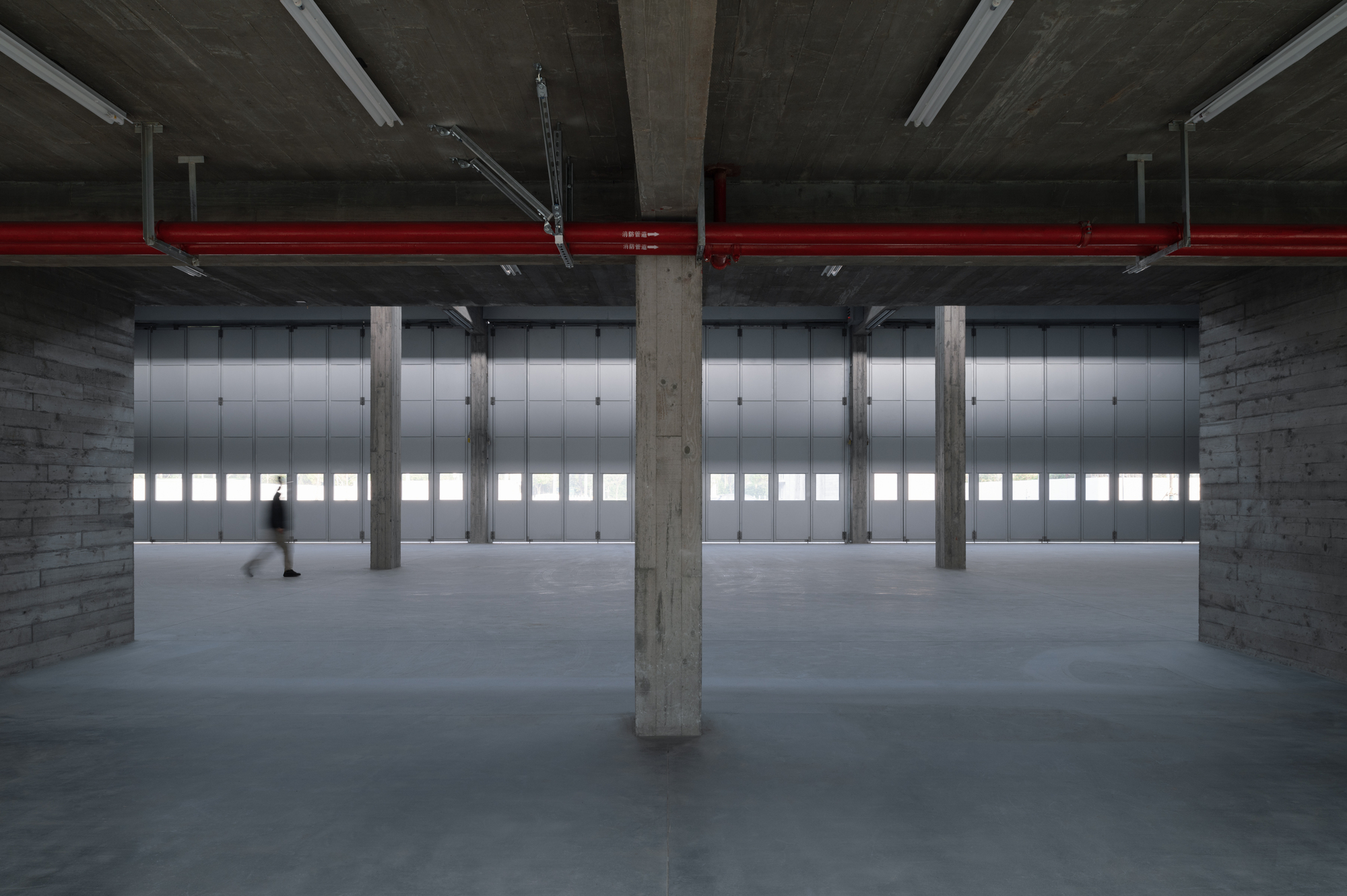

This matters because firefighters spend hours in and around this space. Checking equipment, maintaining trucks, running drills. If the bay feels like a basement, morale follows. genarchitects sized the clerestory openings to pull light deep into the plan while the exposed concrete frame gives the room a directness that matches the equipment it houses. Raw concrete columns and translucent glazed panels along the perimeter modulate the quality of light without softening the architecture's fundamentally utilitarian posture.

The Courtyard as Second Center

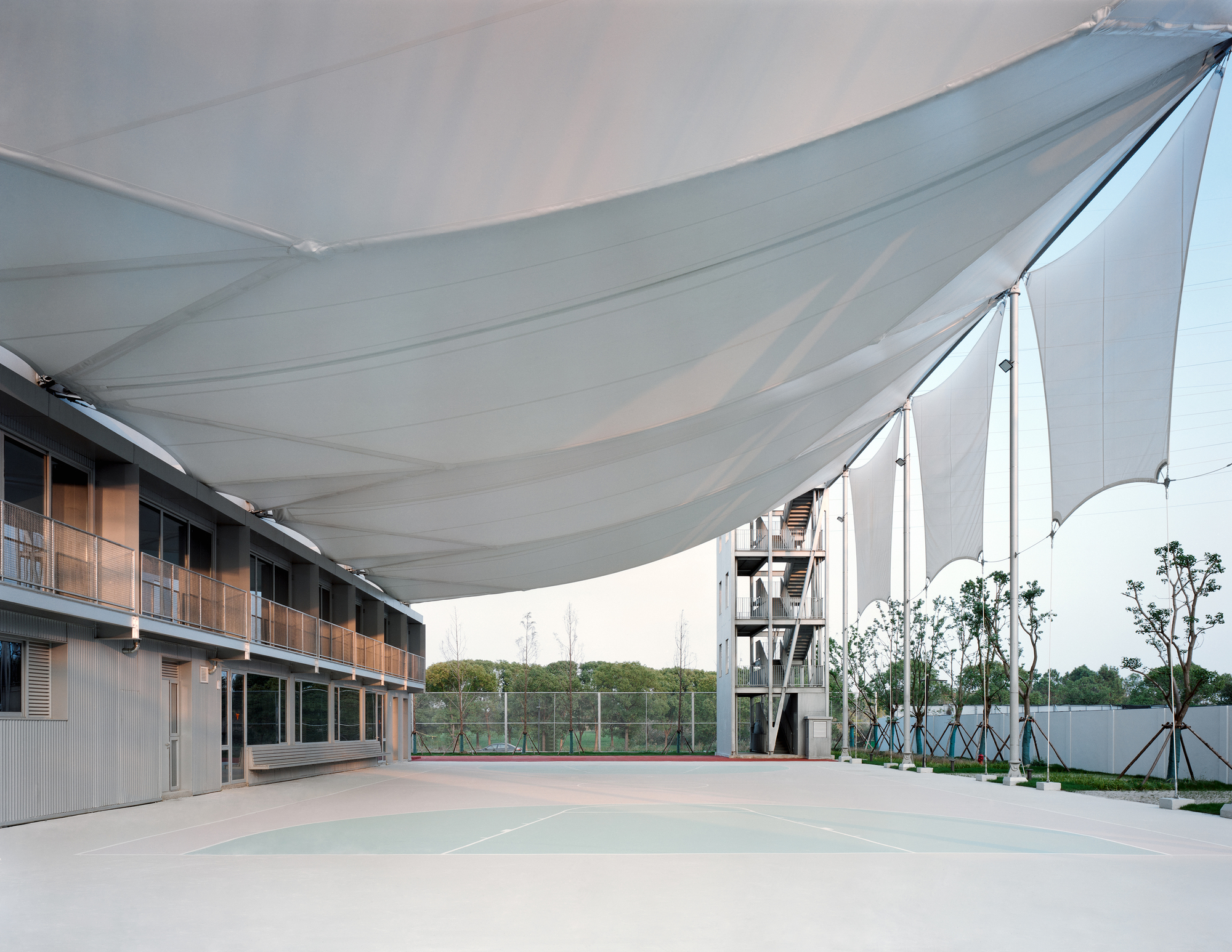

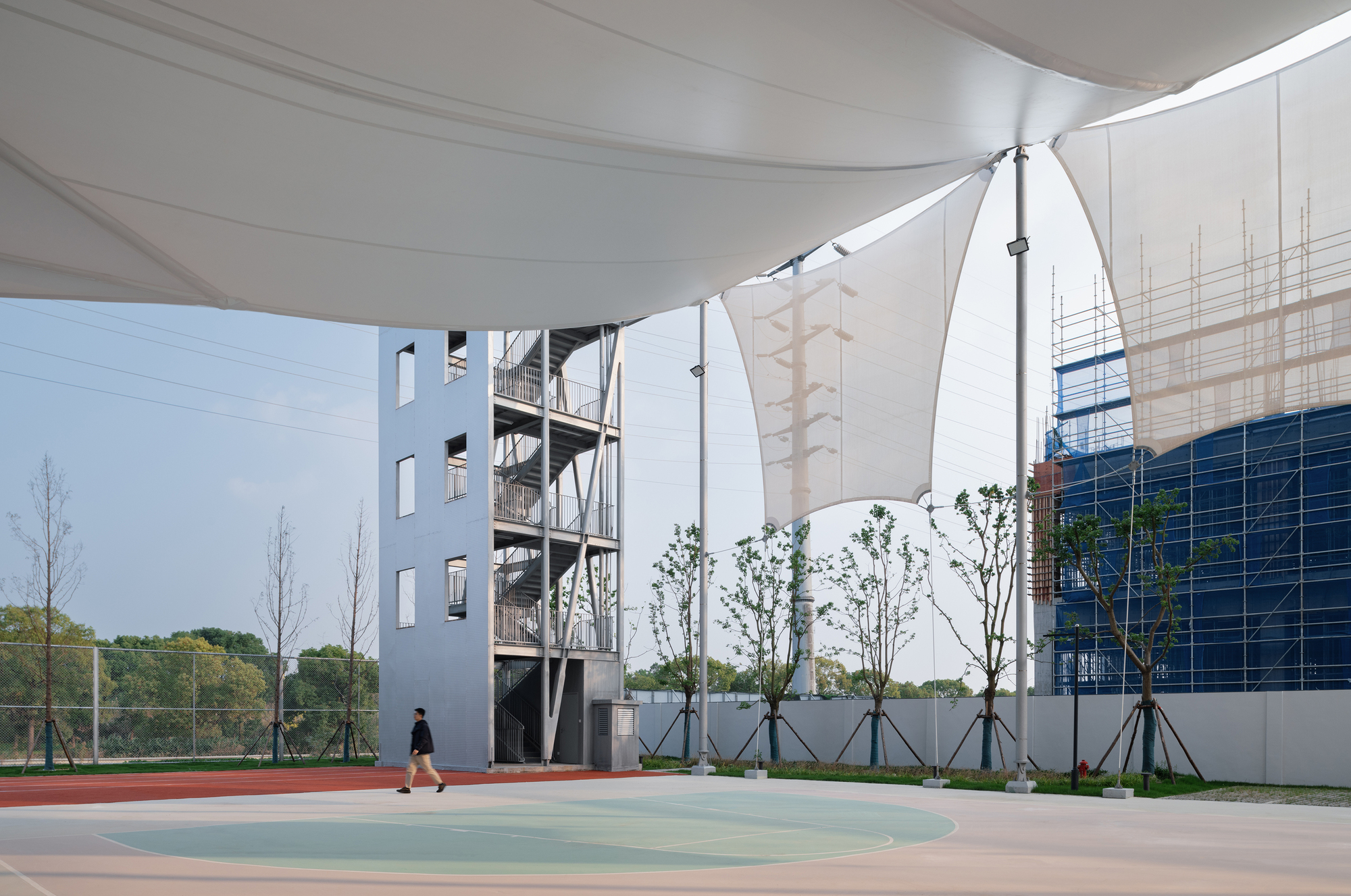

If the engine bay is the operational center, the courtyard is its domestic counterpart. Rectangular volumes frame planted courtyards on multiple sides, and a tensile fabric canopy, fabricated from Serge Ferrari membrane, stretches between residential blocks to create a sheltered outdoor zone. The canopy's lightweight, translucent quality introduces a softer register that contrasts with the concrete and corrugated metal elsewhere.

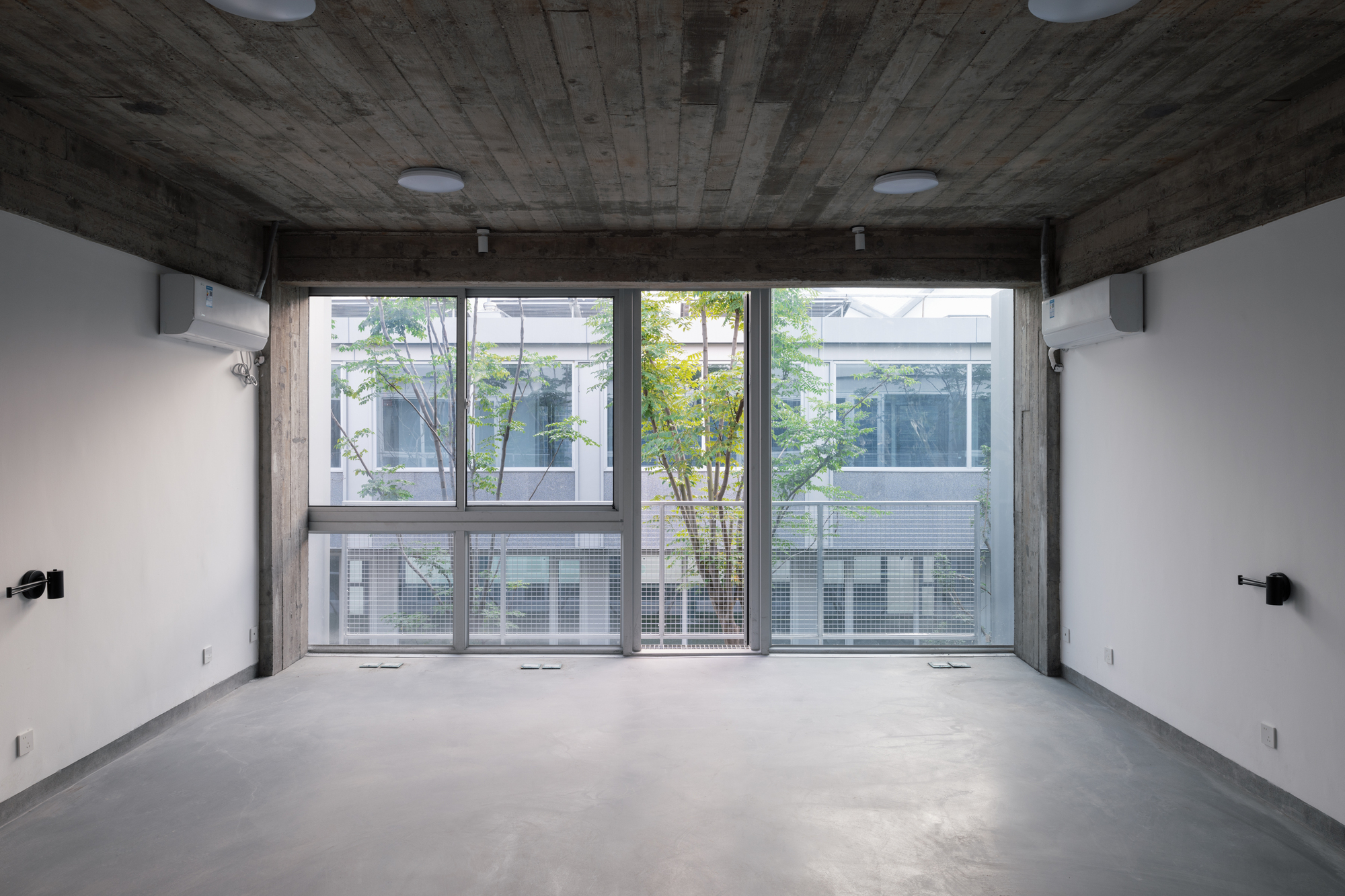

The courtyard is where the architecture addresses the psychology of waiting. Firefighters live on a hair trigger, ready to move at any alert, and the spaces around them need to release pressure rather than compound it. Full-height glazing opens dormitory corridors to views of young trees and planted beds. The basketball court sits nearby, usable even on rainy days under cover. These are not decorative gestures; they are operational necessities for people who may go weeks between major calls.

Light from Above

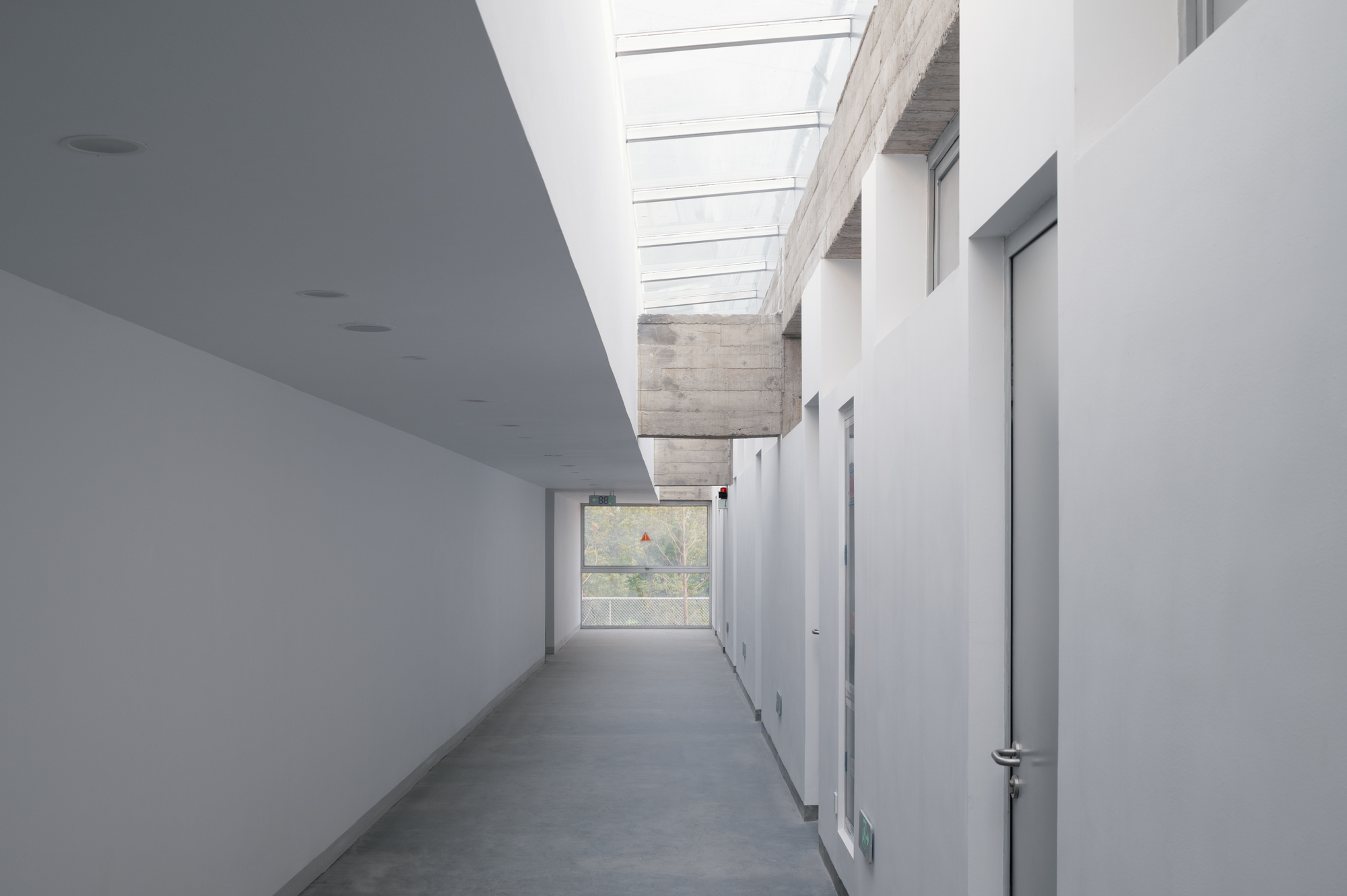

A series of continuous skylights appears at key positions throughout the plan, each cut into the roof as a north-facing opening. These skylights deliver natural light to the garage, dormitory corridors, bathrooms, and staircases during the day, reducing dependence on artificial lighting during the long stretches when the building operates at low intensity. The linear skylight running along a white interior corridor is particularly effective, turning a utilitarian passage into something almost serene.

At dusk, the clerestory glazing reverses its role. Views through the concrete post-and-beam system glow against darkening skies, revealing the courtyard beyond. The building becomes legible as a lantern from certain angles, its internal life visible through the structural grid. genarchitects clearly understood that a fire station operates around the clock, and the lighting strategy needed to work in both directions: pulling daylight in and projecting warmth out.

Connecting Volumes

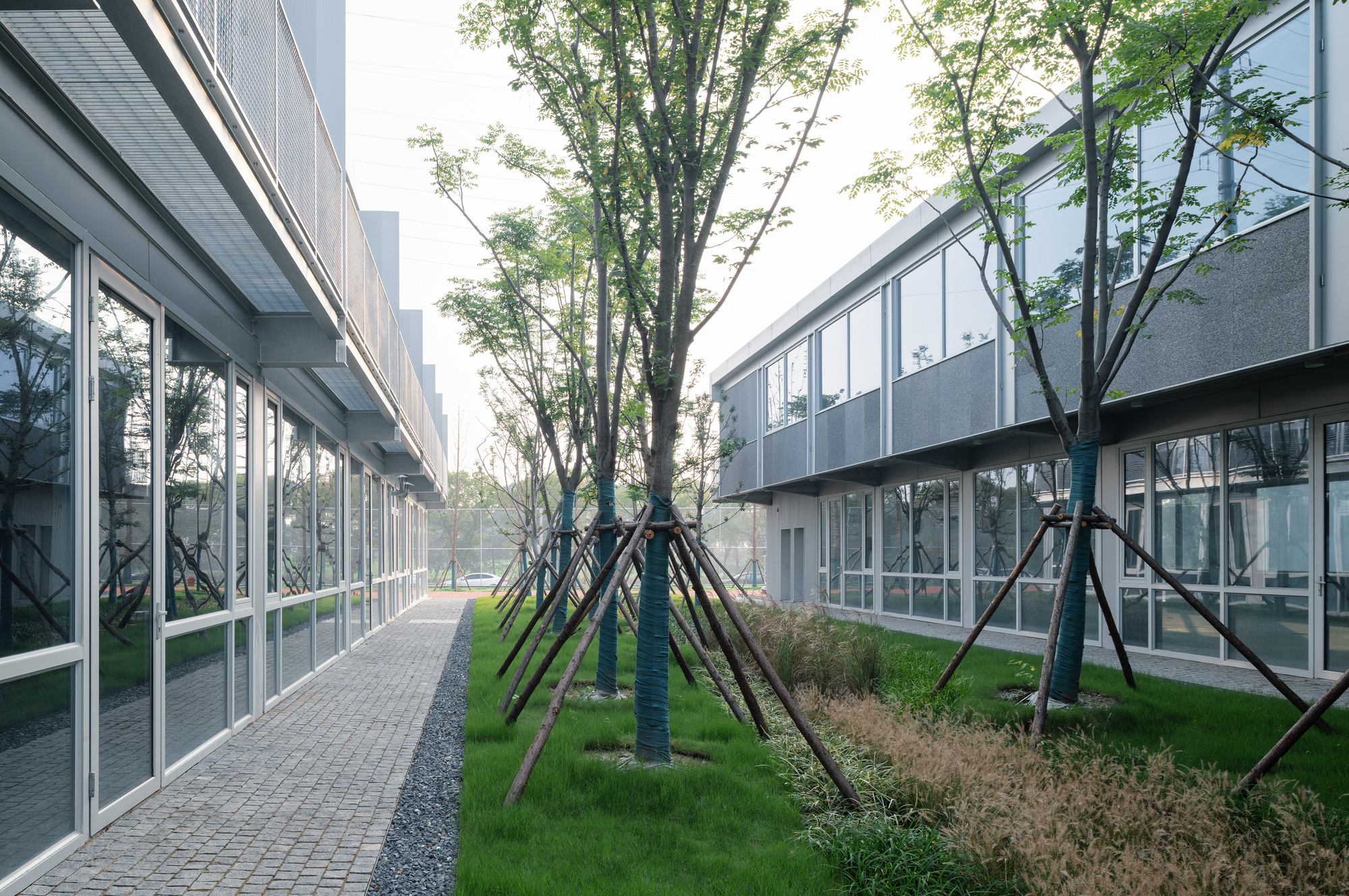

The elevated glazed walkway bridging two building masses is a compact piece of infrastructure that does significant work. It links the dormitory block to operational areas while maintaining the courtyard as an uninterrupted ground plane below. Young trees supported by black steel braces line the planted median beneath, and the glass enclosure gives firefighters moving between zones a brief moment of exposure to sky and landscape.

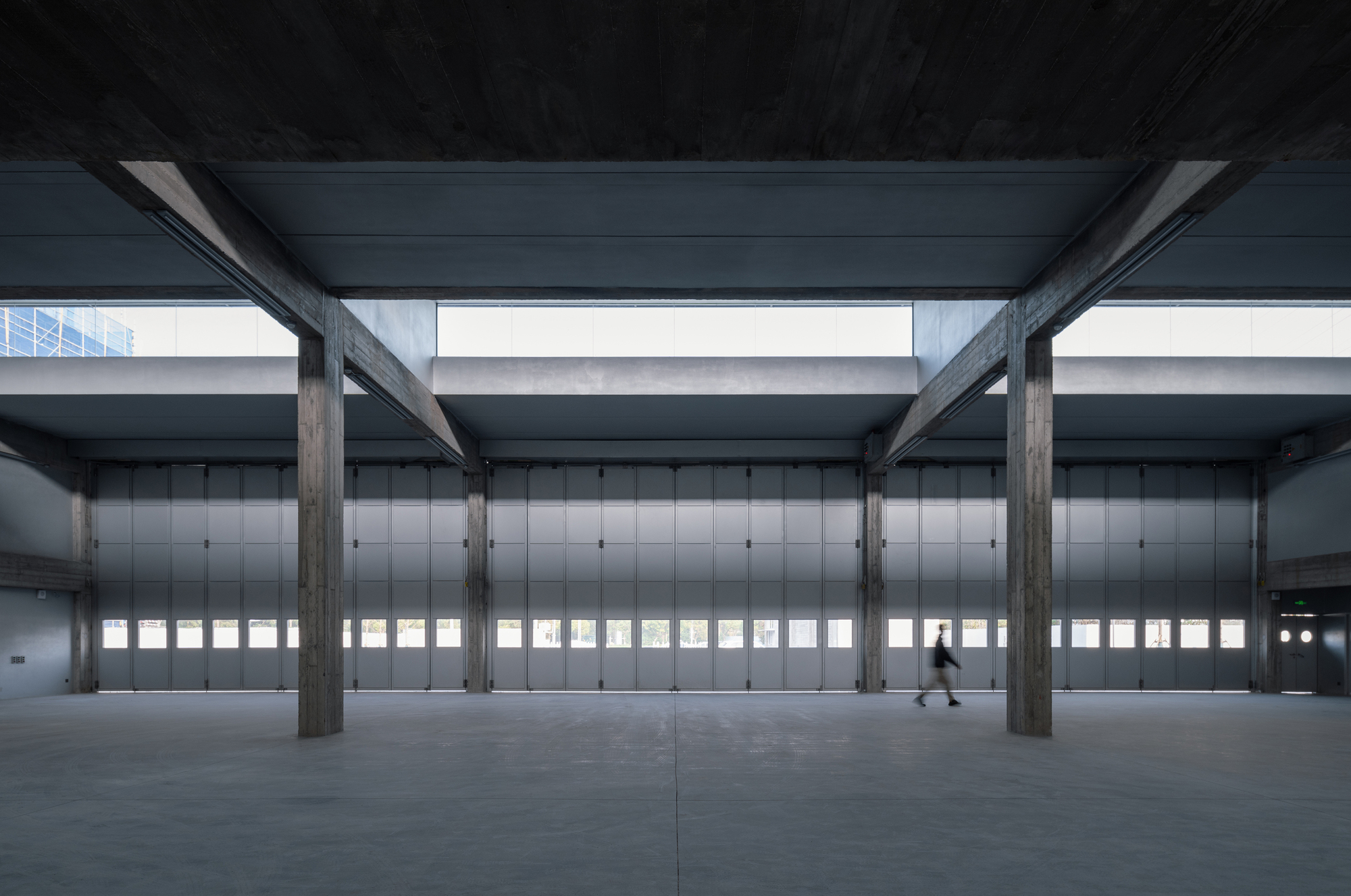

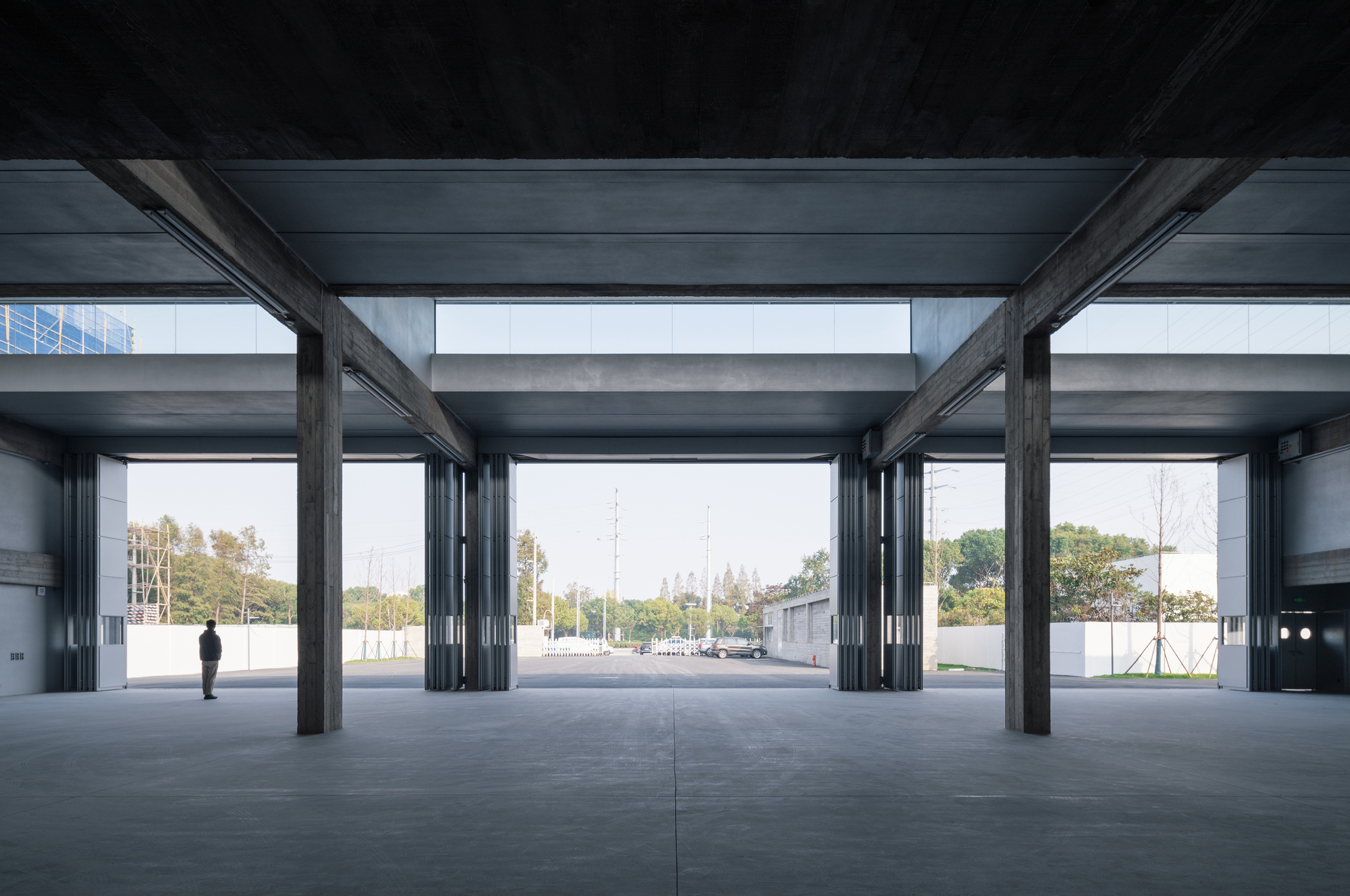

At ground level, a covered arcade with exposed concrete columns and horizontal window bands in the metal doors provides sheltered circulation along the building's edge. Exposed steel columns and beams frame views to the outdoor courtyard from the ground floor interior, reinforcing the constant visual connection between inside and out. The dormitories sit immediately south of the garage, and a north-side corridor provides the fastest possible route to dispatch. Every circulation decision ties back to two criteria: speed of response and quality of everyday movement.

Site and Surroundings

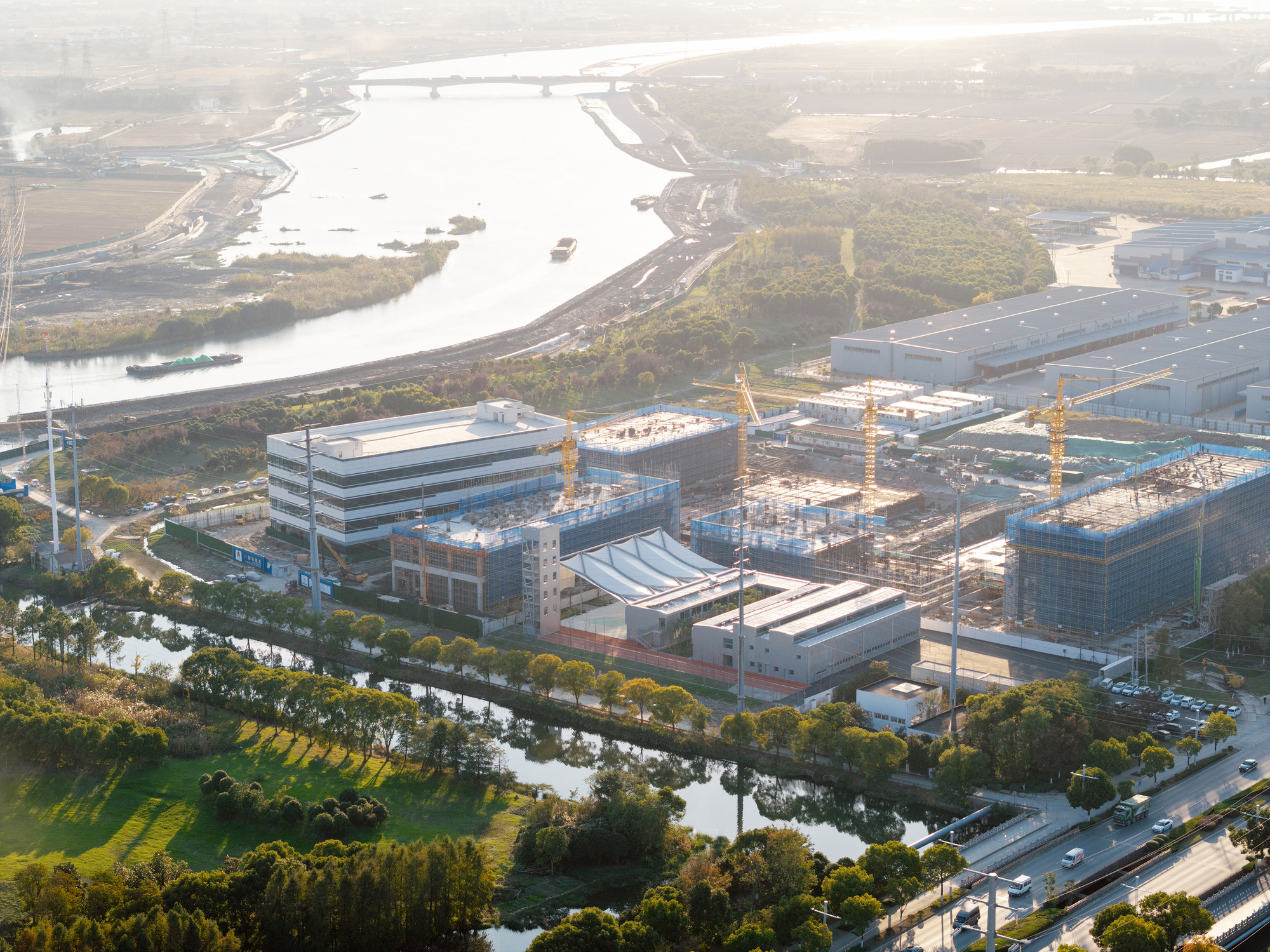

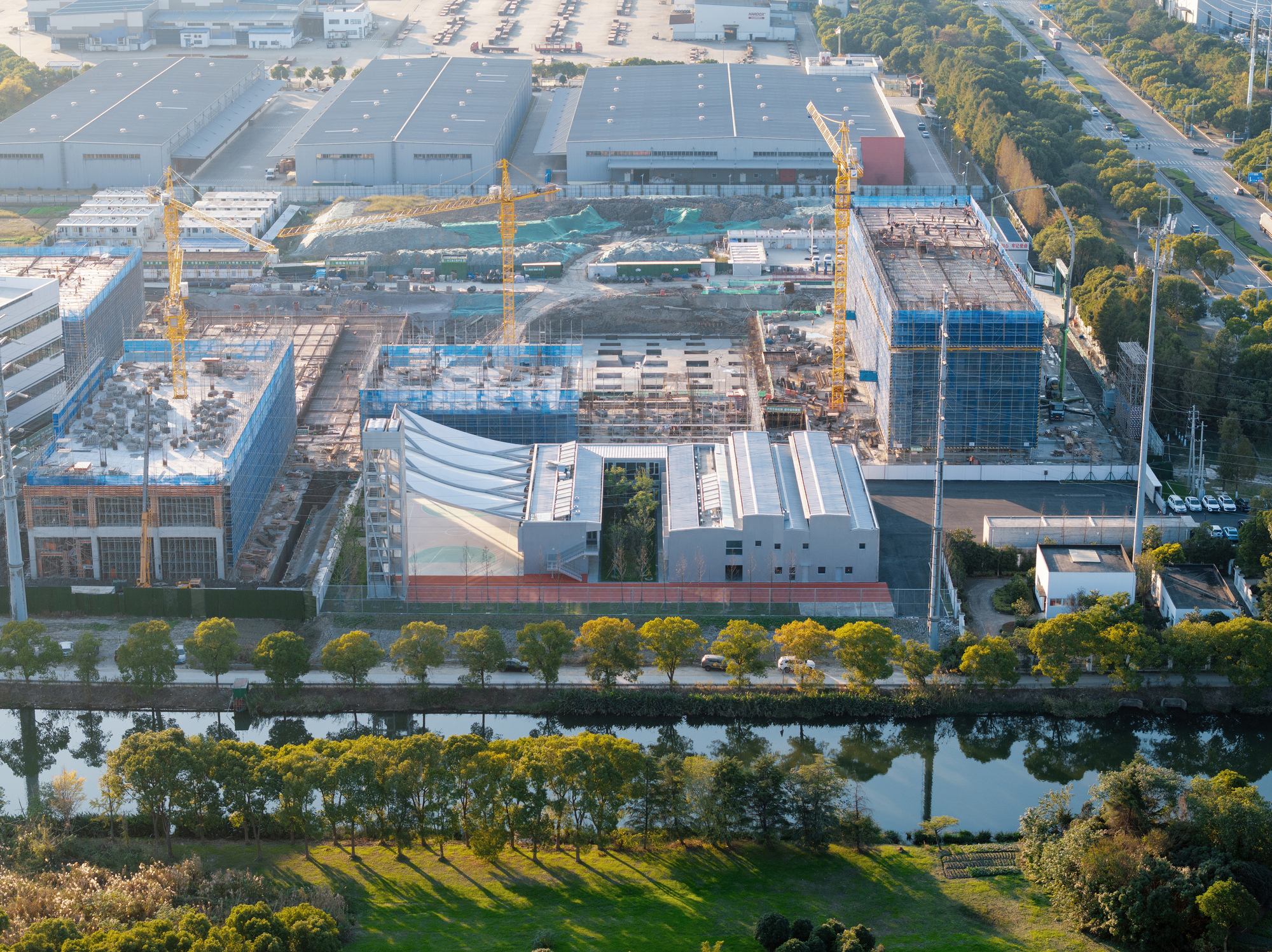

The aerial views tell a story that the ground-level photos cannot. The station sits on largely undeveloped land at the edge of Kunshan High-Tech Zone, surrounded by warehouses and construction cranes. A small canal runs along the western edge, connecting to the Wusong River a short distance south. That river eventually becomes Suzhou Creek as it flows through Shanghai, a geographic detail that locates this modest building within a much larger hydrological and urban narrative.

The tensile canopy is clearly visible from above, its form distinct from the hard-edged volumes it shelters. The red running track wrapping the perimeter confirms the station's dual identity as both emergency facility and residential compound. As the surrounding industrial park fills in, this building will likely become a fixed point of reference, one of the first structures to establish a spatial logic for the neighborhood.

Plans and Drawings

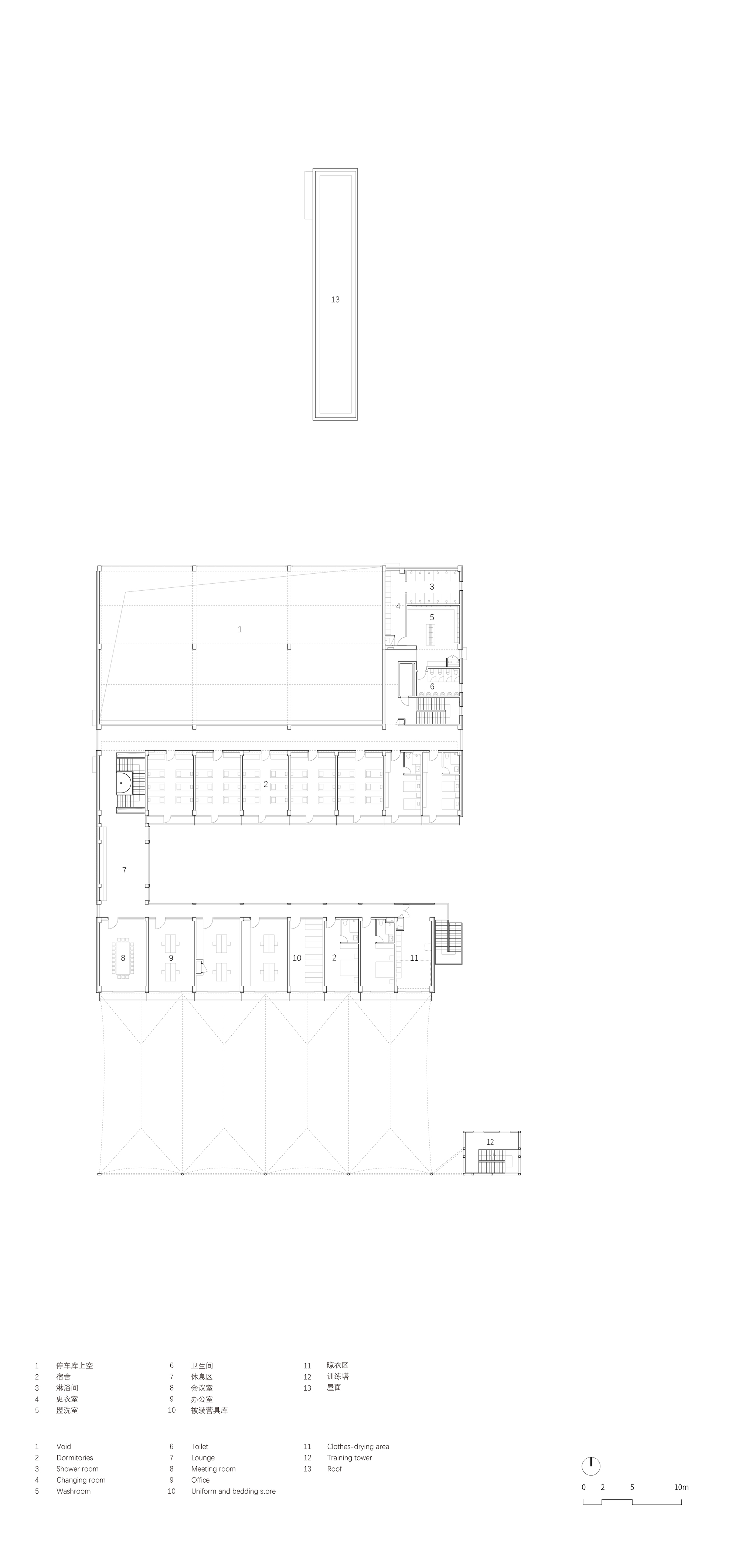

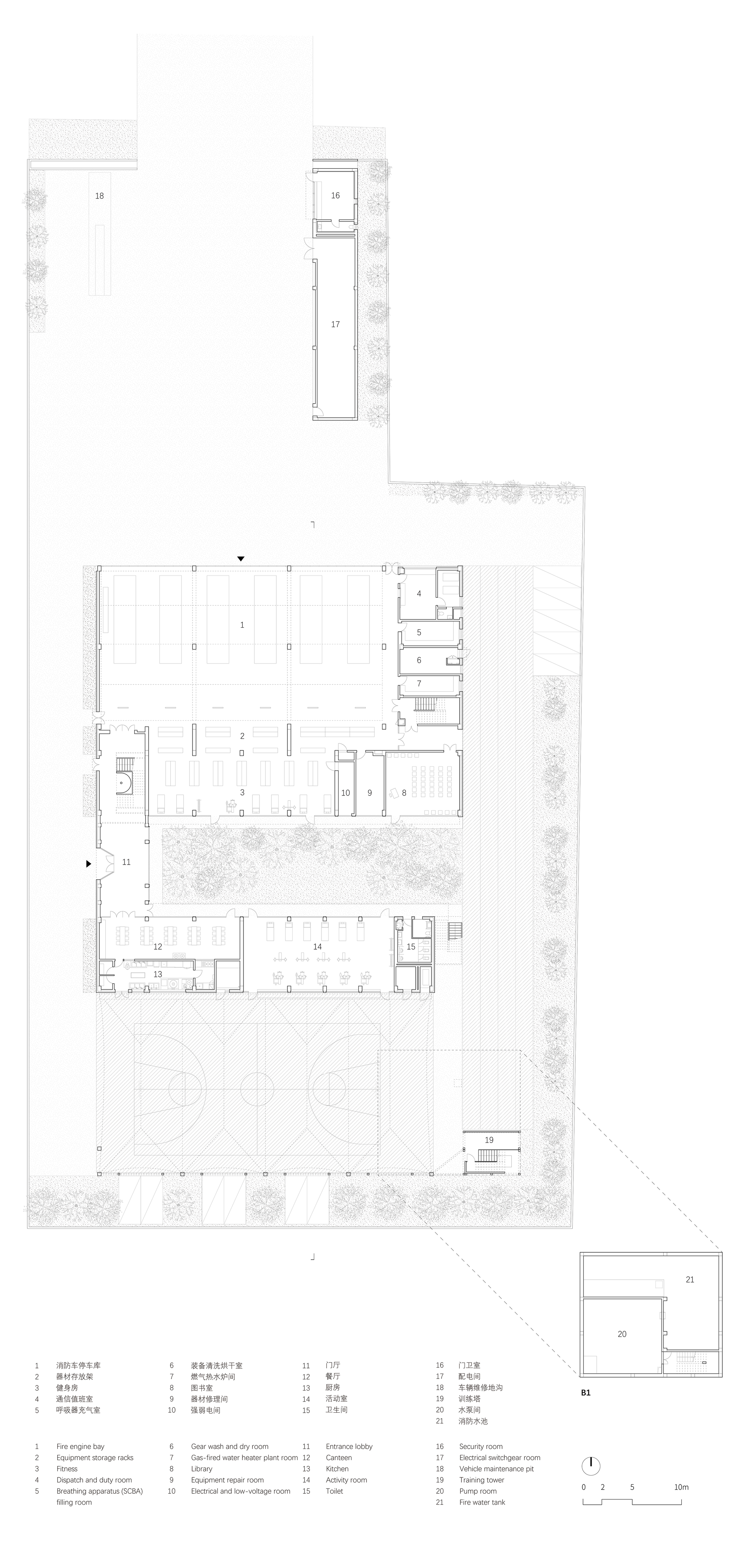

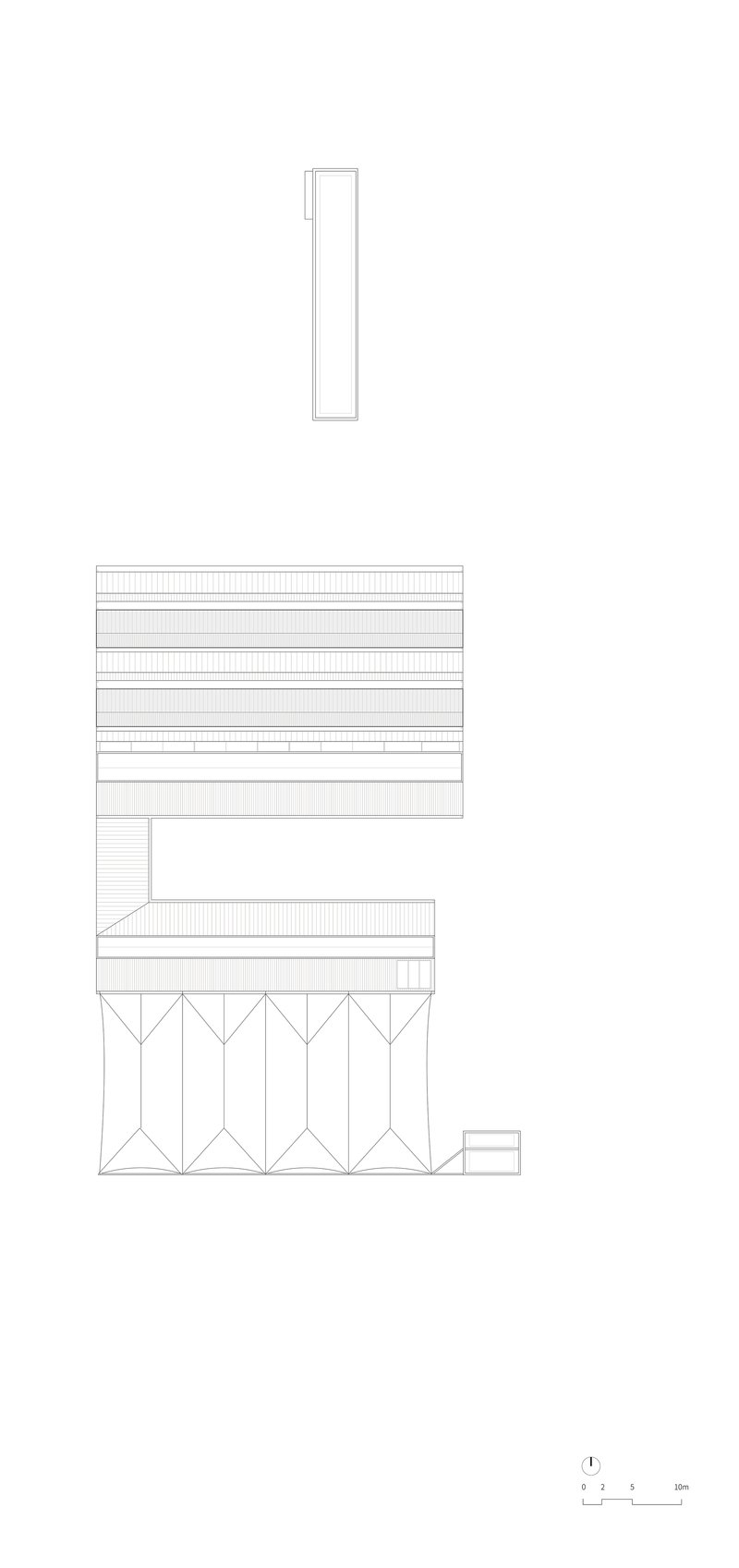

The site plan reveals how precisely the building footprint mediates between the urban grid to its east and the waterfront edge to its west. The ground floor plan shows rectangular volumes arranged around courtyards with landscape integrated by genarchitects as part of a unified design scope covering architecture, landscape, and interiors. The upper floor plan stacks three rectangular masses with repeated room divisions and circulation cores, keeping the dormitory layout compact and efficient.

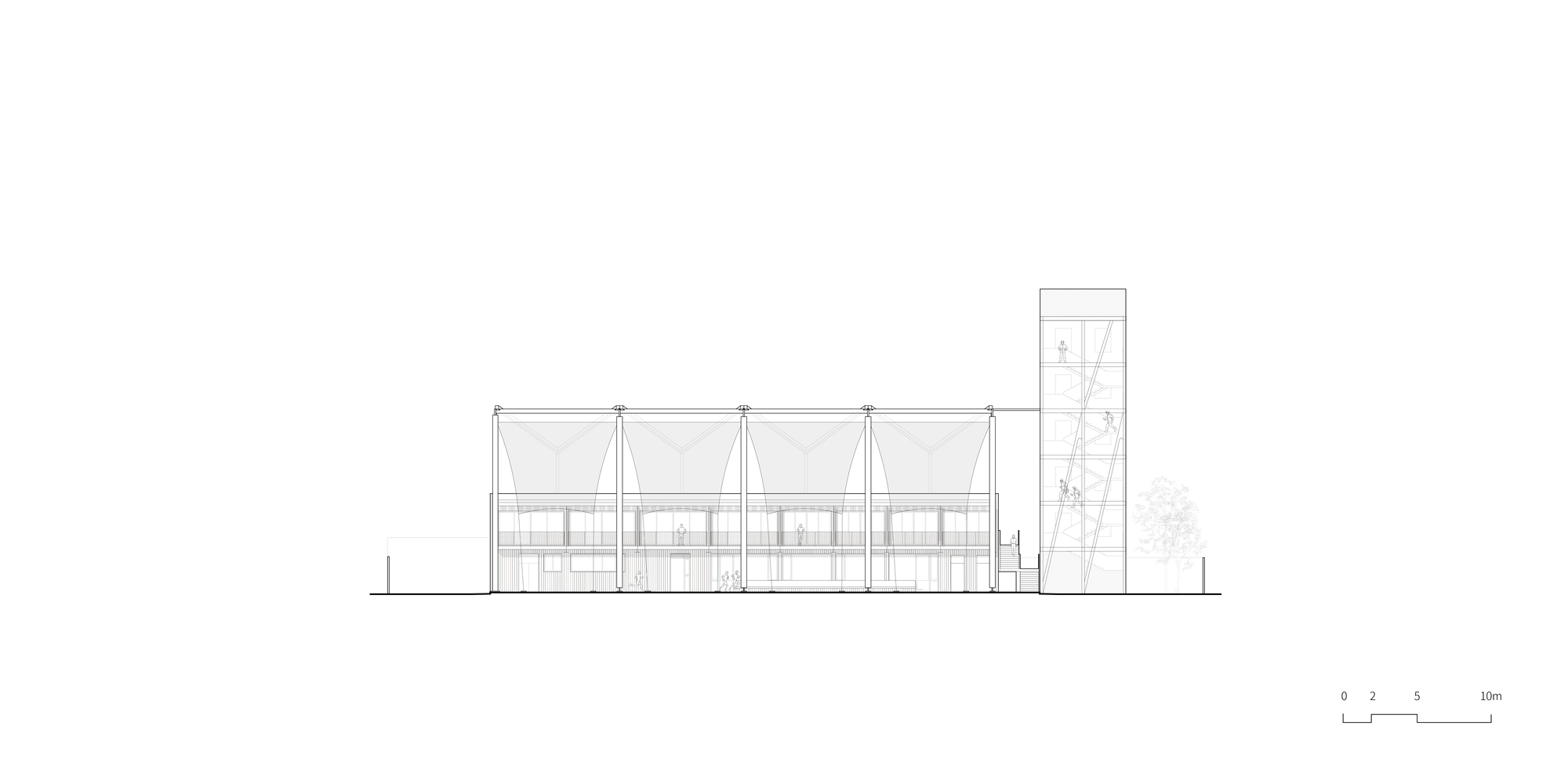

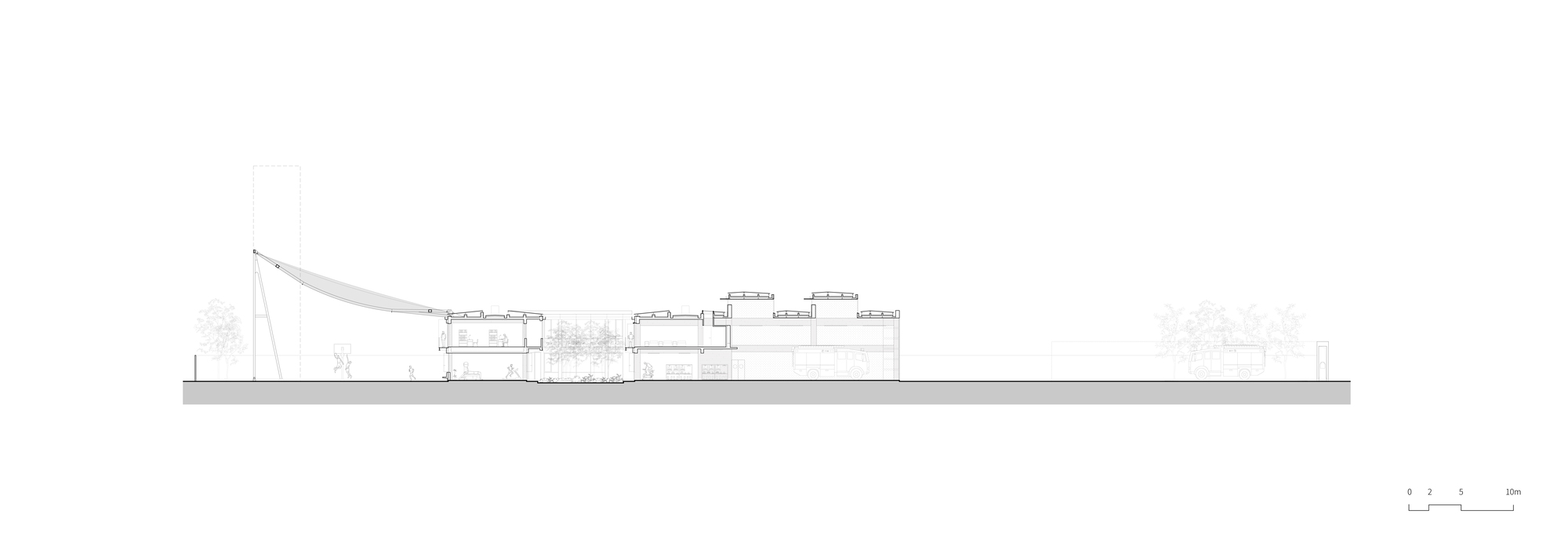

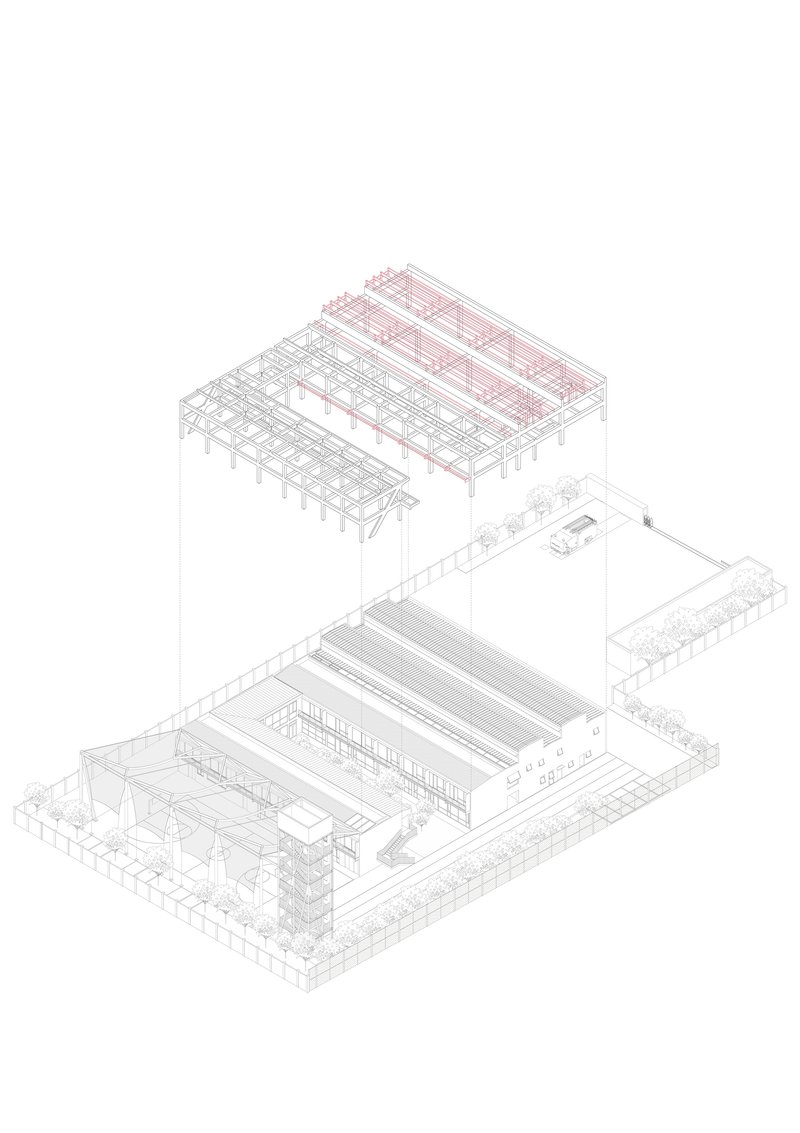

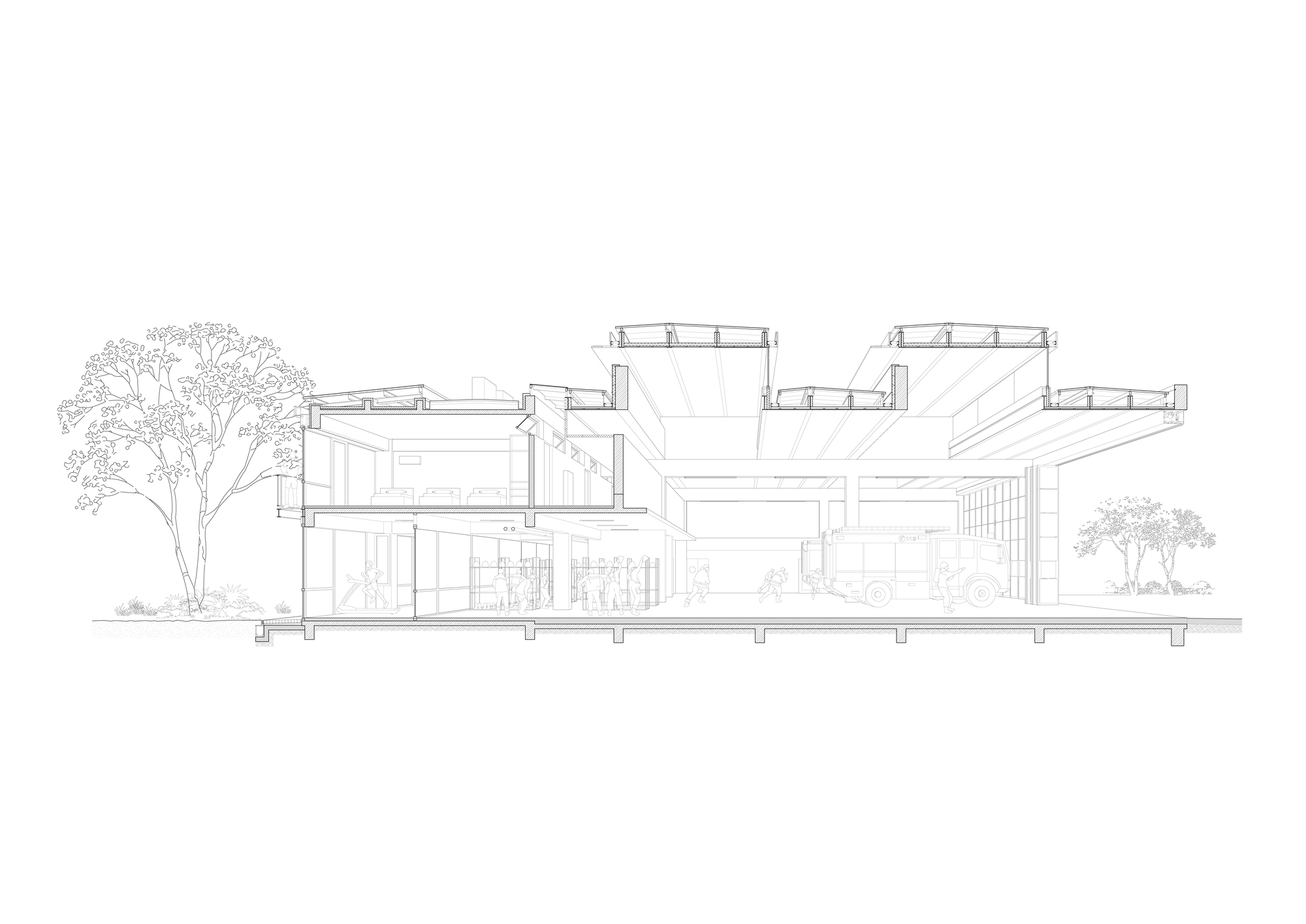

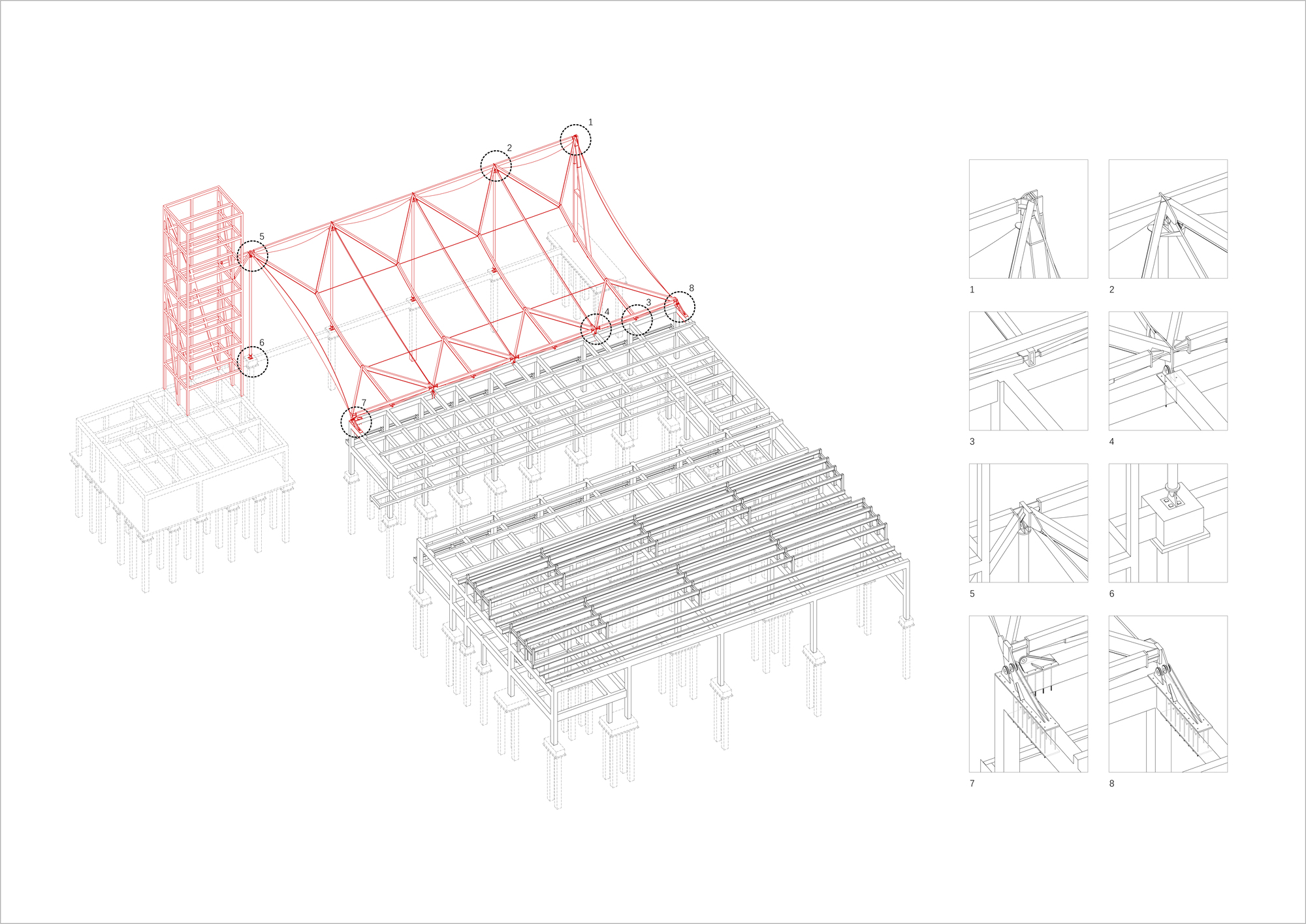

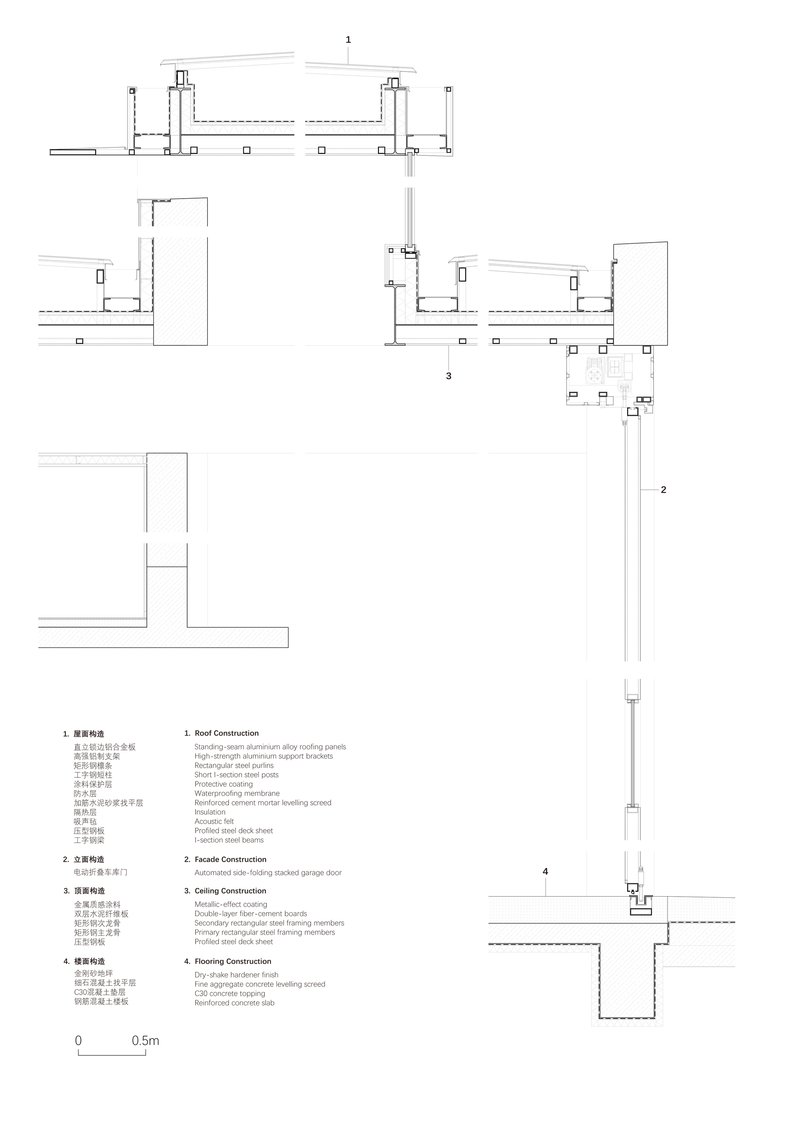

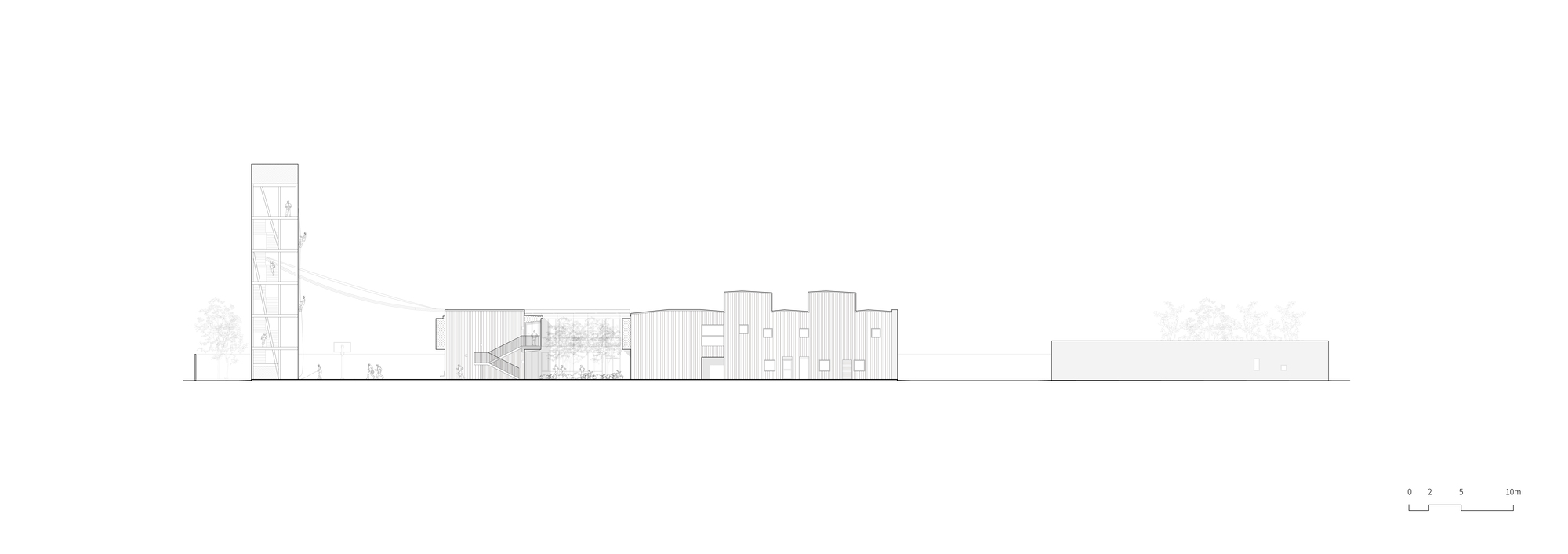

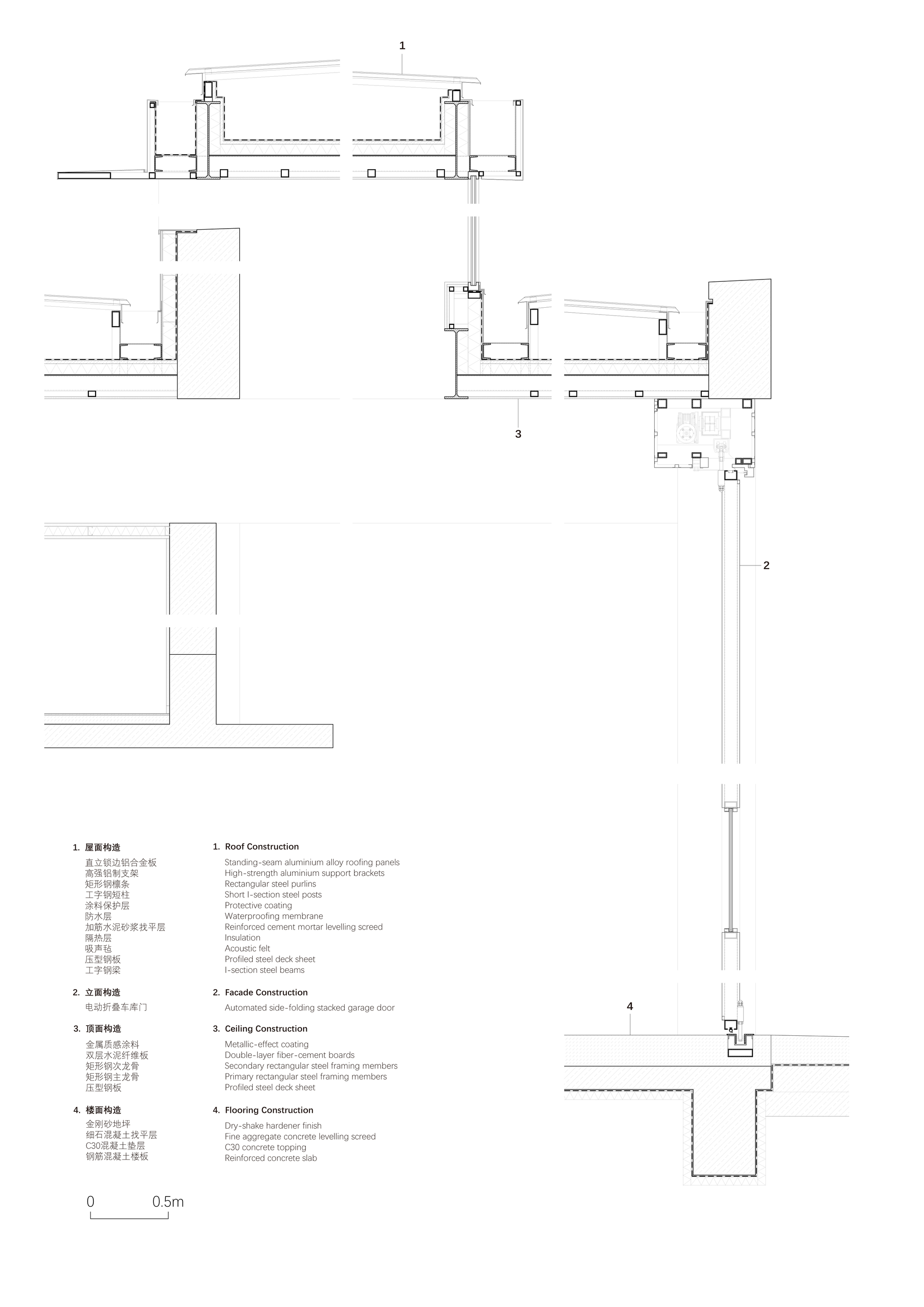

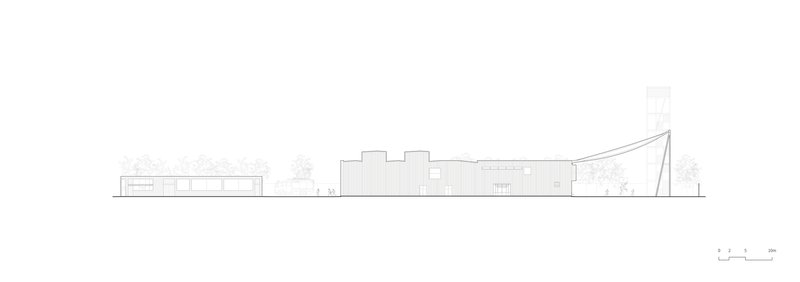

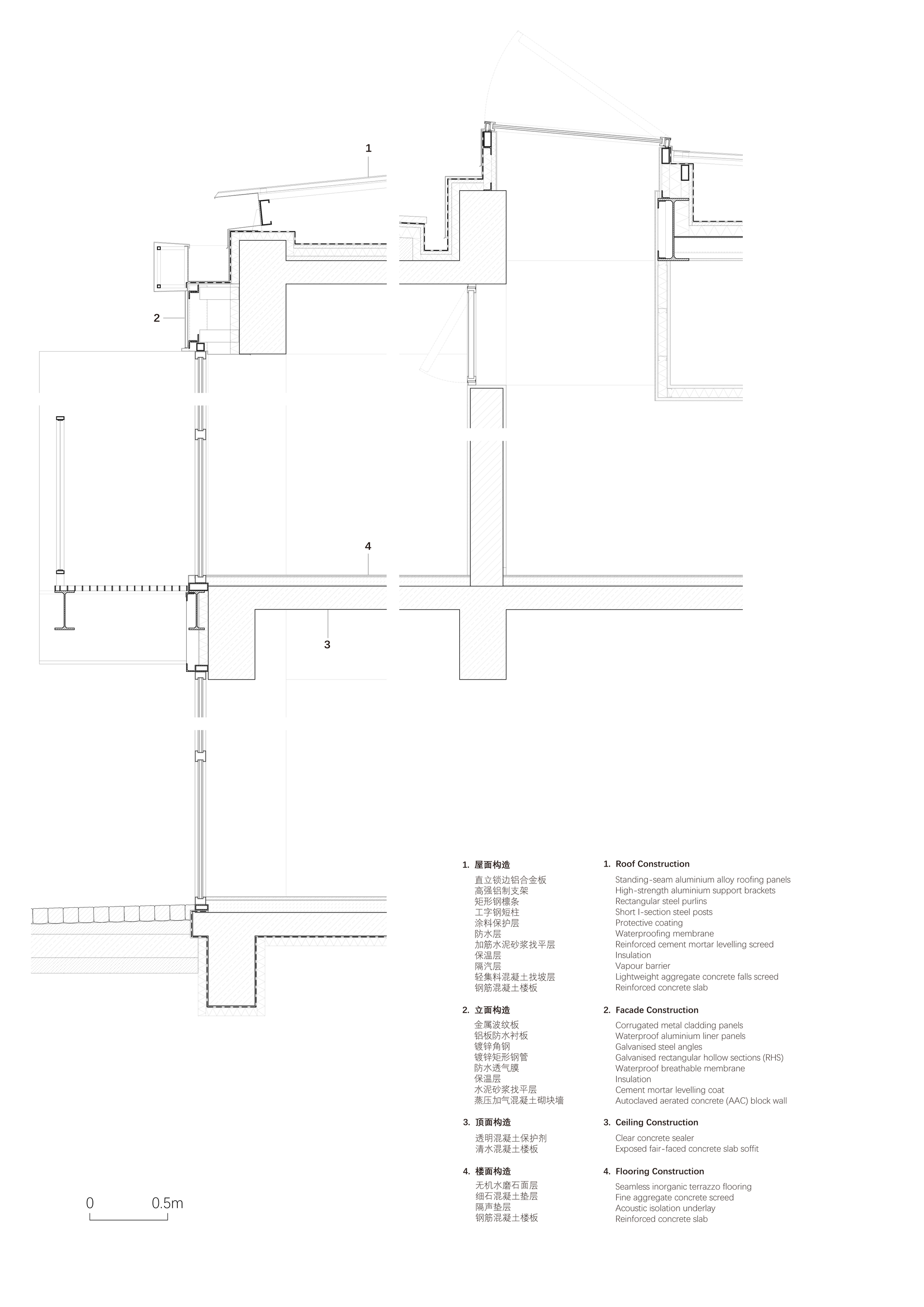

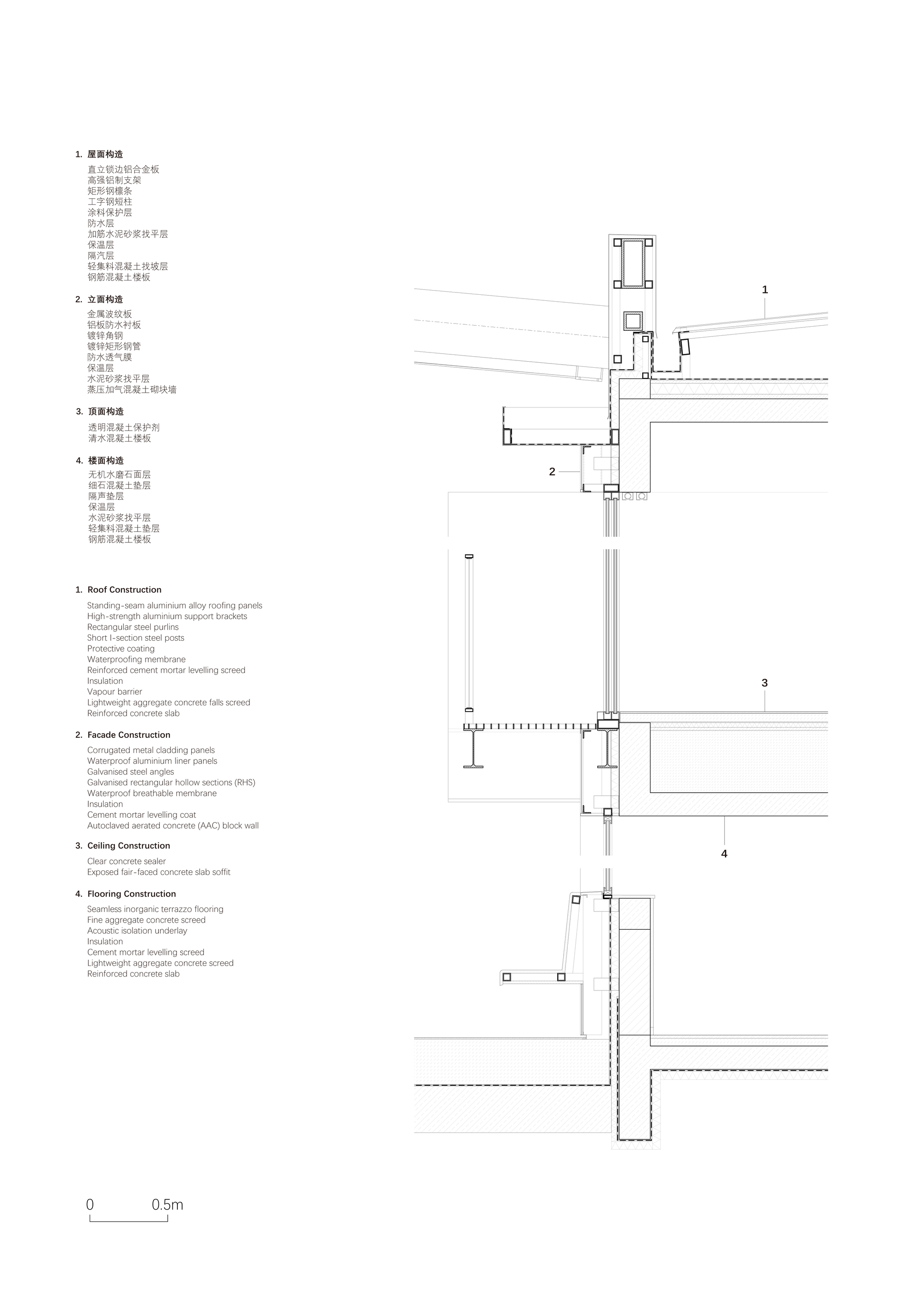

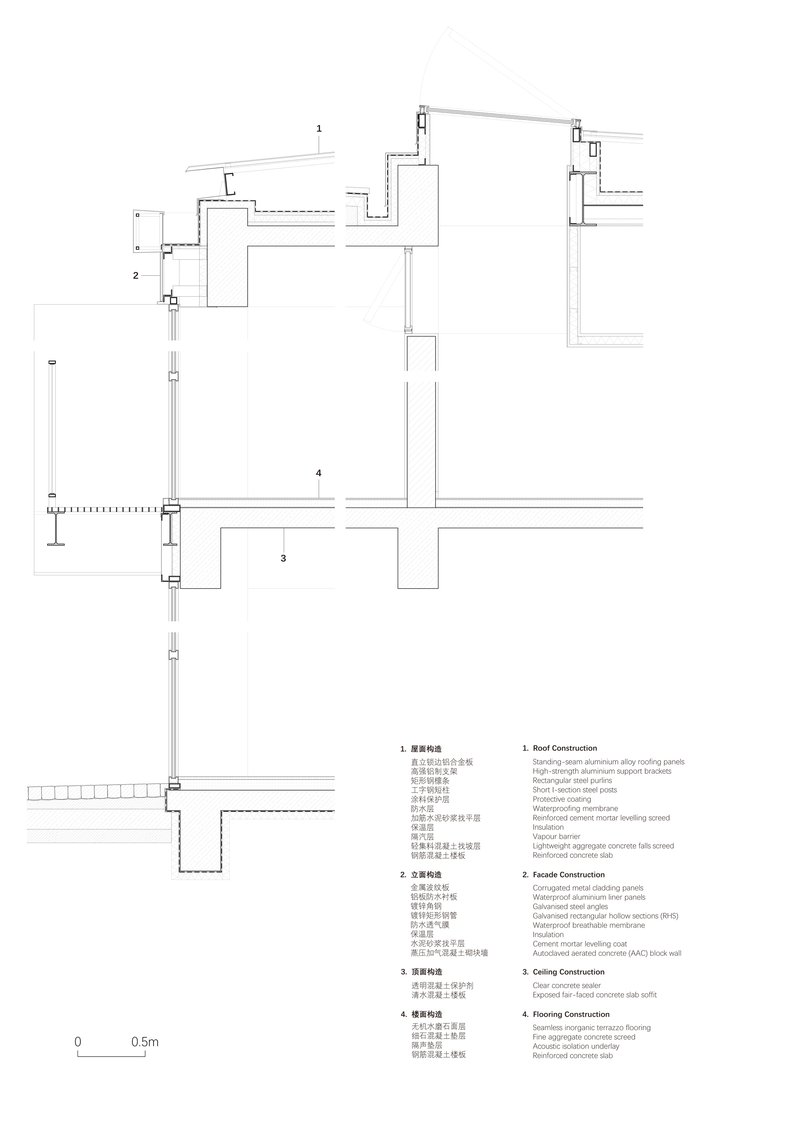

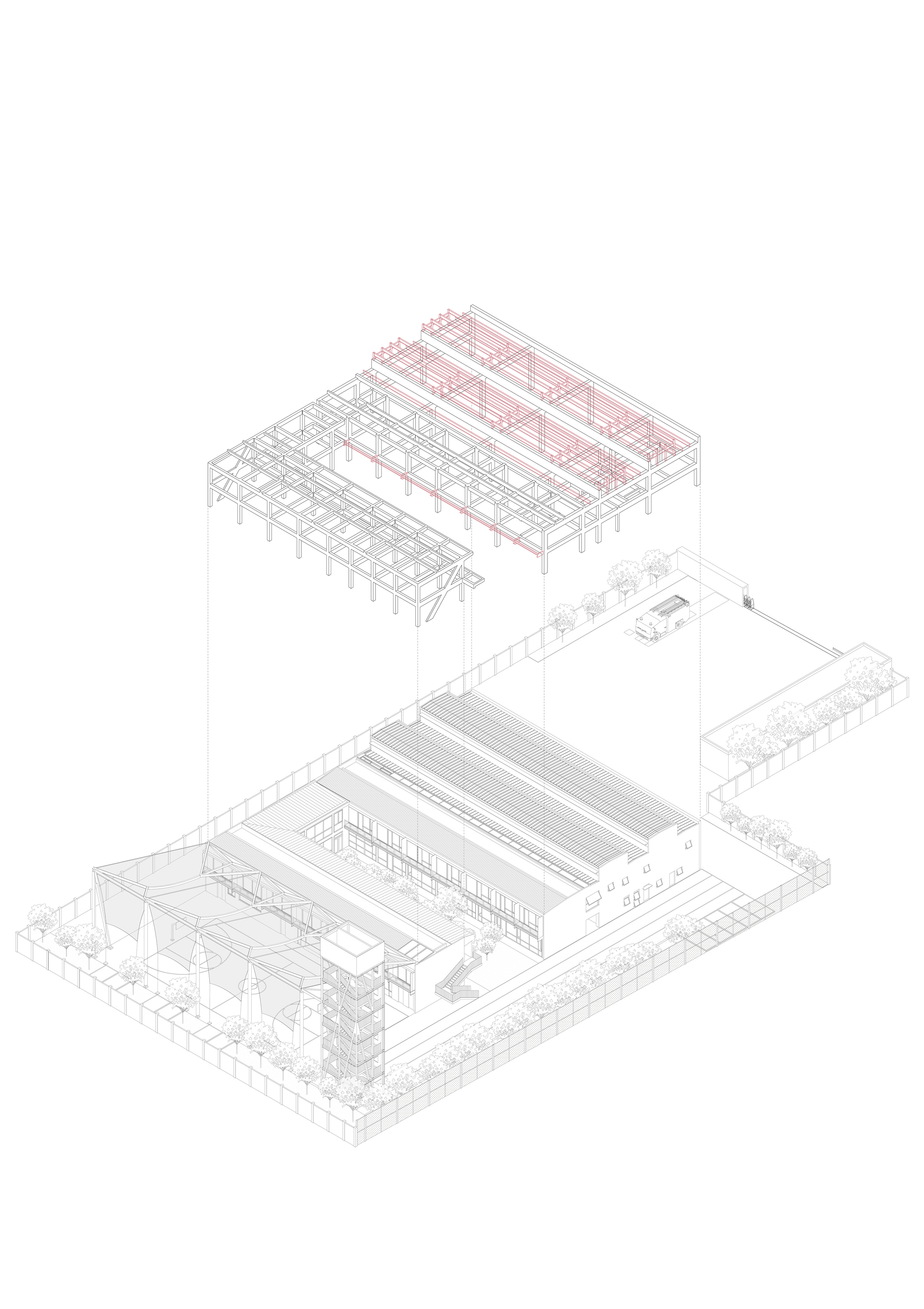

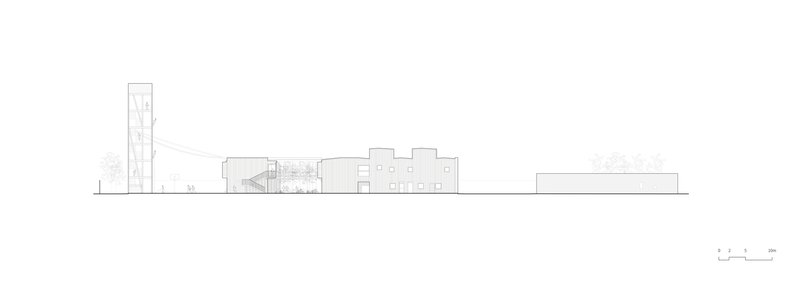

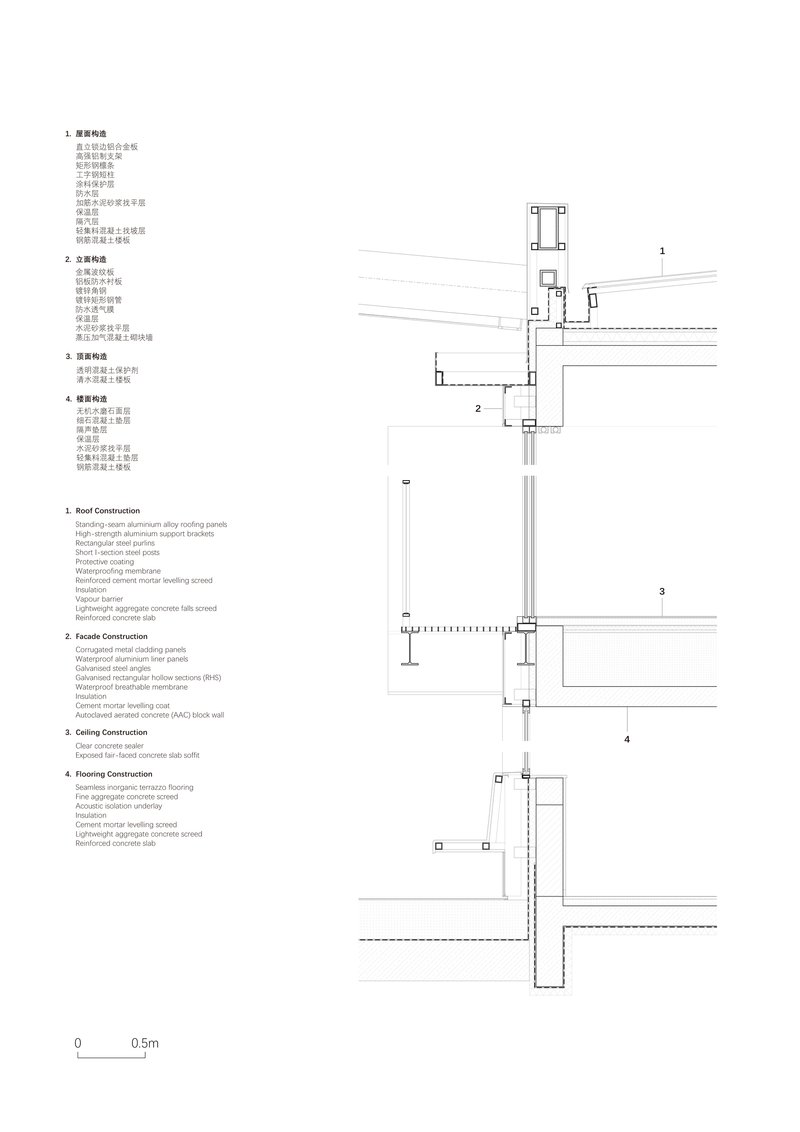

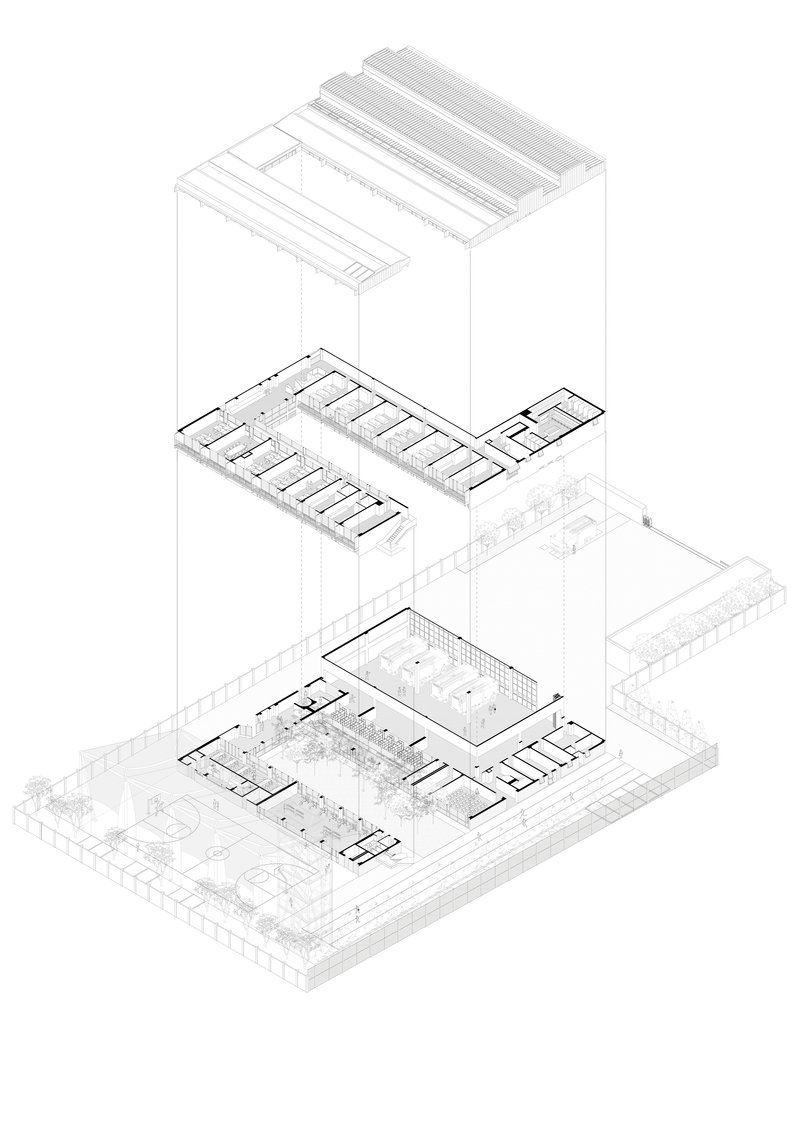

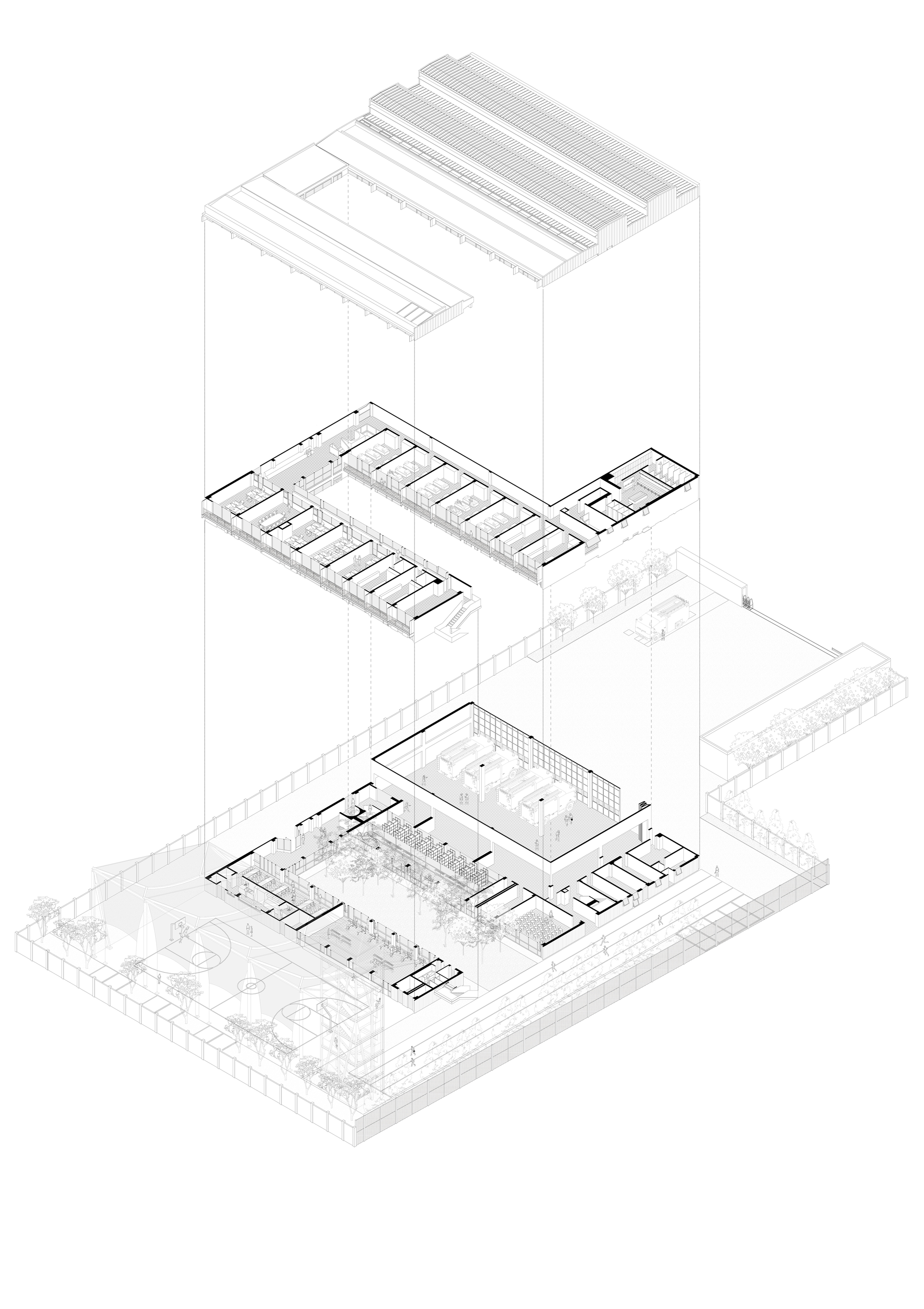

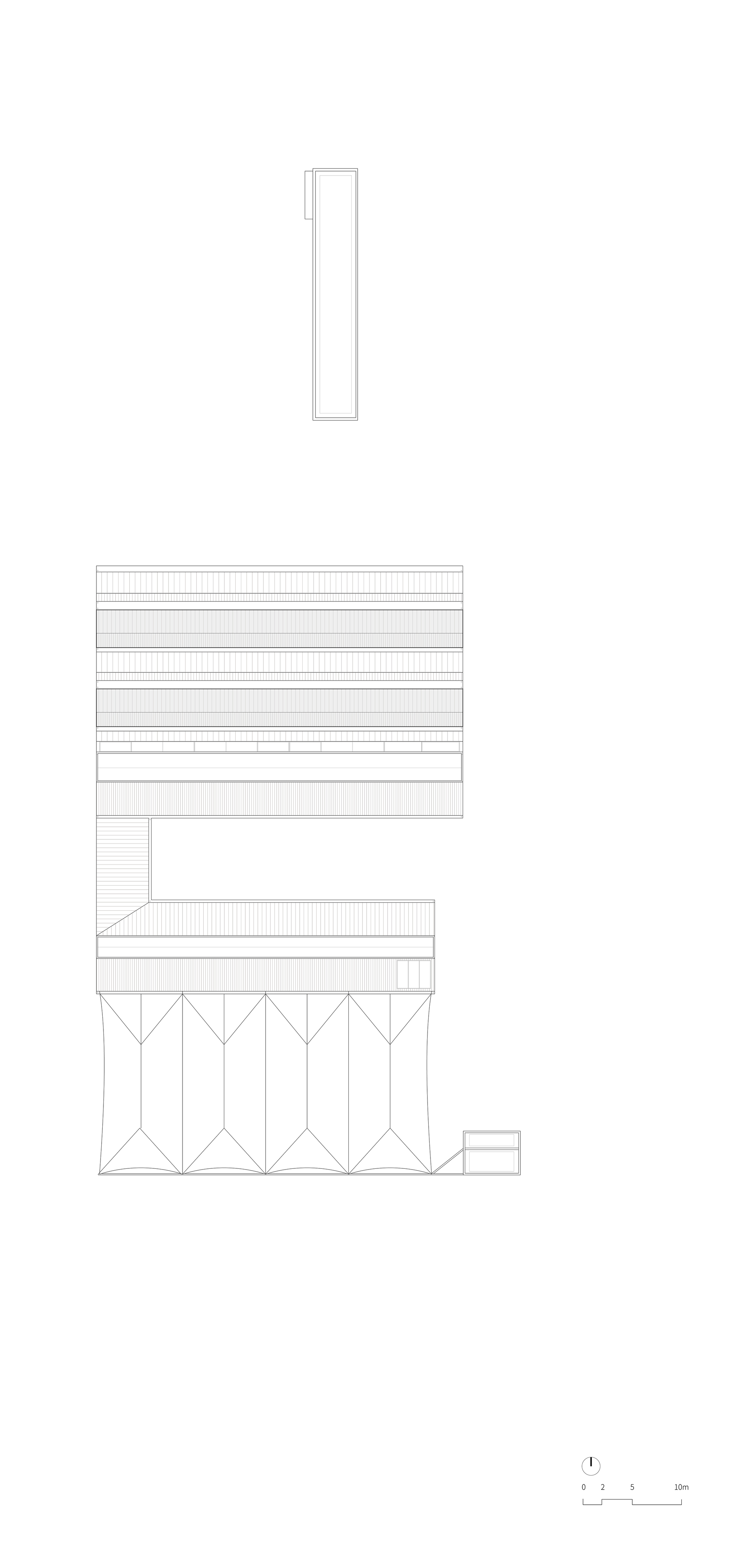

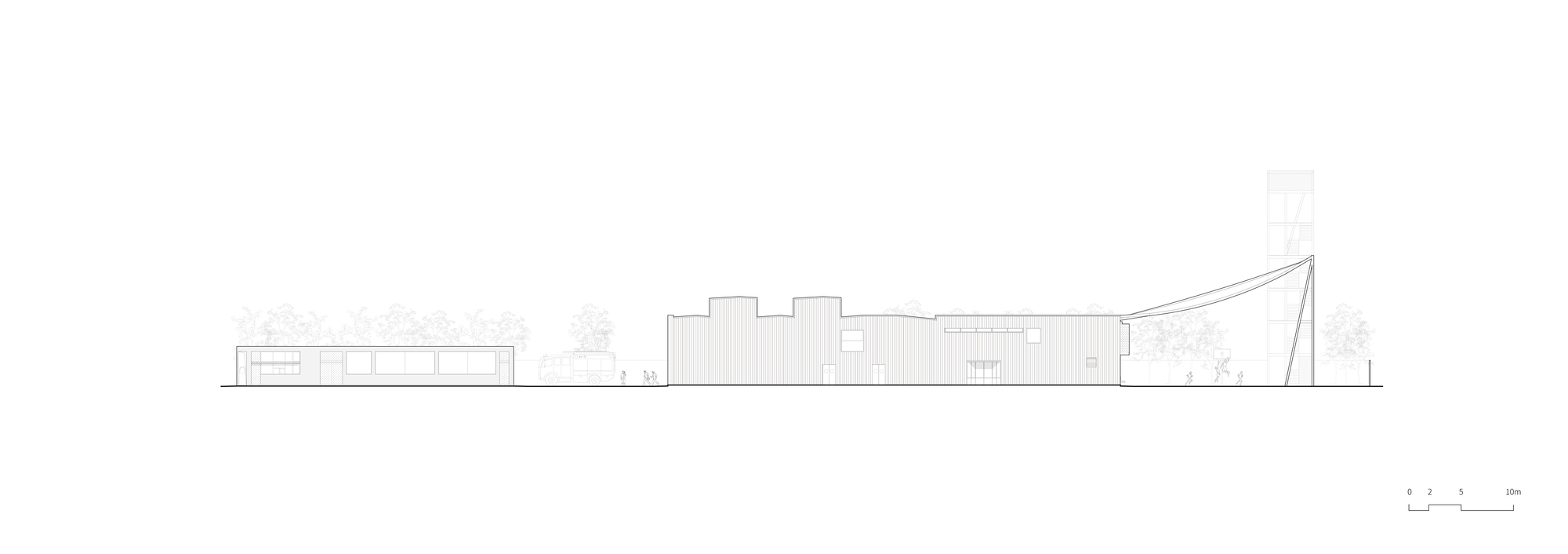

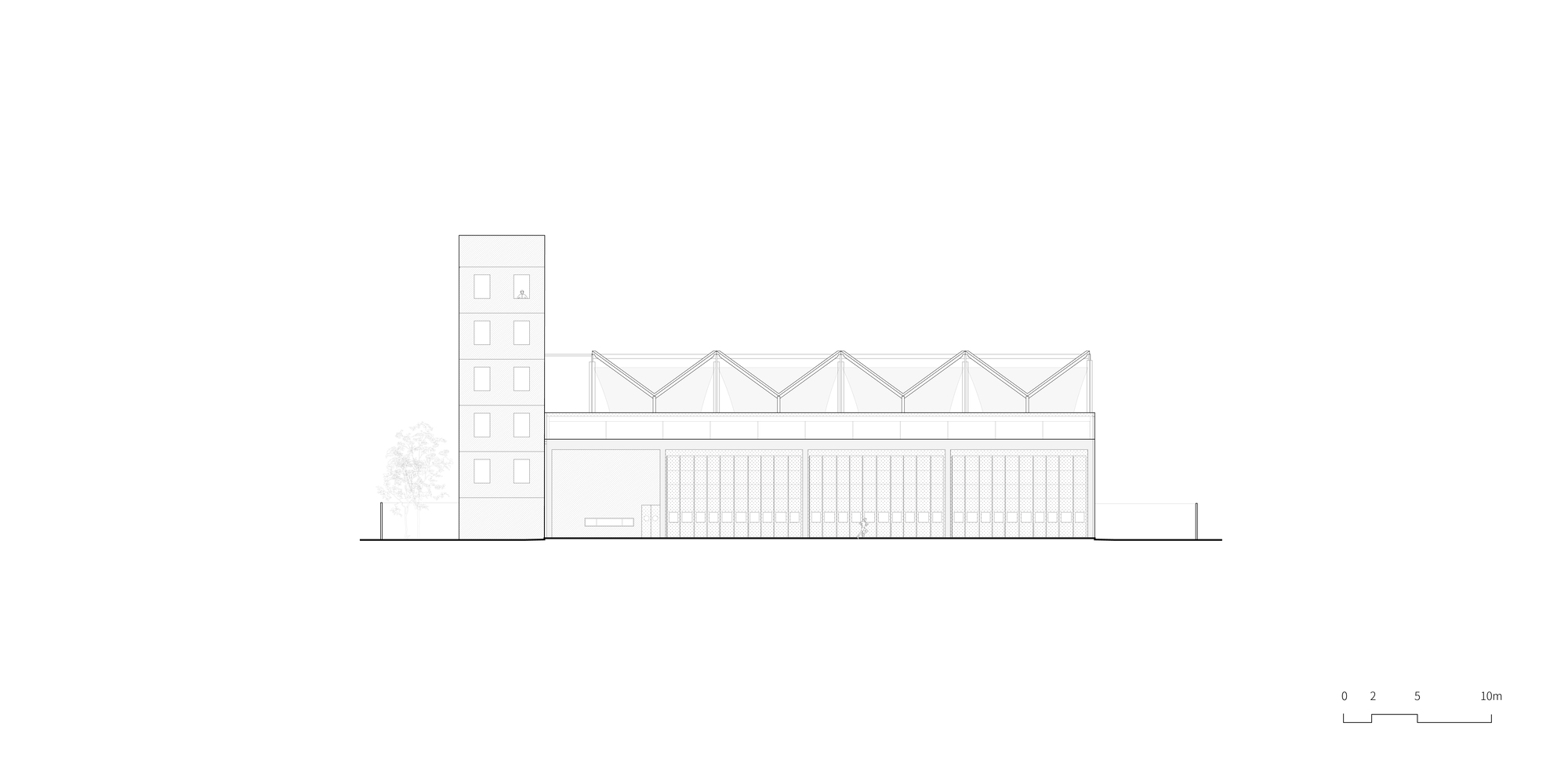

Section drawings expose the building's horizontal layering: low floor-to-floor heights in the residential zones, generous clearance in the engine bay, and rooftop terraces that extend the usable outdoor area. The exploded axonometrics are the most revealing documents, separating the roof framing system (highlighted in red) from the floor plates and site plan below. A cable net roof structure suspended from a tower and anchored over a timber column grid appears in one drawing, clarifying the tensile canopy's structural logic. Construction detail sections show the precise layering of roof, wall, and floor assemblies, including insulation and structural framing connections that demonstrate a building designed to perform, not just to photograph.

Why This Project Matters

Fire stations are among the most functionally determined building types in civic architecture. The program is non-negotiable: trucks need to get out fast, and firefighters need to live on-site. Most designers respond to these constraints by optimizing the machine and ignoring the people inside it. genarchitects did the opposite, treating the long hours of inactivity as the primary design challenge and the moments of emergency as problems already solved by direct adjacency and clear corridors.

The Yuanfeng Road Fire Station suggests that even the most utilitarian programs benefit from spatial generosity. Natural light, planted courtyards, covered play areas, and a legible structural order do not compromise operational efficiency. They sustain the people who deliver it. On a vacant site at the edge of a developing industrial zone, this is also a building that arrived before its context did, which means it had to create its own reasons to be well-made. It did.

Yuanfeng Road Fire Station by genarchitects (Fan Beilei, Kong Rui, Xue Zhe). Suzhou, China. 3,216 m². Completed 2024. Photography by Hao Chen.
