Varanasi Bamboo House: A Five-Level Family Home Built Around a Living Core

When your site is barely four meters wide and your climate swings from 48°C summer peaks to 5°C winter lows, conventional housing logic falls apart. The Varanasi Bamboo House rebuilds that logic from scratch, stacking five levels of intergenerational living around a central planted void that functions simultaneously as light well, ventilation shaft, and vertical garden. It is a house organized not around corridors but around breath.

Designed by Ines Tisch, the project responds to the dense urban fabric of Varanasi, Uttar Pradesh, where narrow plots, extreme seasonal variation, and multigenerational households are the norm rather than the exception. The residence accommodates a family of six: grandparents, parents, and two children, each generation given its own private zone while sharing communal terraces and a central living space that threads through the section.

A Planted Shaft as the Heart of the Section

The defining move here is the central void. Running the full height of the house, this planted staircase shaft pulls hot air upward through stack effect ventilation while filtering daylight down into every level. Interior vignettes reveal how greenery spills into each floor, softening the hard edges of concrete ceilings and brick walls. The shaft transforms what would otherwise be a dark, narrow tube into a house that breathes and glows from the inside out.

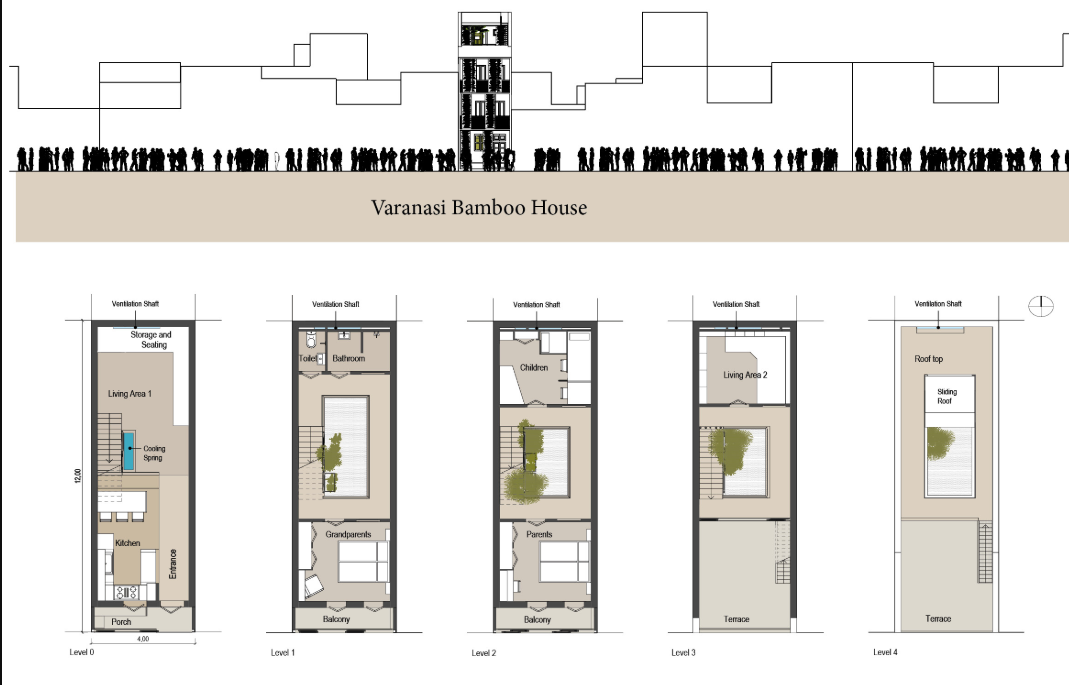

The floor plan sequence confirms how tightly this is organized. At just 4.09 meters wide, there is no room for wasted circulation. Each level is a single programmatic zone: grandparents occupy the first level, parents the second, children above, with shared living and terrace spaces woven between. Built-in storage under benches and at ground level absorbs the clutter that compact living inevitably produces. The result reads less like a stack of apartments and more like a continuous domestic landscape.

Passive Strategies for a 43-Degree Temperature Swing

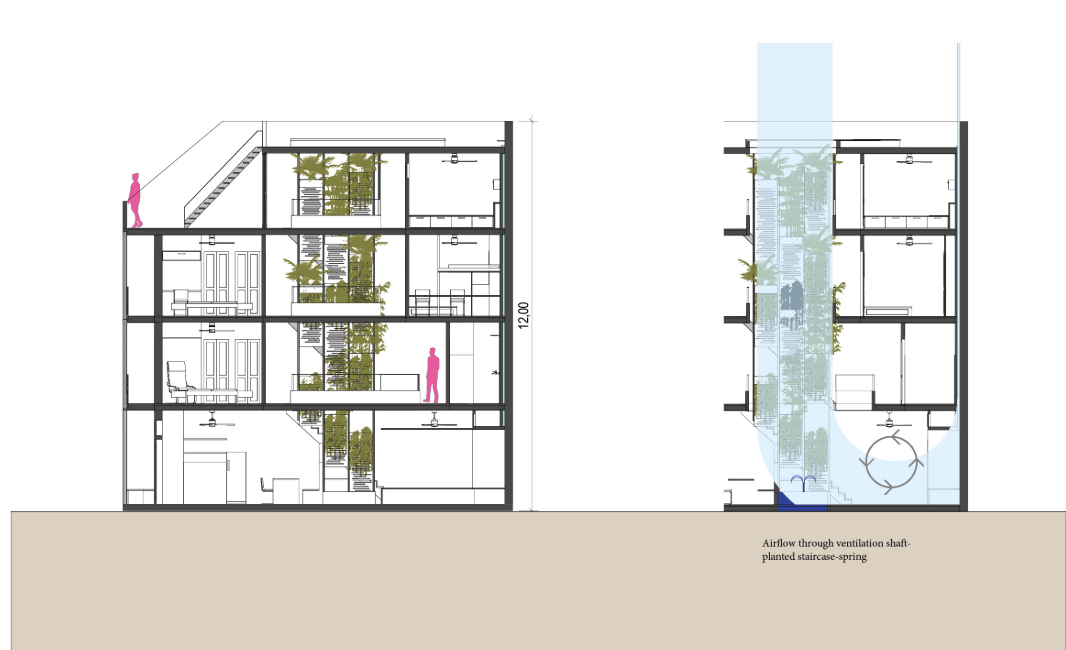

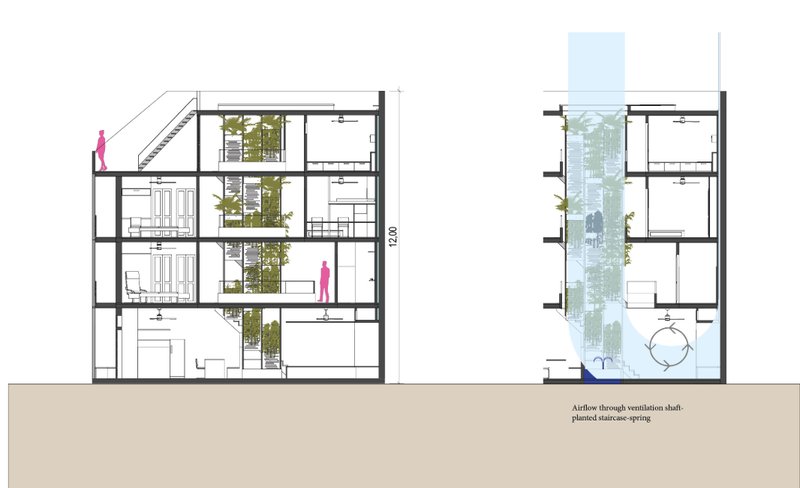

The section drawing lays bare the thermal logic. In summer, the vertical shaft and bamboo shading work together: bamboo cladding on exterior walls filters direct solar gain while the planted void draws air through the house via natural convection. A ground-level spring further cools incoming air at the base of the stack. In winter, the strategy inverts. Upper terraces and living areas are positioned to capture solar warmth, and the thermal mass of brick walls and concrete slabs stores heat through cold nights. During monsoon, closable roofing systems seal the top of the shaft, preventing rain ingress while maintaining airflow through lower openings.

The adjacent ventilation diagram makes the layering explicit: each floor has its own relationship to the central shaft, calibrated by operable openings and the density of planting at that level. It is a simple system, but one that requires careful tuning across five floors and three seasons. The minimal glazing and local architectural typologies for glass panels and doors keep costs low while reinforcing the cultural context of Varanasi's built environment.

Bamboo, Brick, and the Economics of Low-Carbon Construction

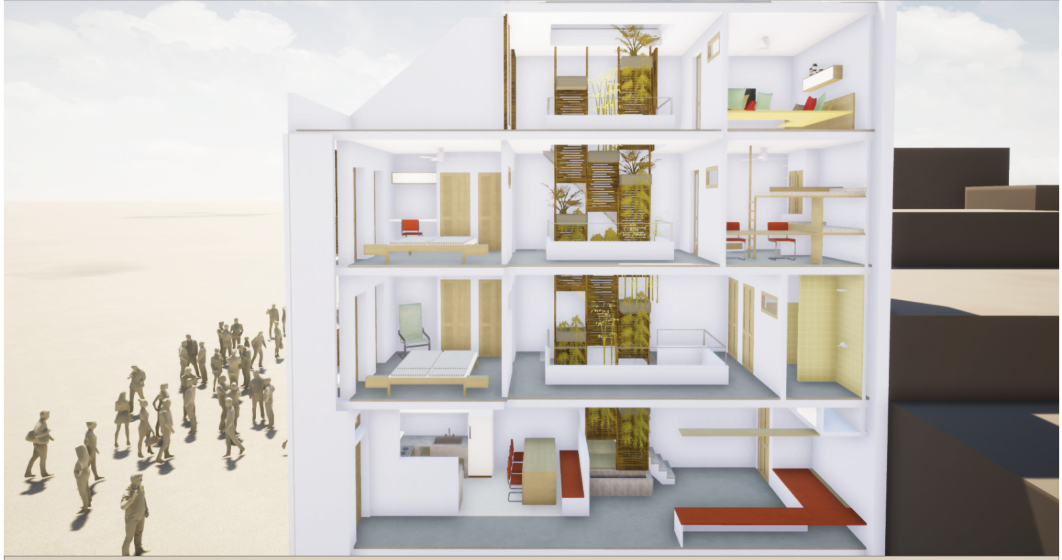

The cutaway rendering exposes the material palette in full: bamboo for shading screens, wall cladding, and vertical green wall structures; brick for load-bearing walls; concrete for floor slabs. The bamboo elements are not decorative. They regulate light transmission, support climbing plants that contribute to the microclimate, and provide a renewable, low-carbon alternative to steel or aluminum cladding. Combined with passive design strategies, this material assembly keeps embodied energy and construction costs low enough to suggest replicability across Varanasi's dense neighborhoods.

Miniature figures at street level ground the scale. The house reads as a slender vertical insertion into the existing urban grain, no wider than its neighbors but far more thermally intelligent. Its narrowness, often a liability in residential design, becomes an asset: the shallow plan depth means every room has access to both the central shaft and an exterior wall, eliminating deep, dark zones entirely.

Why This Project Matters

India's urban housing crisis is not primarily a shortage of square meters. It is a shortage of intelligence applied to the square meters that exist. The Varanasi Bamboo House demonstrates that a plot barely four meters wide can accommodate three generations with dignity, comfort, and genuine climate responsiveness, all without mechanical cooling or imported materials. That combination of spatial economy and environmental performance is rare in student work, and rarer still in built housing.

What makes Ines Tisch's proposal credible is its refusal to treat sustainability as an add-on. The planted shaft is not a green amenity; it is the organizing principle of the entire section, driving ventilation, daylighting, spatial perception, and the daily experience of moving through the house. If compact urban housing in extreme climates has a future, it will look something like this: vertical, vegetal, and built around airflow rather than air conditioning.

View the Full Project

About the Designers

Designer: Ines Tisch

Enter a Design Competition on uni.xyz

uni.xyz runs architecture and design competitions year-round that reward proposals with spatial conviction and real site intelligence.

Project credits: Varanasi Bamboo House by Ines Tisch.
