Chip Studio Builds a Productive Rural House from Concrete Blocks and Turquoise Steel in Ecuador

Most rural houses in the highlands of southern Ecuador defer to their landscape through modesty: low profiles, earth tones, simple gable roofs. Free House, designed by Chip Studio and led by architects Cecibel Gonzalez and Carlos Macas, does something more complicated. It defers and asserts simultaneously. Built on a rocky, irregularly sloped lot on the outskirts of Loja in the parish of Malacatos, the 135 square meter residence composes itself as a cluster of interlocking rectangular volumes, each scaled differently, each oriented to capture a distinct slice of the valley below.

What makes the project genuinely interesting is its refusal to treat "rural" as a style. Chip Studio frames this as a productive house, one rooted in circular economy thinking and multispecies cohabitation rather than weekend retreat aesthetics. The material palette of solid concrete blocks and turquoise-painted steel is unromantic and direct, chosen to work with the rocky terrain rather than disguise it. The turquoise steelwork, far from being decorative whimsy, functions as a consistent structural and fenestration system that unifies the clustered volumes and gives the building a legible identity against the green hillside.

A Cluster Strategy for Difficult Ground

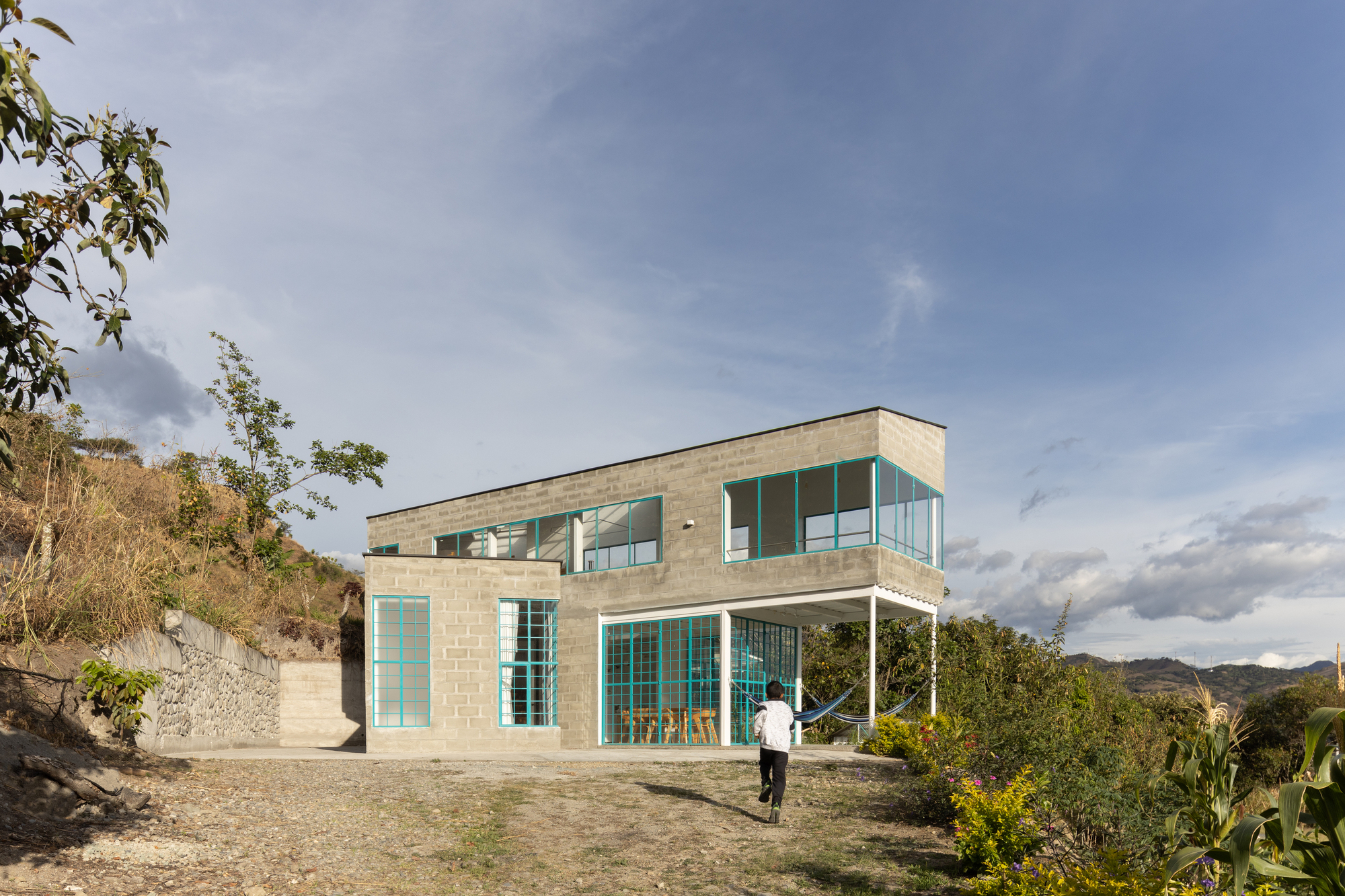

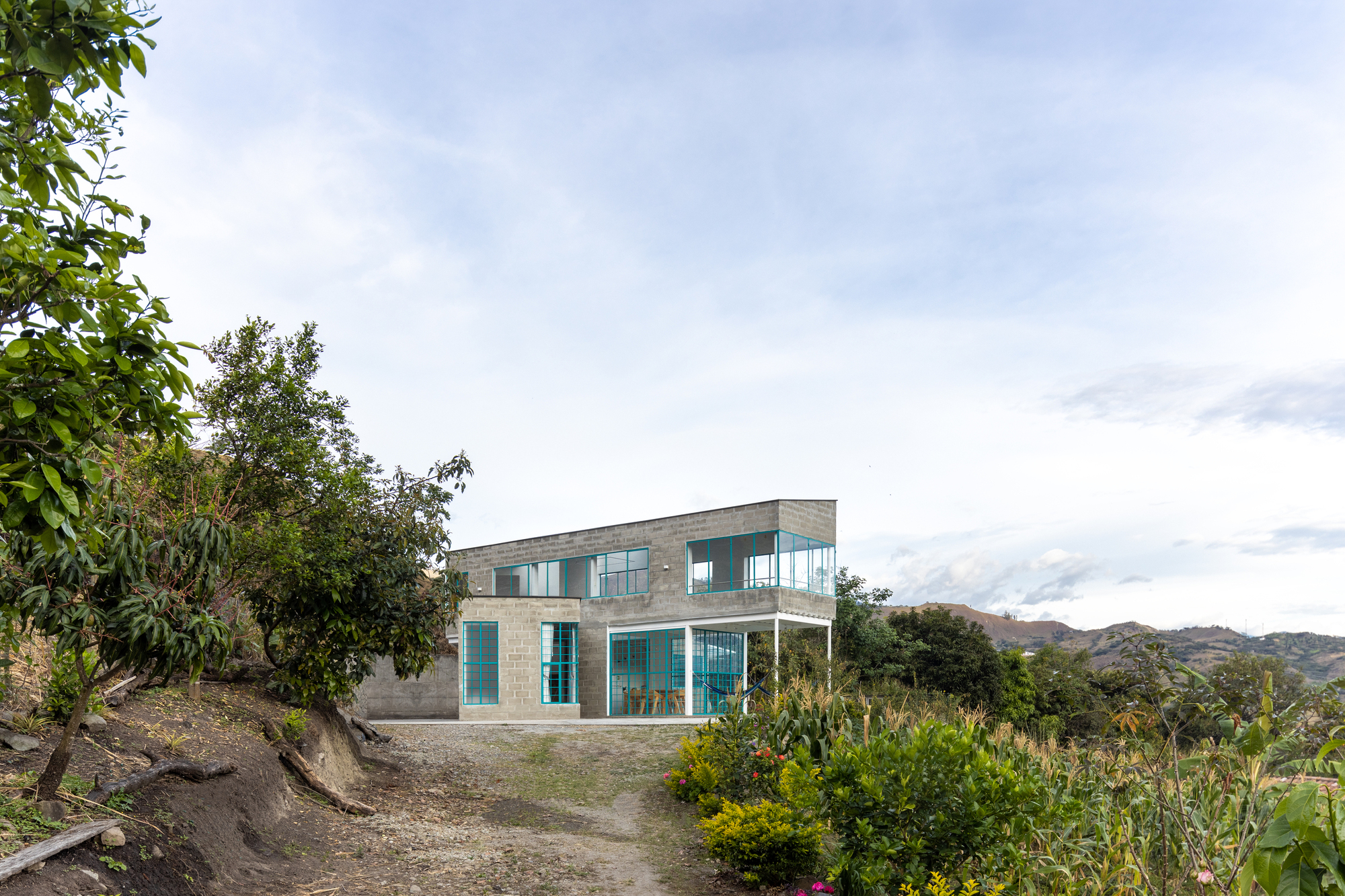

Rather than flatten the site and plant a single rectangular footprint, Chip Studio breaks the program into multiple volumes that step and shift with the slope. The result reads less like a conventional house and more like a small compound, with each block responding to a different grade condition. Concrete blockwork walls anchor the composition to the rocky ground, their rough texture continuous with the terrain itself.

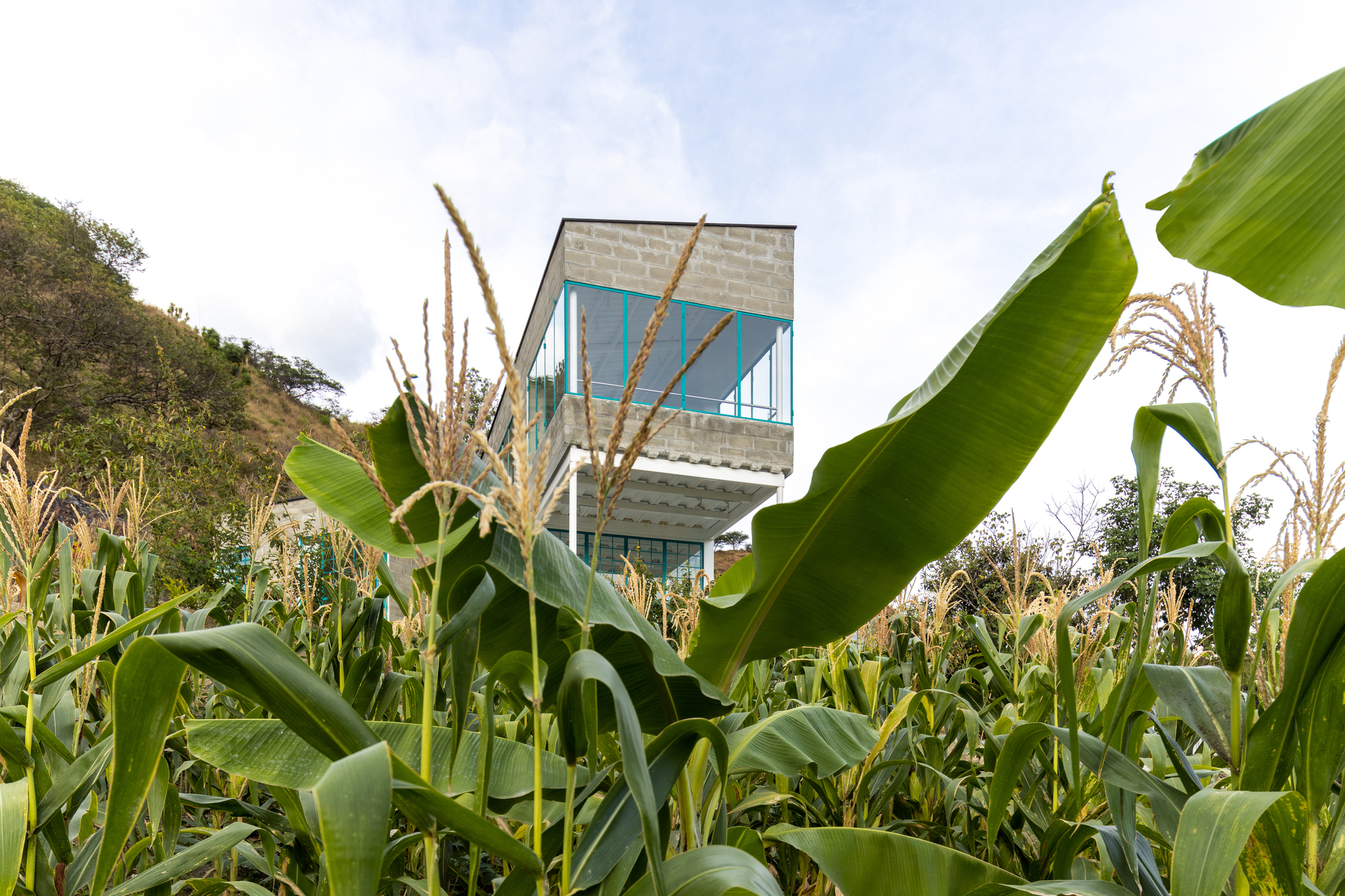

The relationship between building and productive landscape is immediately visible. In one striking image, the two-story residence rises above a dense cornfield at midday, its concrete mass and turquoise glazing sharp against the cultivated green. The house is not set apart from agriculture; it sits within it.

Turquoise Steel as Structural Identity

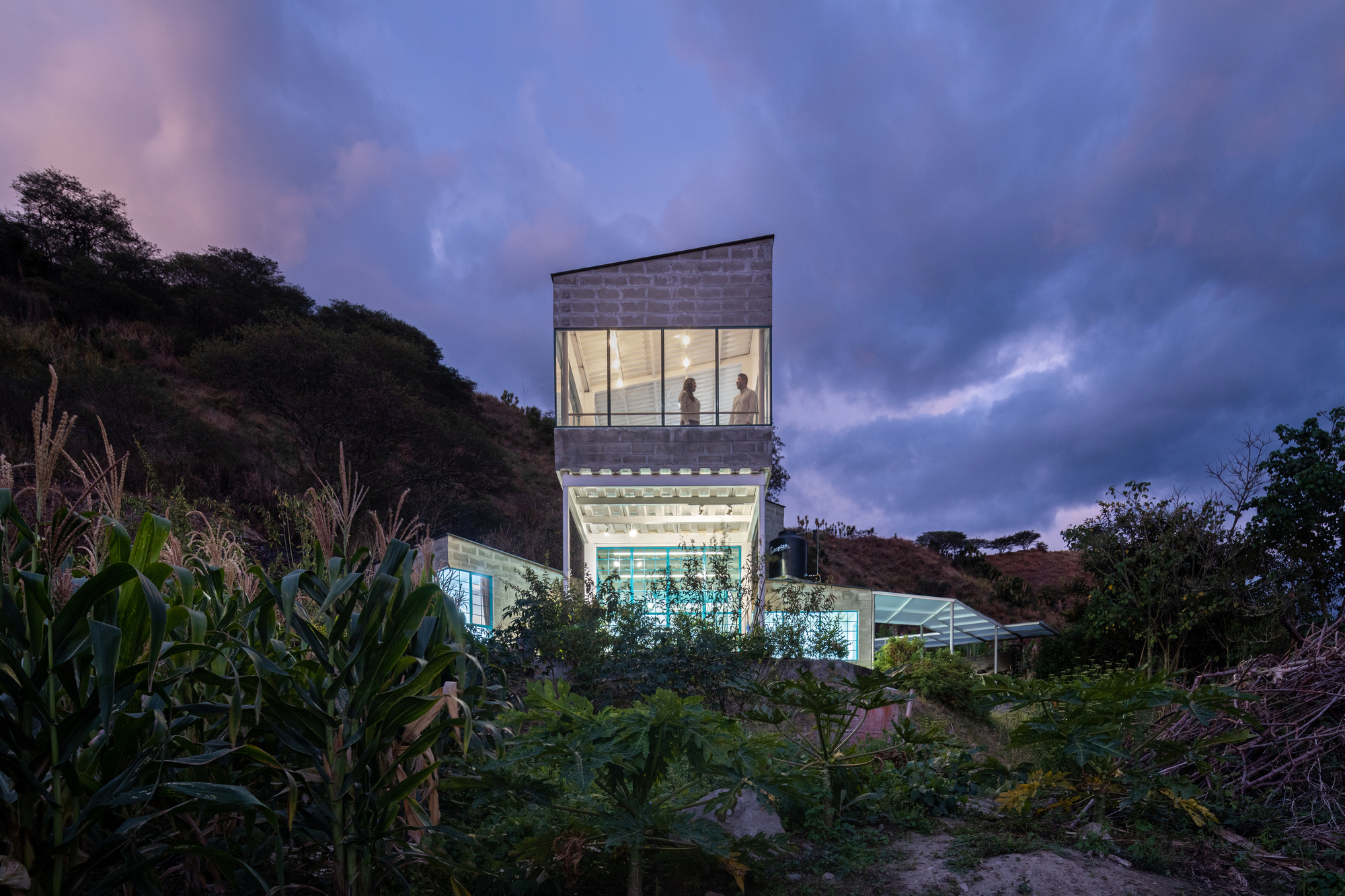

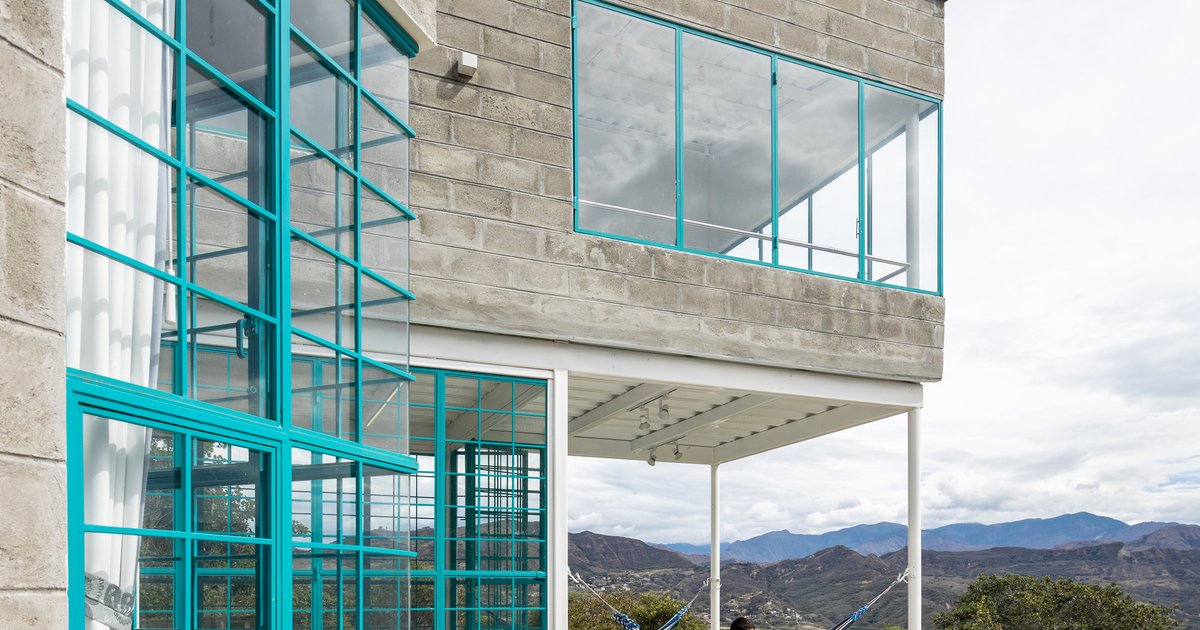

The turquoise steel framing is the project's most distinctive move. It appears everywhere: window mullions, terrace railings, mezzanine balustrades, structural columns. The color choice is bold enough to register from a distance but cool enough to avoid competing with the valley's greens and browns. At dusk, the upper volume glows like a lantern, the steel frames silhouetted against interior light, revealing the transparency of the upper level and collapsing the boundary between domestic life and landscape.

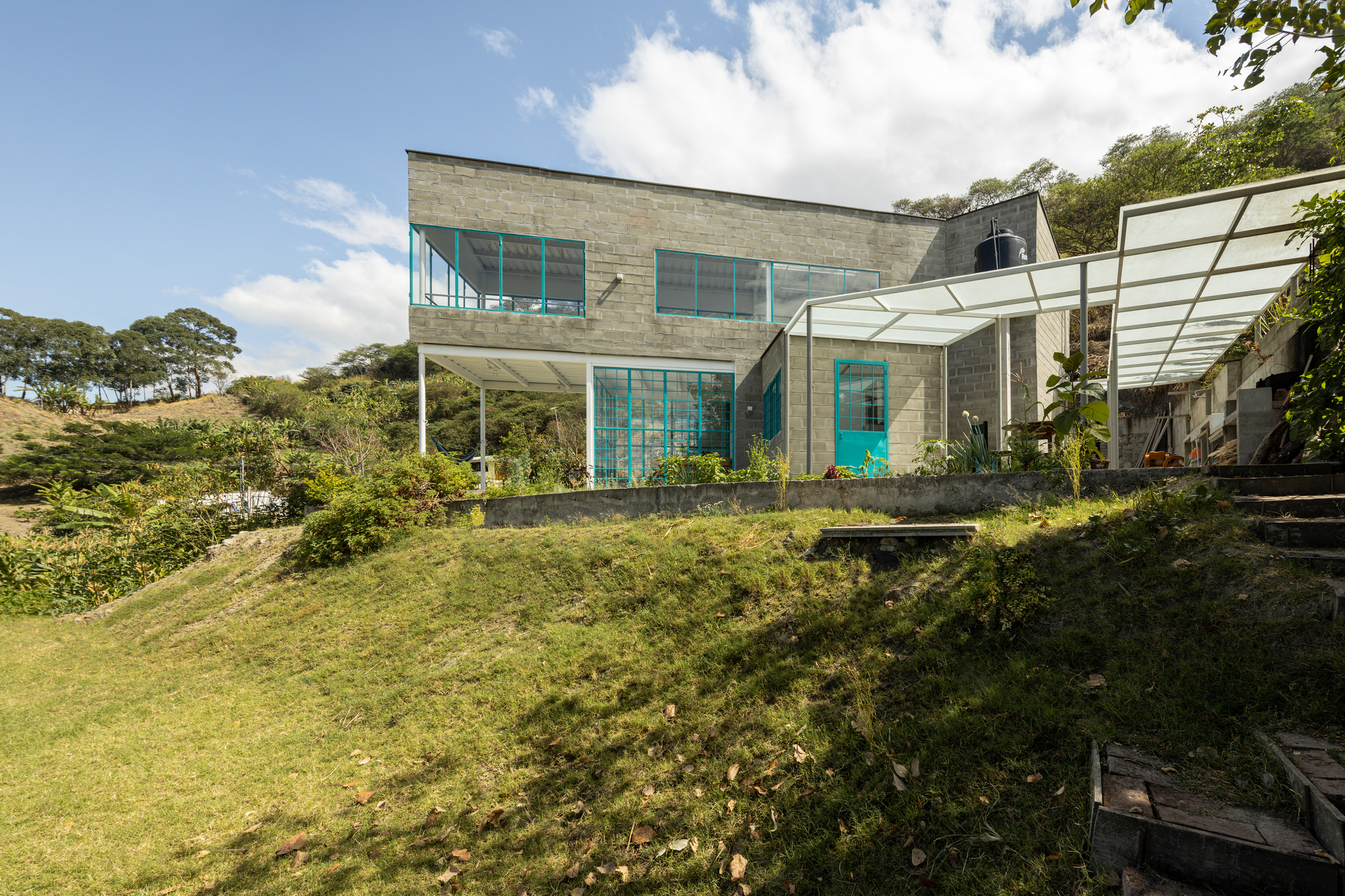

Critically, the steel is not applied as cladding. It is the structure of the openings themselves, which means the turquoise reads as honest rather than cosmetic. Where the concrete blocks handle gravity and enclosure, the steel handles view, light, and ventilation. The division of labor between the two materials is clean.

Living with the Valley in View

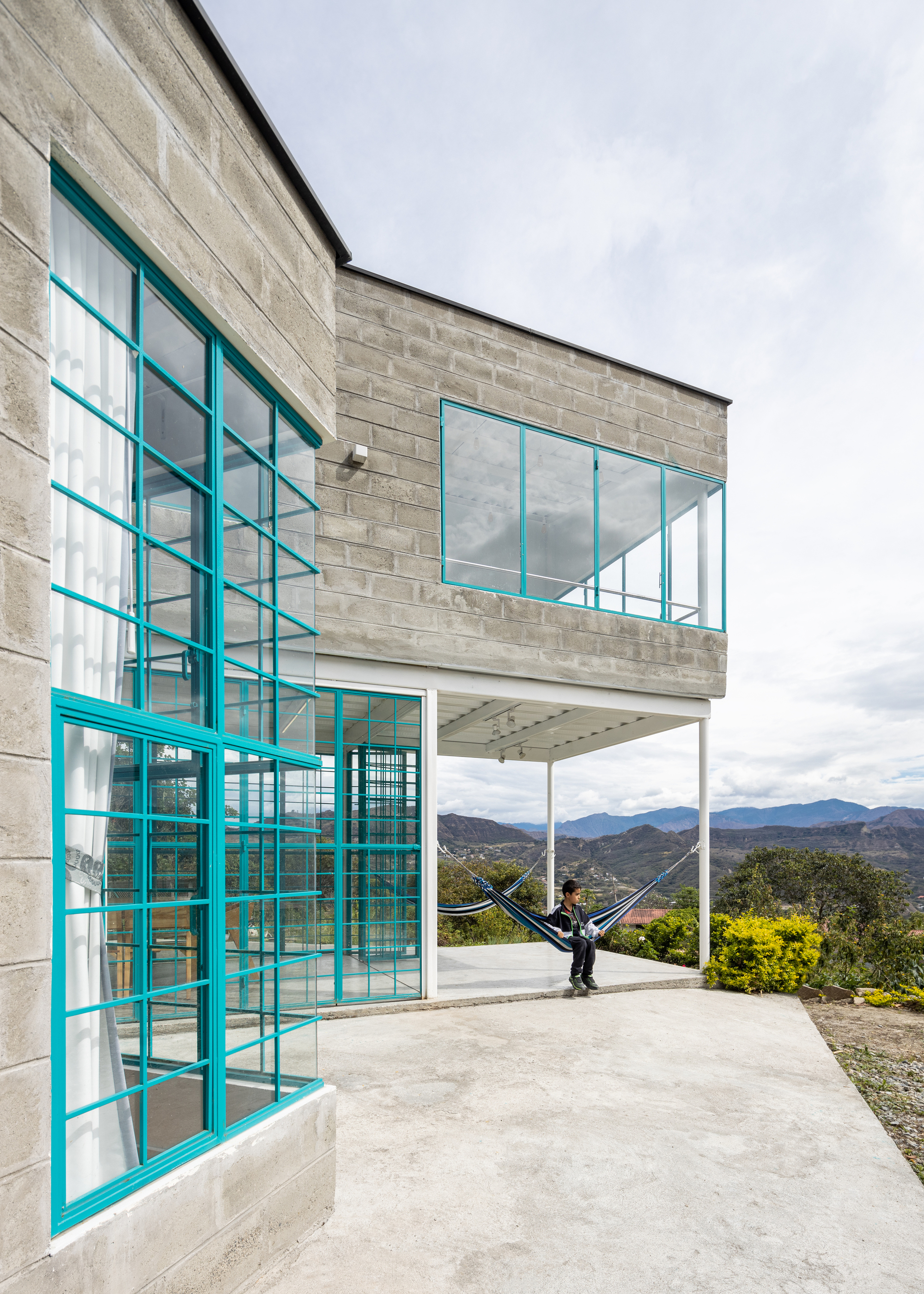

The corner terrace is perhaps the project's most generous gesture. A person lies in a hammock beneath a deep overhang, framed by turquoise steel on two sides, looking out across layered ridgelines. The moment is specific and earned: the terrace works because the volume is rotated just enough to open the corner to the widest panorama, while the overhang blocks direct overhead sun.

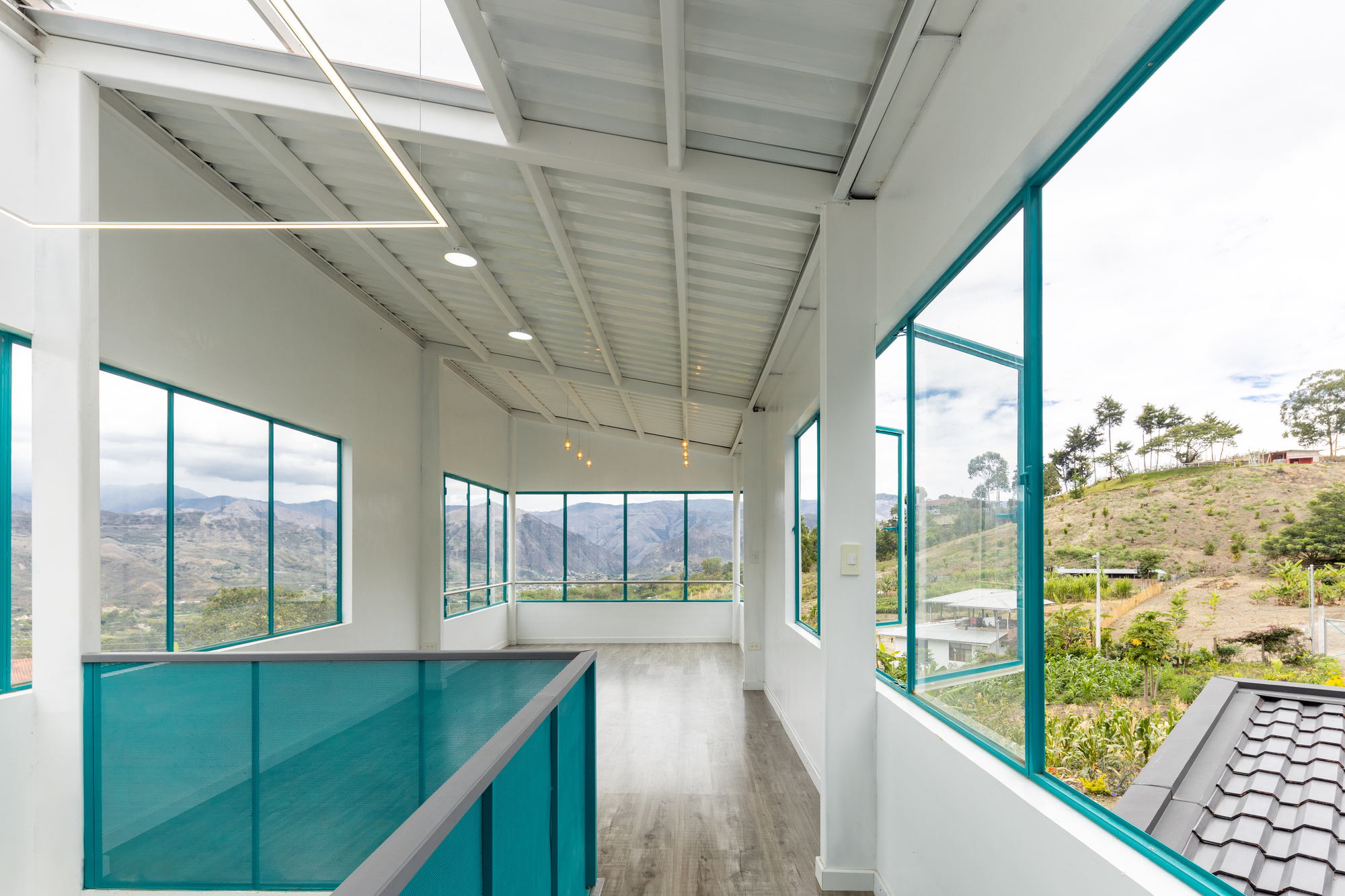

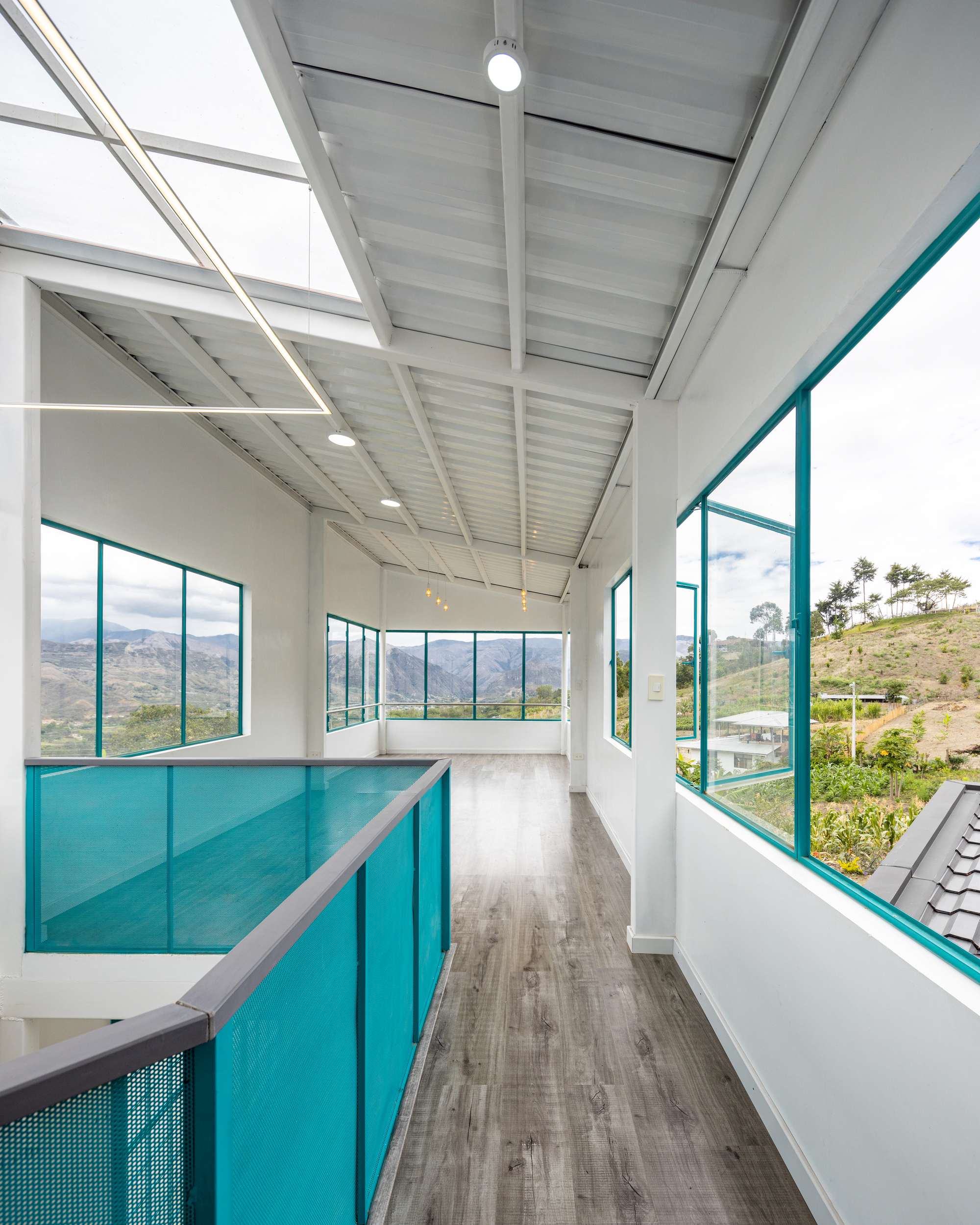

Upper-level corridors double as viewing galleries. Floor-to-ceiling glazing with turquoise glass balustrades turns circulation into the building's best real estate, a common tactic in hillside houses but executed here with particular discipline. The corridors are narrow enough that you cannot linger in them comfortably; they frame the view as something you move through, not something you consume from a sofa.

Interior Warmth Against Raw Enclosure

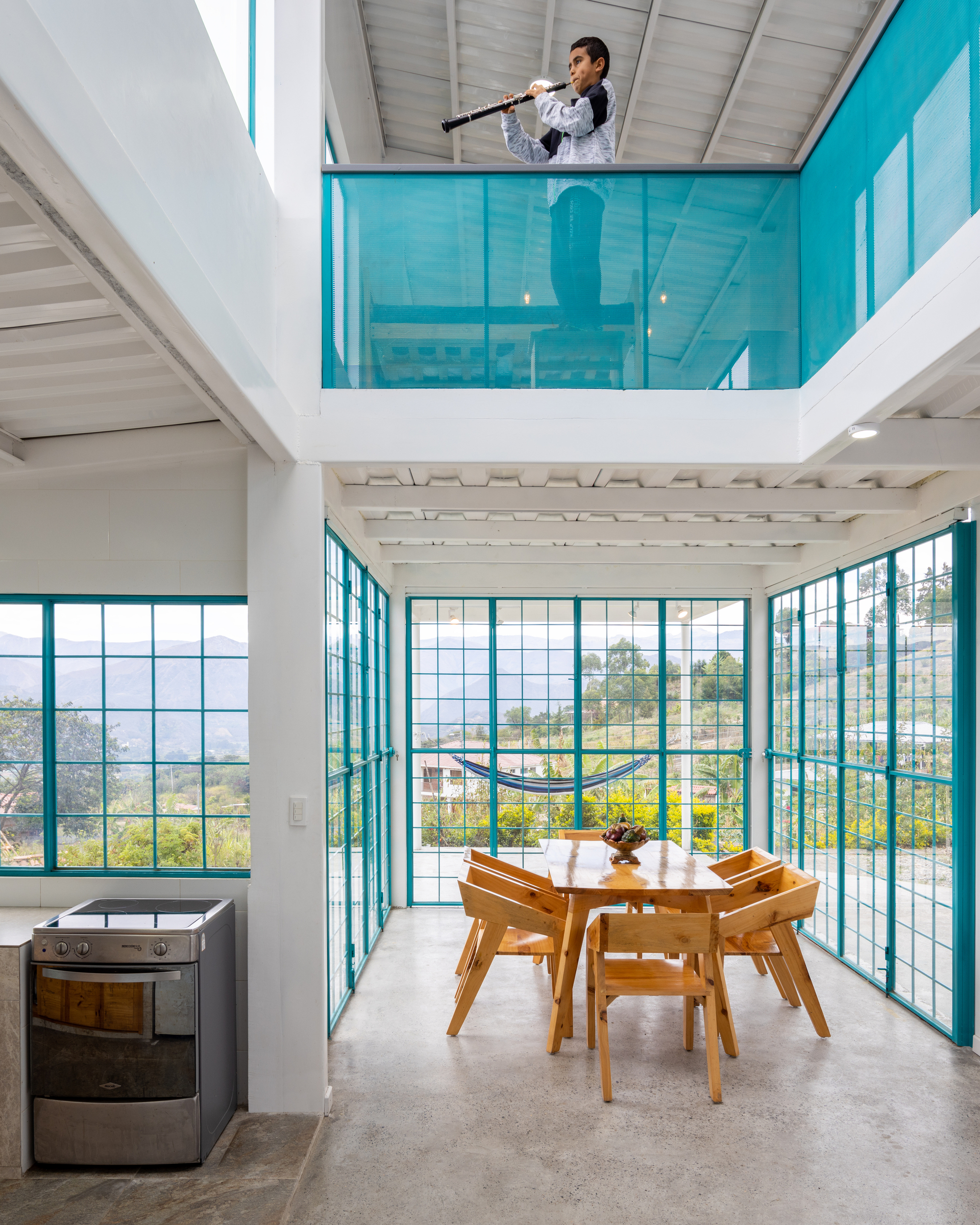

Inside, the concrete block walls are left exposed, and the turquoise steel frames continue as interior elements, maintaining material continuity between outside and in. The double-height dining area is the spatial heart of the house, with a mezzanine balcony overhead and full-height glazing pulling the hillside into the room. Timber furniture softens the rawness of the concrete without undermining it.

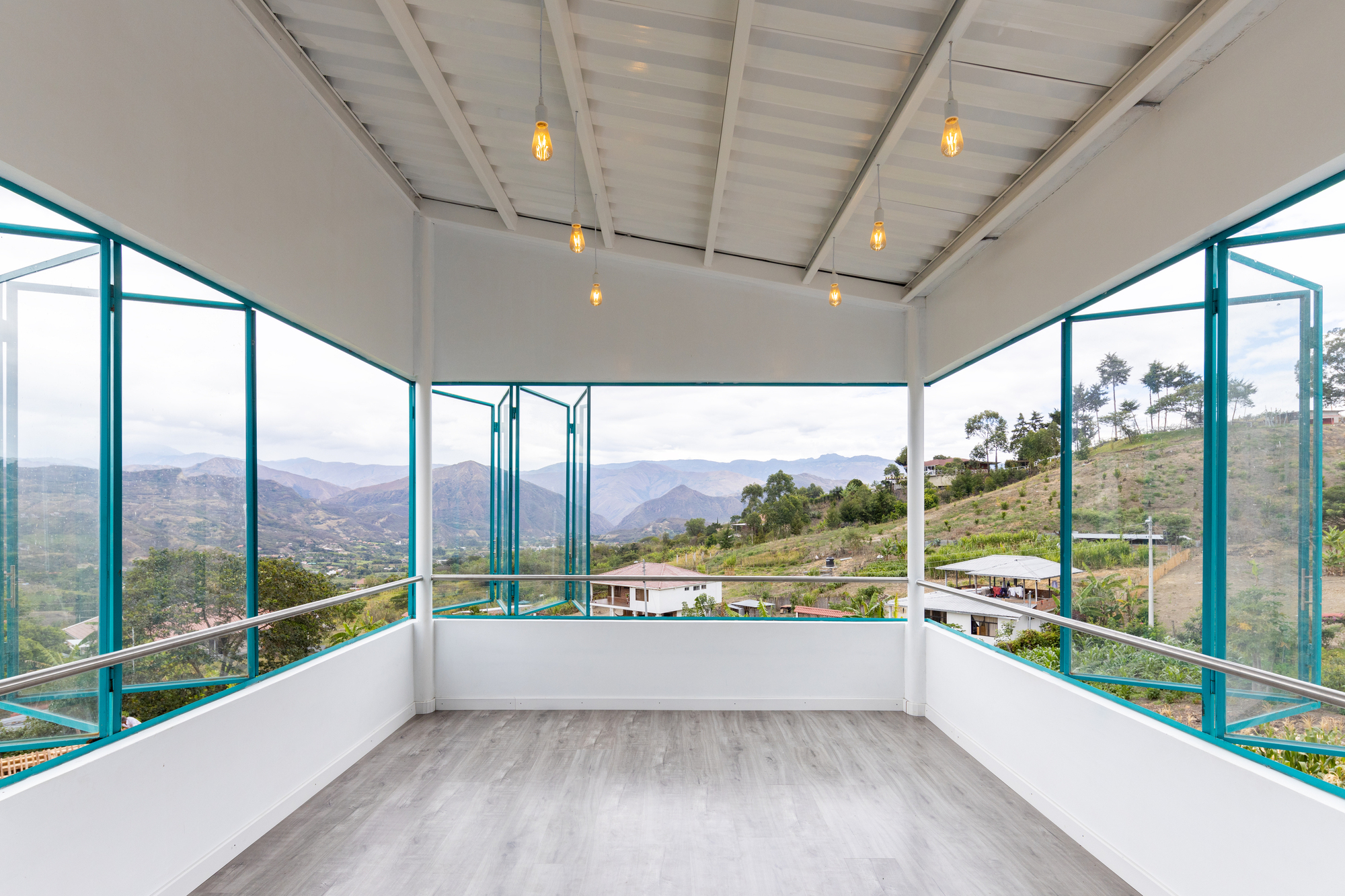

Upstairs, exposed ceiling beams and wide turquoise windows create rooms that feel simultaneously sheltered and open. The proportions are generous for 135 square meters, a direct consequence of the clustered volume strategy: by splitting the program across multiple blocks, each individual room gains the benefit of corner light and cross-ventilation that a single compact plan would struggle to achieve.

The Stair as Furniture

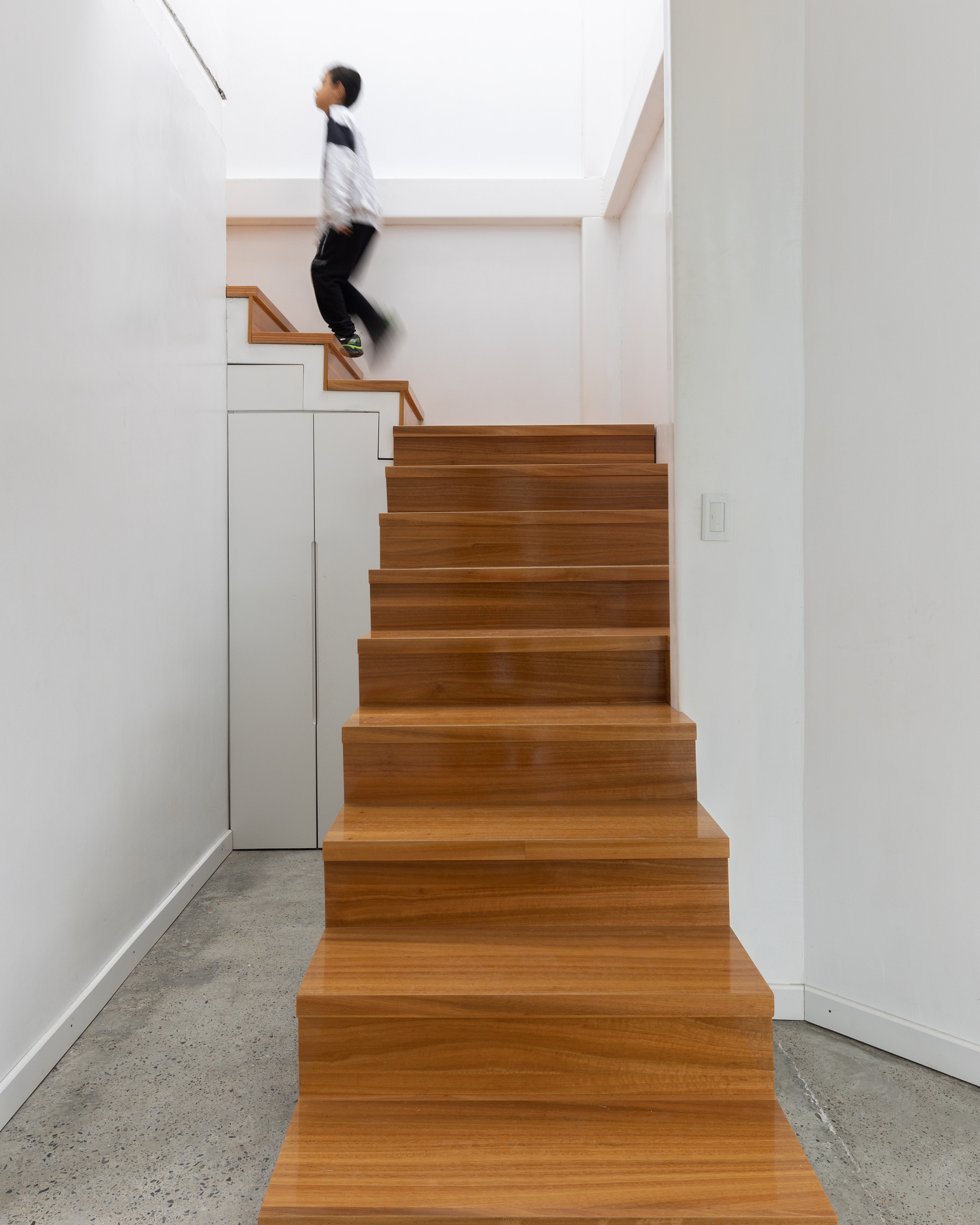

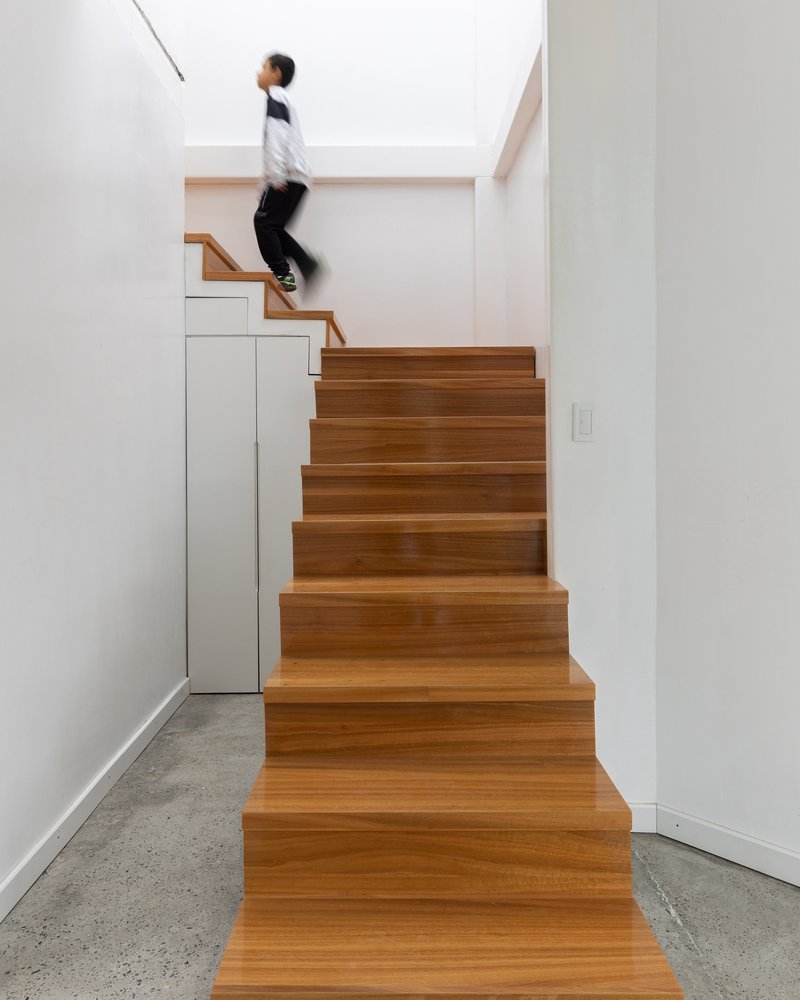

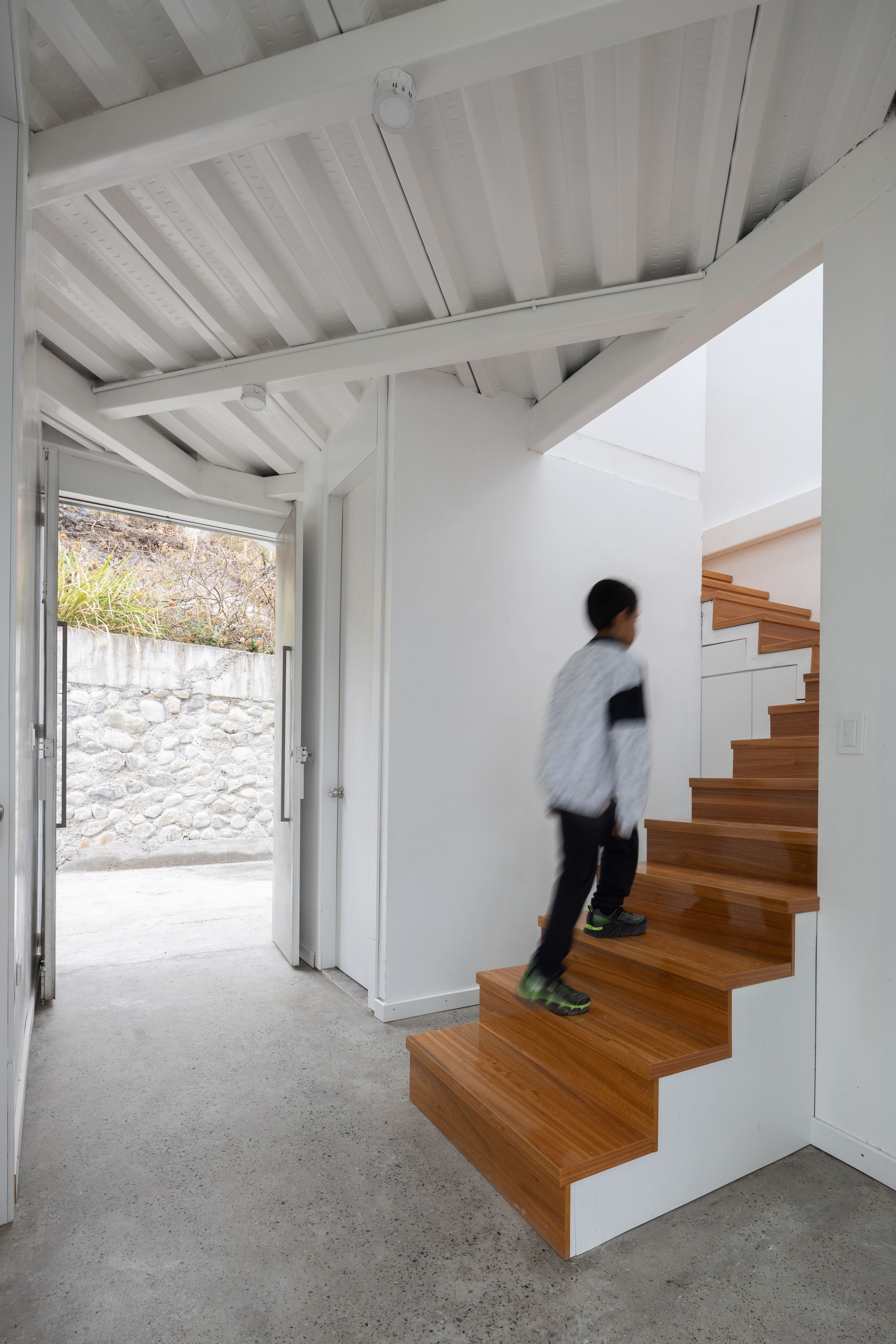

The timber staircase connecting the two levels integrates storage cabinets into its lower half, treating the vertical circulation as functional furniture rather than pure infrastructure. Warm wood treads meet polished concrete flooring at the base, and the transition between materials is handled without trim or filler strips, just a clean butt joint. It is a small detail, but it signals the project's broader attitude: materials meet, they do not blend.

Plans and Drawings

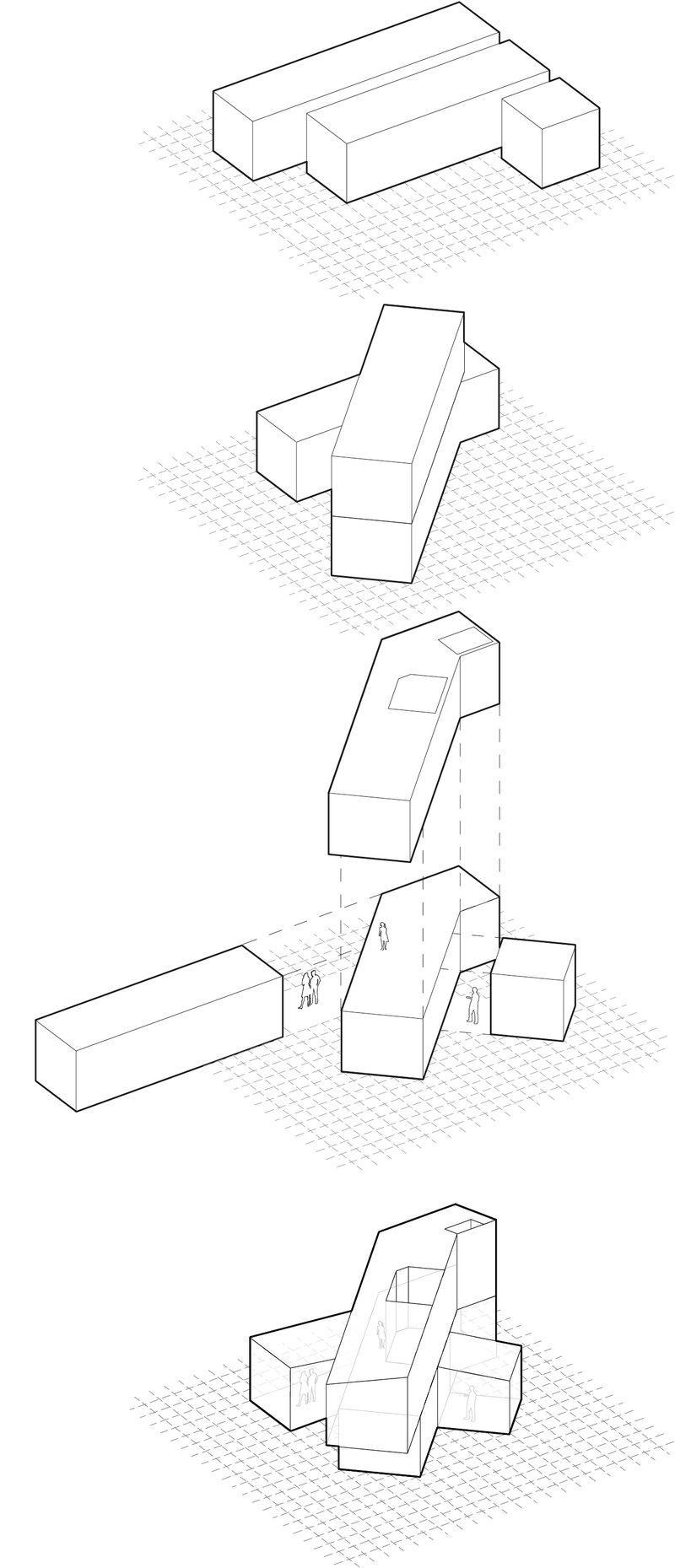

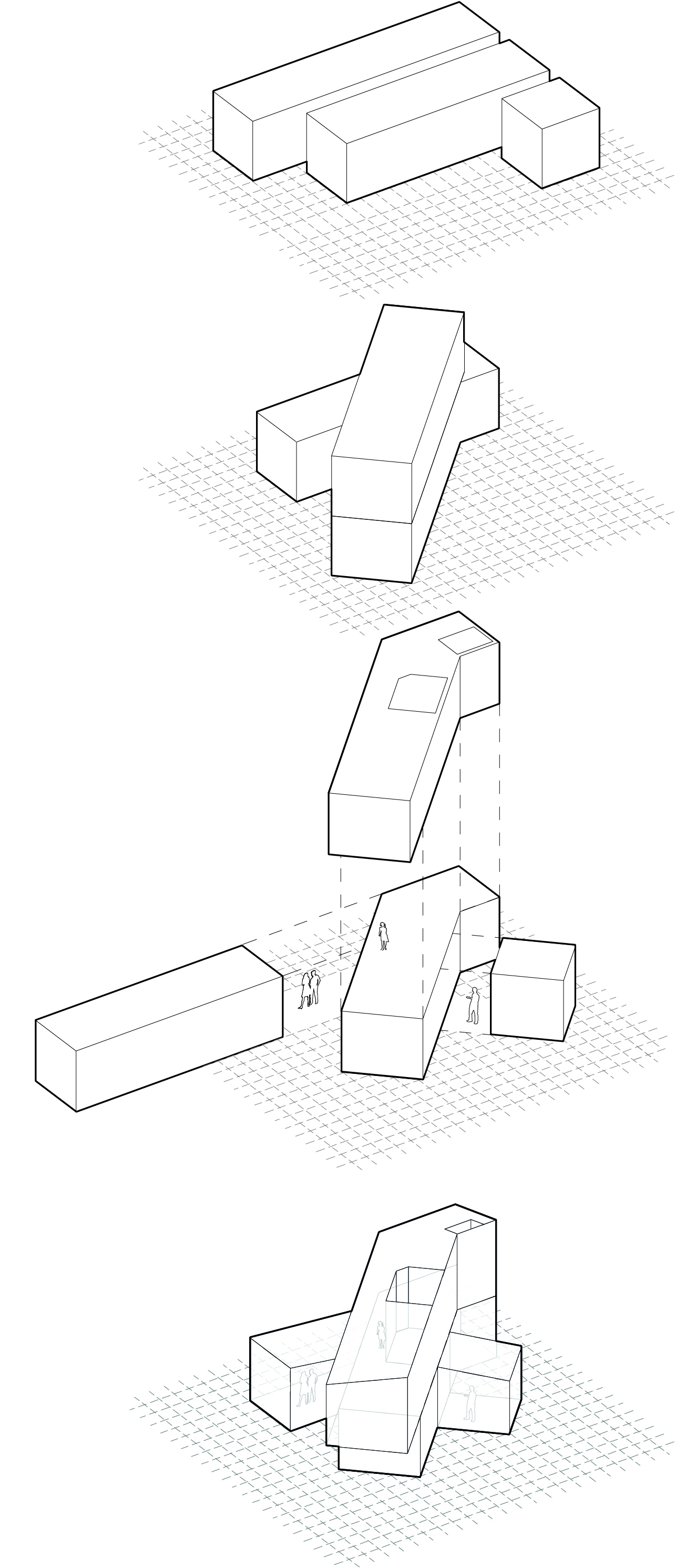

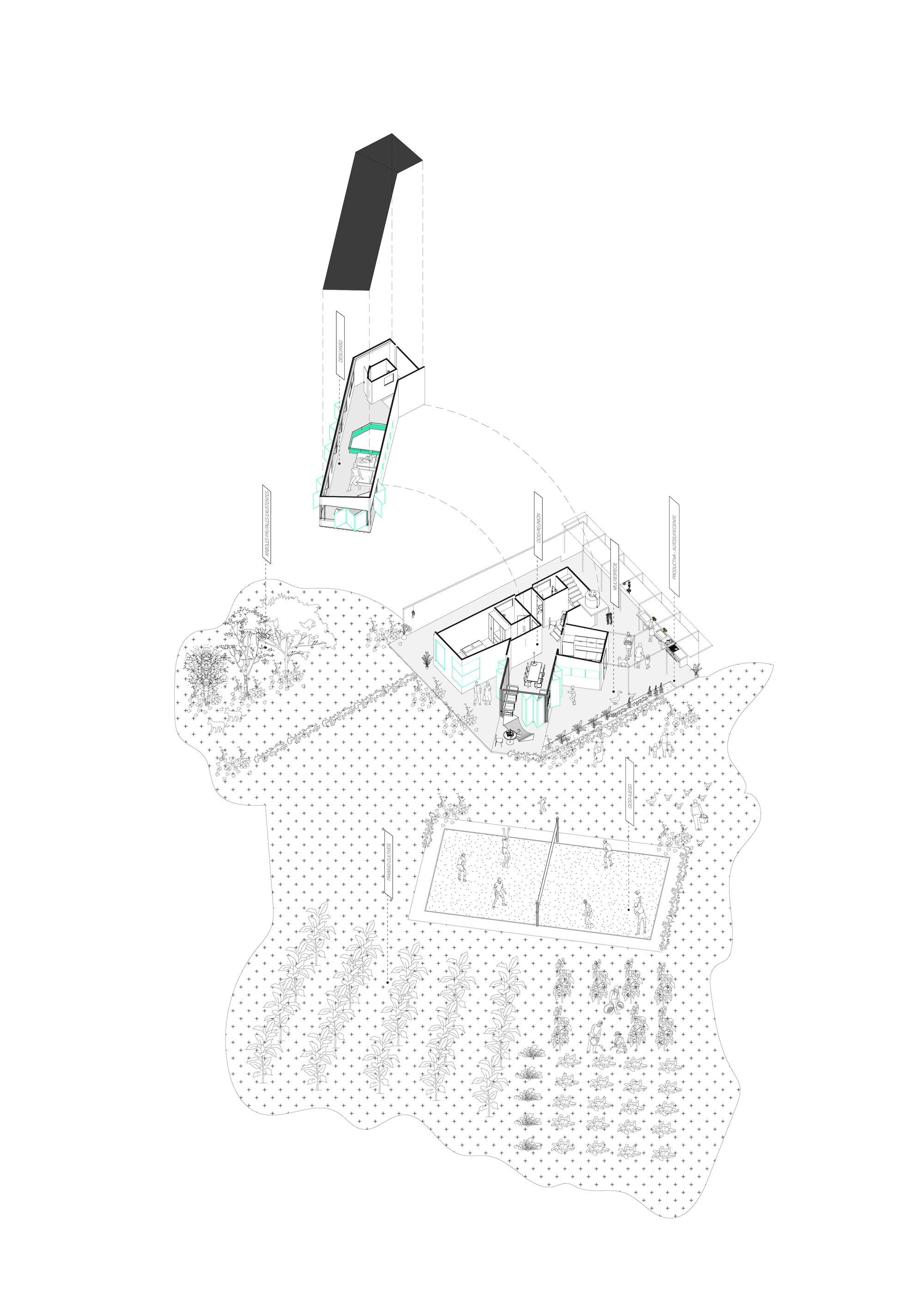

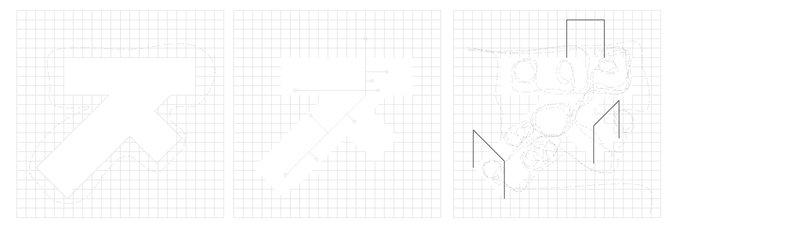

The axonometric drawing reveals the full logic of the cluster: volumes are not randomly scattered but carefully interlocked, stepping down the slope with shared walls and staggered floor levels. The isometric diagram sequence makes the massing transformations explicit, showing how the house evolved from a set of simple rectangular prisms into the final interlocking composition through a series of rotations and subtractions.

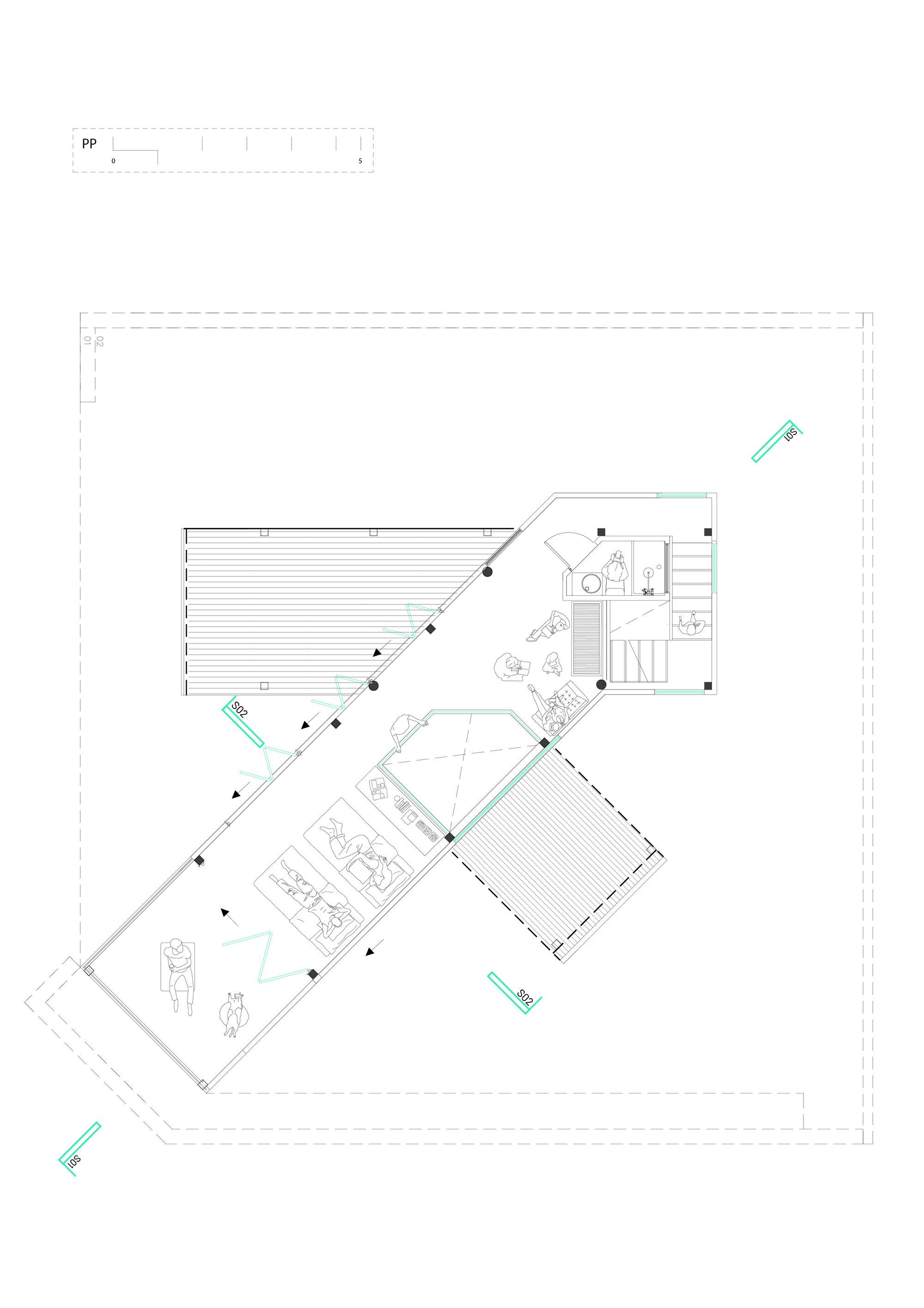

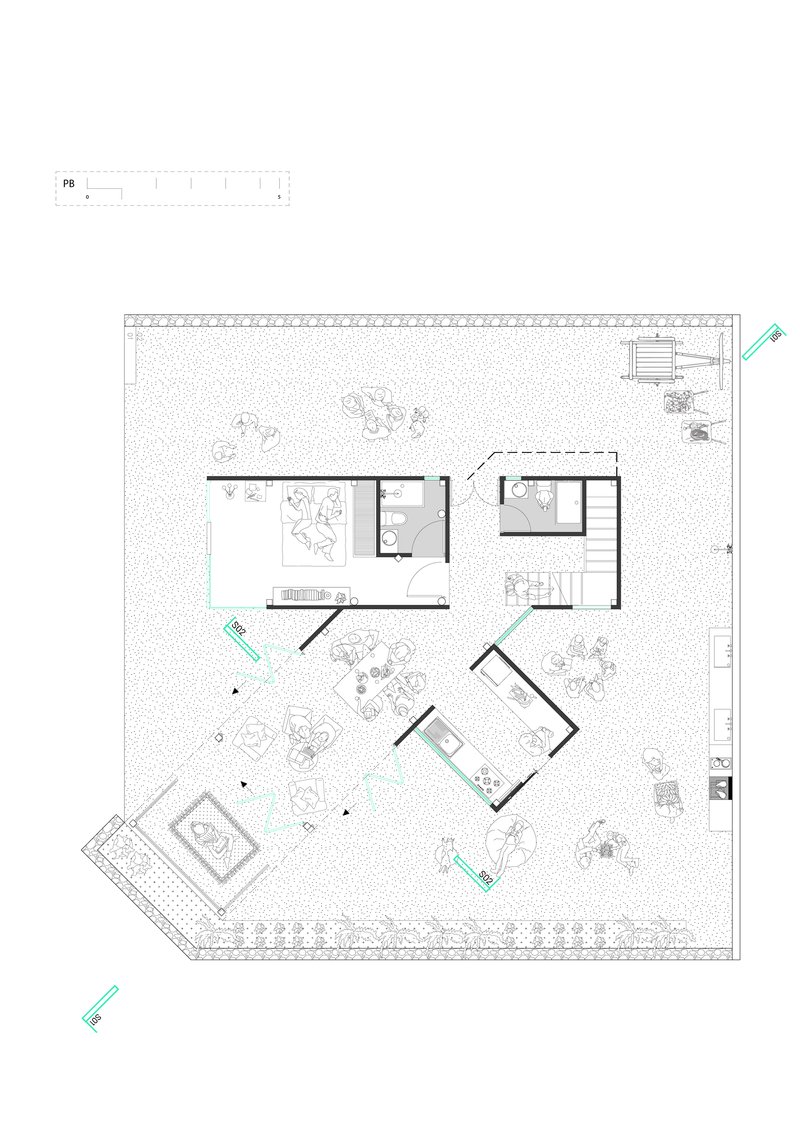

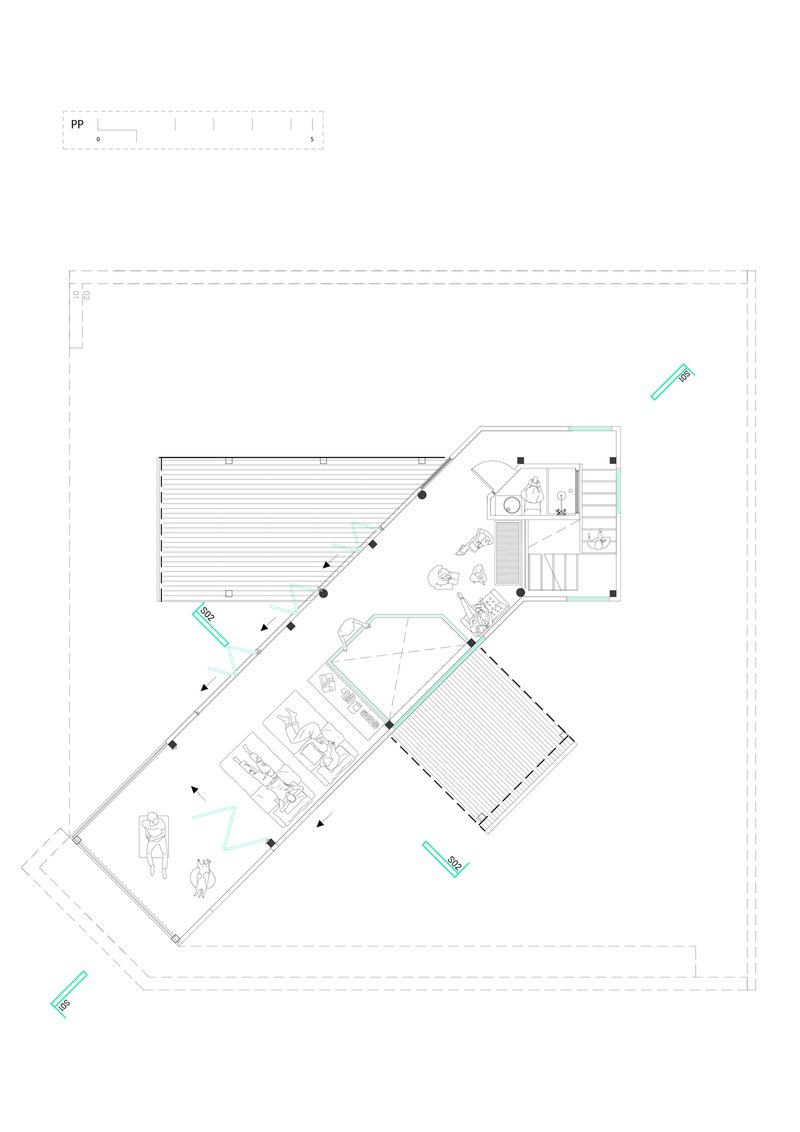

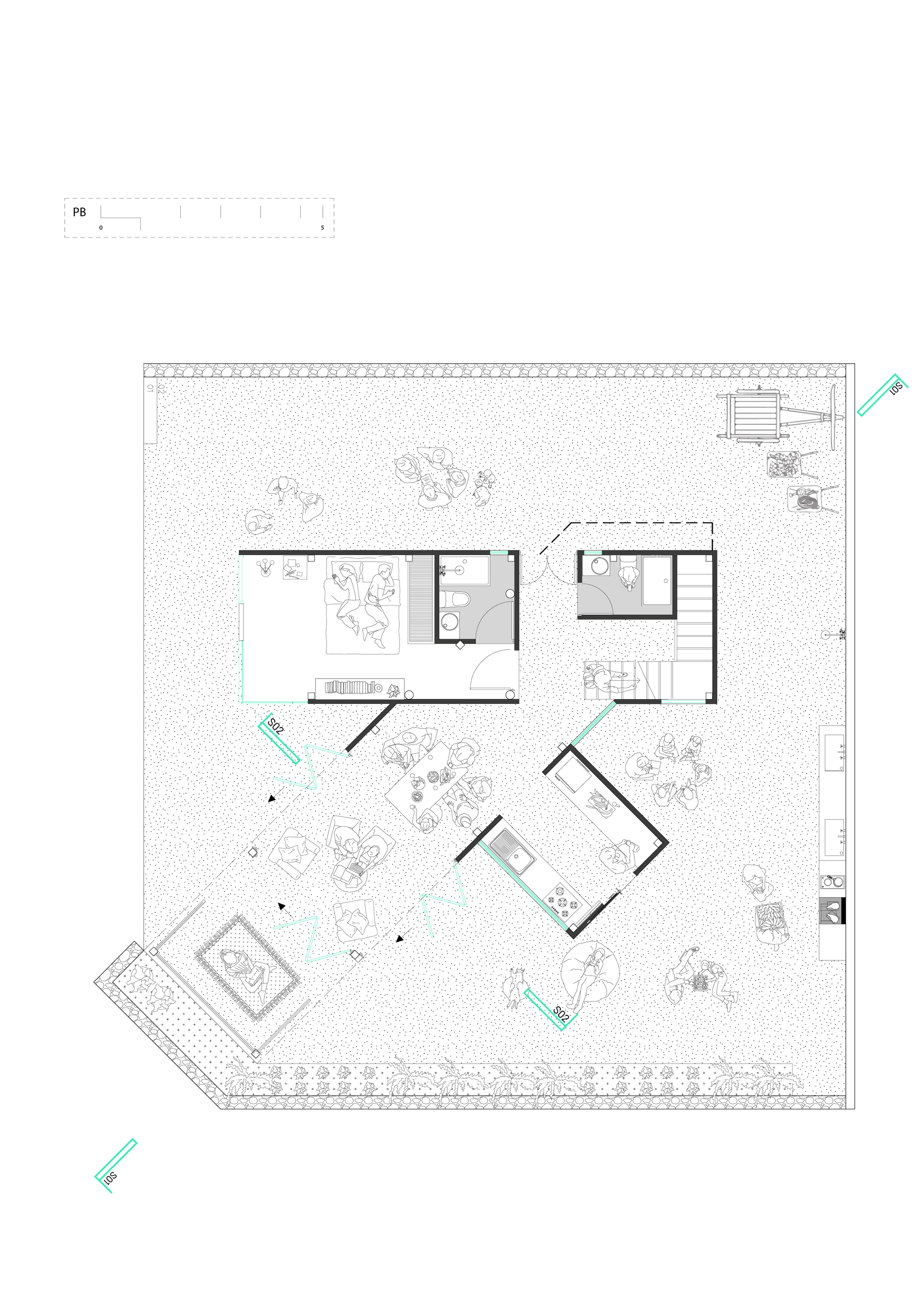

The floor plans confirm what the photographs suggest: walls splay at deliberate angles, creating rooms that are trapezoidal rather than rectangular. The central staircase acts as a hinge between the two wings of the upper floor, and the ground floor opens directly to planted garden areas threaded between building volumes. This is not a house with a yard; it is a house woven into its landscape.

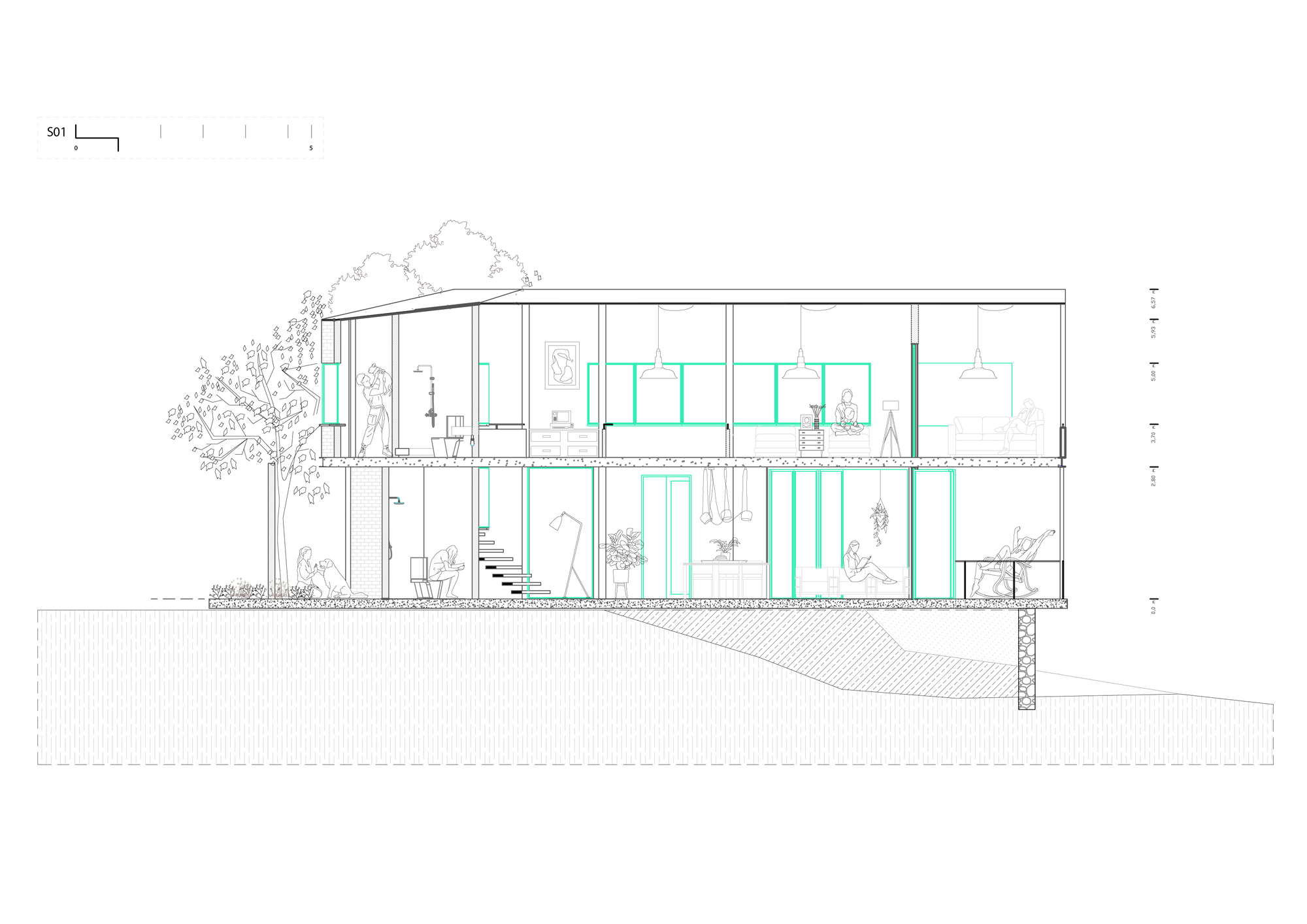

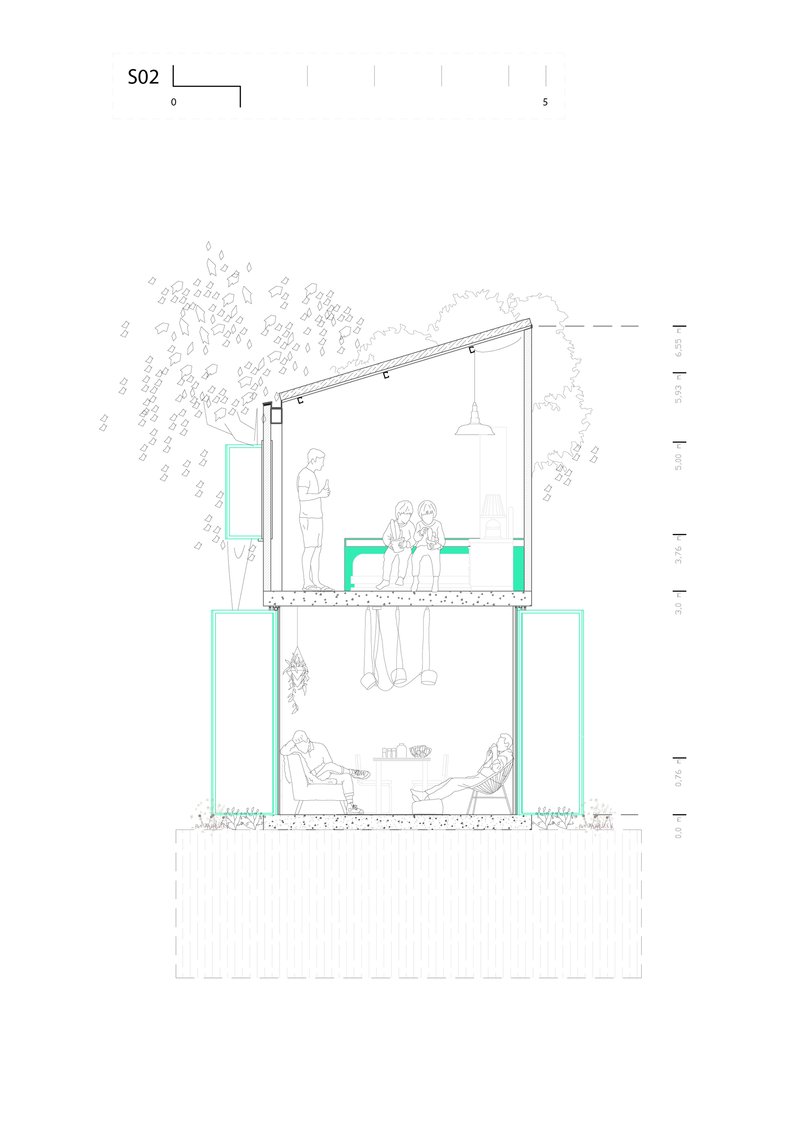

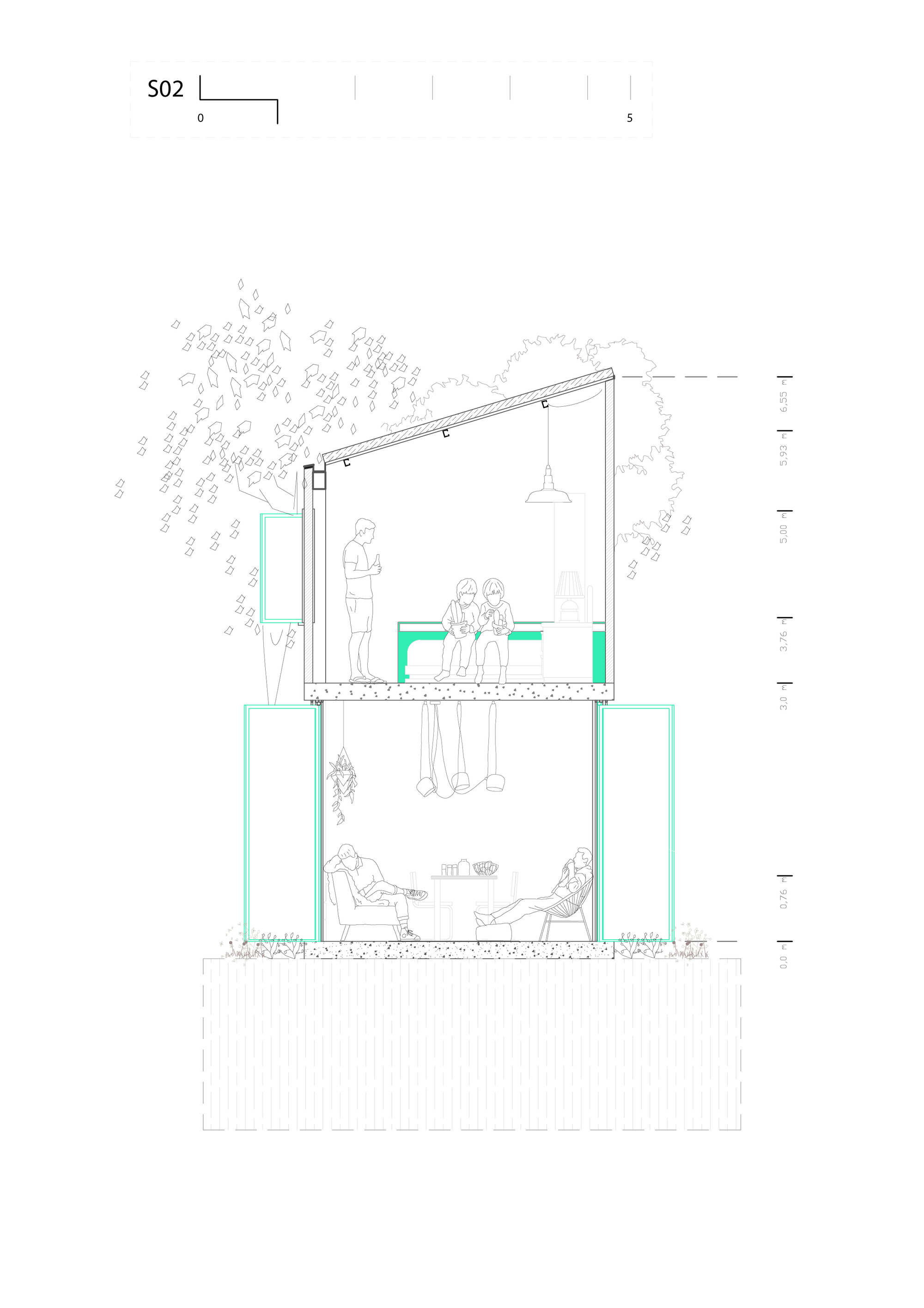

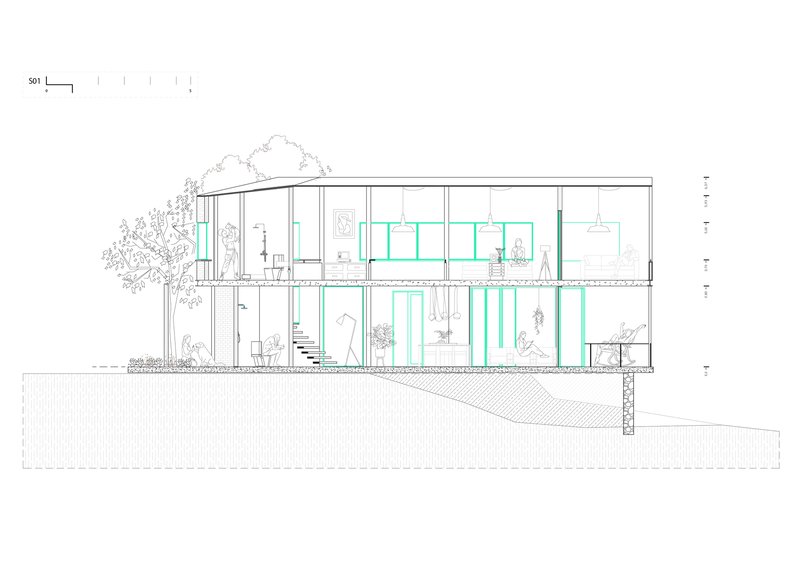

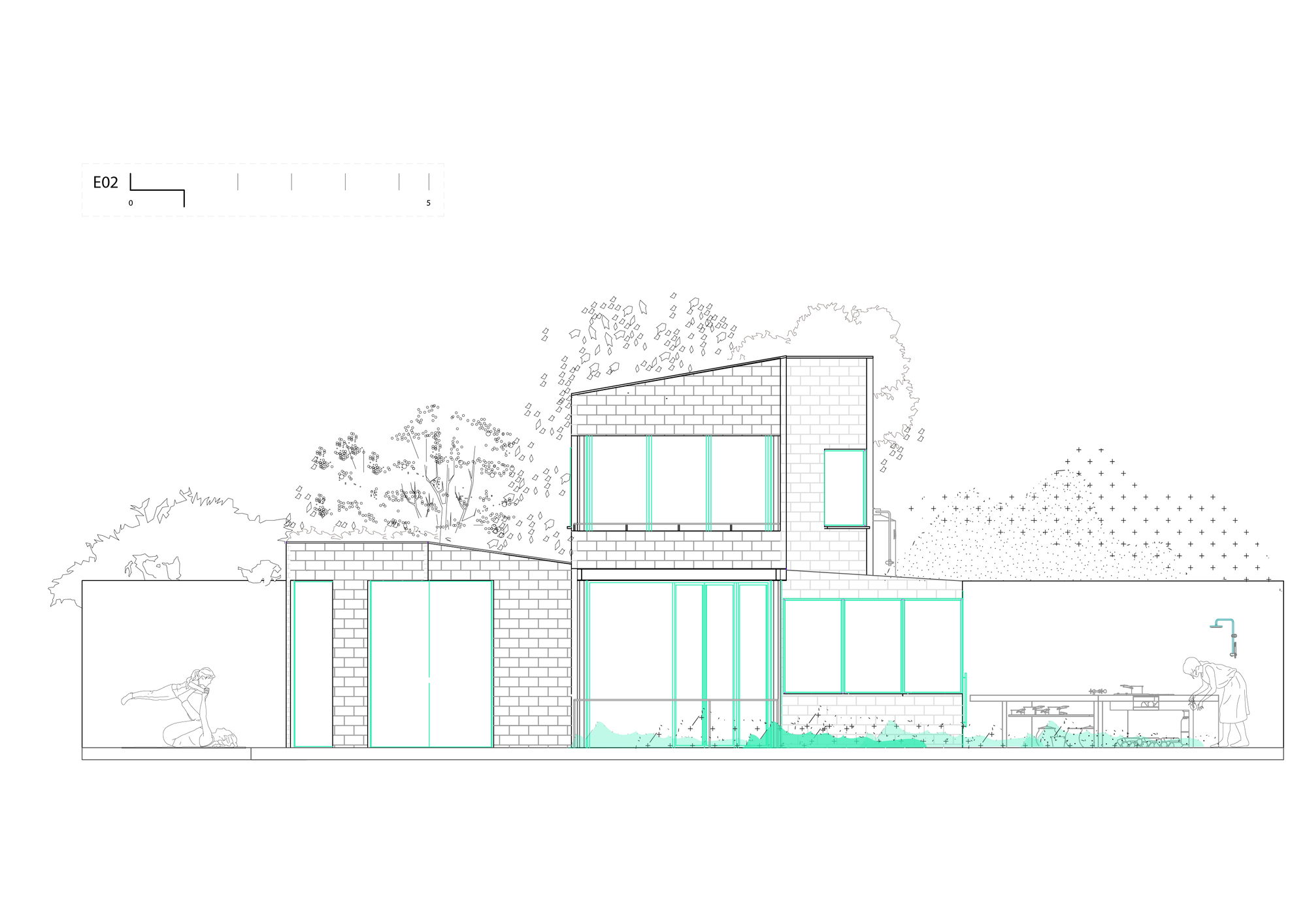

The elevation and section drawings expose the relationship between the double-height living space and the more compressed private rooms. One section shows a sloped roof over the main volume creating an upper deck, while another cuts through the glass-walled tower with the staircase visible at center. The scale figures in both drawings reinforce how modest the building's footprint truly is, even as its spatial ambitions punch above its weight class.

Why This Project Matters

Free House resists the two dominant narratives for rural architecture in Latin America: the nostalgic vernacular revival and the imported minimalist box. Instead, it proposes a third path: a house built from industrial materials, unapologetically modern in its spatial logic, yet fundamentally shaped by the specifics of its rocky site, its agricultural context, and its position within a productive landscape. The turquoise steel is not a gimmick; it is a way of giving the building identity without resorting to ornament or to the kind of "contextual" camouflage that often masks a lack of ideas.

For architects working on tight budgets in challenging terrain, the project offers concrete lessons. The cluster strategy accommodates topography without expensive earthworks. The two-material palette, concrete block plus steel, keeps construction legible and local. And the integration of productive landscape into the house's spatial logic ensures that the building remains connected to the economic and ecological reality of its setting. Chip Studio has built something that looks specific, works hard, and belongs exactly where it is.

Free House by Chip Studio, led by Cecibel Gonzalez and Carlos Macas. Malacatos, Ecuador. 135 m². Completed 2021. Photography by Nicolás Provoste C.
